Bottom-Mount Refrigerator

Model # LMXS30776S/03 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LMXS30776S/03 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

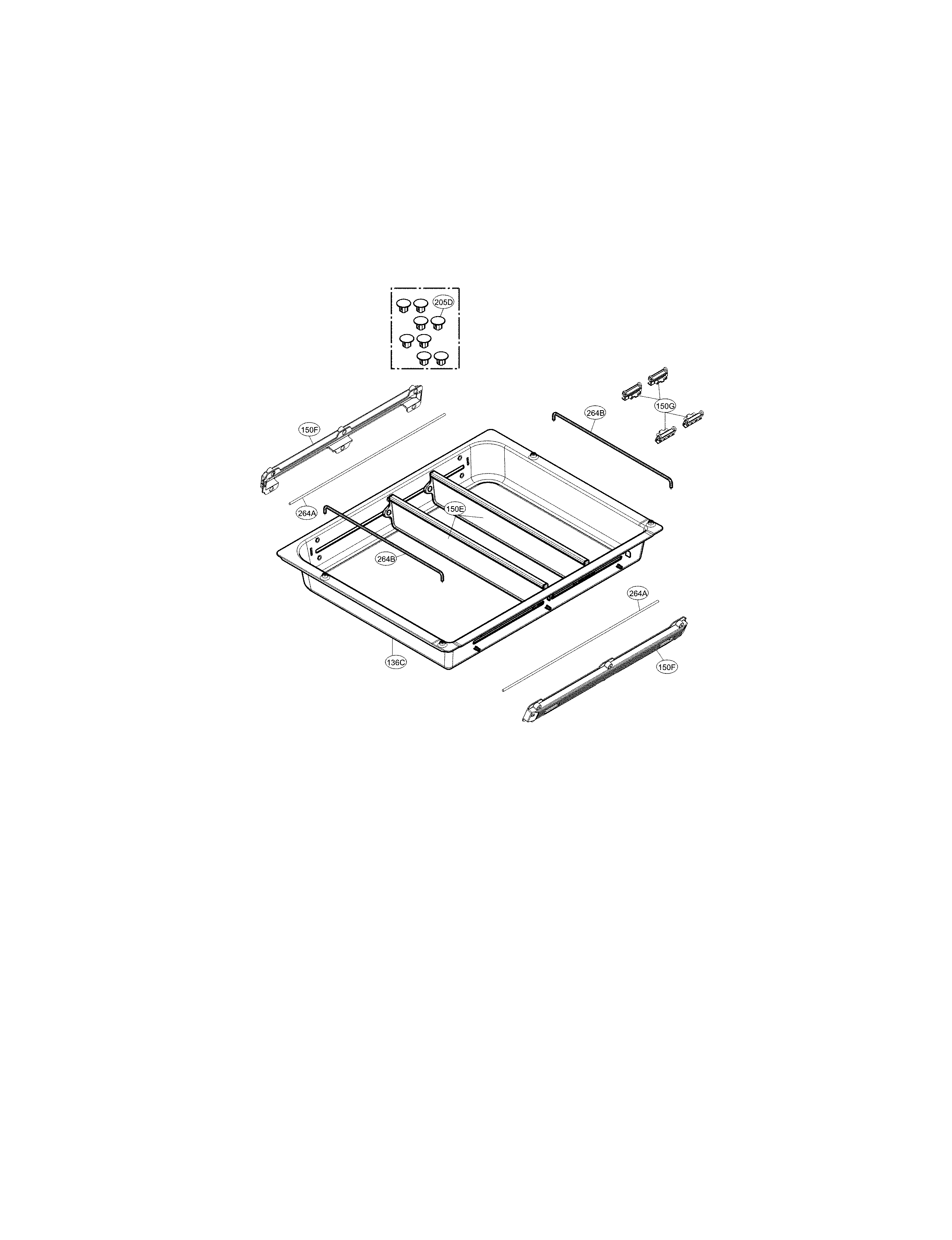

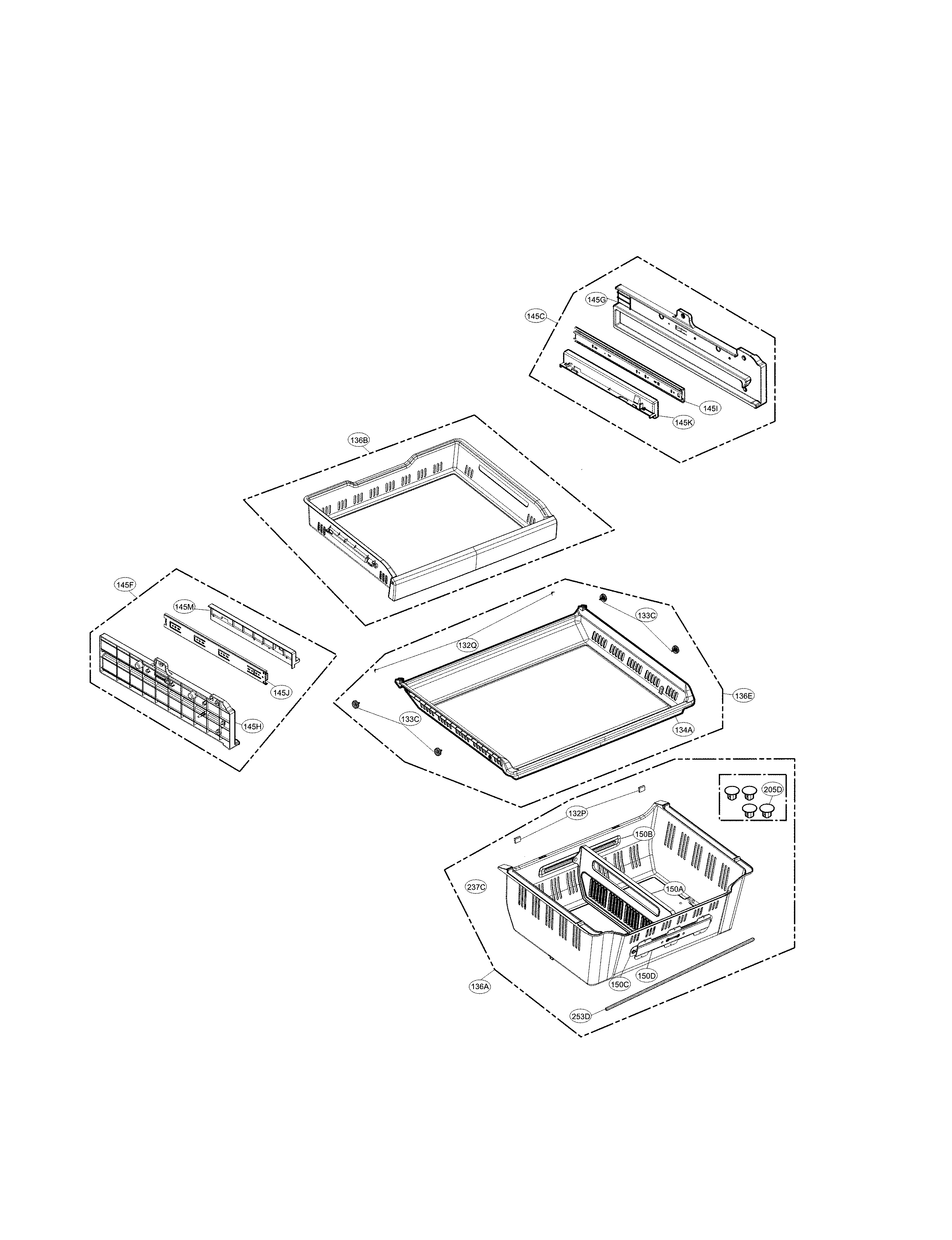

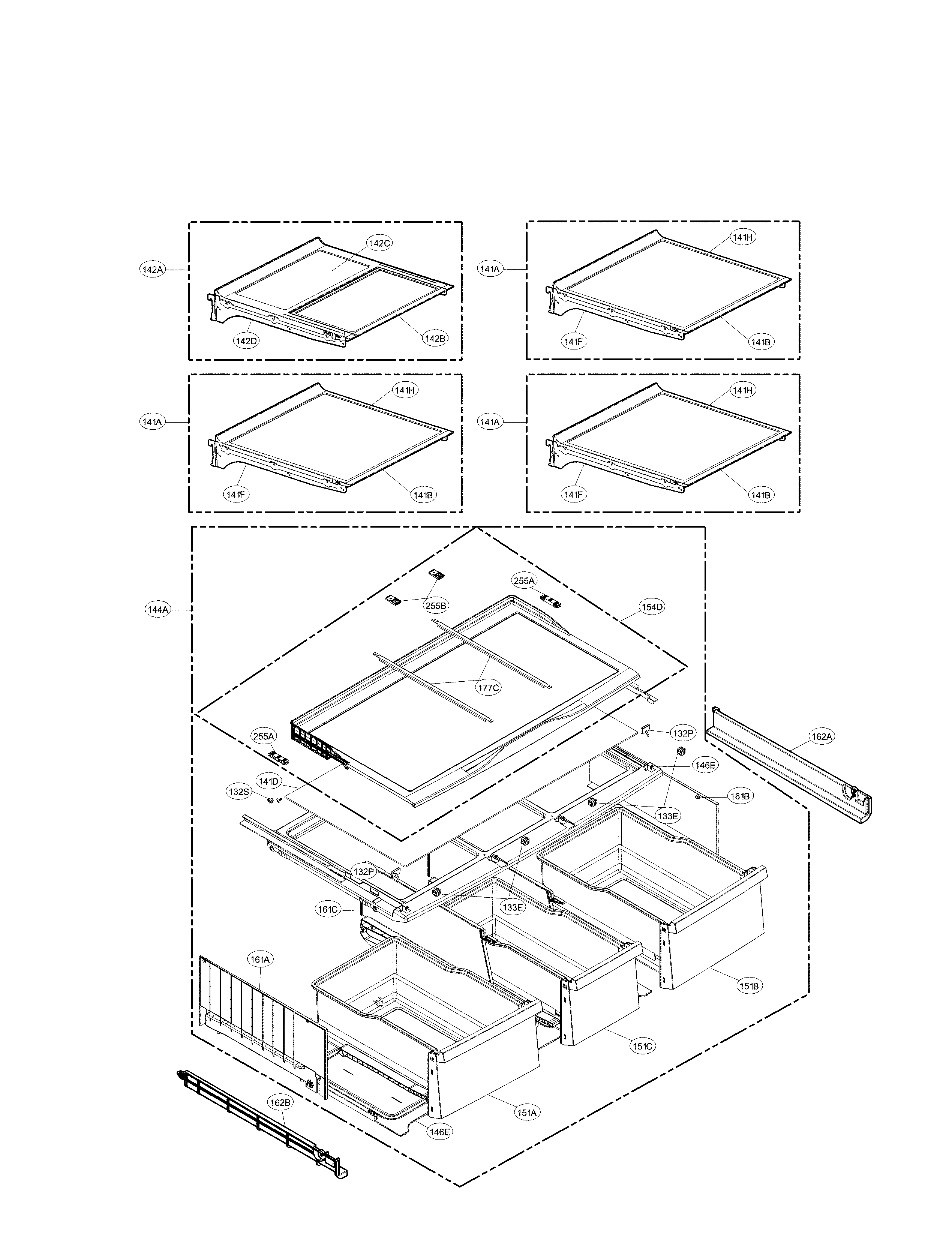

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
LMXS30776S/03 Refrigerators
Lg Refrigerator Air Filter ADQ73214404
#631C

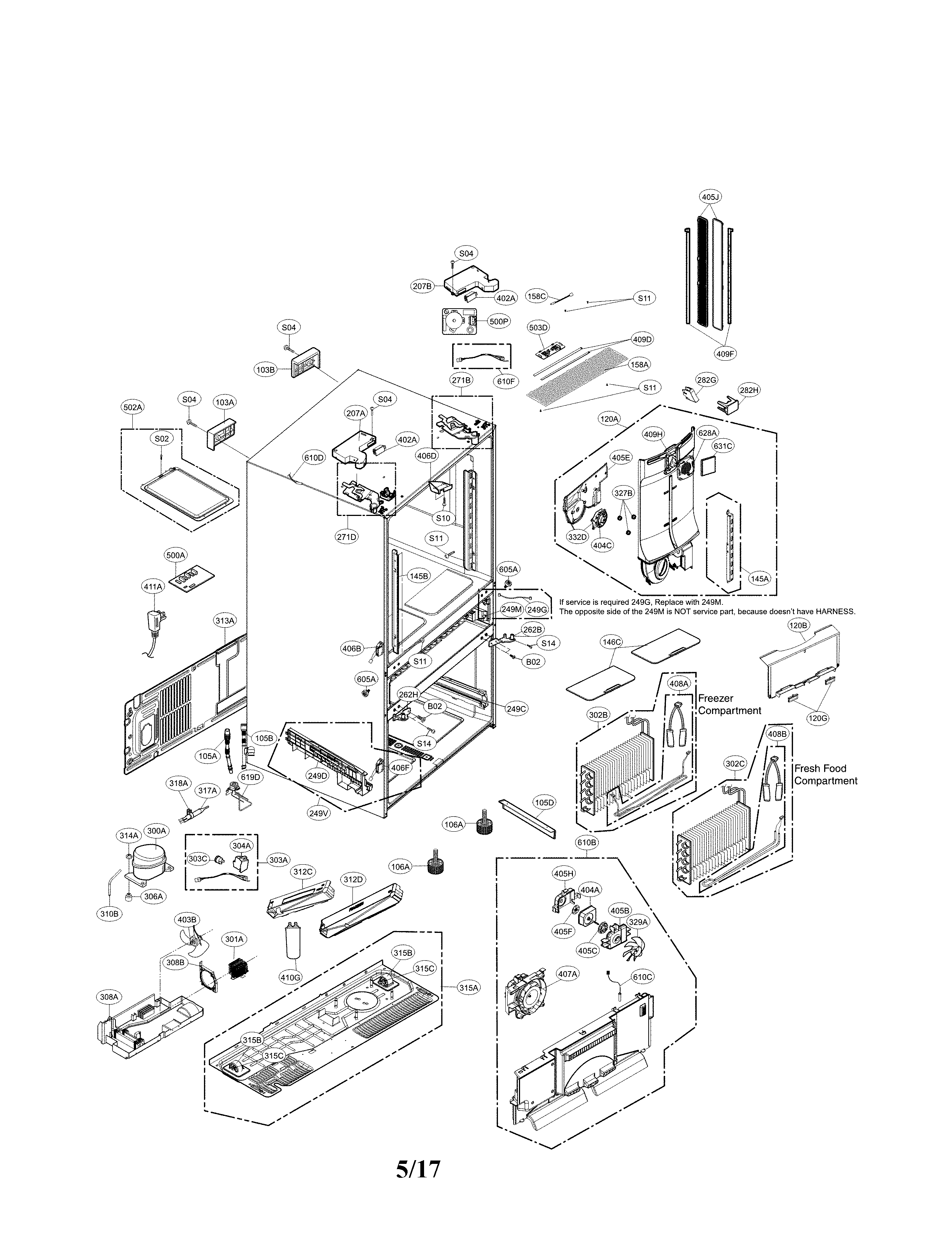

Case parts diagram

Lg refrigerator air filter

Part #ADQ73214404

Replaced by #ADQ73214408

?
Manufacturer substitution
This part replaces ADQ73214404. Substitute parts can look different from the original.
4.21 (56)
BEST SELLER

Get free shipping with Automatic Reorder

$33.52 |
15% OFF Phone Price : $39.52
In Stock
Refrigerator Filter Dryer 5851JA2007U
#317A

Case parts diagram

Refrigerator filter dryer

Part #5851JA2007U

Replaced by #ADH73150210

?
Manufacturer substitution
This part replaces 5851JA2007U. Substitute parts can look different from the original.
2 (1)
BEST SELLER
$81.59 |
7% OFF Phone Price : $87.59
In Stock
Refrigerator Condenser Coil ACG74204701
#301A

Case parts diagram

Refrigerator condenser coil

Part #ACG74204701

Replaced by #ACG73645004

?
Manufacturer substitution
This part replaces ACG74204701. Substitute parts can look different from the original.
BEST SELLER
$139.50 |
12% OFF Phone Price : $158.28
In Stock
Lg Refrigerator Ice Maker (replaces Aeq73110208) AEQ73110210
#600A

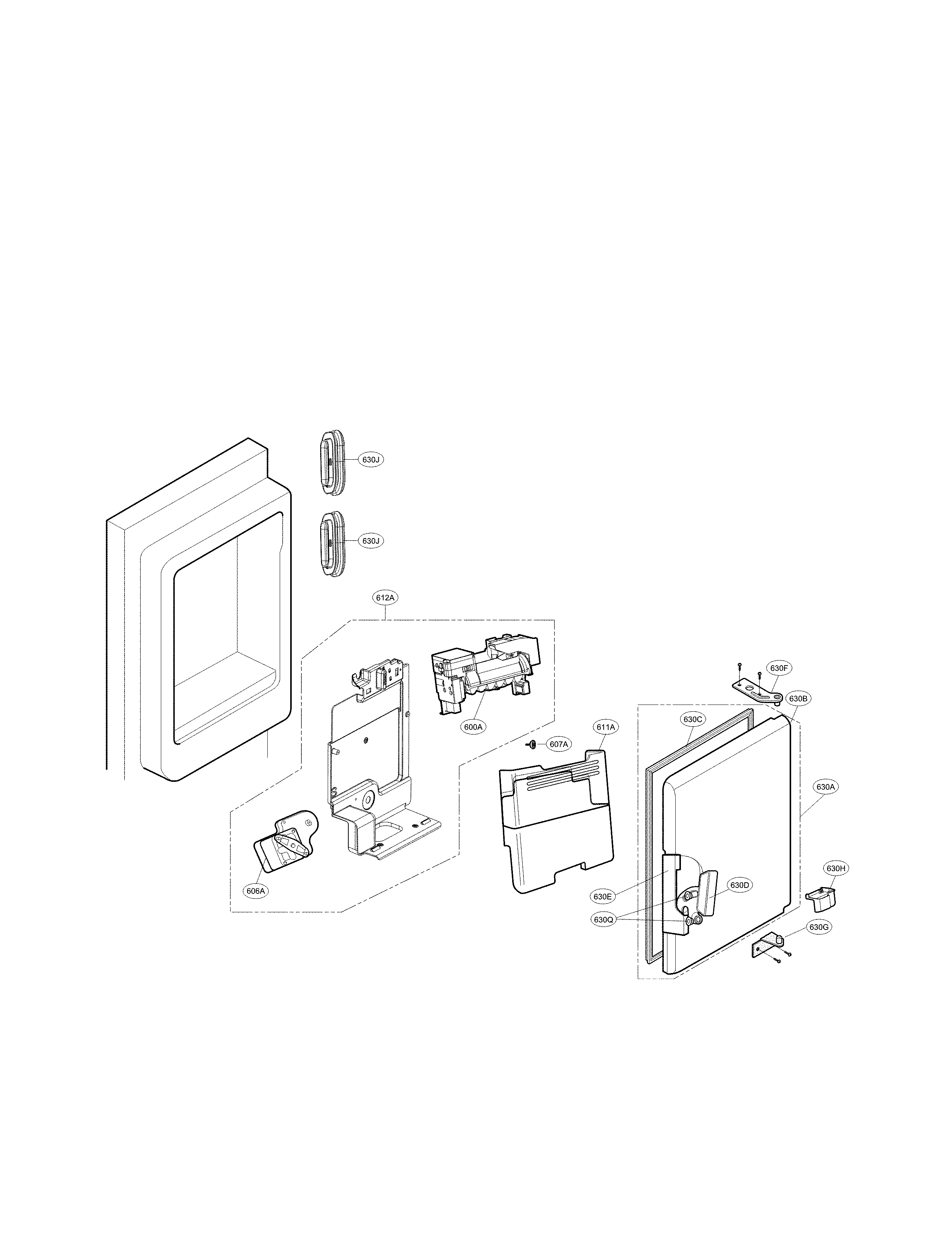

Ice maker parts diagram

Lg refrigerator ice maker (replaces aeq73110208)

Part #AEQ73110210

3.52 (33)
BEST SELLER
$191.68 |
6% OFF Phone Price : $203.68
In Stock
Lg Refrigerator Water Inlet Valve (replaces Aju72992610) AJU72992603
#619A

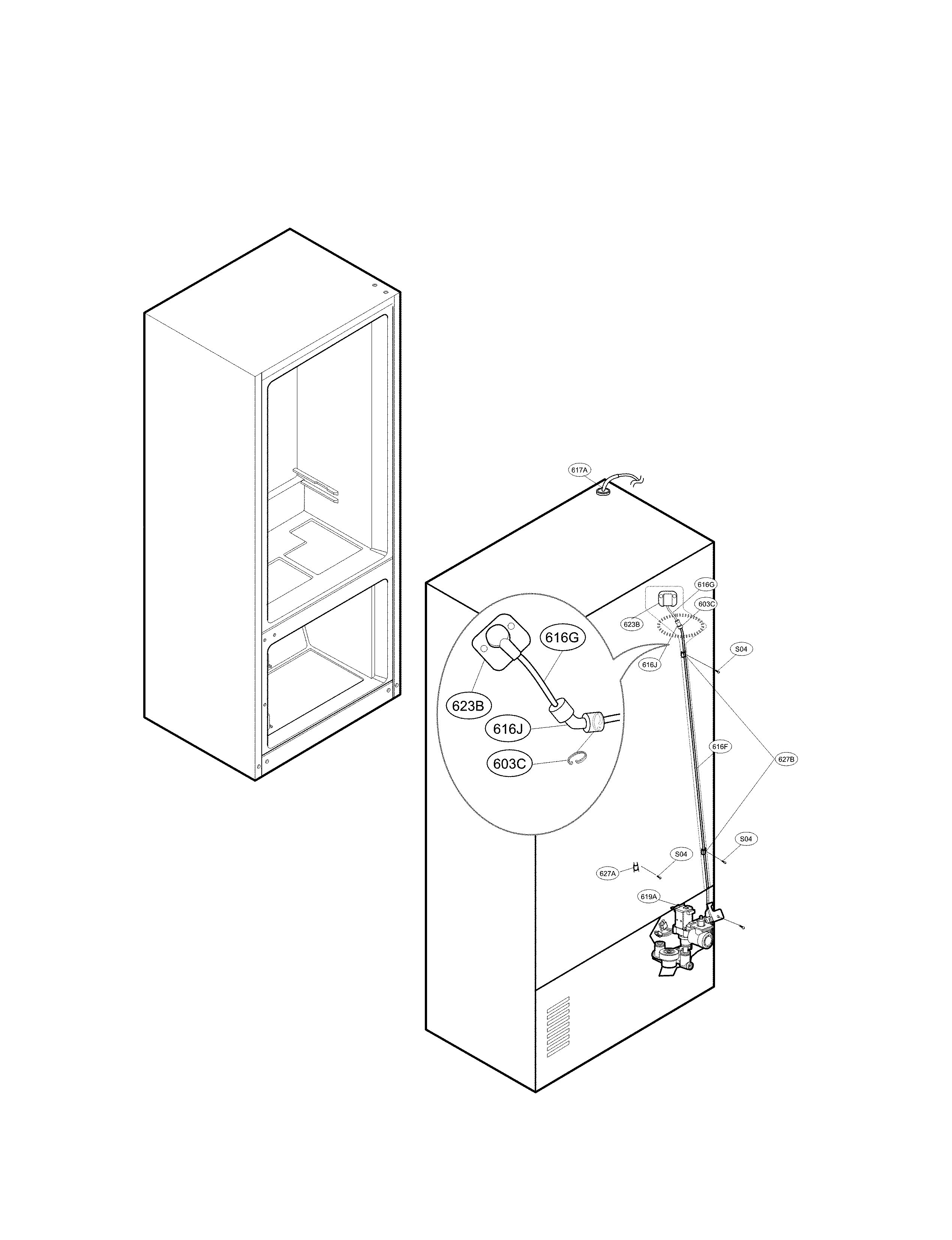

Tub and valve parts diagram

Lg refrigerator water inlet valve (replaces aju72992610)

Part #AJU72992603

4.14 (21)
BEST SELLER
$107.61 |
10% OFF Phone Price : $119.61
In Stock
Refrigerator Evaporator Assembly ADL74221802
#302C

Case parts diagram

Refrigerator evaporator assembly

Part #ADL74221802

BEST SELLER
$203.26 |
6% OFF Phone Price : $215.26
In Stock
Plastic Tube MJU62070615
#616F

Tub and valve parts diagram

Plastic tube

Part #MJU62070615

Replaced by #MJU62070602

?
Manufacturer substitution
This part replaces MJU62070615. Substitute parts can look different from the original.
4.14 (29)
BEST SELLER
$17.18 |
10% OFF Phone Price : $19.18
In Stock
Lg Refrigerator Dispenser Switch (replaces 6600jb3001b, 6600jb3001h) 6600JB3001C
#402C

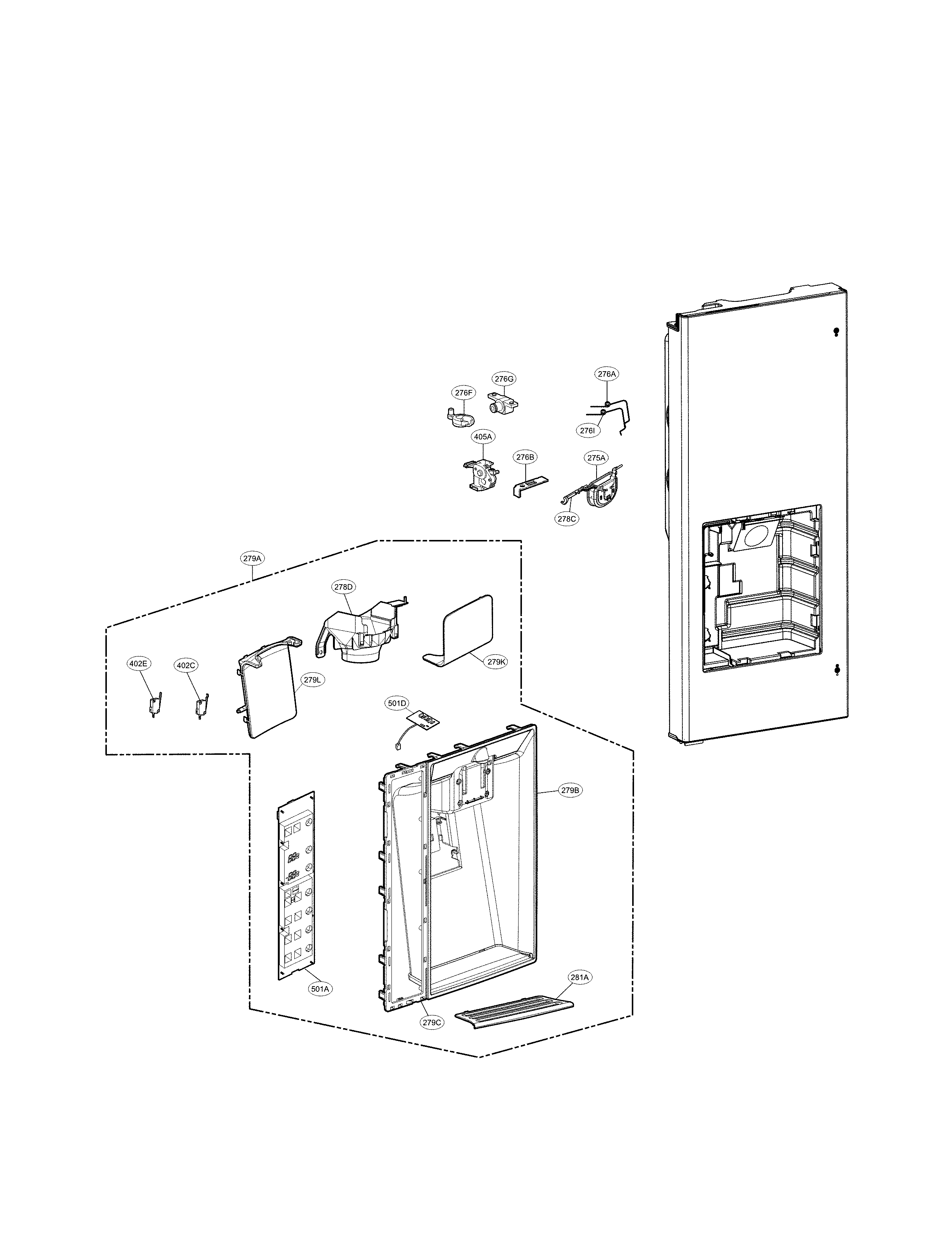

Dispenser parts diagram

Lg refrigerator dispenser switch (replaces 6600jb3001b, 6600jb3001h)

Part #6600JB3001C

4.29 (14)
BEST SELLER
$38.81 |
17% OFF Phone Price : $46.85
In Stock
Lg Refrigerator Water Filter (replaces Agm76550401) ADQ73613401
#624A

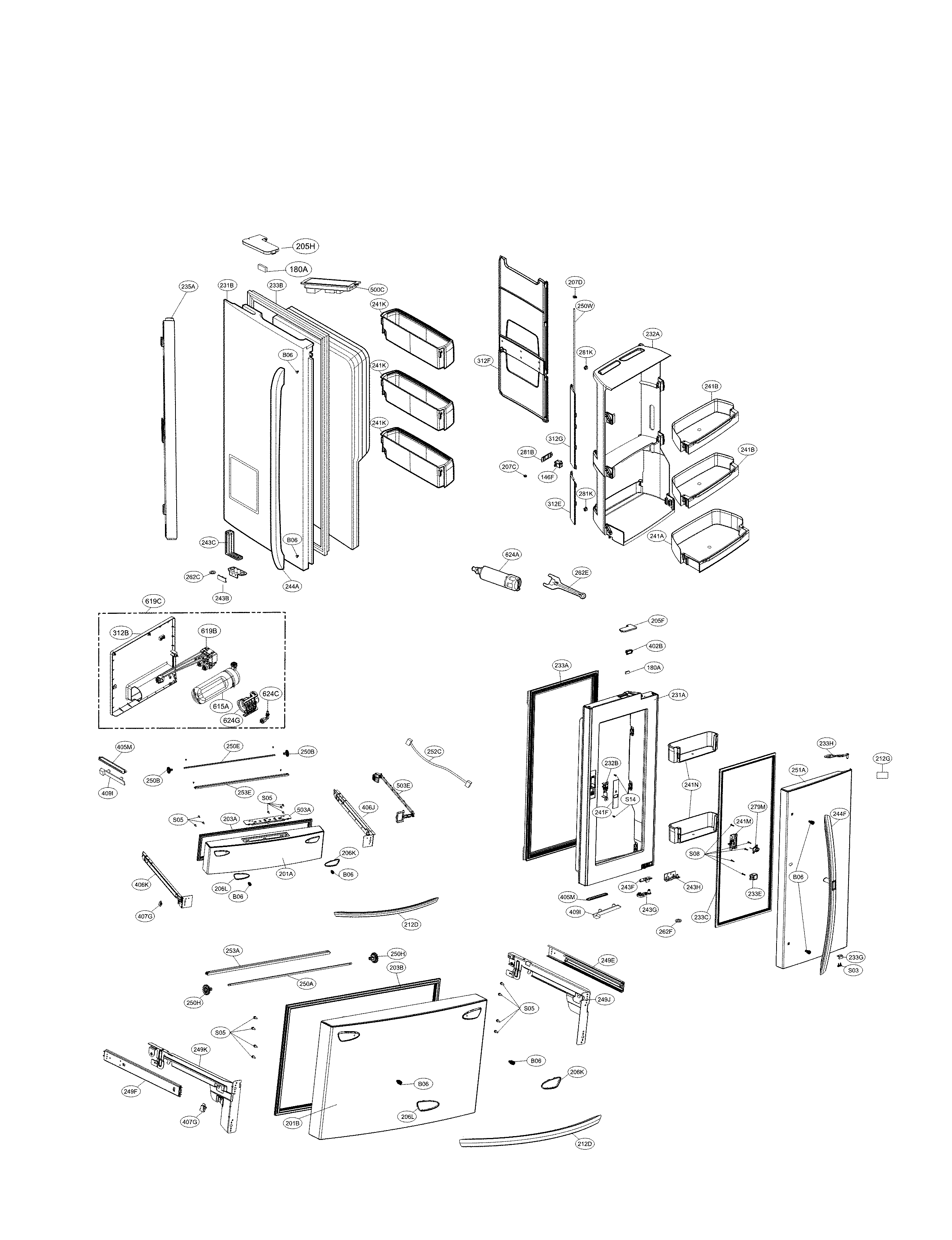

Door parts diagram

Lg refrigerator water filter (replaces agm76550401)

Part #ADQ73613401

4.68 (233)
BEST SELLER

Get free shipping with Automatic Reorder

$66.49
In Stock
Refrigerator Compressor Process Tube (replaces 4j00977n) 4J00977P
#310B

Case parts diagram

Refrigerator compressor process tube (replaces 4j00977n)

Part #4J00977P

5 (1)
BEST SELLER
$8.67 |
10% OFF Phone Price : $9.67
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
