Model # BCSD136WW Official Broan range hood

Here are the diagrams and repair parts for Official Broan BCSD136WW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 15 parts |

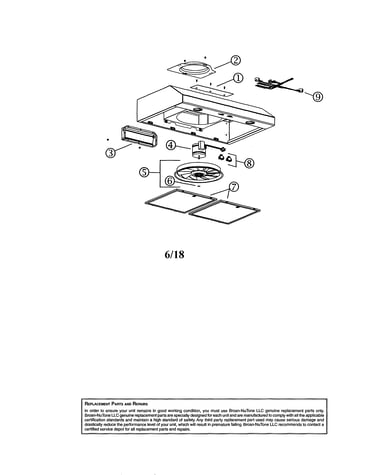

Range hood diagram

Range hood vent damper (replaces r680508)

Part #SR680508

$30.72 |

16% OFF Phone Price : $36.72

In Stock

Qty

Range hood diagram

Range hood fan motor assembly

Part #S97020408

$65.15

In Stock

Qty

Range hood diagram

Range hood wire harness

Part #S97020448

This item is not returnable

$24.09 |

20% OFF Phone Price : $30.09

In Stock

Qty

Range hood diagram

Range hood fan blade retainer

Part #SR99420635

This item is not returnable

$25.71

In Stock

Qty

Broan Range Hood Halogen Light Bulb, 50-watt SV05921

#NI04

All parts diagram

Broan range hood halogen light bulb, 50-watt

Part #SV05921

The manufacturer no longer makes this part, and there's no substitute part

Parts Bag Including: 4 Washer, 1 Suction Cup Tool, 4 Metal Screws #8-18 X 1/2" S97020292

#NI02

All parts diagram

Parts bag including: 4 washer, 1 suction cup tool, 4 metal screws #8-18 x 1/2"

Part #S97020292

The manufacturer no longer makes this part, and there's no substitute part

Non-ducted Filter-type Xd (set Of 2) (non-ducted Installatio Only) S97020467

#NI03

All parts diagram

Non-ducted filter-type xd (set of 2) (non-ducted installatio only)

Part #S97020467

The manufacturer no longer makes this part, and there's no substitute part

#NI01

All parts diagram

Wiring cover

Part #S98011637

The manufacturer no longer makes this part, and there's no substitute part

Range hood diagram

3 1/4" x 10" damper assy (incl screws)

Part #S97020534

The manufacturer no longer makes this part, and there's no substitute part

Range hood diagram

Grease filter - open mesh - type d1 (set of 2)

Part #S99010430-003

The manufacturer no longer makes this part, and there's no substitute part
