Model # 921152100 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 921152100 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

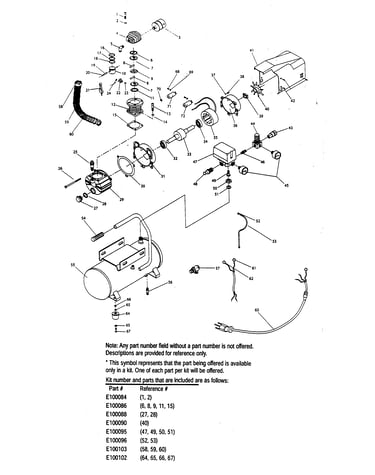

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 24 parts |

#25

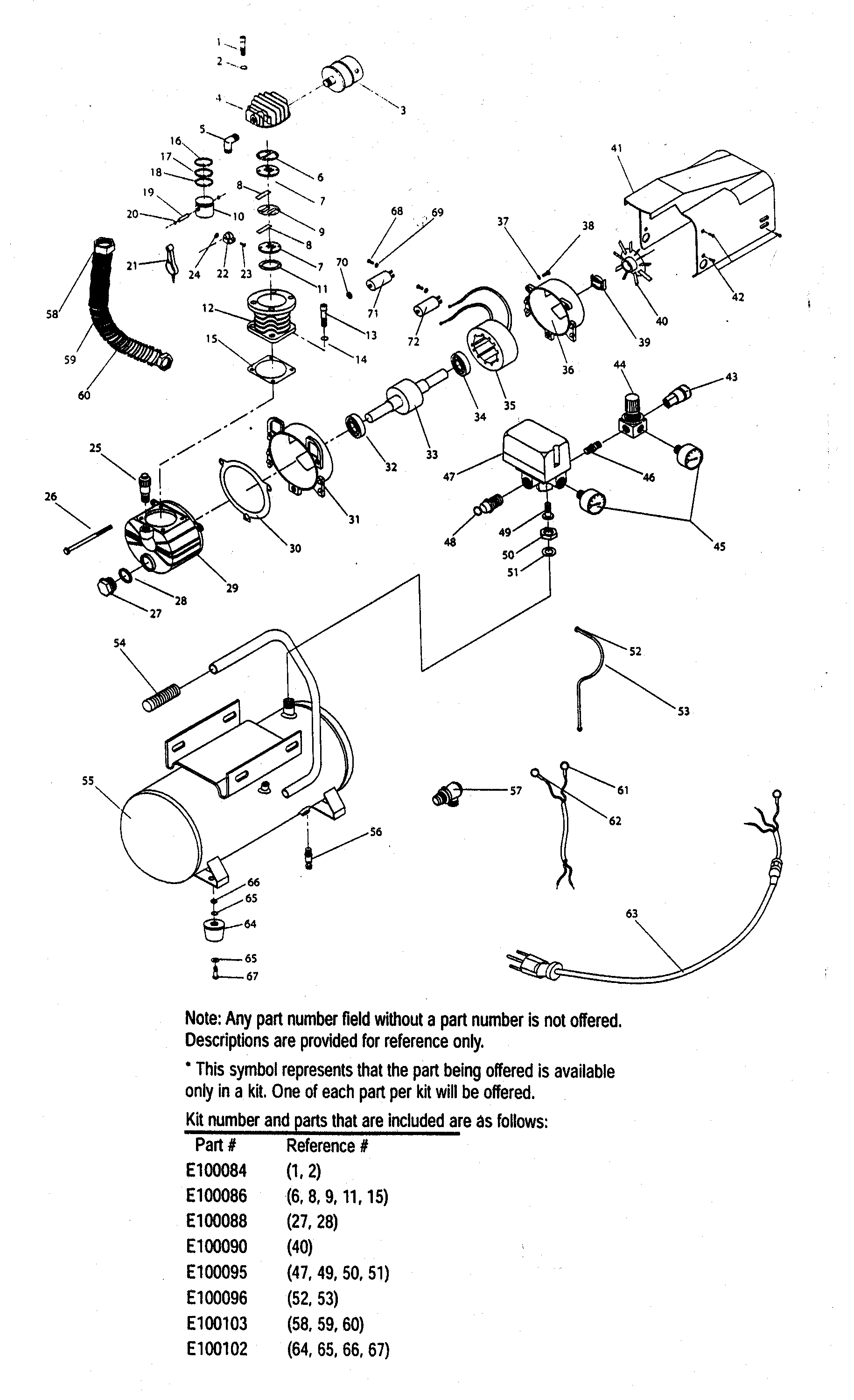

Compressor diagram

Air compressor oil fill cap

Part #E100087

The manufacturer no longer makes this part, and there's no substitute part

#10

Compressor diagram

Air compressor piston kit

Part #E100251

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor reed valve

Part #E100229

The manufacturer no longer makes this part, and there's no substitute part

Air compressor pressure switch kit

Part #E100095

The manufacturer no longer makes this part, and there's no substitute part

Task Force Air Compressor Pressure Regulator E100059

#44

Compressor diagram

Task force air compressor pressure regulator

Part #E100059

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Pressure Switch Nipple E100233

#46

Compressor diagram

Craftsman air compressor pressure switch nipple

Part #E100233

The manufacturer no longer makes this part, and there's no substitute part

#57

Compressor diagram

Air compressor check valve

Part #E100099

The manufacturer no longer makes this part, and there's no substitute part

Compressor diagram

Air compressor exhaust elbow

Part #E100085

The manufacturer no longer makes this part, and there's no substitute part

#54

Compressor diagram

Grip

Part #E100097

The manufacturer no longer makes this part, and there's no substitute part

Air compressor vibration isolator kit

Part #E100102

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your air compressors

Choose a symptom to see related air compressor repairs.

View all

Why does air leak from my air compressor?

Main causes: loose air tube fitting connections, bad check valve, faulty safety valve, damaged or corroded air tank, bad…

Why won't my air compressor start with a full air tank?

Main cause: bad check valve…

Why won't my air compressor build tank pressure?

Main causes: tank drain valve open or leaking air, leaky air tank, bad safety valve, worn pump seals, bad pump valve pla…

Why won't my air compressor tank hold air?

Main causes: rusted air tank, loose air tube fitting connections, bad check valve, leaky safety valve, bad tank drain va…

Why does my air compressor safety valve keep popping open?

Main causes: bad safety valve, pressure switch failure…

Why can't I adjust the output air pressure on my air compressor?

Main cause: faulty output air pressure regulator…

Why doesn't my air compressor's pressure gauge work?

Main cause: bad air tank pressure gauge…

Why is my air compressor not turning on?

Main causes: lack of electrical power, check valve failure, bad pressure switch…

Most common repair guides to help fix your air compressors

These step-by-step repair guides will help you safely fix what’s broken on your air compressor.

View all

How to replace an air compressor pressure switch

You can replace a broken air compressor pressure switch in about 45 minutes. …

Repair difficulty

Time required

45 minutes or less

How to rebuild an air compressor pump

If the air compressor won't fill the tank with compressed air, rebuild the pump using these steps in about 45 minutes. …

Repair difficulty

Time required

45 minutes or less

How to replace an air compressor check valve

You can replace a defective air compressor check valve in about 10 minutes.…

Repair difficulty

Time required

15 minutes or less
