Model # SF302BEAW0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SF302BEAW0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Oven Igniter 816625
#13

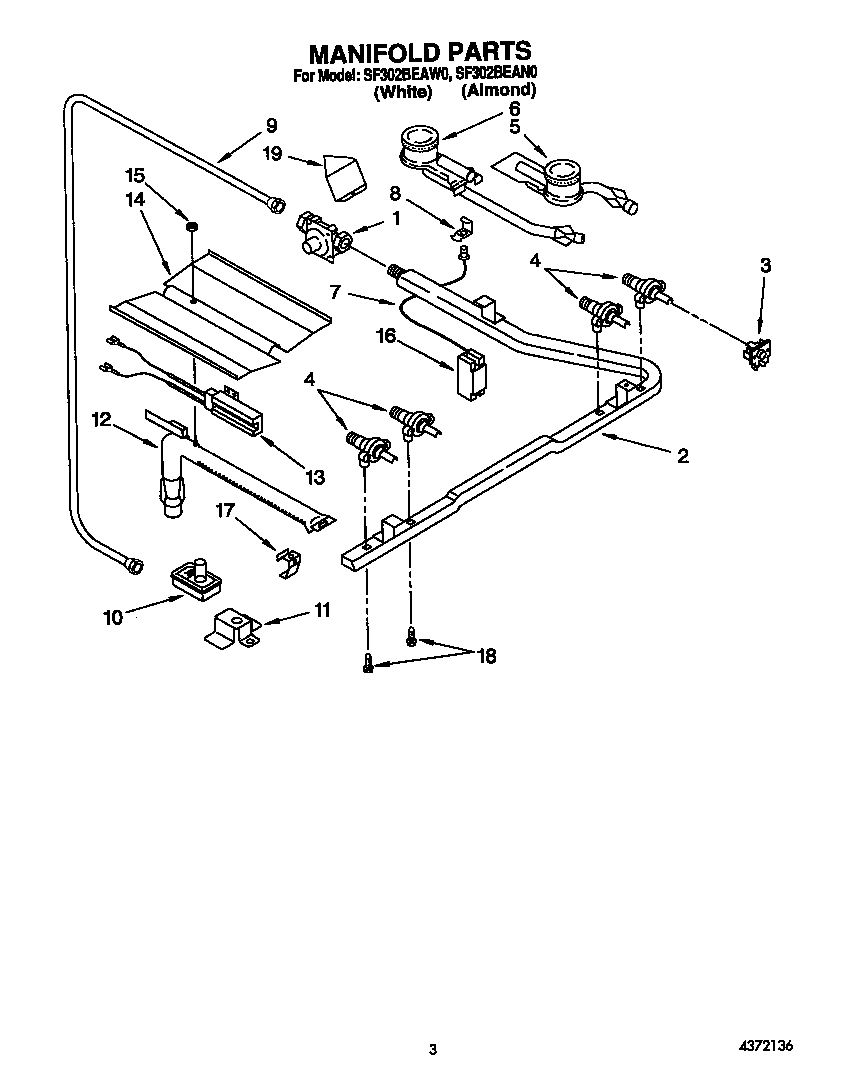

Manifold diagram

Oven igniter

Part #816625

Replaced by #814269

?
Manufacturer substitution
This part replaces 816625. Substitute parts can look different from the original.
$98.19 |
11% OFF Phone Price : $110.19
In Stock
Insulation 4371091
#15

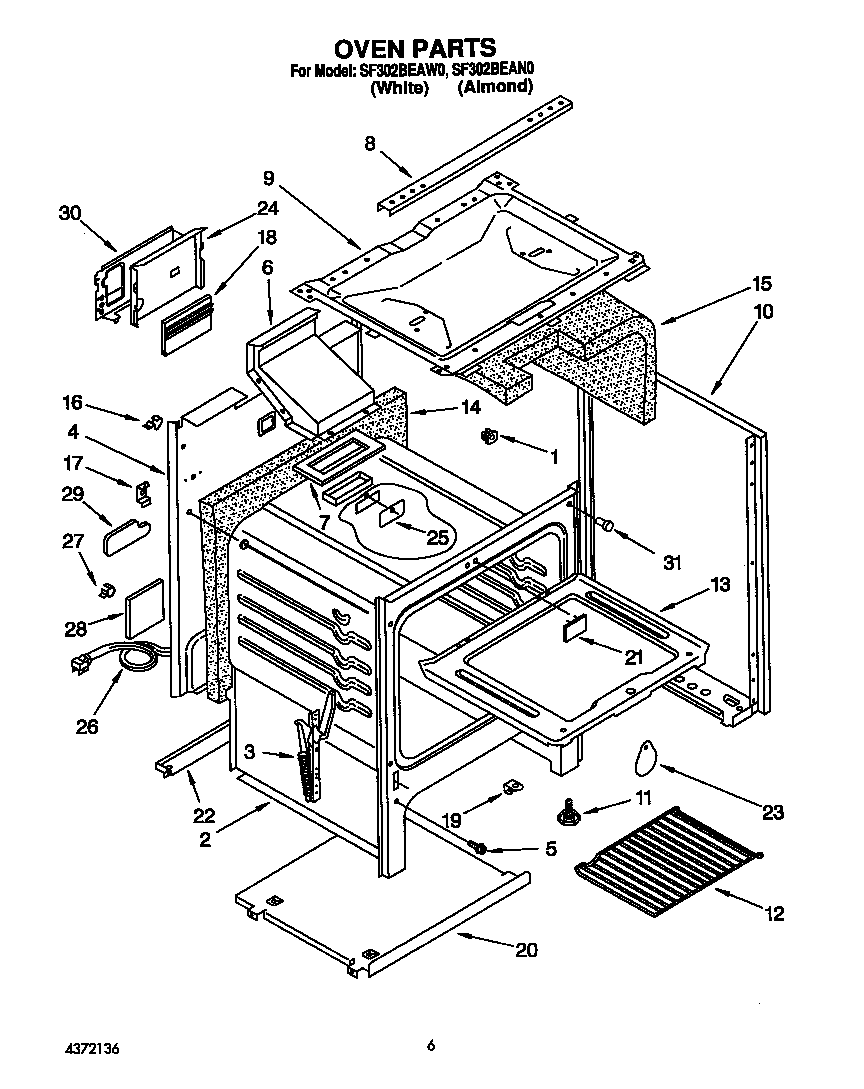

Oven diagram

Insulation

Part #4371091

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4371091. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Surface Knob 4371476
#3

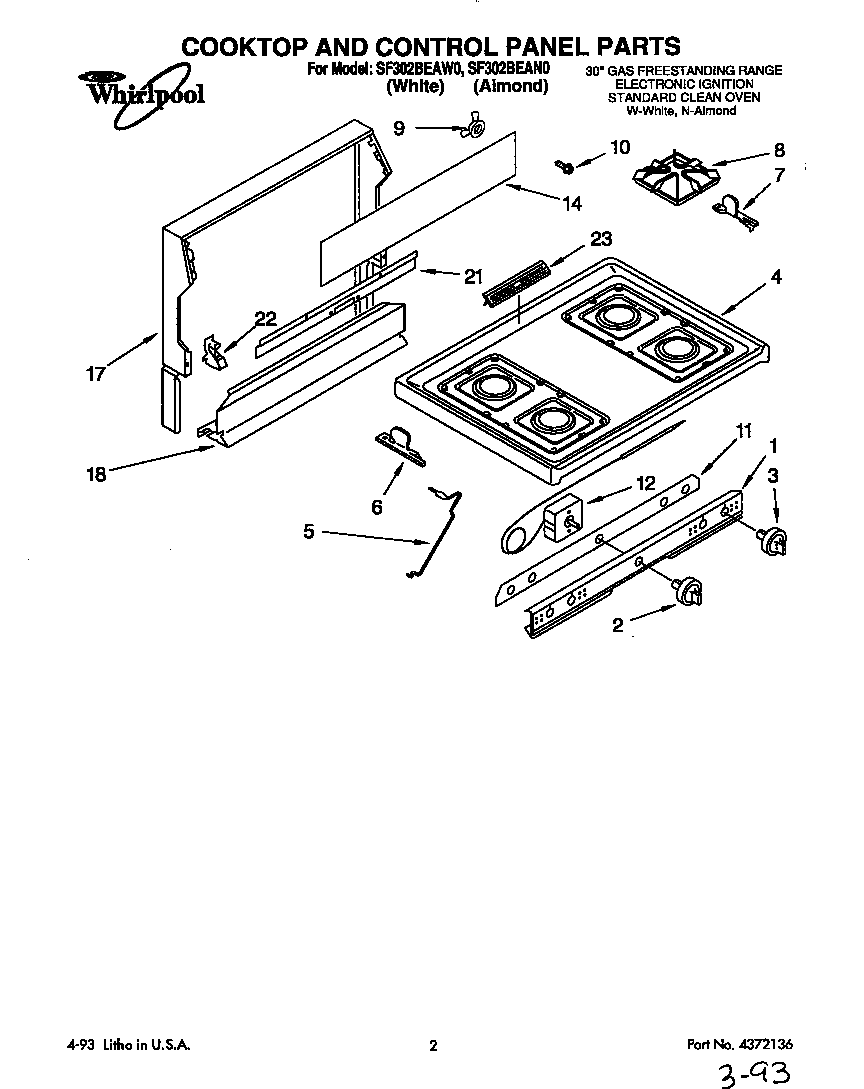

Cooktop and control panel diagram

Surface knob

Part #4371476

The manufacturer no longer makes this part, and there's no substitute part

Screw 4371027
#18

Manifold diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Burner 4371480
#5

Manifold diagram

Burner

Part #4371480

The manufacturer no longer makes this part, and there's no substitute part

Panel (white) 4371479
#4A

Cooktop and control panel diagram

Panel (white)

Part #4371479

The manufacturer no longer makes this part, and there's no substitute part

Broiler Drawer 4371116
#13

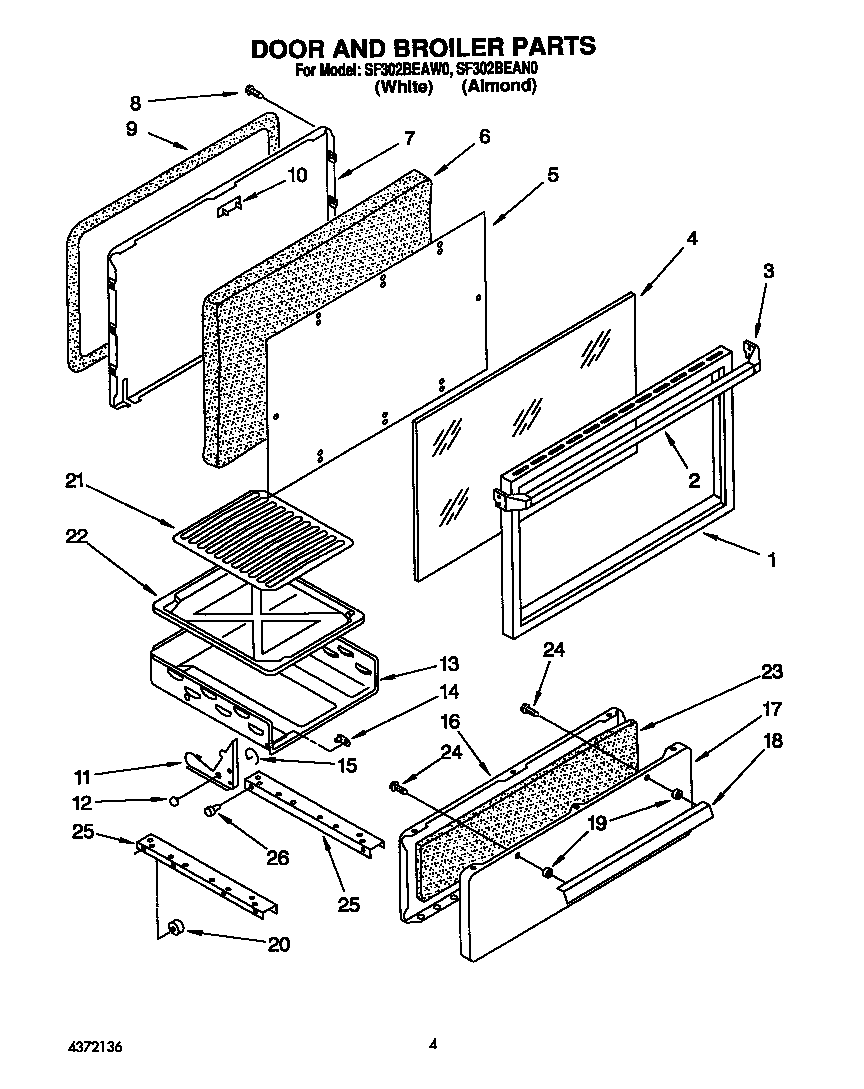

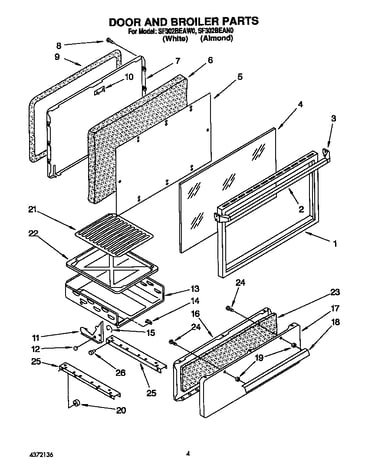

Door and broiler diagram

Broiler drawer

Part #4371116

The manufacturer no longer makes this part, and there's no substitute part

Door Spring 4371123
#15A

Door and broiler diagram

Door spring

Part #4371123

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield 4372096
#30

Oven diagram

Heat shield

Part #4372096

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 4371297
#4

Manifold diagram

Burner valve

Part #4371297

The manufacturer no longer makes this part, and there's no substitute part
