Craftsman
Lawn Vacuum

Model # 247770130 Official Craftsman yard vacuum

Here are the diagrams and repair parts for Official Craftsman 247770130 yard vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

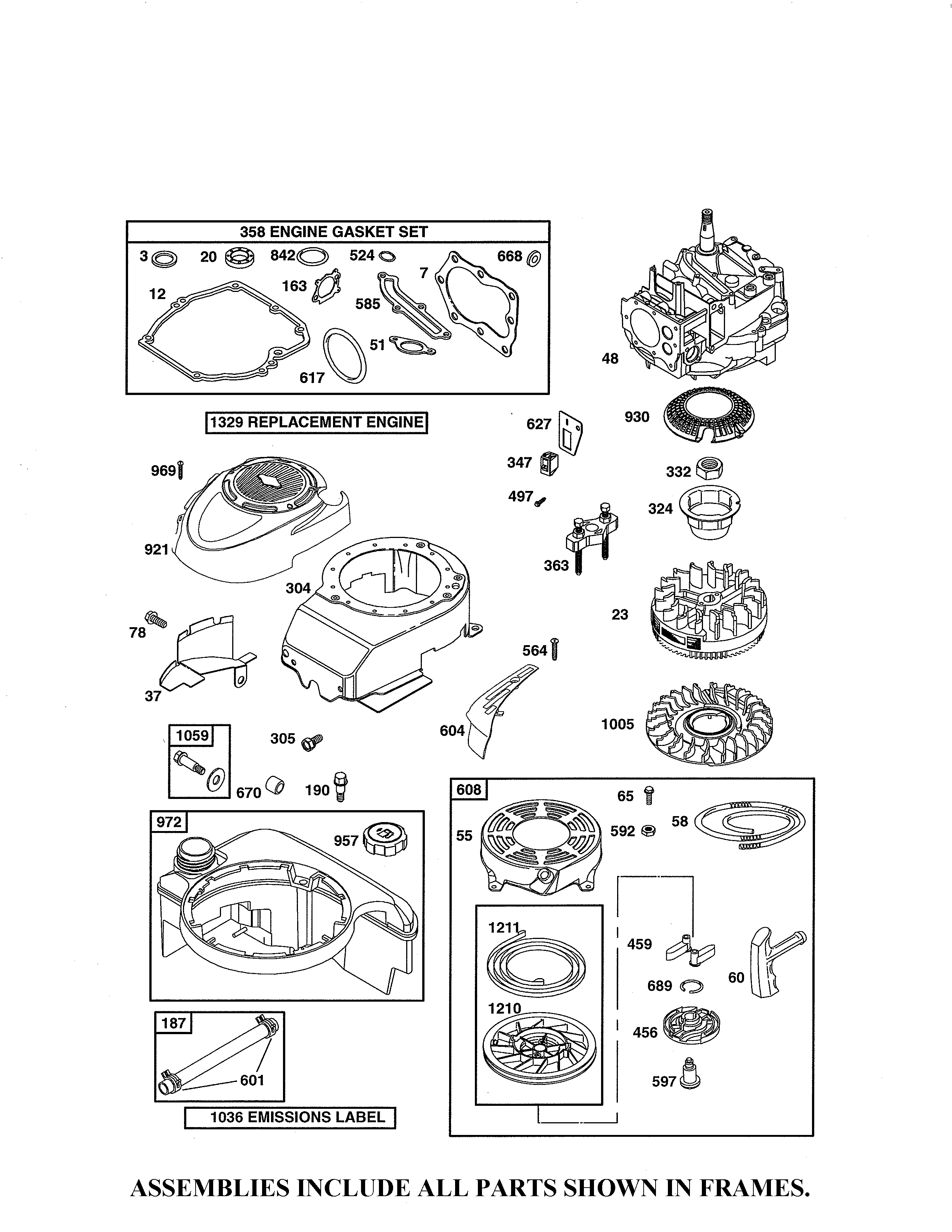

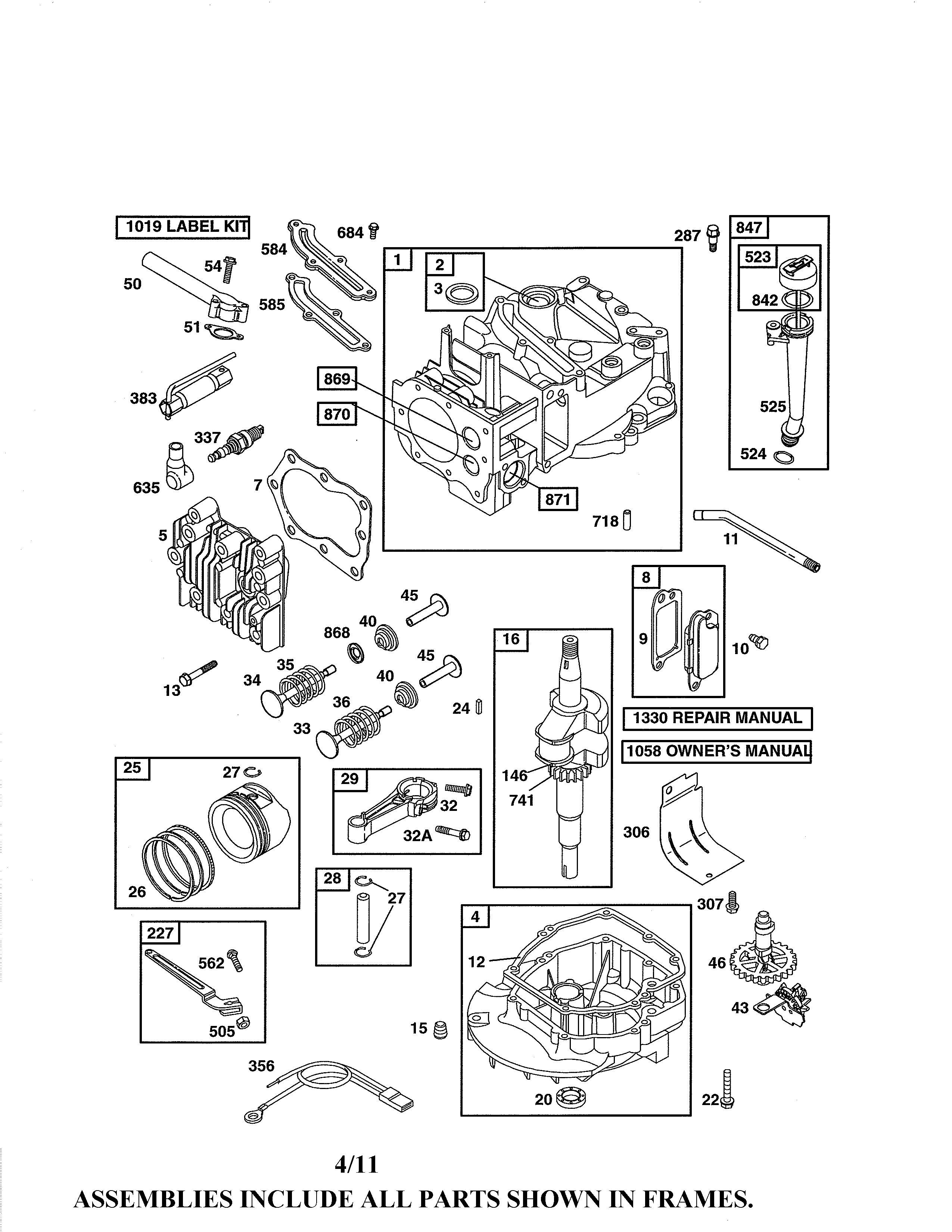

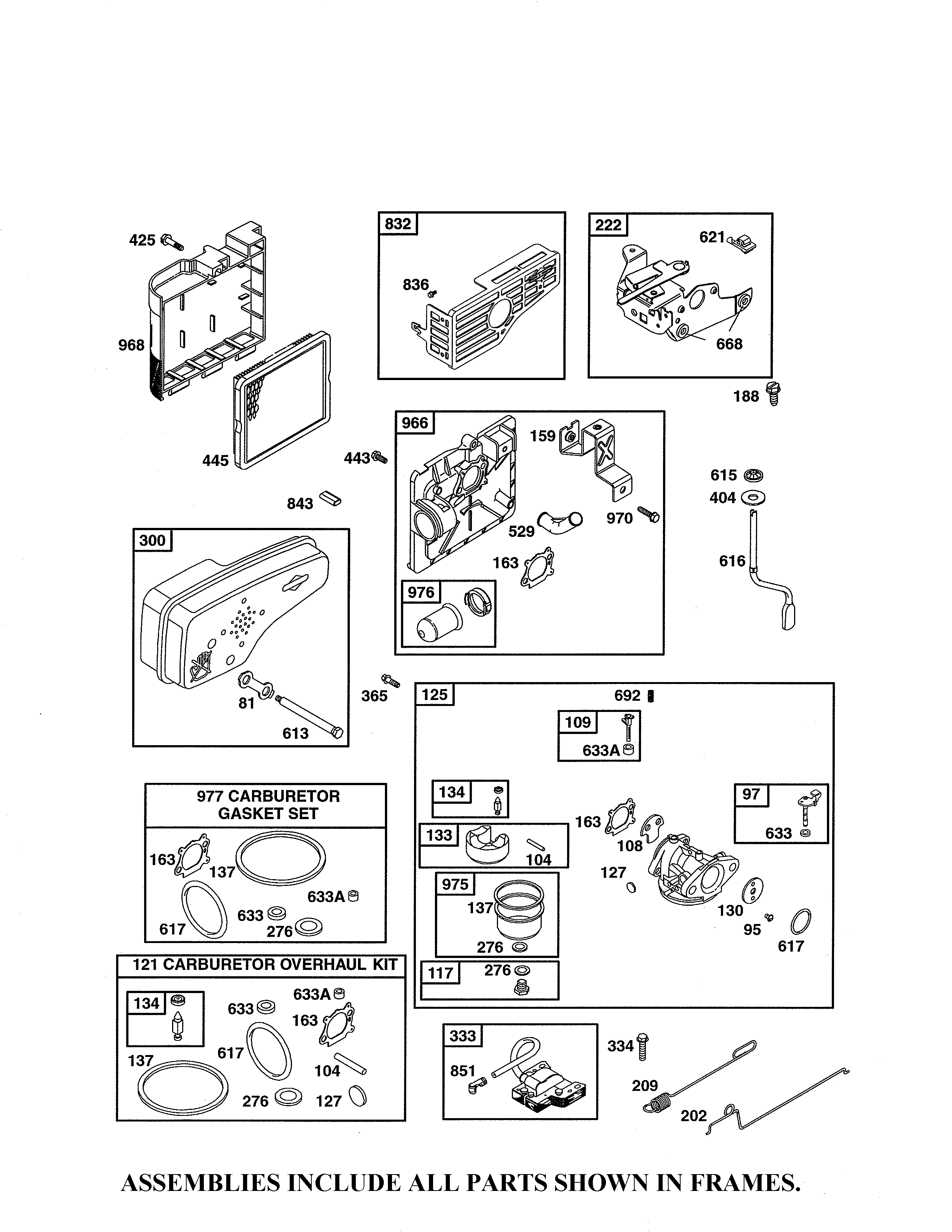

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 428 parts  |
Yard Machines Lawn & Garden Equipment Nut 712-04064
#30

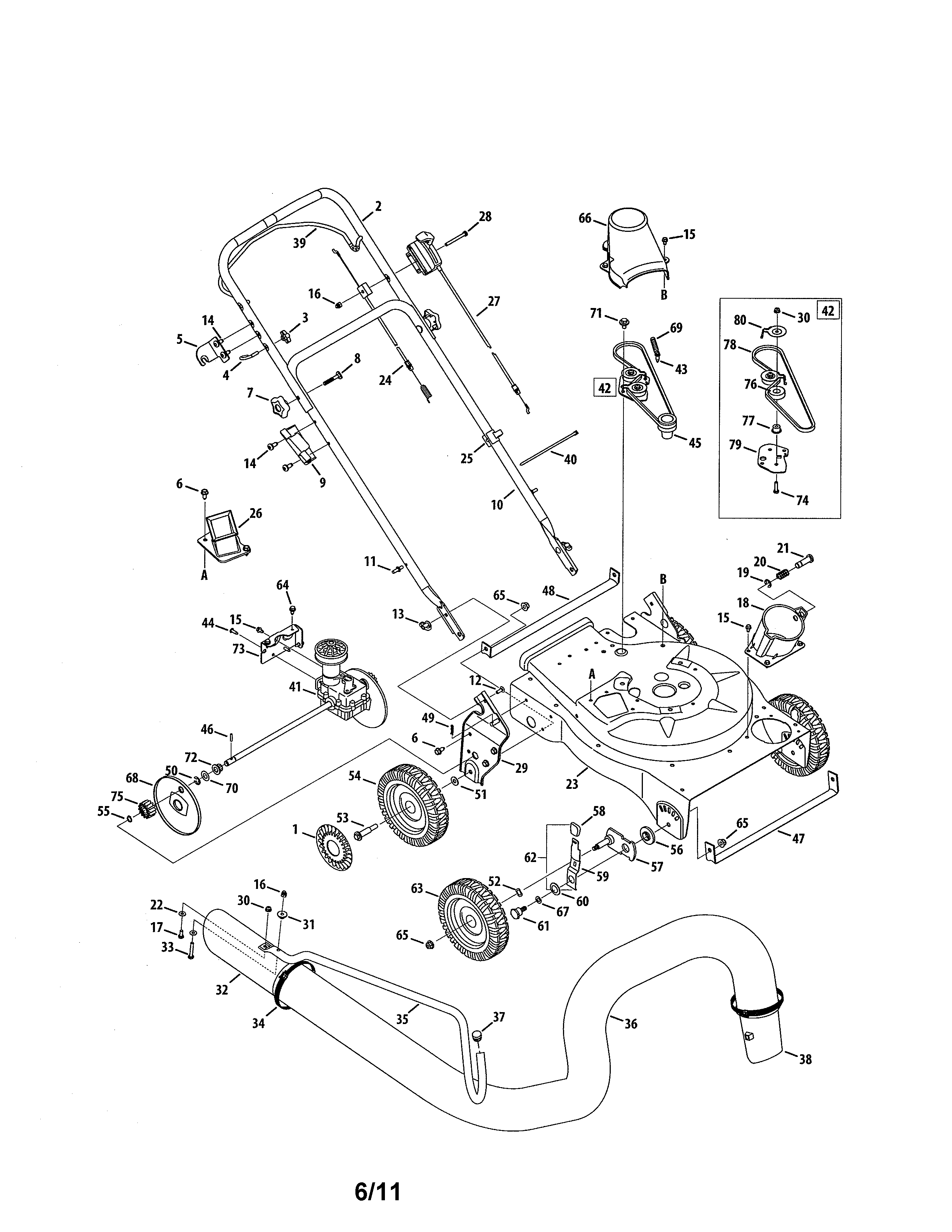

Handle/transmission diagram

Yard machines lawn & garden equipment nut

Part #712-04064

BEST SELLER
This item is not returnable
$4.49 |
18% OFF Phone Price : $5.49
In Stock
Yard Machines Lawn Tractor Flange Nut (replaces 00012173, Wd-129-103) 712-04065
#65

Handle/transmission diagram

Yard machines lawn tractor flange nut (replaces 00012173, wd-129-103)

Part #712-04065

BEST SELLER
This item is not returnable
$5.27 |
16% OFF Phone Price : $6.27
In Stock
Lawn Vacuum Bag Assembly 664-0094
#1

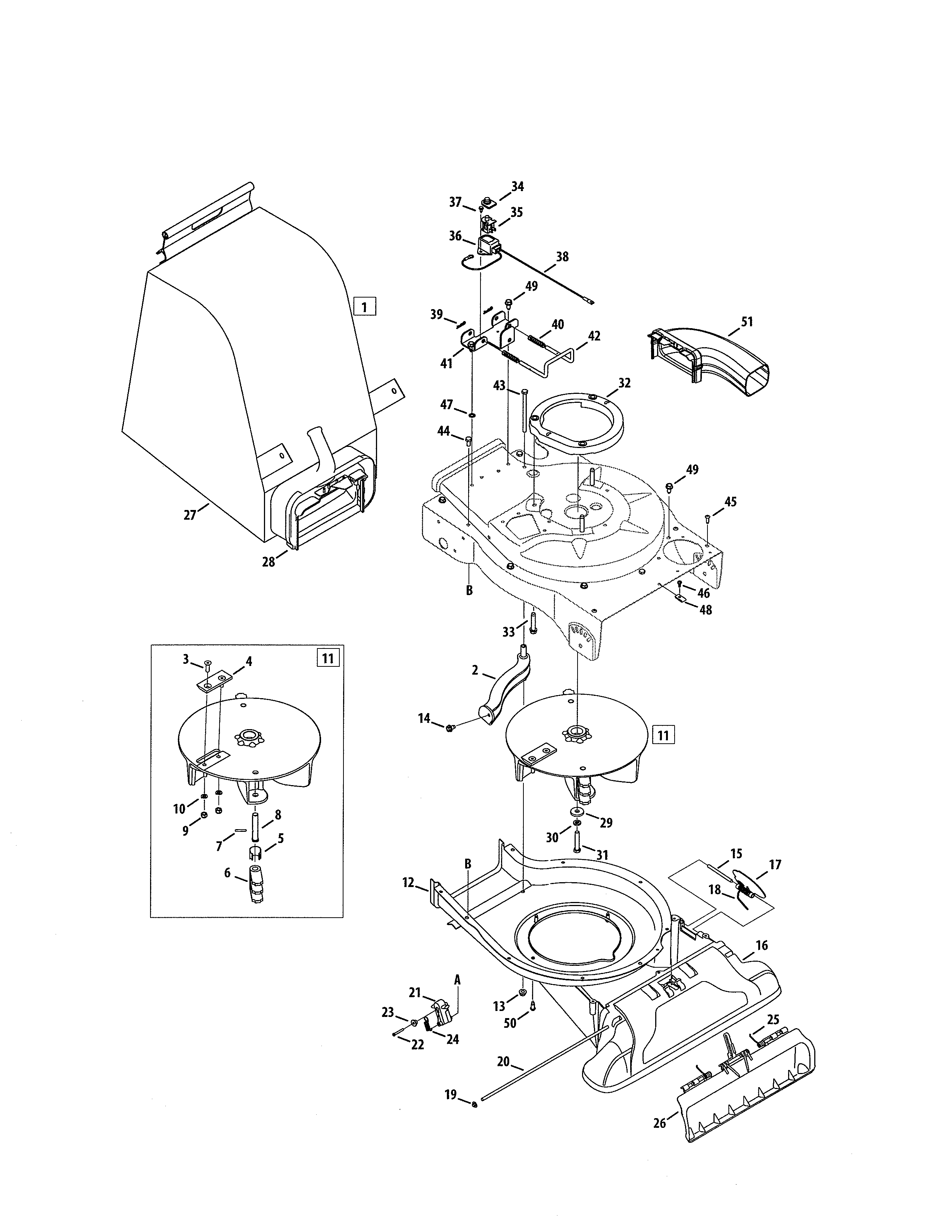

Impeller/bag/nozzle diagram

Lawn vacuum bag assembly

Part #664-0094

Replaced by #664P0094B

?
Manufacturer substitution
This part replaces 664-0094. Substitute parts can look different from the original.
BEST SELLER
$283.06 |
$12.00 OFF Phone Price : $295.06
In Stock
Ball Bearing 941-0124
#76

Handle/transmission diagram

Ball bearing

Part #941-0124

Replaced by #941-0600

?
Manufacturer substitution
This part replaces 941-0124. Substitute parts can look different from the original.
BEST SELLER
$28.71 |
17% OFF Phone Price : $34.71
In Stock
Lawn Tractor Screw, 1/4-20 X 5/8-in (replaces 910-1652) 710-1652
#64

Handle/transmission diagram

Lawn tractor screw, 1/4-20 x 5/8-in (replaces 910-1652)

Part #710-1652

This item is not returnable
$5.44 |
16% OFF Phone Price : $6.44
In Stock
Lawn Vacuum Drive Control Cable 746-04156
#24

Handle/transmission diagram

Lawn vacuum drive control cable

Part #746-04156

Replaced by #746P04156

?
Manufacturer substitution
This part replaces 746-04156. Substitute parts can look different from the original.
$43.32 |
12% OFF Phone Price : $49.32
In Stock
Lawn Vacuum Bag Assembly 664-04039
#27

Impeller/bag/nozzle diagram

Lawn vacuum bag assembly

Part #664-04039

The manufacturer no longer makes this part, and there's no substitute part

Chipper/shredder Flail Blade 719-0329
#6

Impeller/bag/nozzle diagram

Chipper/shredder flail blade

Part #719-0329

Get free shipping with Automatic Reorder

$32.18 |
16% OFF Phone Price : $38.18
In Stock
Lawn Vacuum Chipper/shredder Retainer Clip 781-0735
#5

Impeller/bag/nozzle diagram

Lawn vacuum chipper/shredder retainer clip

Part #781-0735

This item is not returnable
$6.55 |
13% OFF Phone Price : $7.55
In Stock
Lawn & Garden Equipment Screw 710-1054
#3

Impeller/bag/nozzle diagram

Lawn & garden equipment screw

Part #710-1054

Replaced by #710-1054

?
Manufacturer substitution
This part replaces 710-1054. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
