Maytag
Chest Freezer

Model # CFC0535GRW Official Maytag freezer

Here are the diagrams and repair parts for Official Maytag CFC0535GRW freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Refrigerator Uv Dye Dryer 13900-1
#6

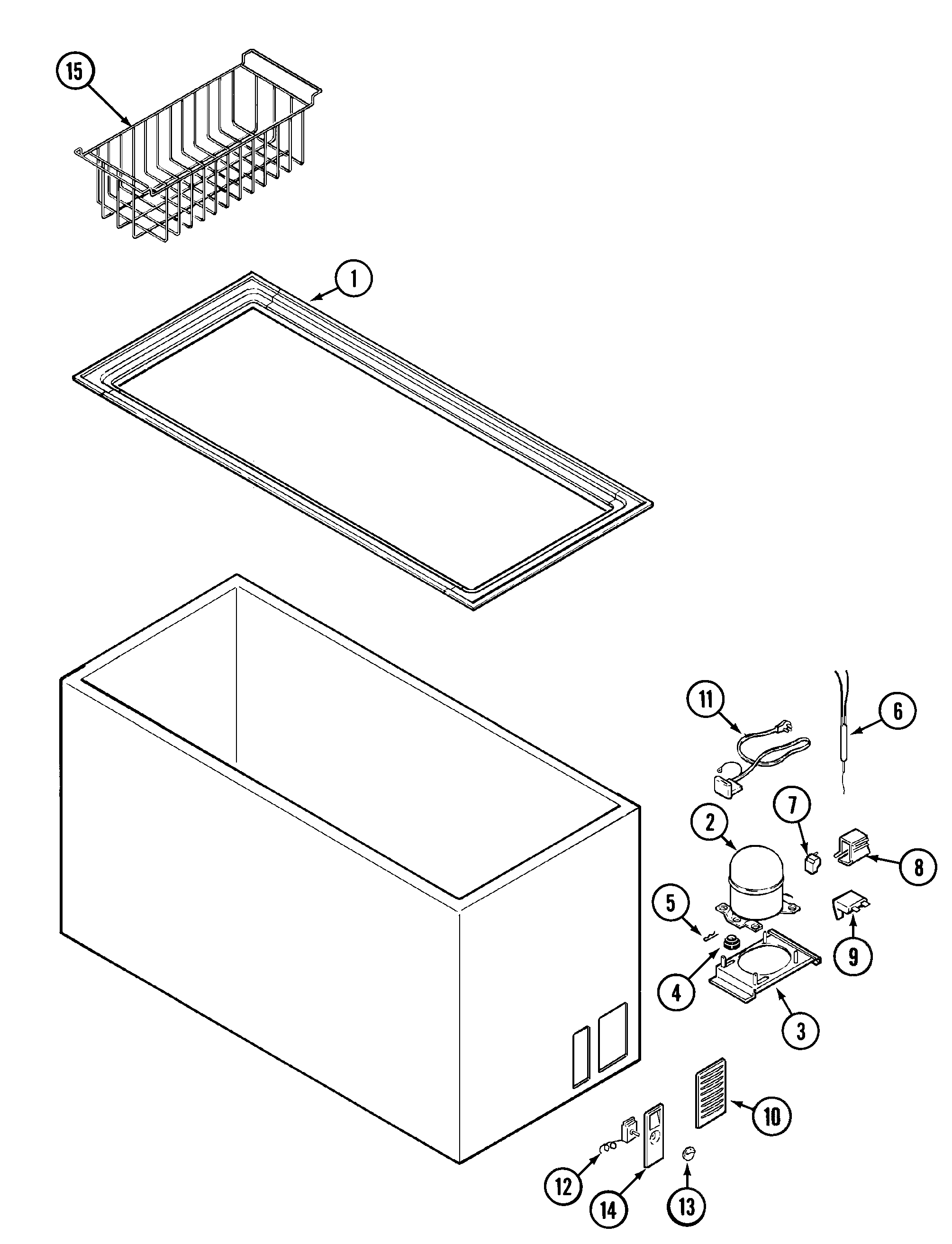

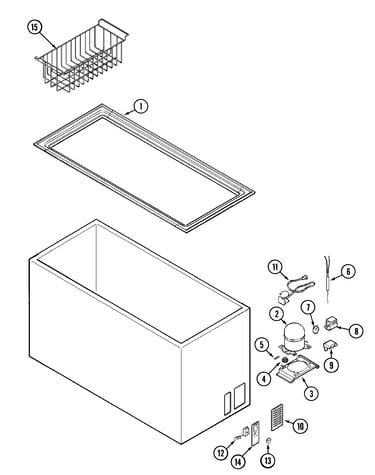

Cabinet diagram

Refrigerator uv dye dryer

Part #13900-1

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 13900-1. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Terminal Cover 68001213
#8

Cabinet diagram

Terminal cover

Part #68001213

Replaced by #WP2162358

?
Manufacturer substitution
This part replaces 68001213. Substitute parts can look different from the original.
$34.39 |
15% OFF Phone Price : $40.39
In Stock
Temperature Control 68001451
#12

Cabinet diagram

Temperature control

Part #68001451

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 68001451. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Screw 09100105
#6C

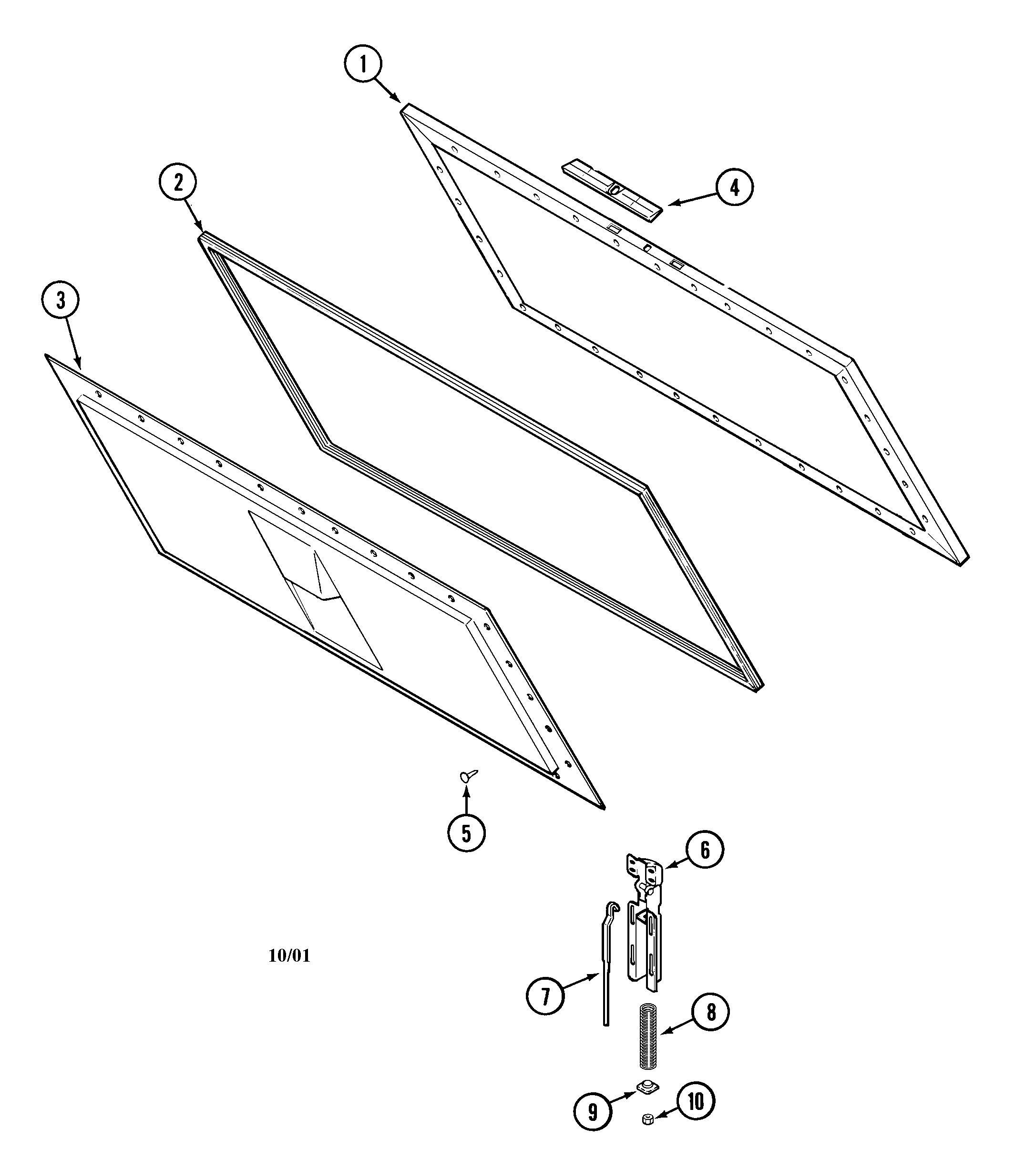

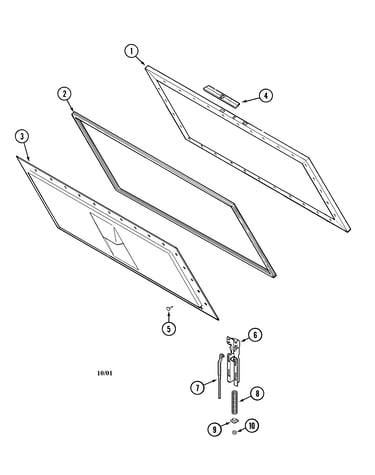

Lid diagram

Screw

Part #09100105

Replaced by #4356491

?
Manufacturer substitution
This part replaces 09100105. Substitute parts can look different from the original.
$11.59
In Stock
Base Bracket 68001313
#3A

Cabinet diagram

Base bracket

Part #68001313

Replaced by #3-81556-001

?
Manufacturer substitution
This part replaces 68001313. Substitute parts can look different from the original.
$10.80
In Stock
Screw 68001170
#14B

Cabinet diagram

Screw

Part #68001170

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces 68001170. Substitute parts can look different from the original.
This item is not returnable
$7.29
In Stock
Access Panel 68001142
#10

Cabinet diagram

Access panel

Part #68001142

Replaced by #4356622

?
Manufacturer substitution
This part replaces 68001142. Substitute parts can look different from the original.
$32.87
In Stock
Clip 09100010
#11A

Cabinet diagram

Clip

Part #09100010

Replaced by #488946

?
Manufacturer substitution
This part replaces 09100010. Substitute parts can look different from the original.
$14.00
In Stock
Hinge Kit 68001160
#6

Lid diagram

Hinge kit

Part #68001160

Replaced by #4356490

?
Manufacturer substitution
This part replaces 68001160. Substitute parts can look different from the original.
$117.82
In Stock
Kit Temperature Box 68001311
#14

Cabinet diagram

Kit temperature box

Part #68001311

Replaced by #W10682894

?
Manufacturer substitution
This part replaces 68001311. Substitute parts can look different from the original.
$26.49 |
18% OFF Phone Price : $32.49
In Stock
