Model # 486244280 Official Craftsman 48" snow blade

Here are the diagrams and repair parts for Official Craftsman 486244280 48" snow blade, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Skid Shoe 23070
#8

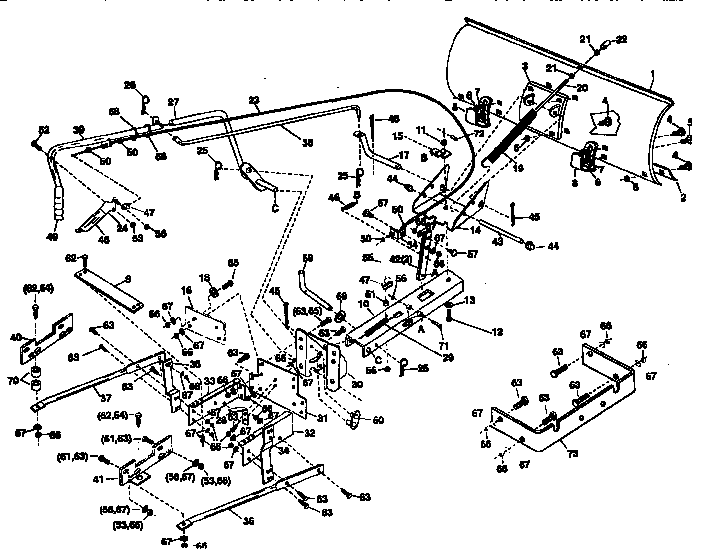

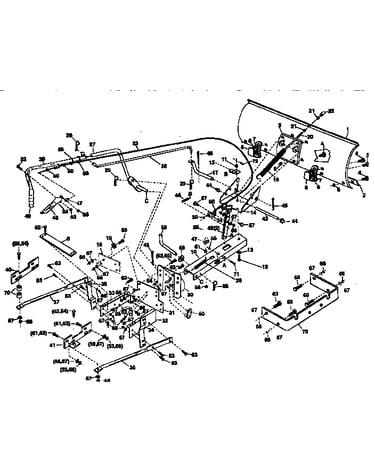

Replacement parts diagram

Skid shoe

Part #23070

Replaced by #24690BL1

?
Manufacturer substitution
This part replaces 23070. Substitute parts can look different from the original.
BEST SELLER
$9.46 |
10% OFF Phone Price : $10.46
In Stock
Lawn Tractor Snow Blade Attachment Lift Handle Rod Assembly 63033
#27

Replacement parts diagram

Lawn tractor snow blade attachment lift handle rod assembly

Part #63033

BEST SELLER
$30.22 |
17% OFF Phone Price : $36.22
In Stock
Lawn Tractor Snow Blade Attachment Lift Link (replaces Af-63034) 63034
#60

Replacement parts diagram

Lawn tractor snow blade attachment lift link (replaces af-63034)

Part #63034

Replaced by #69740

?
Manufacturer substitution
This part replaces 63034. Substitute parts can look different from the original.
BEST SELLER
$18.34 |
10% OFF Phone Price : $20.34
In Stock
Lawn Tractor Snow Blade Attachment Angle Lock Spring (replaces 732-0360, Af-43348) 43348
#46

Replacement parts diagram

Lawn tractor snow blade attachment angle lock spring (replaces 732-0360, af-43348)

Part #43348

$8.11 |
11% OFF Phone Price : $9.11
In Stock
Lawn Tractor Attachment Washer, 5/16-in (replaces 736-0242) 43081
#7

Replacement parts diagram

Lawn tractor attachment washer, 5/16-in (replaces 736-0242)

Part #43081

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
Back Order
Carriage Bolt 43079
#5

Replacement parts diagram

Carriage bolt

Part #43079

Replaced by #44326

?
Manufacturer substitution
This part replaces 43079. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Snow Blade Attachment Pivot Bracket 24023
#30

Replacement parts diagram

Lawn tractor snow blade attachment pivot bracket

Part #24023

Replaced by #24023BL1

?
Manufacturer substitution
This part replaces 24023. Substitute parts can look different from the original.
$30.90 |
16% OFF Phone Price : $36.90
Back Order
Lawn Tractor Snow Blade Attachment Blade Pivot Rod (replaces Af-46065) 46065
#59

Replacement parts diagram

Lawn tractor snow blade attachment blade pivot rod (replaces af-46065)

Part #46065

This item is not returnable
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Lawn & Garden Equipment Washer R19171616
#69

Replacement parts diagram

Lawn & garden equipment washer

Part #R19171616

Replaced by #596040101

?
Manufacturer substitution
This part replaces R19171616. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Lawn Tractor Attachment Hex Lock Nut, 5/16-in 43064
Lawn tractor attachment hex lock nut, 5/16-in

Part #43064

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
