Model # 13953673SRT1 Official Craftsman garage door opener

Here are the diagrams and repair parts for Official Craftsman 13953673SRT1 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 55 parts |

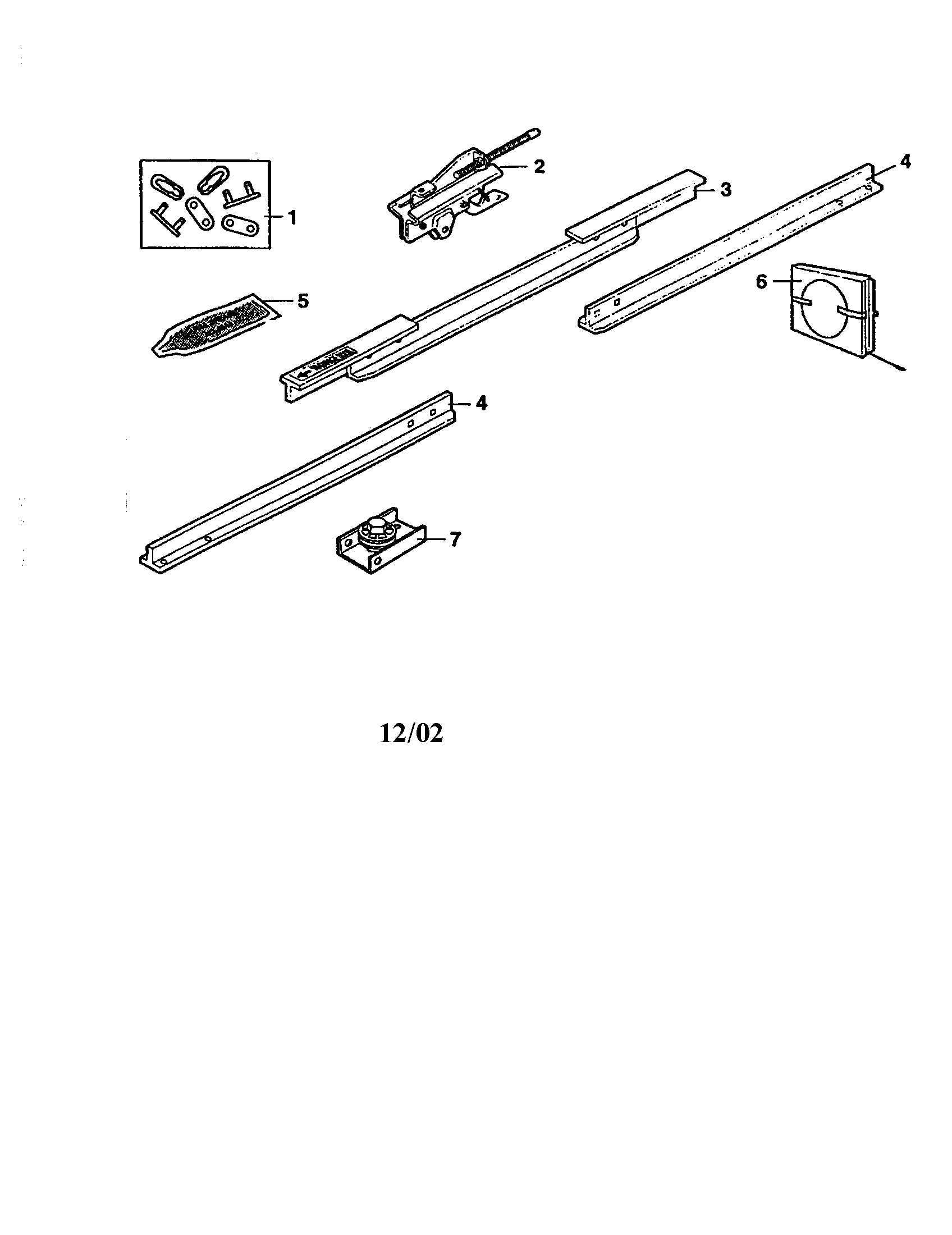

Opener assembly diagram

Garage door opener drive and worm gear kit (replaces 3002375, 65409)

Part #41A2817

The manufacturer no longer makes this part, and there's no substitute part

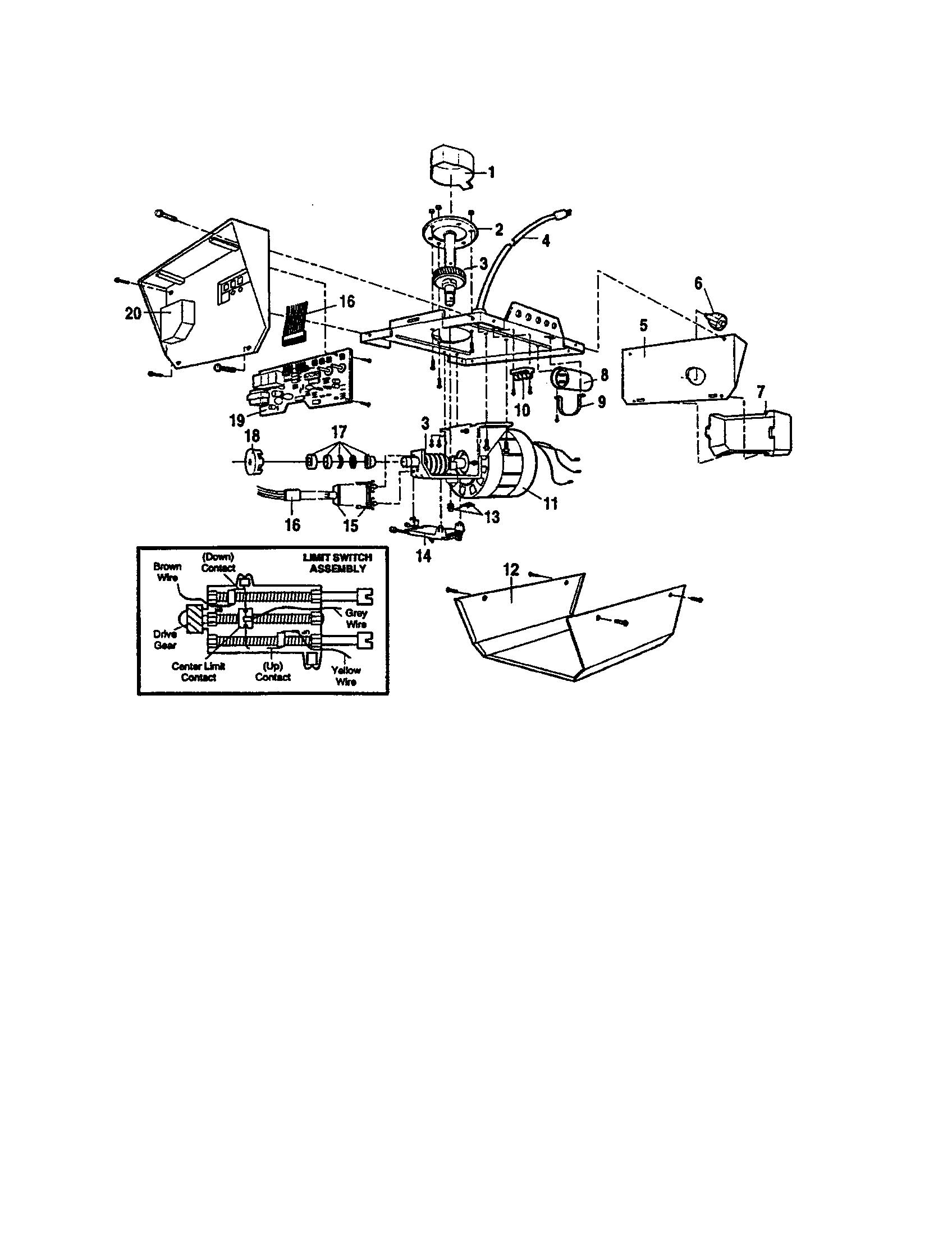

Opener assembly diagram

Lens

Part #108D48-2

The manufacturer no longer makes this part, and there's no substitute part

#14

Opener assembly diagram

Garage door opener limit switch

Part #41D3452

The manufacturer no longer makes this part, and there's no substitute part

#5A

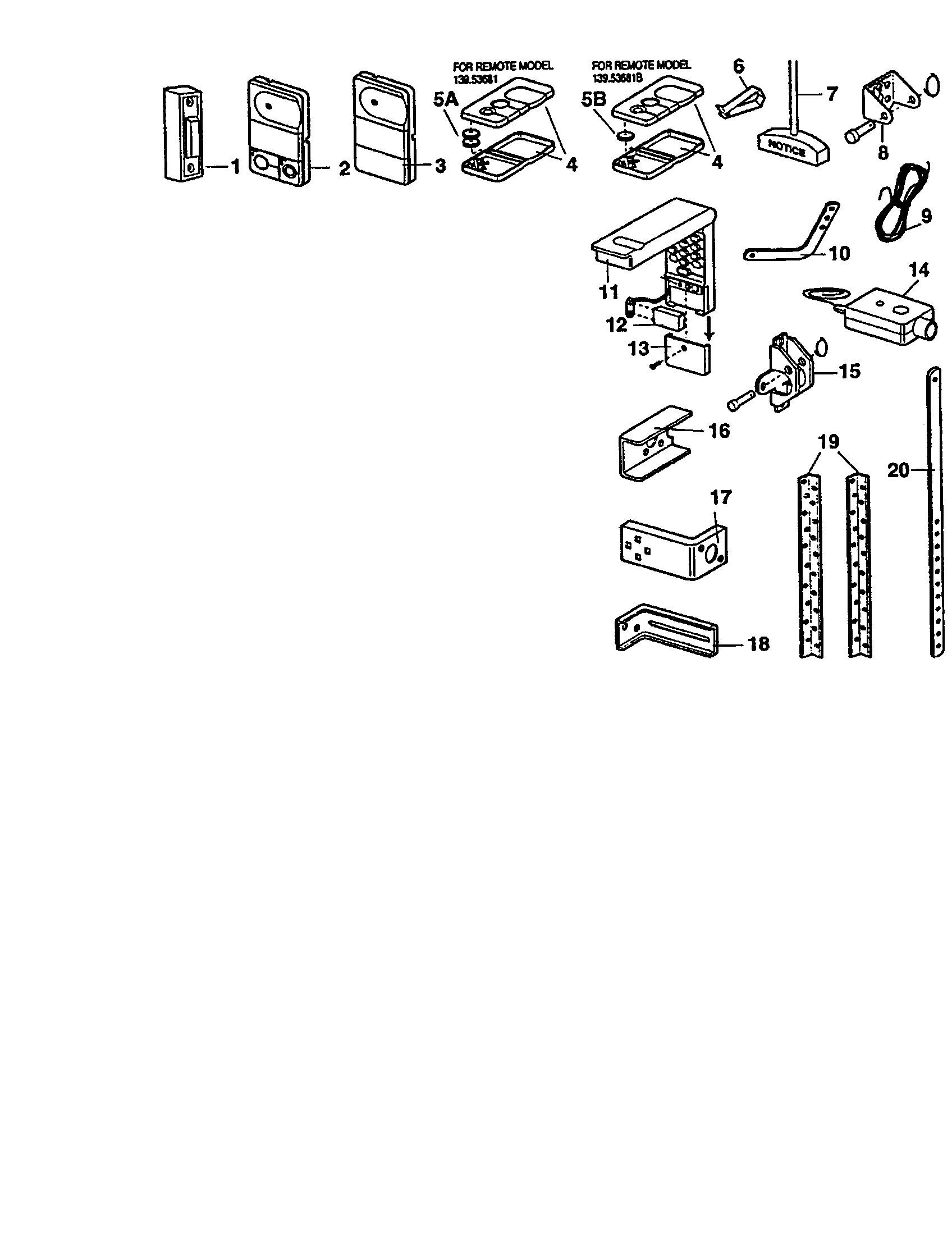

Installation parts diagram

Batt 3v-2016

Part #10A19

The manufacturer no longer makes this part, and there's no substitute part

Opener assembly diagram

Garage door opener sprocket cover

Part #31D380

The manufacturer no longer makes this part, and there's no substitute part

Garage Door Opener Motor Assembly 41D3058

#11

Opener assembly diagram

Garage door opener motor assembly

Part #41D3058

The manufacturer no longer makes this part, and there's no substitute part

Installation parts diagram

Garage door opener wall control

Part #41A4899

The manufacturer no longer makes this part, and there's no substitute part

#NI05

All parts diagram

Garage door opener hardware bag

Part #41A2825

The manufacturer no longer makes this part, and there's no substitute part

#5B

Installation parts diagram

Lith battery

Part #10A20

The manufacturer no longer makes this part, and there's no substitute part

#19

Opener assembly diagram

Dix logic bd

Part #41A5021-3B

The manufacturer no longer makes this part, and there's no substitute part
