Model # 315175170 Official Craftsman router

Here are the diagrams and repair parts for Official Craftsman 315175170 router, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

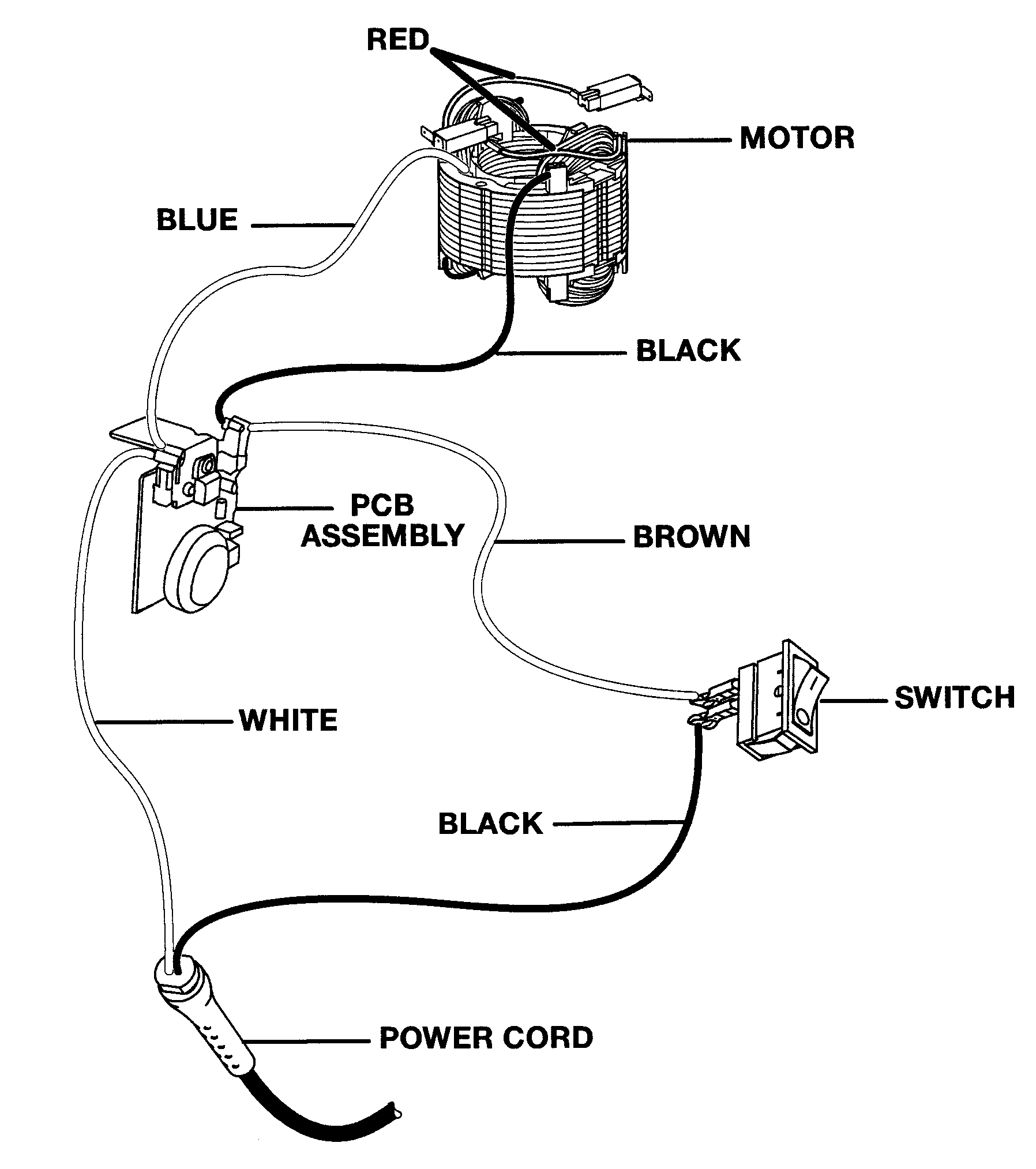

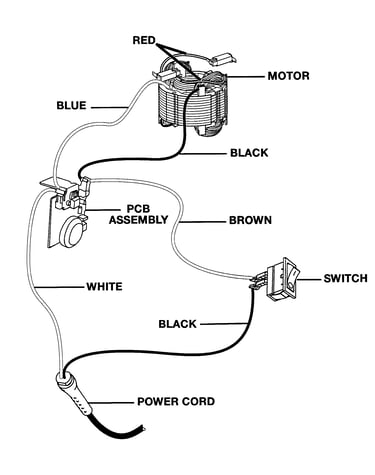

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Screw 6625902
#9

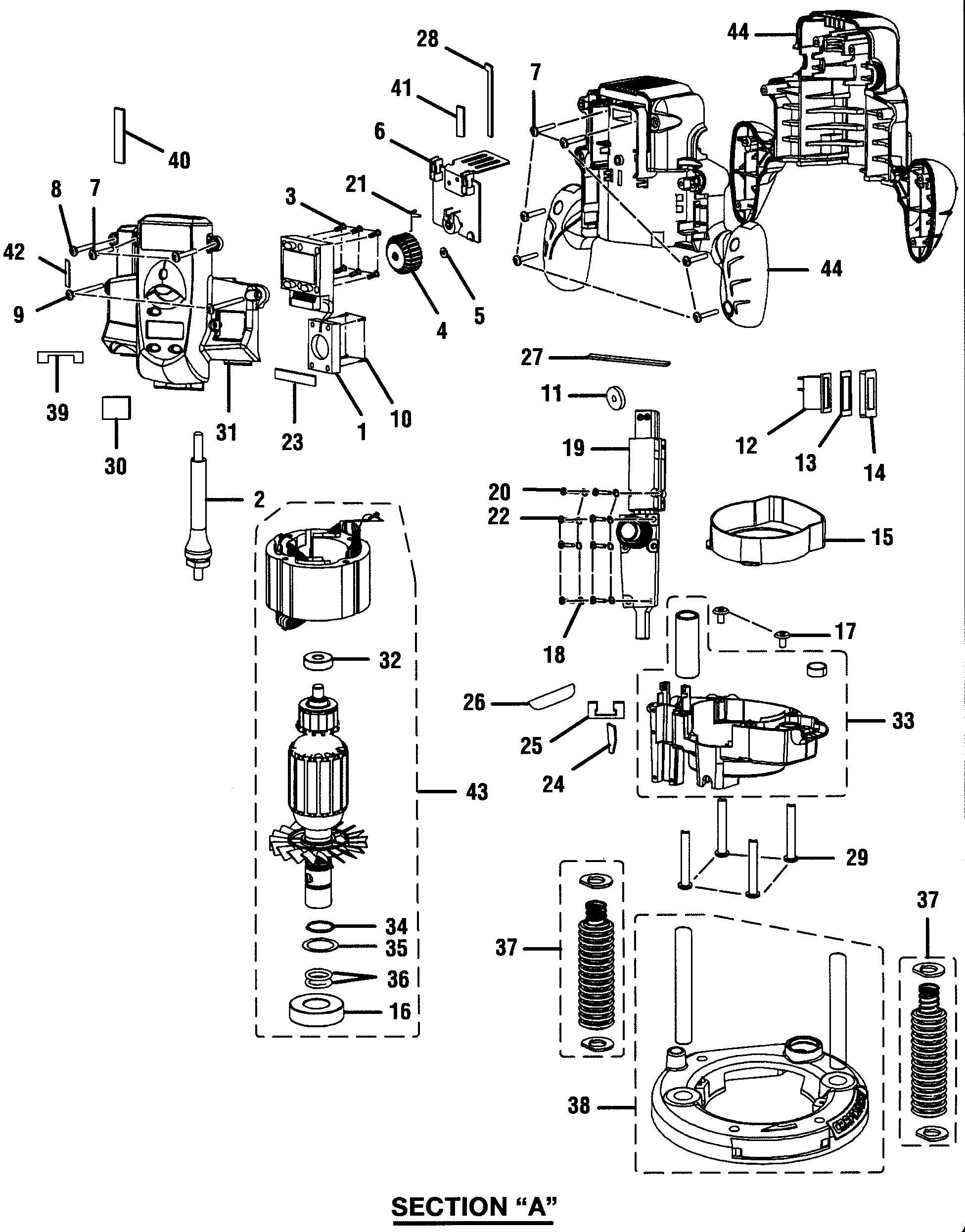

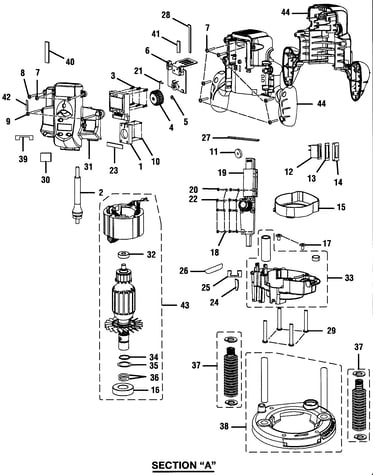

Motor assy diagram

Screw

Part #6625902

The manufacturer no longer makes this part, and there's no substitute part

Screw (5/16-18 X 1 In.)(not Shown)(3) 660364004
#NI

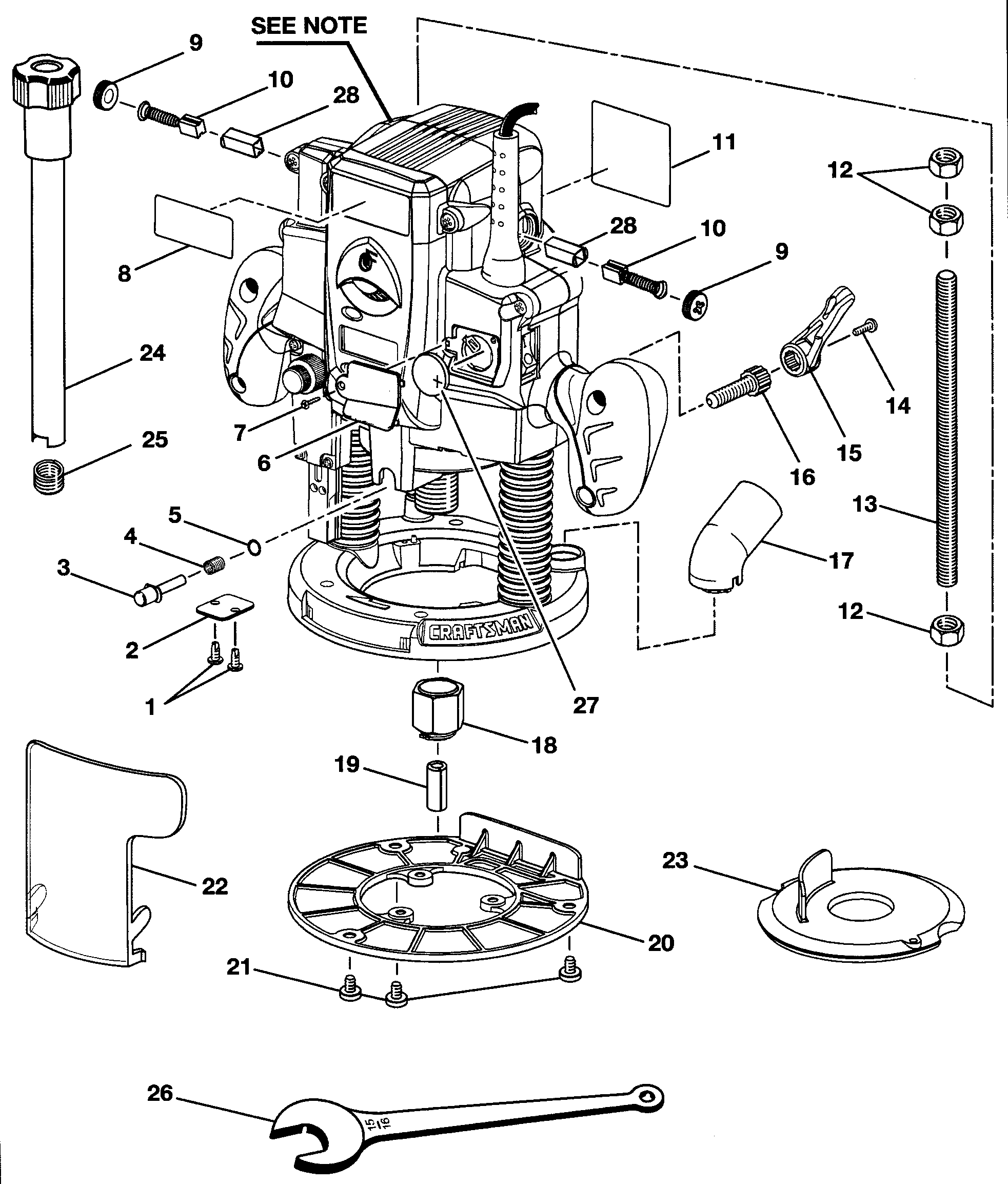

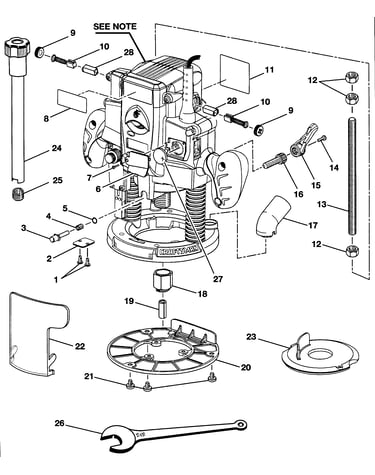

Router assy diagram

Screw (5/16-18 x 1 in.)(not shown)(3)

Part #660364004

The manufacturer no longer makes this part, and there's no substitute part

Foam Rbbr-53.0x19.0x1.0 561276001
#23

Motor assy diagram

Foam rbbr-53.0x19.0x1.0

Part #561276001

The manufacturer no longer makes this part, and there's no substitute part

Ratchet 550570001
#21

Motor assy diagram

Ratchet

Part #550570001

The manufacturer no longer makes this part, and there's no substitute part

Screw 660221005
#7

Router assy diagram

Screw

Part #660221005

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 680733001
#16

Motor assy diagram

Ball bearing

Part #680733001

The manufacturer no longer makes this part, and there's no substitute part

Screw 660161001
#7

Motor assy diagram

Screw

Part #660161001

The manufacturer no longer makes this part, and there's no substitute part

Foam Rbbr 561457001
#24

Motor assy diagram

Foam rbbr

Part #561457001

The manufacturer no longer makes this part, and there's no substitute part

Compression Spring 251271001
#25

Router assy diagram

Compression spring

Part #251271001

The manufacturer no longer makes this part, and there's no substitute part

Logo Label 940114137
#8

Router assy diagram

Logo label

Part #940114137

The manufacturer no longer makes this part, and there's no substitute part
