Kenmore
Upright Freezer

Model # 25329101993 Official Kenmore freezer

Here are the diagrams and repair parts for Official Kenmore 25329101993 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Filter Drier 216634500
#4

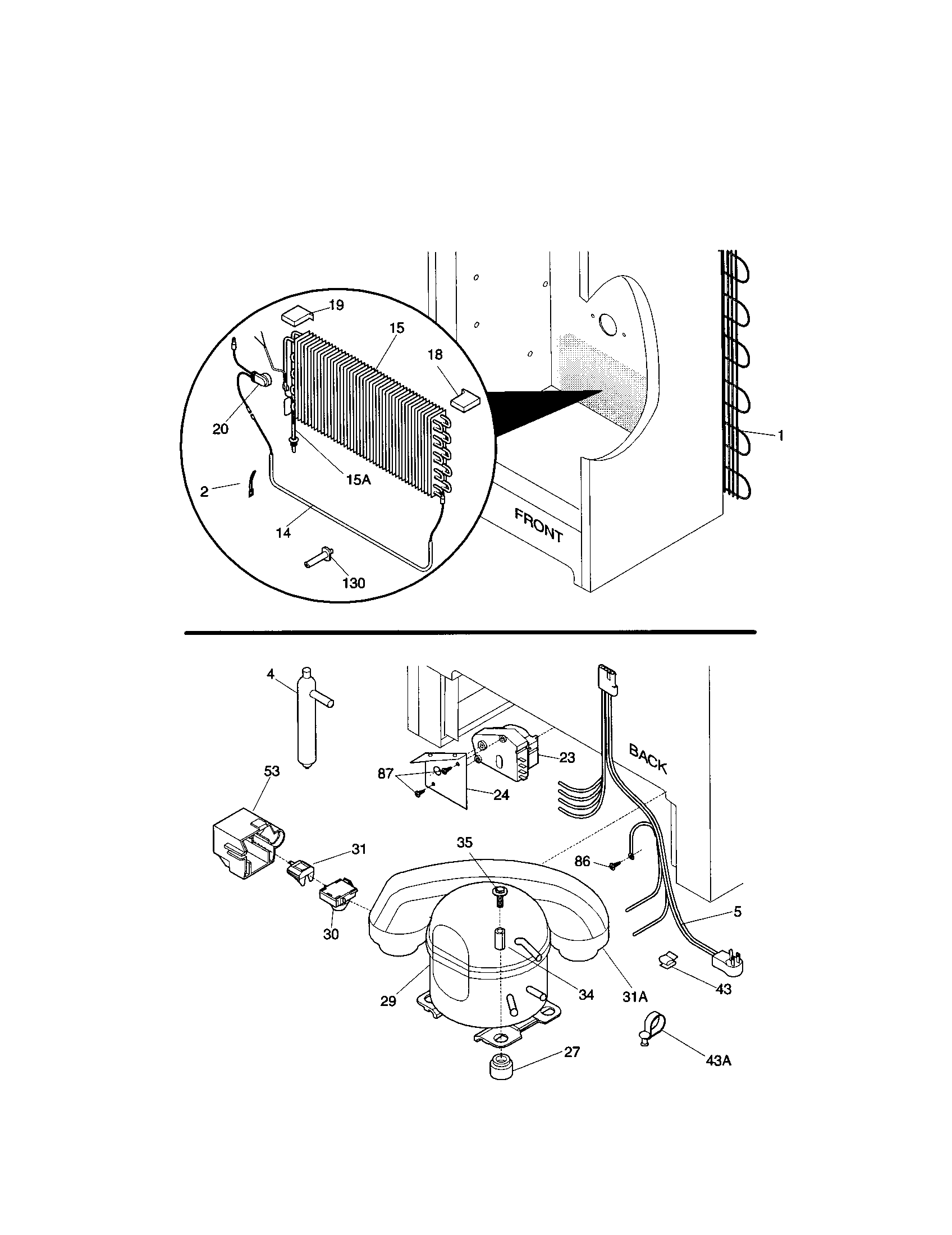

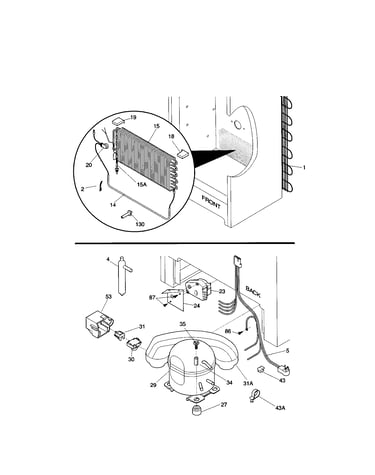

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Compressor 216557000
#29

System diagram

Compressor

Part #216557000

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 216557000. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Door Closer Bearing 216503300
#26

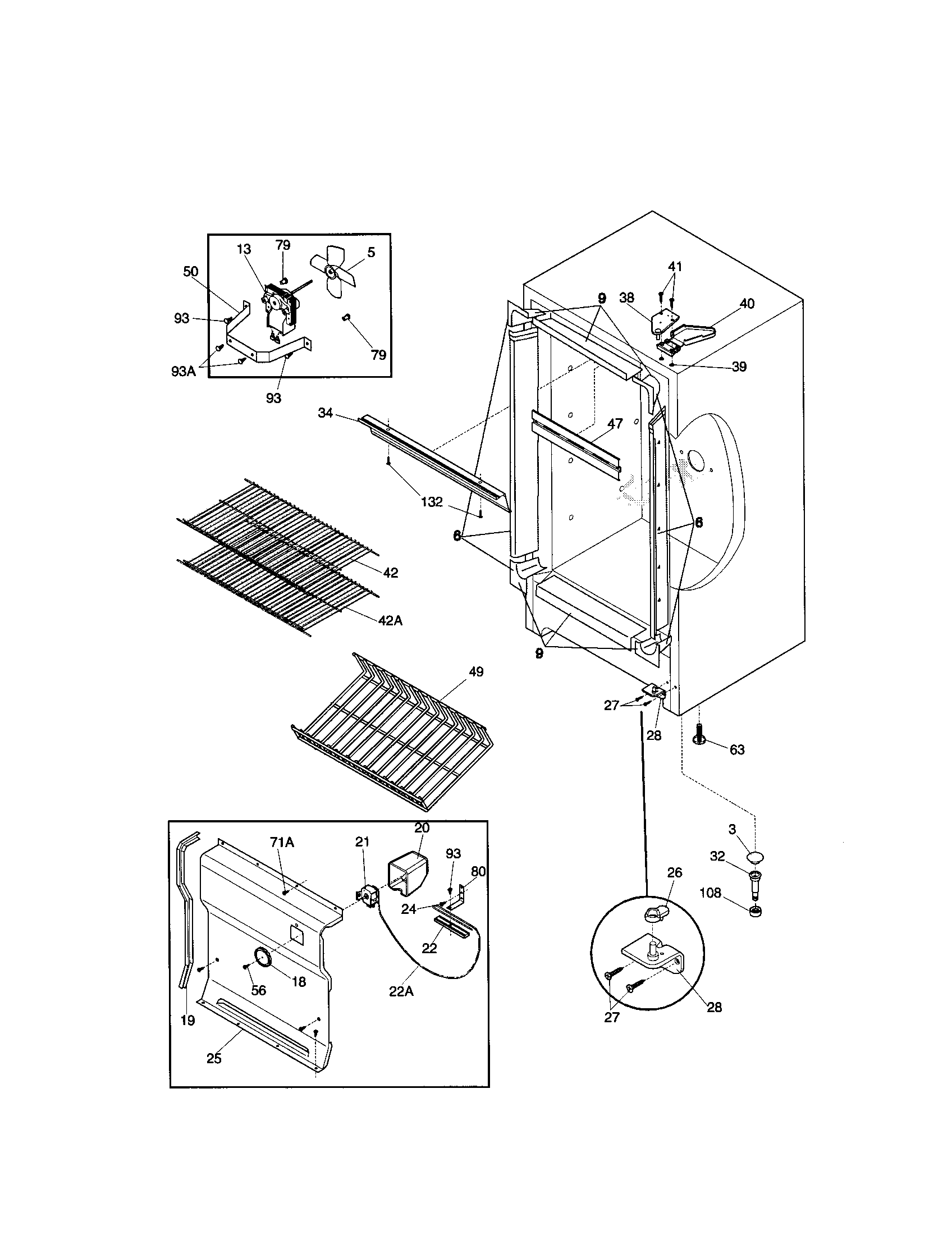

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Freezer Door Gasket 216522303
#1

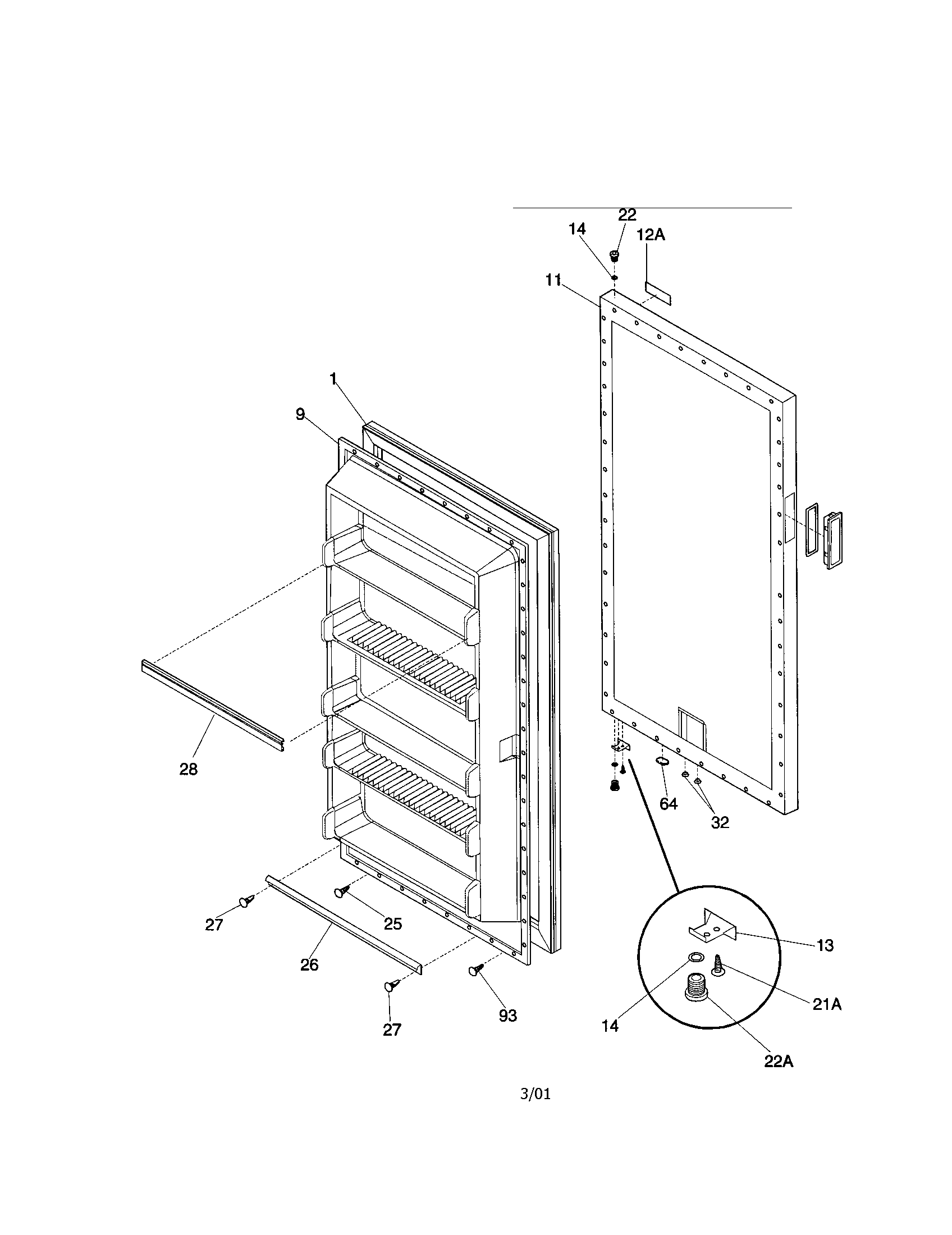

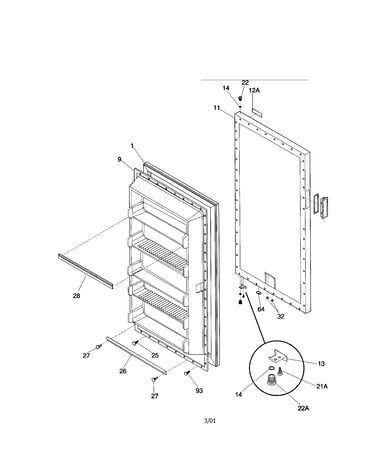

Door diagram

Freezer door gasket

Part #216522303

Replaced by #5304507202

?
Manufacturer substitution
This part replaces 216522303. Substitute parts can look different from the original.
BEST SELLER
$125.91 |
9% OFF Phone Price : $137.91
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Hinge Bearing 216503200
#22A

Door diagram

Hinge bearing

Part #216503200

Replaced by #297006800

?
Manufacturer substitution
This part replaces 216503200. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Evaporator Fan Motor 216690400
#13

Cabinet diagram

Evaporator fan motor

Part #216690400

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 216690400. Substitute parts can look different from the original.
$147.29 |
8% OFF Phone Price : $159.29
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#22A

Cabinet diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Freezer Defrost Heater (replaces 297216200, 297216201) 216740000
#14

System diagram

Freezer defrost heater (replaces 297216200, 297216201)

Part #216740000

$71.17 |
8% OFF Phone Price : $77.17
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
