Craftsman
Gas Walk-Behind Mower

Model # 917370441 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917370441 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 240 parts  |
Lawn & Garden Equipment Nut 409148
#29

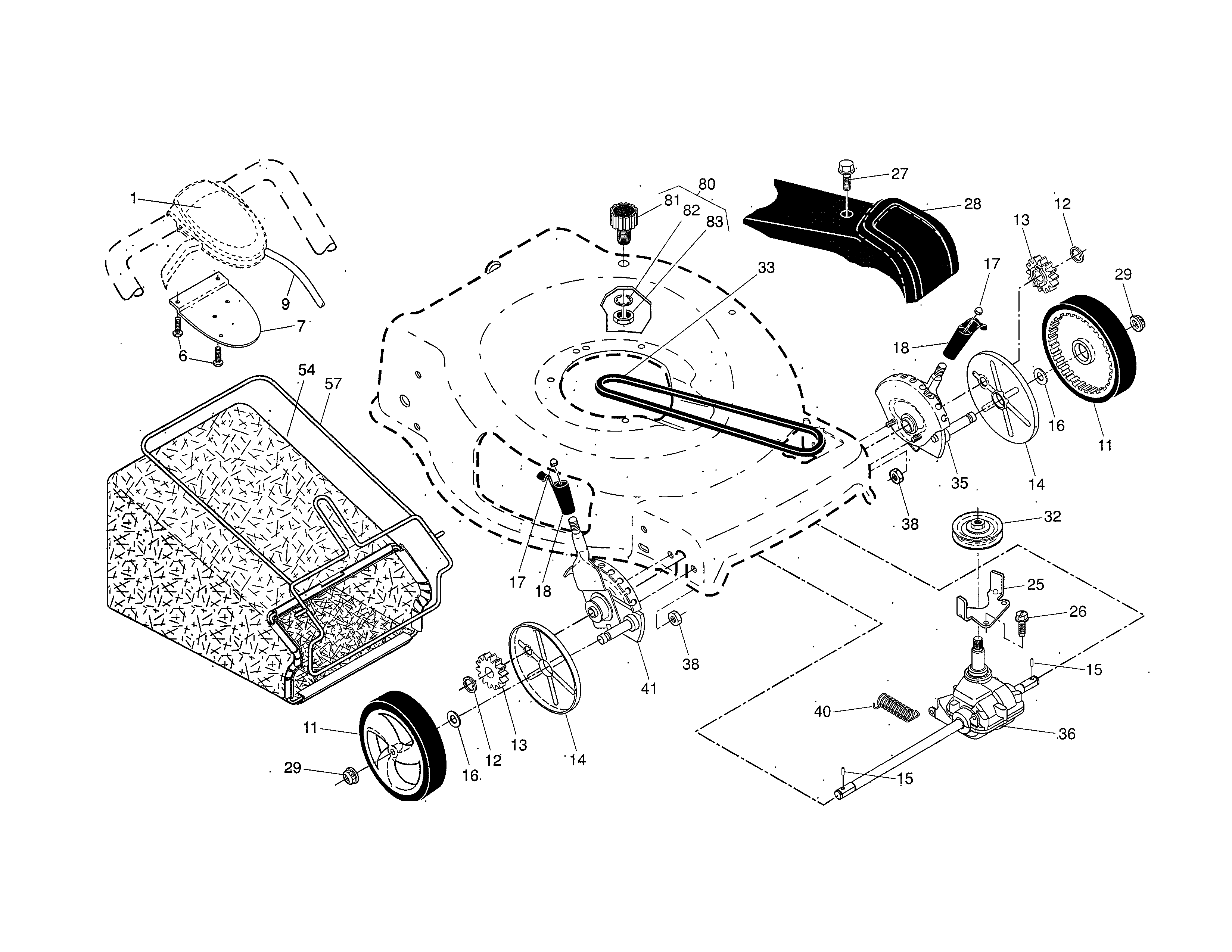

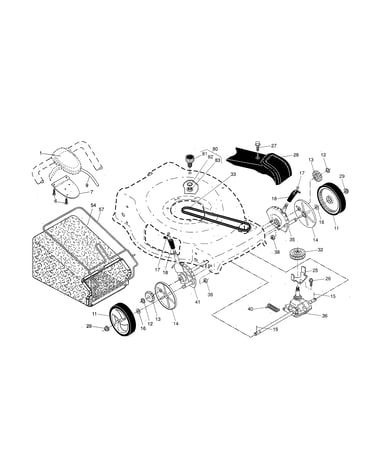

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Hex Flange Nut 409149
#25

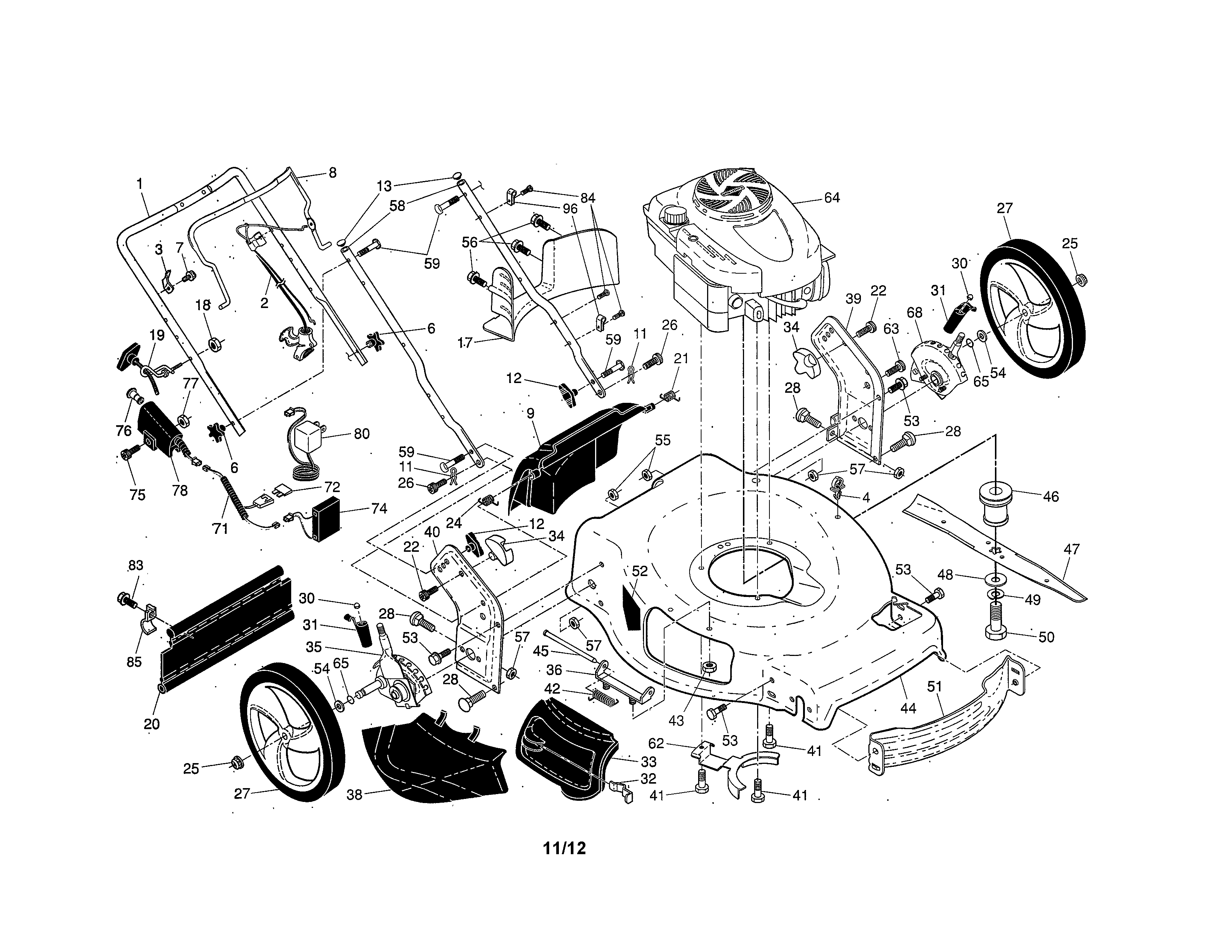

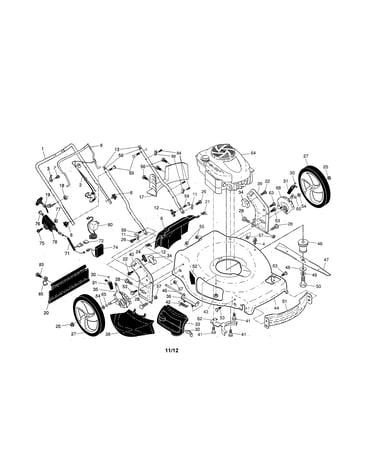

Engine/housing/handle diagram

Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Wheel And Tire, 8 X 1.75-in 194231X460
#11

Drive control/gear case/wheels diagram

Lawn mower wheel and tire, 8 x 1.75-in

Part #194231X460

Replaced by #583719501

?
Manufacturer substitution
This part replaces 194231X460. Substitute parts can look different from the original.
BEST SELLER
$33.31 |
15% OFF Phone Price : $39.31
In Stock
Blade Adapter 421782
#46

Engine/housing/handle diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn Mower Control Cable 438385
#2

Engine/housing/handle diagram

Lawn mower control cable

Part #438385

Replaced by #587326601

?
Manufacturer substitution
This part replaces 438385. Substitute parts can look different from the original.
BEST SELLER
$33.76 |
15% OFF Phone Price : $39.76
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Battery Charger 428626
#80

Engine/housing/handle diagram

Lawn mower battery charger

Part #428626

Replaced by #597186301

?
Manufacturer substitution
This part replaces 428626. Substitute parts can look different from the original.
BEST SELLER
$32.98 |
15% OFF Phone Price : $38.98
In Stock
Lawn Mower Transmission Assembly 424657
#36

Drive control/gear case/wheels diagram

Lawn mower transmission assembly

Part #424657

Replaced by #589600601

?
Manufacturer substitution
This part replaces 424657. Substitute parts can look different from the original.
BEST SELLER
$94.27 |
6% OFF Phone Price : $100.27
In Stock
Lawn Mower Wheel, 12 X 1-3/4-in (replaces 184387x460, 194387x460, 431880x417, 431880x421, 431880x427, 532433115, 583744201) 431880X460
#27

Engine/housing/handle diagram

Lawn mower wheel, 12 x 1-3/4-in (replaces 184387x460, 194387x460, 431880x417, 431880x421, 431880x427, 532433115, 583744201)

Part #431880X460

Replaced by #532433121

?
Manufacturer substitution
This part replaces 431880X460. Substitute parts can look different from the original.
BEST SELLER
$37.98 |
14% OFF Phone Price : $43.98
In Stock
Drive Cable 447570
#9

Drive control/gear case/wheels diagram

Drive cable

Part #447570

Replaced by #532447570

?
Manufacturer substitution
This part replaces 447570. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
