Frigidaire
Chest Freezer

Model # FCC2071FW2 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FCC2071FW2 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Filter Drier 216987501
#4

System diagram

Filter drier

Part #216987501

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987501. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

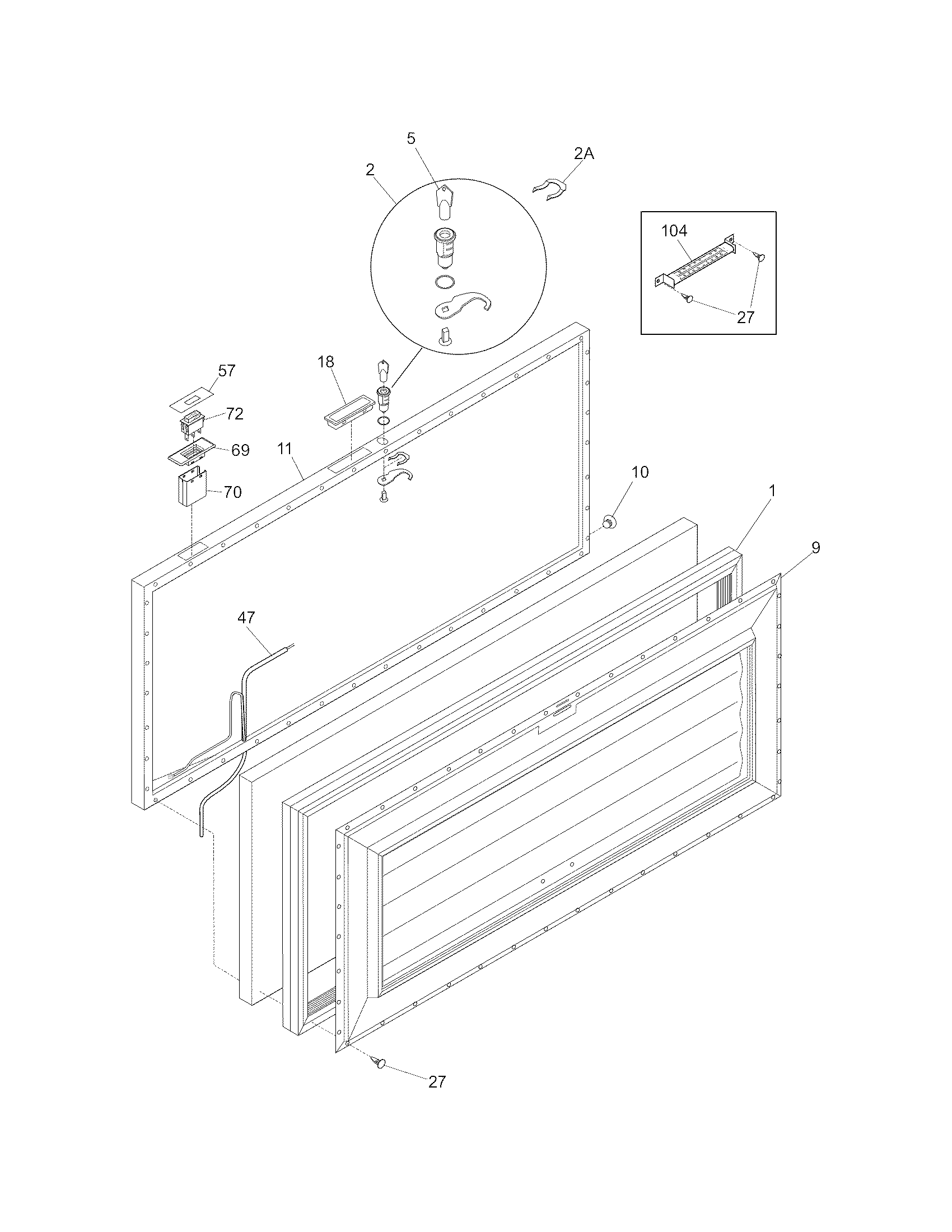

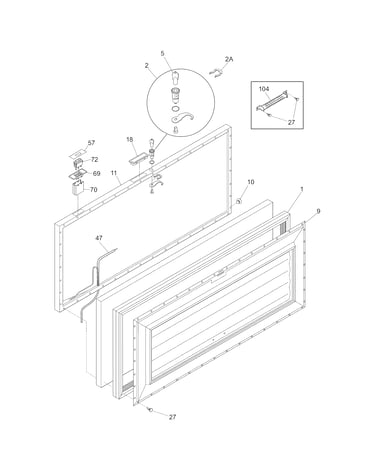

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Compressor 297270401
#29

System diagram

Compressor

Part #297270401

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 297270401. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Freezer Gasket And Liner Fastener Kit 5304406520
#NI

Door diagram

Freezer gasket and liner fastener kit

Part #5304406520

BEST SELLER
$33.42 |
15% OFF Phone Price : $39.42
In Stock
Freezer Drain Plug (replaces 5306593887) 216502600
#3

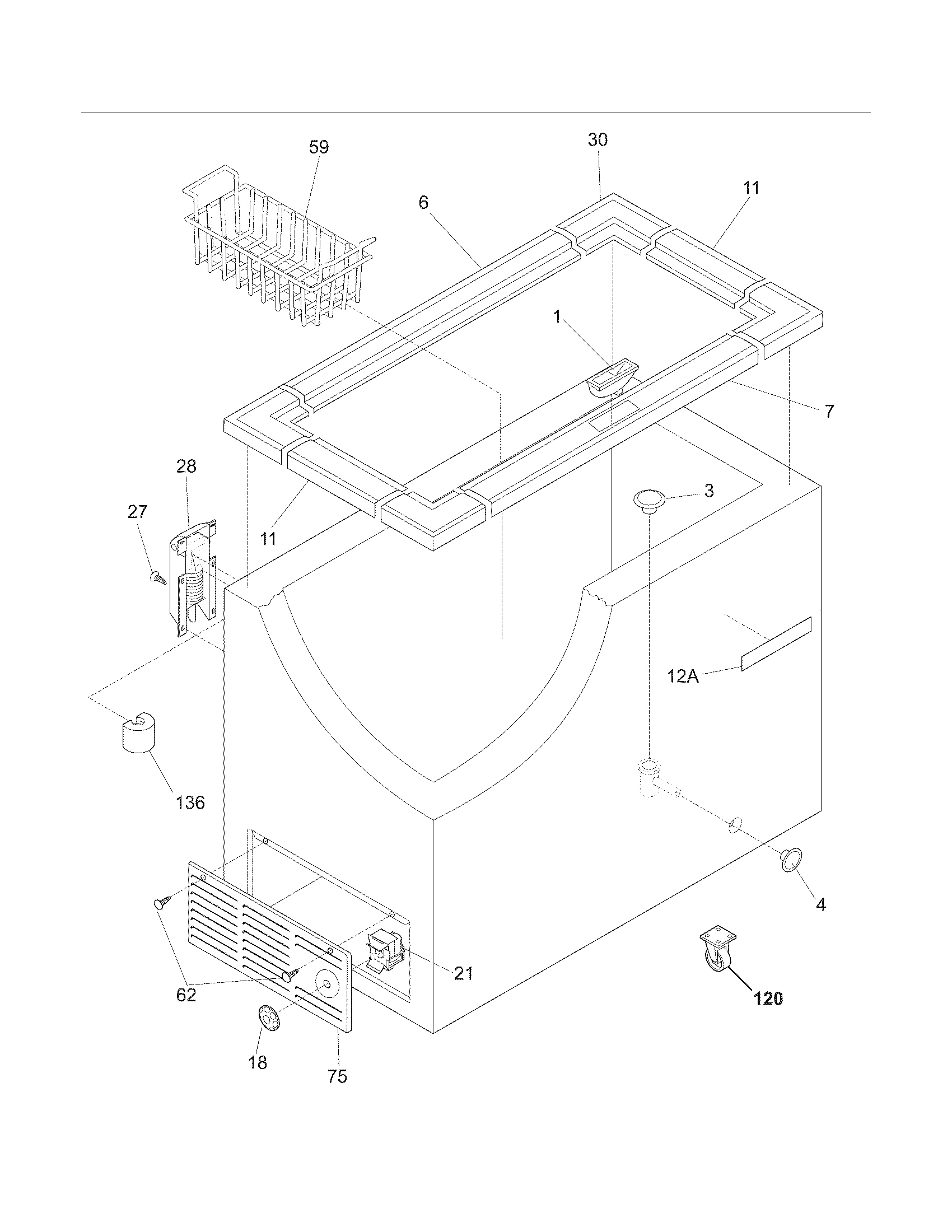

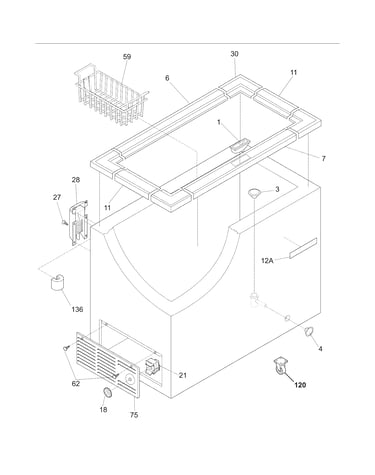

Cabinet diagram

Freezer drain plug (replaces 5306593887)

Part #216502600

BEST SELLER
This item is not returnable
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Freezer Inner Door Panel Rivet 5303212828
#27

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Touch Paint 5303305324
#NI

Cabinet diagram

Touch paint

Part #5303305324

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303305324. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Freezer Compressor Start Relay 216954222
#30

System diagram

Freezer compressor start relay

Part #216954222

$56.81 |
10% OFF Phone Price : $62.81
In Stock
Refrigeration Appliance Screw, #10-24 X 1/2-in 216337701
#27

Cabinet diagram

Refrigeration appliance screw, #10-24 x 1/2-in

Part #216337701

$13.26
In Stock
Freezer Run Capacitor (replaces 216985010) 297286802
#55

System diagram

Freezer run capacitor (replaces 216985010)

Part #297286802

$38.69 |
13% OFF Phone Price : $44.69
In Stock
