Model # VDSC365 Official Viking Range dual-fuel range

Here are the diagrams and repair parts for Official Viking Range VDSC365 dual-fuel range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

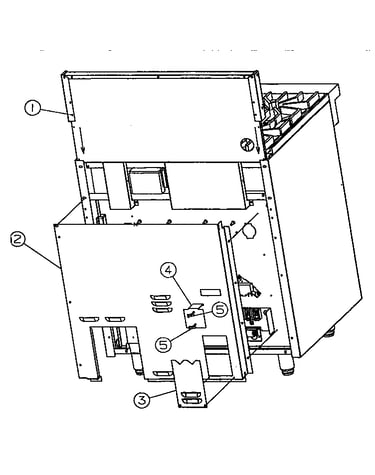

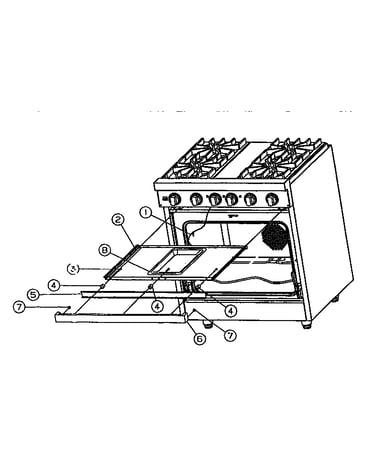

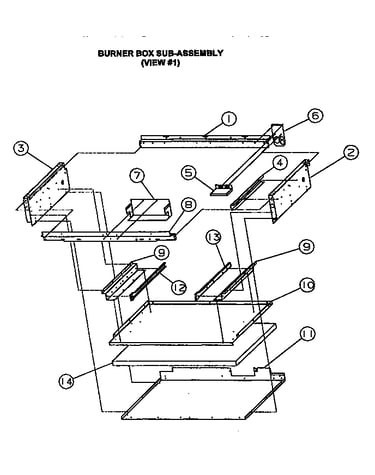

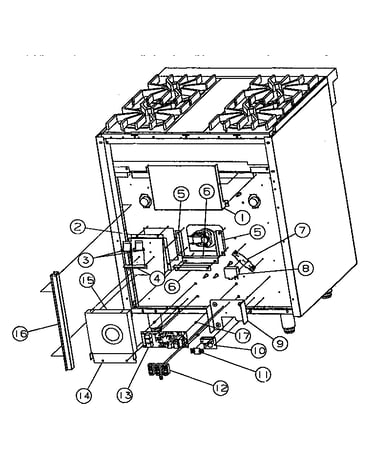

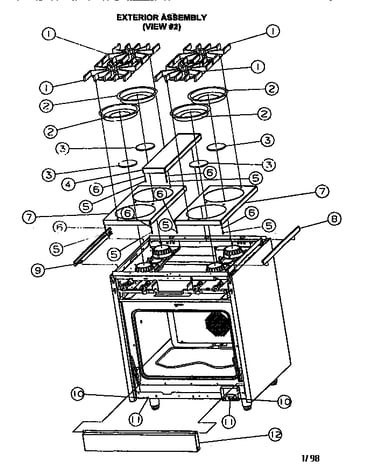

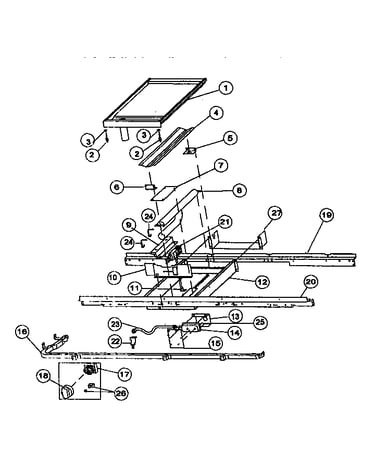

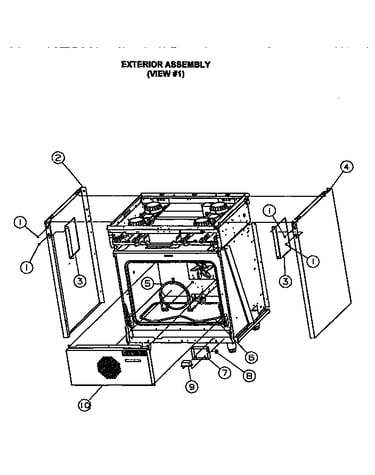

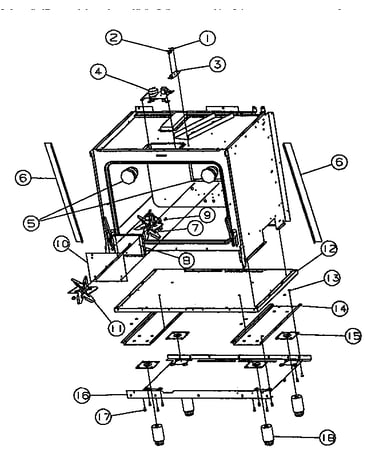

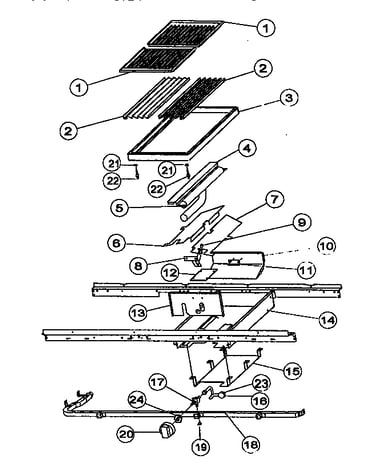

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 247 parts  |
Cooktop Burner Igniter Switch PA020015
Cooktop burner igniter switch

Part #PA020015

$21.00
In Stock
Lt Housing PE050024
Lt housing

Part #PE050024

$19.49
In Stock
Rear Leg PC030017
Rear leg

Part #PC030017

$68.99
In Stock
Gasket PB070041
#H

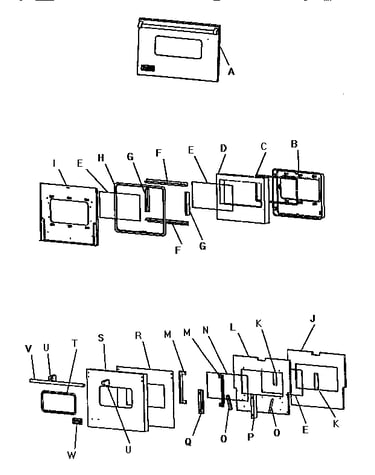

Oven door diagram

Gasket

Part #PB070041

$98.49
In Stock
Cooktop Burner Knob PA010034
#11

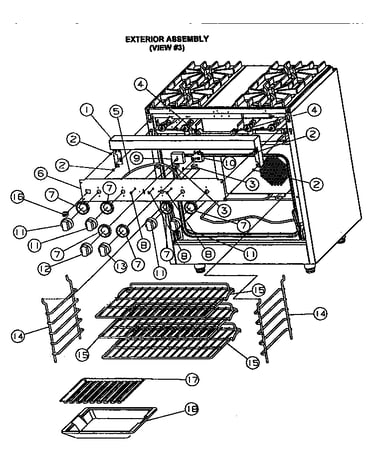

Exterior assembly (view #3) diagram

Cooktop burner knob

Part #PA010034

$50.49
In Stock
Viking Range Control Panel B9203172
#6B

Exterior assembly (view #3) diagram

Viking range control panel

Part #B9203172

$138.99
In Stock
Viking Range Retainer A2002791
#7

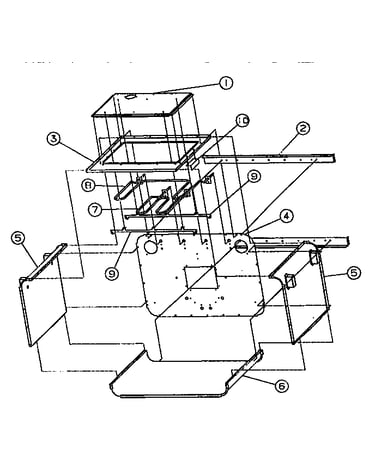

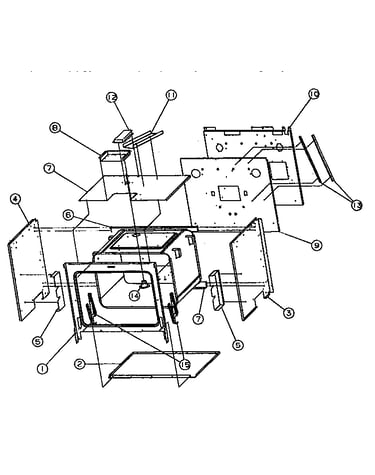

Oven cavity (insulation retainer) diagram

Viking range retainer

Part #A2002791

$125.99
In Stock
Duct A2002450
#11

Oven cavity (insulation retainer) diagram

Duct

Part #A2002450

$18.49
In Stock
Screw PD020048

#NI

All parts diagram

Screw

Part #PD020048

$7.99
In Stock
Support A2001112
#4

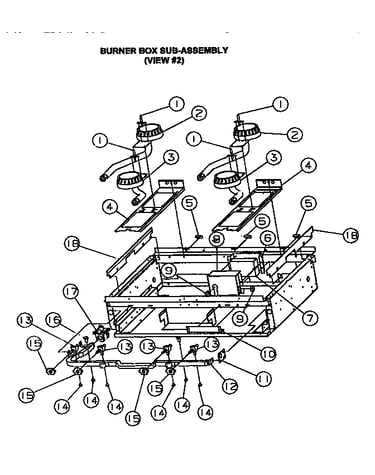

Burner box sub-assembly (view #2) diagram

Support

Part #A2001112

$44.99
In Stock
