GE
Upright Freezer

Model # CA10DFC Official GE freezer

Here are the diagrams and repair parts for Official GE CA10DFC freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Power Cord WR23X108
#101B

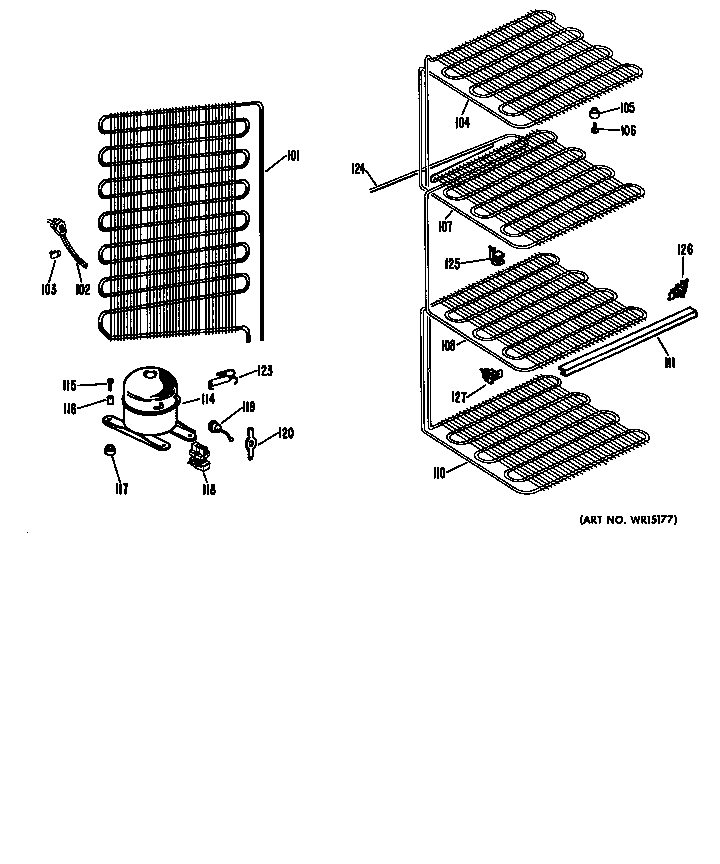

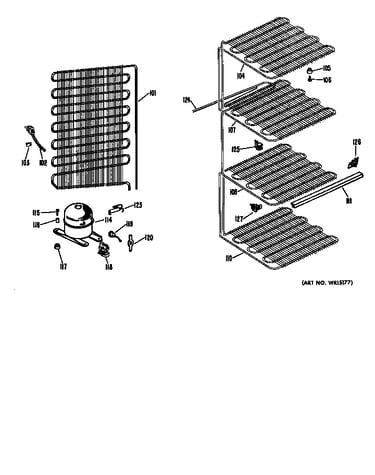

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Water Tubing Clip WR1X5278
#103

Unit diagram

Refrigerator water tubing clip

Part #WR1X5278

$7.57 |
12% OFF Phone Price : $8.57
In Stock
O D Panel WR78X7491
#1

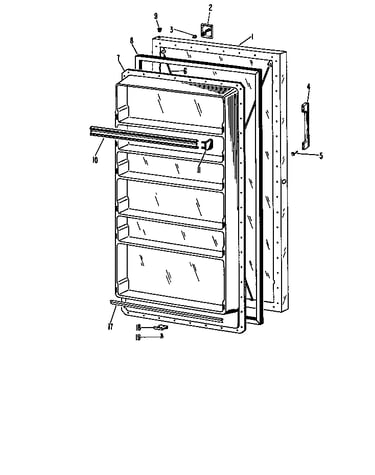

Door diagram

O d panel

Part #WR78X7491

$177.49
In Stock
Insulator WR2X6309
#43B

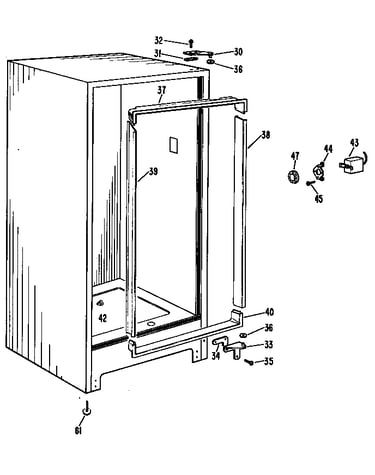

Cabinet diagram

Insulator

Part #WR2X6309

Replaced by #WR2X9500

?
Manufacturer substitution
This part replaces WR2X6309. Substitute parts can look different from the original.
$37.40
In Stock
Refrigerator Screw WR1X5450
#7B

Door diagram

Refrigerator screw

Part #WR1X5450

Replaced by #WR02X13481

?
Manufacturer substitution
This part replaces WR1X5450. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Use & Care U 49-6315-1
#127B

Unit diagram

Use & care u

Part #49-6315-1

Replaced by #49-6315-2

?
Manufacturer substitution
This part replaces 49-6315-1. Substitute parts can look different from the original.
$8.49
In Stock
Nut WR1X5259
#105B

Unit diagram

Nut

Part #WR1X5259

The manufacturer no longer makes this part, and there's no substitute part

Clip WR1X5368
#39B

Cabinet diagram

Clip

Part #WR1X5368

The manufacturer no longer makes this part, and there's no substitute part

First Shelf WR85X152
#107

Unit diagram

First shelf

Part #WR85X152

The manufacturer no longer makes this part, and there's no substitute part

Screw Grid To Grommet WR1X5400
#106

Unit diagram

Screw grid to grommet

Part #WR1X5400

The manufacturer no longer makes this part, and there's no substitute part
