Model # SF3000SYN2 Official Whirlpool 30" gas freestanding range

Here are the diagrams and repair parts for Official Whirlpool SF3000SYN2 30" gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

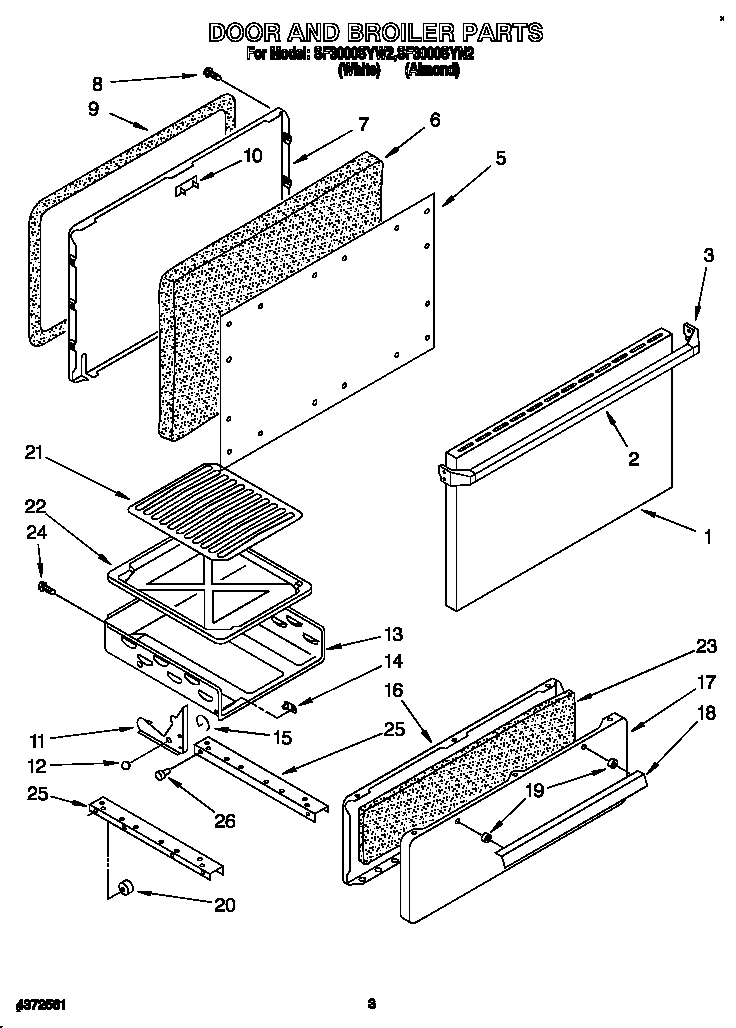

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Surface Knob 4371476
#3

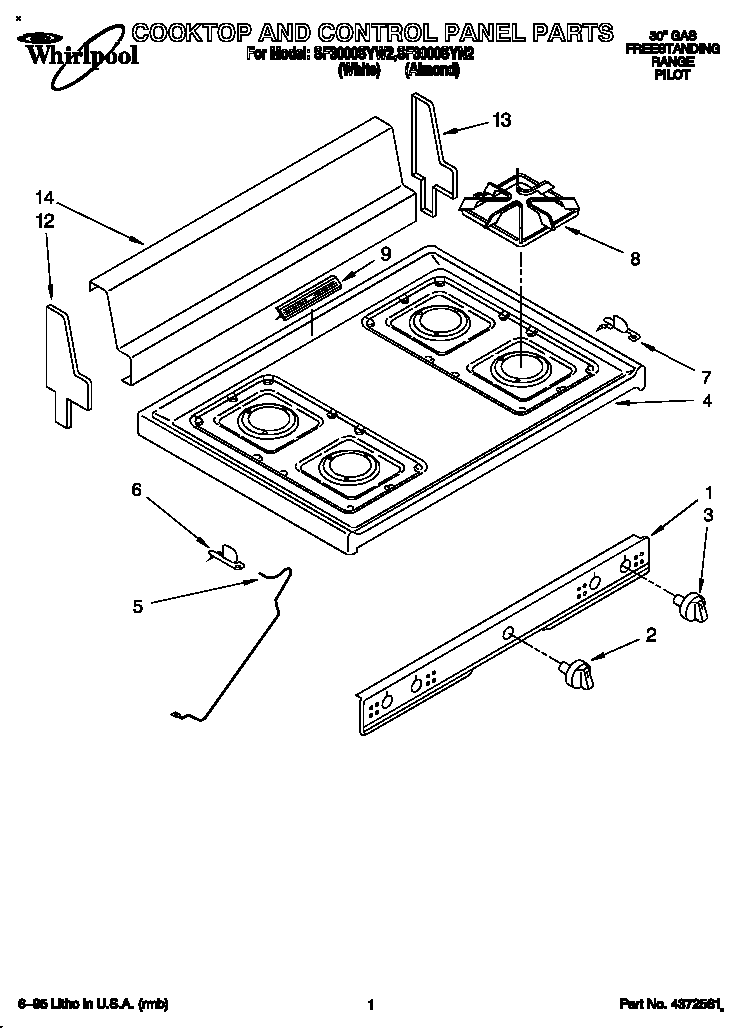

Cooktop and control panel diagram

Surface knob

Part #4371476

The manufacturer no longer makes this part, and there's no substitute part

Screw 4371027
#19

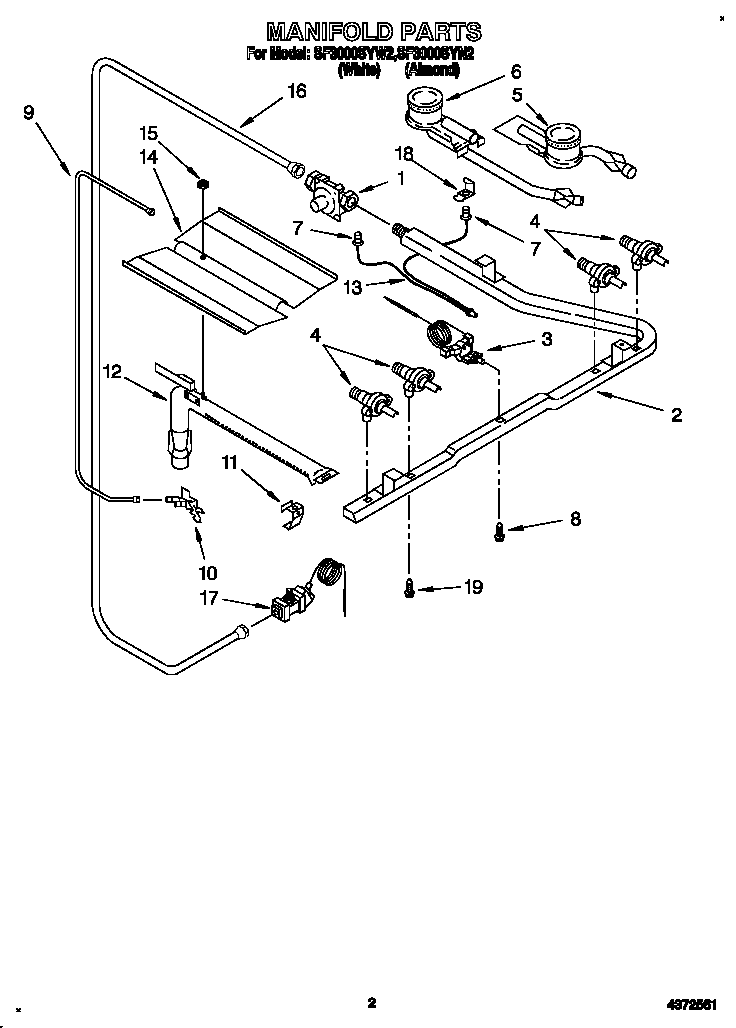

Manifold diagram

Screw

Part #4371027

Replaced by #WP3186217

?
Manufacturer substitution
This part replaces 4371027. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Insulation 4371091
#15

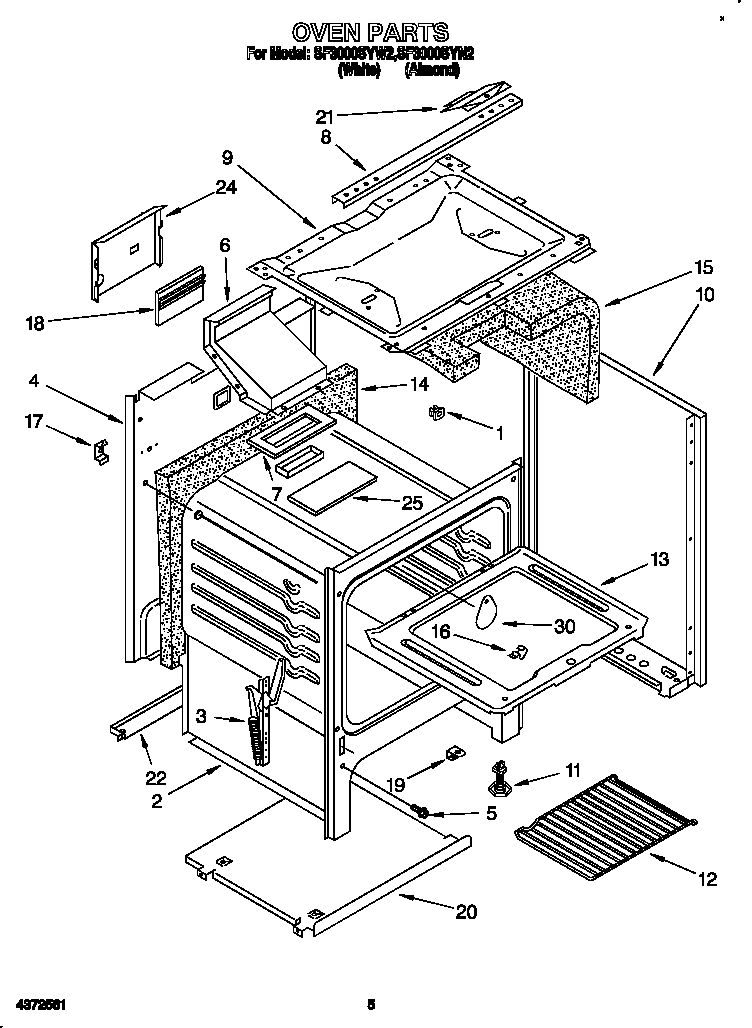

Oven diagram

Insulation

Part #4371091

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4371091. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Burner 4371480
#5

Manifold diagram

Burner

Part #4371480

The manufacturer no longer makes this part, and there's no substitute part

Oven Spacer 816669
#1

Oven diagram

Oven spacer

Part #816669

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 4371489
#1

Cooktop and control panel diagram

Control panel

Part #4371489

The manufacturer no longer makes this part, and there's no substitute part

Oven Plate 4371099
#30

Oven diagram

Oven plate

Part #4371099

The manufacturer no longer makes this part, and there's no substitute part

Clip Bulb 4371482
#16

Oven diagram

Clip bulb

Part #4371482

The manufacturer no longer makes this part, and there's no substitute part

Flue 4371083
#6

Oven diagram

Flue

Part #4371083

The manufacturer no longer makes this part, and there's no substitute part

Cover Plate 4371080
#25

Oven diagram

Cover plate

Part #4371080

The manufacturer no longer makes this part, and there's no substitute part
