Samsung
Gas Range

Model # NX58K9850SG/AA-00 Official Samsung gas slide-in range

Here are the diagrams and repair parts for Official Samsung NX58K9850SG-AA-00 gas slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 203 parts  |
Samsung Range Oven Burner Igniter DG94-00520A
#20-2

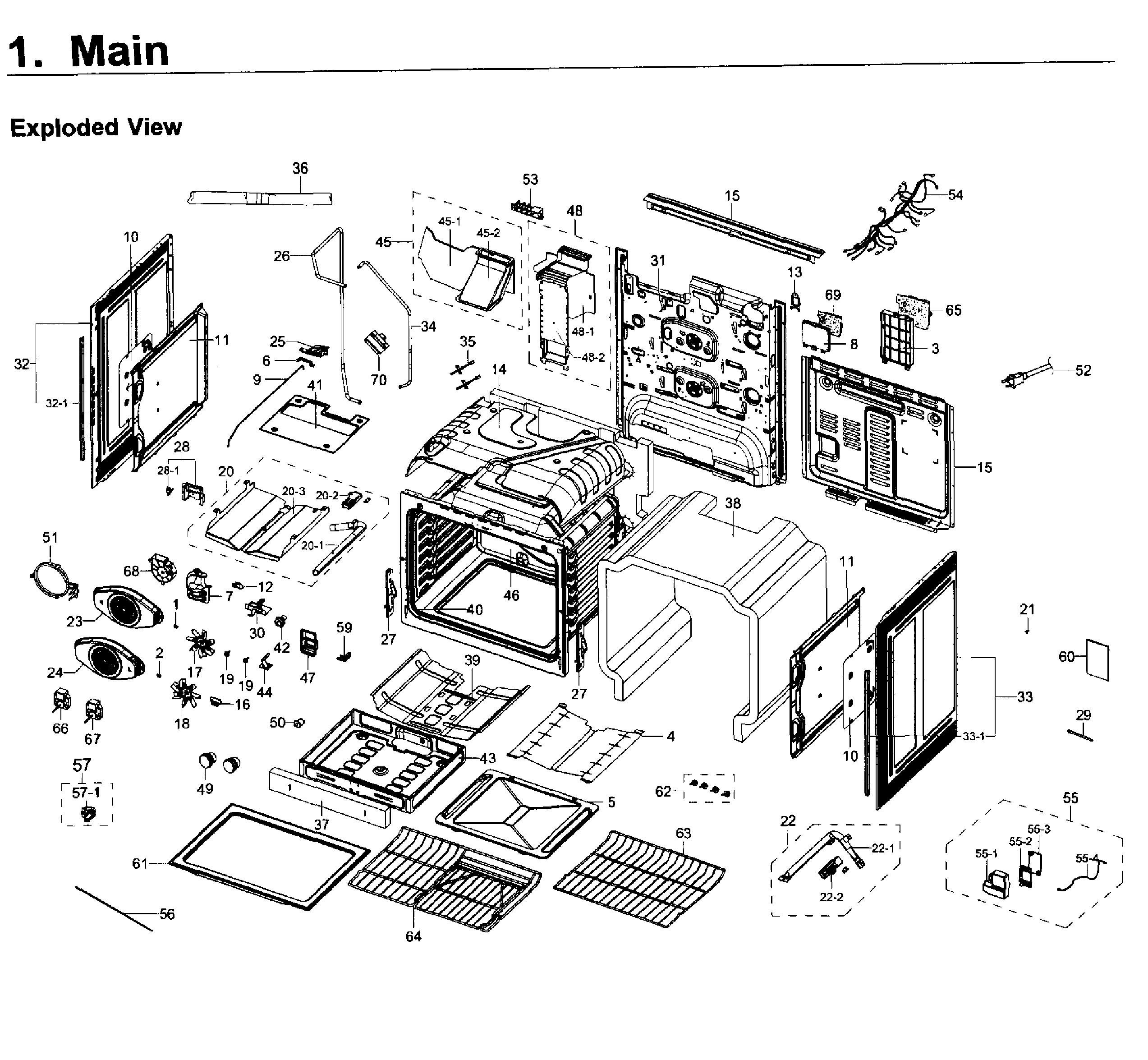

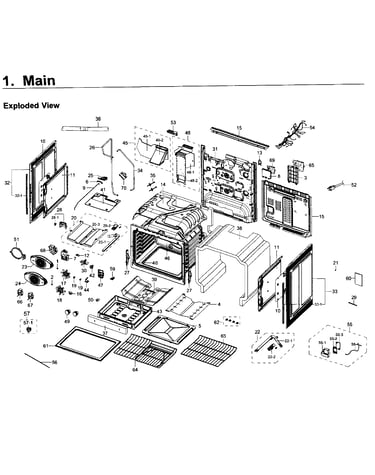

Main asy diagram

Samsung range oven burner igniter

Part #DG94-00520A

BEST SELLER
$189.45 |
6% OFF Phone Price : $201.45
Back Order
Range Bake Igniter DG94-01012A
#22-2

Main asy diagram

Range bake igniter

Part #DG94-01012A

BEST SELLER
$152.53 |
7% OFF Phone Price : $164.53
In Stock
Microwave Door Interlock Switch (replaces 3405-000178) 3405-001034
#57-1

Main asy diagram

Microwave door interlock switch (replaces 3405-000178)

Part #3405-001034

BEST SELLER
$18.27 |
10% OFF Phone Price : $20.27
Back Order
Range Convection Fan Motor DG31-00014F
#66

Main asy diagram

Range convection fan motor

Part #DG31-00014F

BEST SELLER
$94.86 |
6% OFF Phone Price : $100.86
Back Order
Range Oven Temperature Sensor DG32-00004C
#35

Main asy diagram

Range oven temperature sensor

Part #DG32-00004C

BEST SELLER
$107.87 |
10% OFF Phone Price : $119.87
In Stock
Range High-limit Thermostat DE47-20037A
Range high-limit thermostat

Part #DE47-20037A

BEST SELLER
$18.39 |
10% OFF Phone Price : $20.39
In Stock
Range Oven Door Switch DG34-00006A
#50

Main asy diagram

Range oven door switch

Part #DG34-00006A

BEST SELLER
This item is not returnable
$35.15 |
15% OFF Phone Price : $41.15
In Stock
Range Oven Bottom Liner DG61-00570A
#5

Main asy diagram

Range oven bottom liner

Part #DG61-00570A

BEST SELLER
$131.24 |
8% OFF Phone Price : $143.24
In Stock
Range Convection Fan Blade Nut 6021-001211
#2

Main asy diagram

Range convection fan blade nut

Part #6021-001211

BEST SELLER
$8.93 |
10% OFF Phone Price : $9.93
In Stock
Range Convection Fan Blade, Lower DG67-00011B
#18

Main asy diagram

Range convection fan blade, lower

Part #DG67-00011B

BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
