Model # EH150FXKQ01 Official Whirlpool chest freezer

Here are the diagrams and repair parts for Official Whirlpool EH150FXKQ01 chest freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

Touch-Up Paint

ALL PARTS

Showing 10 of 49 parts |

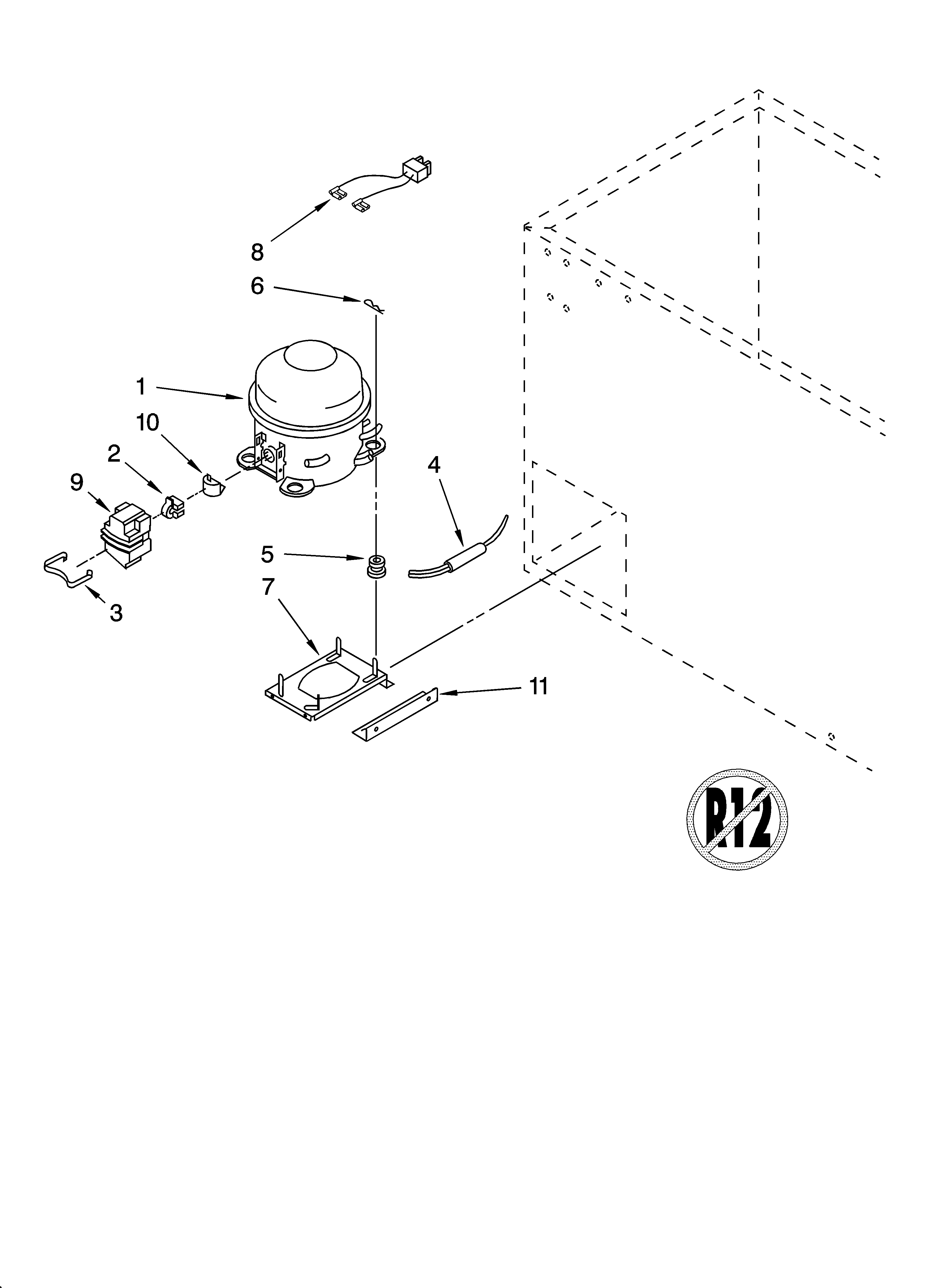

Unit parts diagram

Drier tube

Part #4357299

Replaced by #W10843121

$31.58 |

16% OFF Phone Price : $37.58

In Stock

Qty

#NI

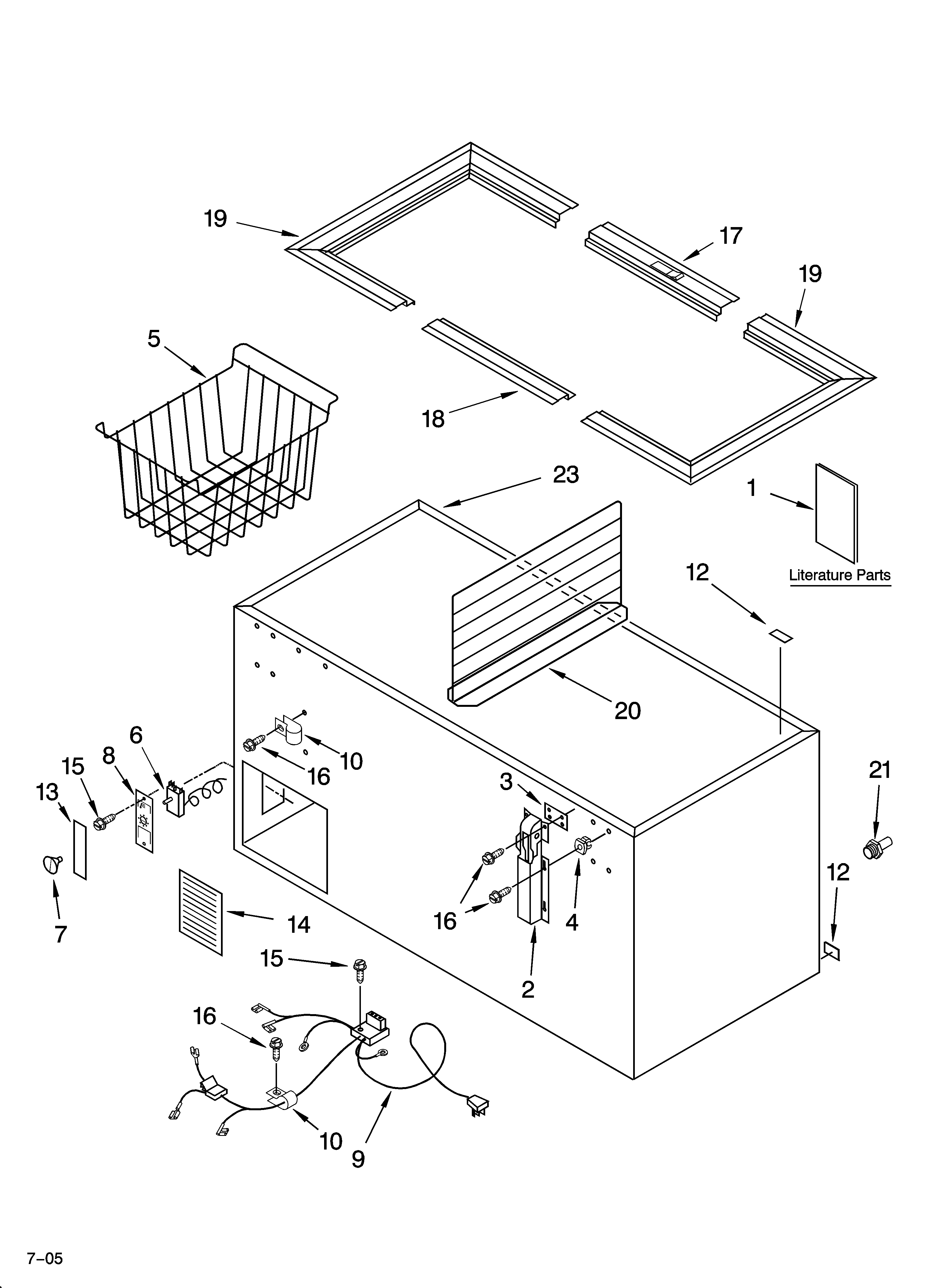

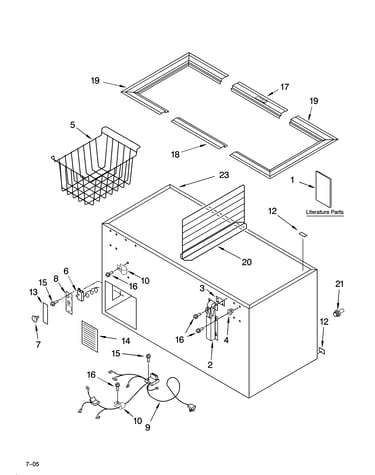

Cabinet parts diagram

Spray paint (white)

Part #350930

Replaced by #350930

This item is not returnable

$15.69 |

11% OFF Phone Price : $17.69

In Stock

Qty

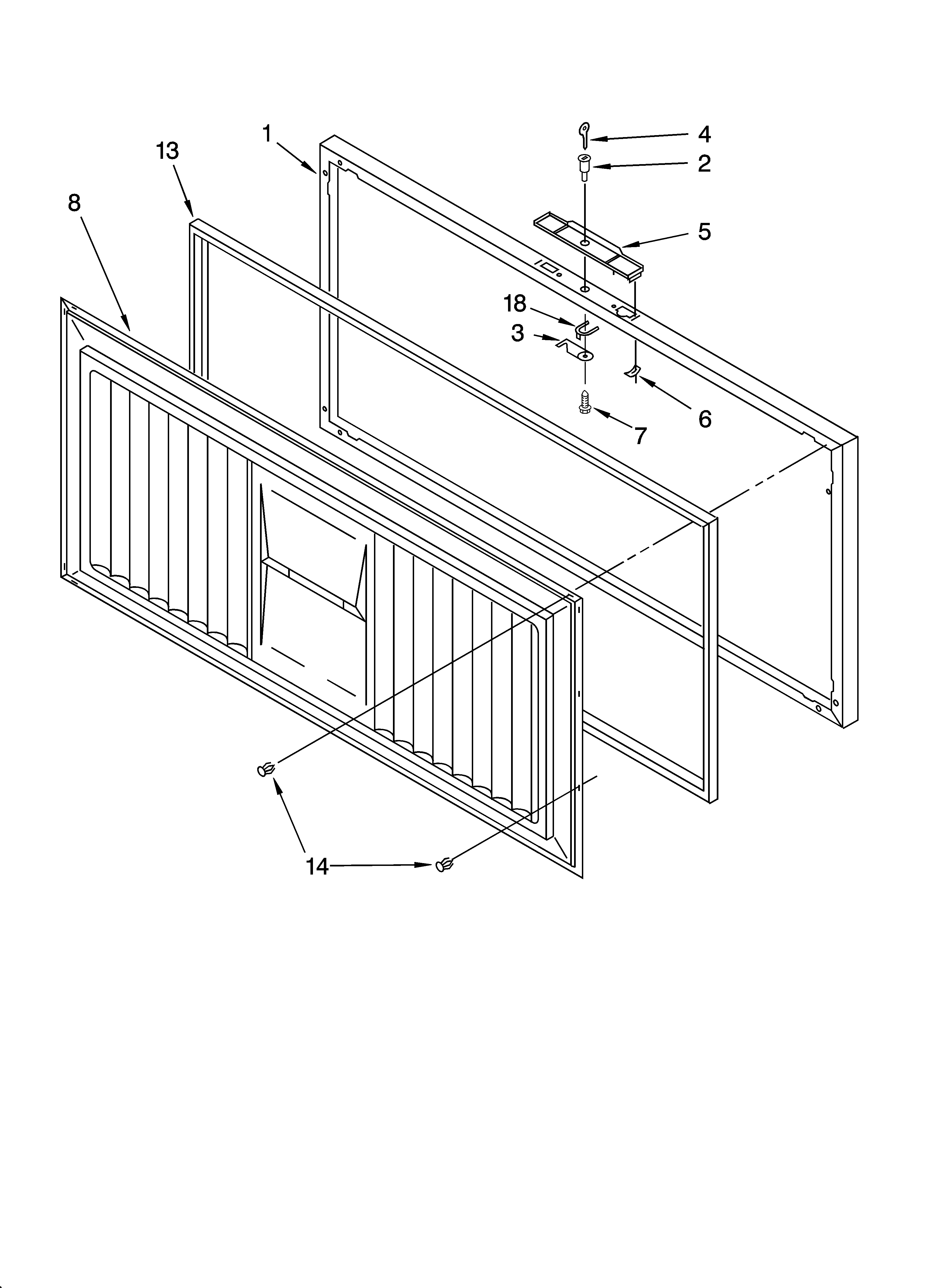

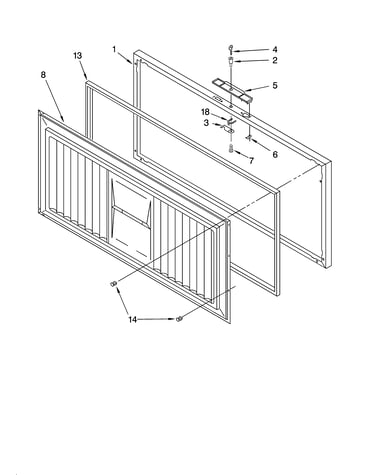

Door parts diagram

Screw

Part #4356609

Replaced by #W11233072

$16.79 |

11% OFF Phone Price : $18.79

In Stock

Qty

Cabinet parts diagram

Thermostat

Part #4356773

Replaced by #WP4-35940-001

$118.93 |

9% OFF Phone Price : $130.93

In Stock

Qty

Cabinet parts diagram

Grommet

Part #4356321

$15.29 |

12% OFF Phone Price : $17.29

In Stock

Qty

#16

Cabinet parts diagram

Screw

Part #4356491

$11.59

In Stock

Qty

Door parts diagram

Door lock

Part #4356759

$14.44

In Stock

Qty

#14

Cabinet parts diagram

Panel

Part #4356622

$32.87

In Stock

Qty

#13

Door parts diagram

Freezer lid gasket

Part #4356693

$140.39 |

8% OFF Phone Price : $152.39

In Stock

Qty

Appliance Porcelain Touch-up Paint, 1-qt (white) 799344

#NI

Cabinet parts diagram

Appliance porcelain touch-up paint, 1-qt (white)

Part #799344

$109.53 |

10% OFF Phone Price : $121.53

In Stock

Qty

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Appliance porcelain touch-up paint, 1-qt (white)
$109.53 |
10% OFF Phone Price : $121.53
Qty

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
