Singer
Electronic Sewing Machine

Model # 9810 Official Singer sewing machine

Here are the diagrams and repair parts for Official Singer 9810 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

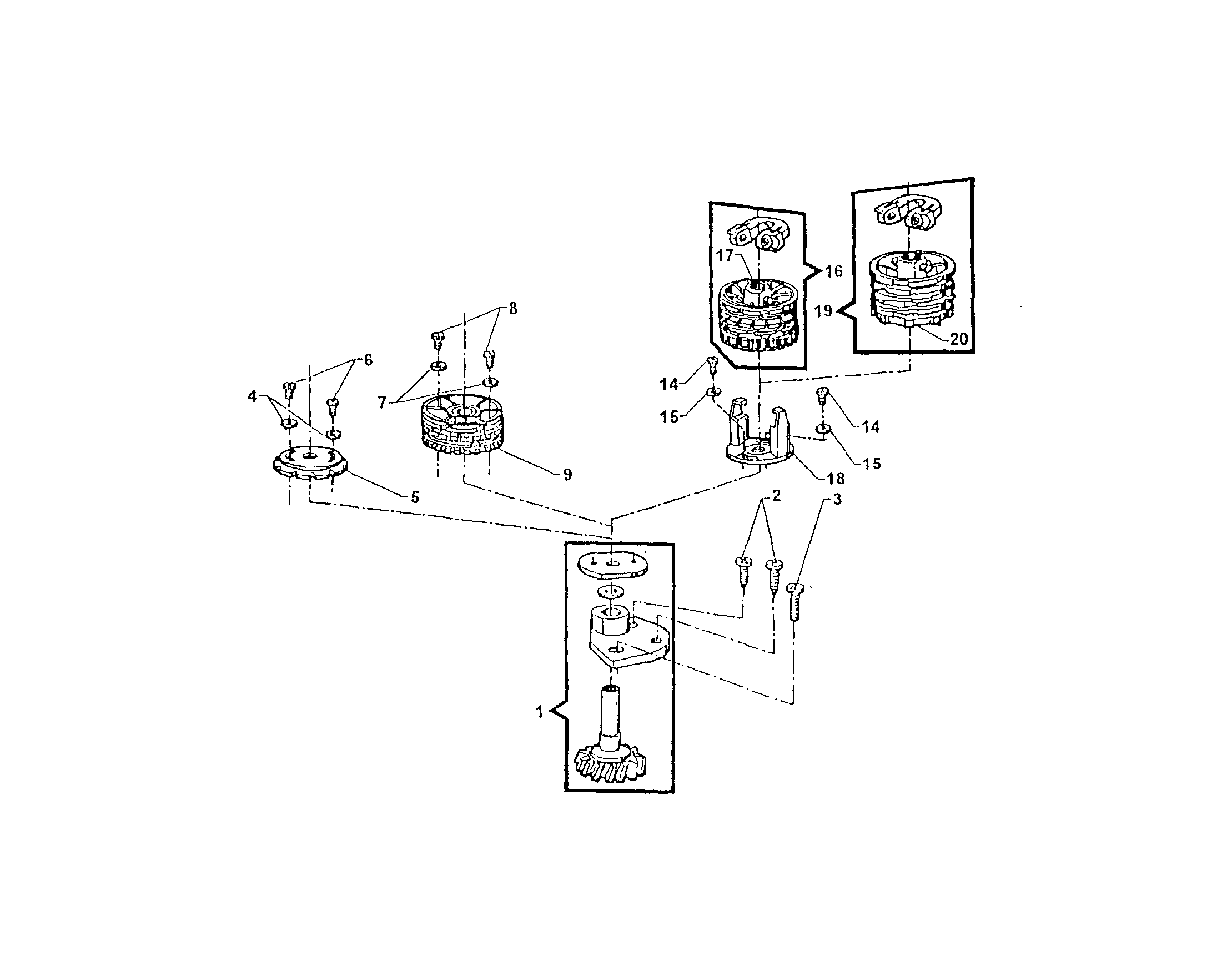

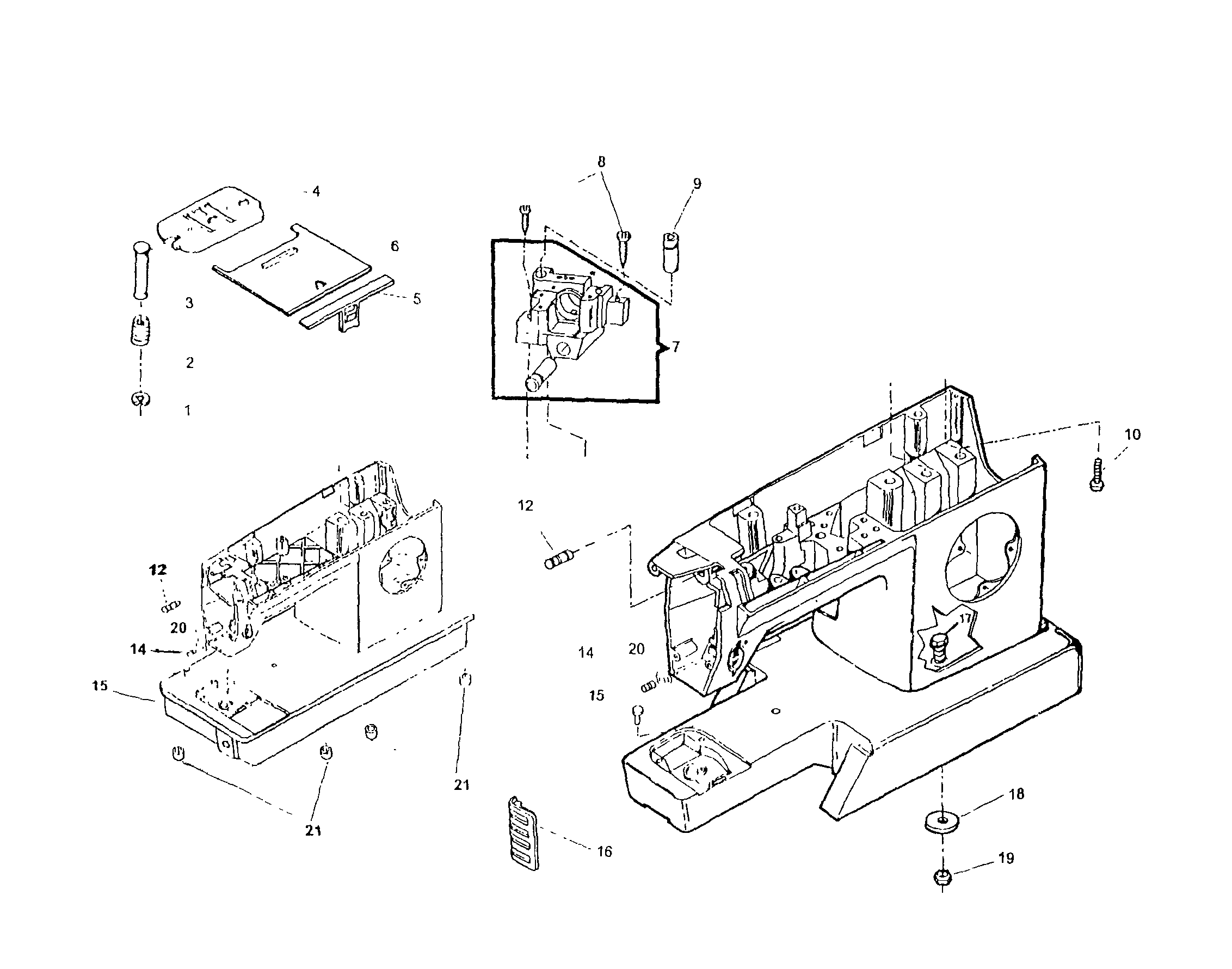

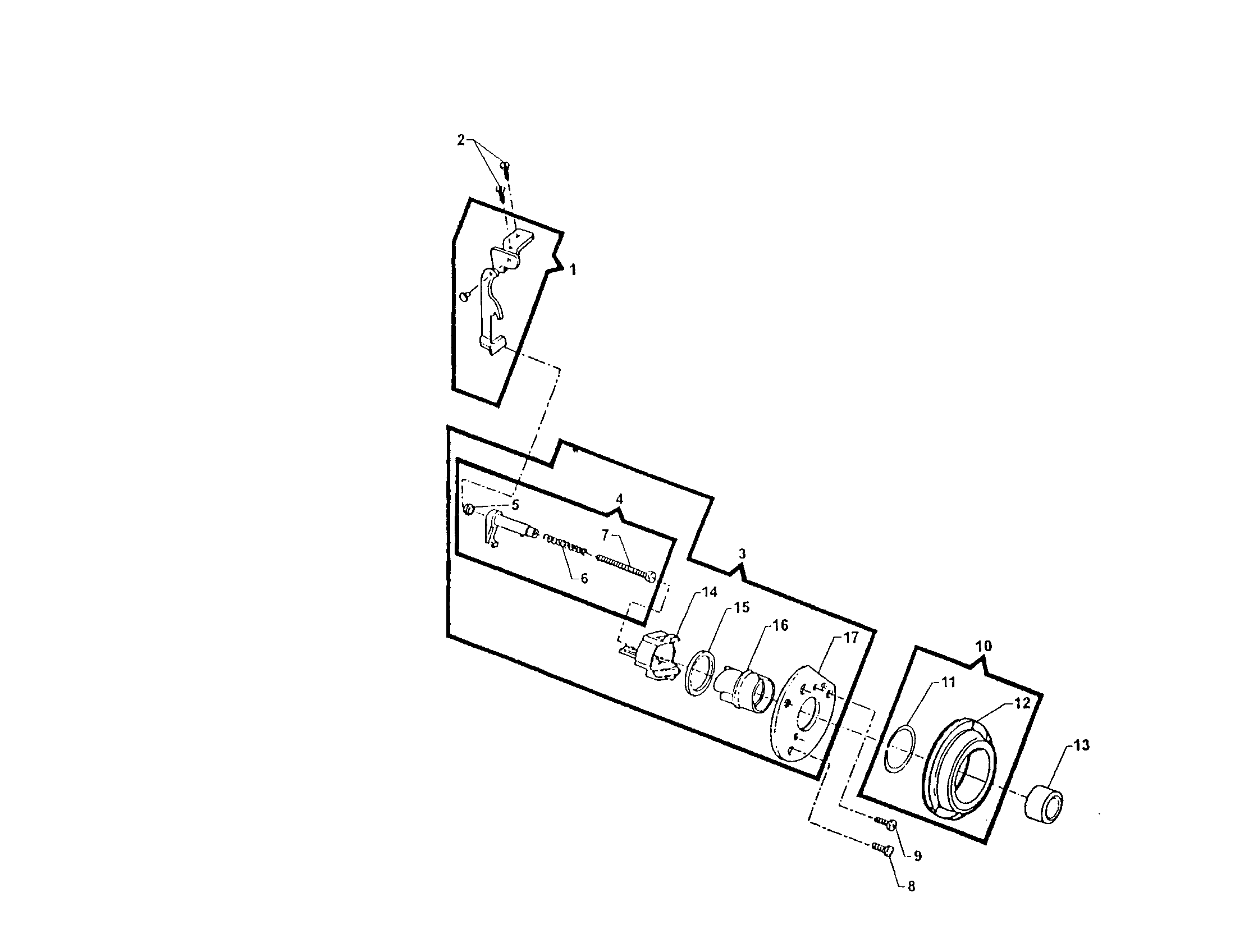

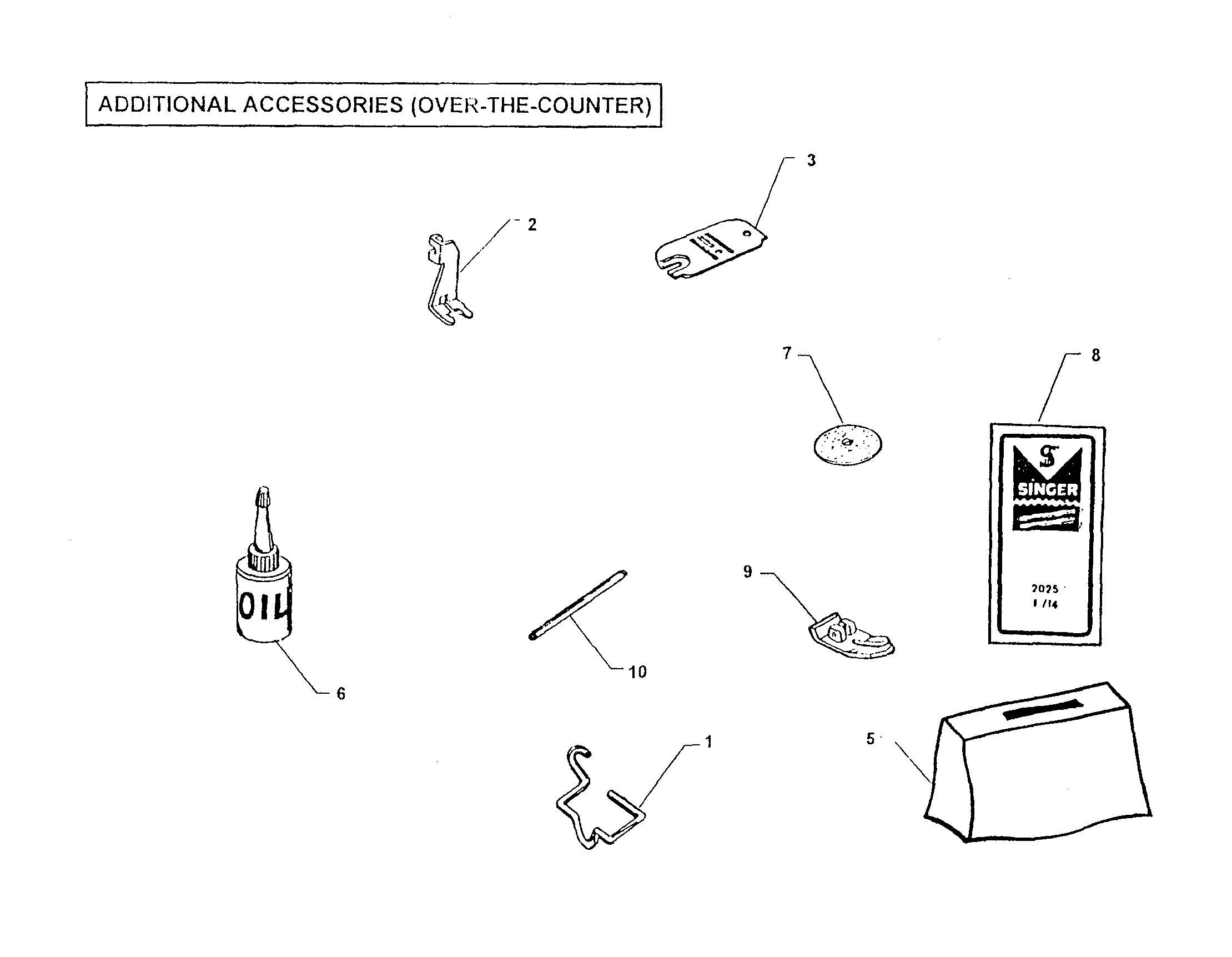

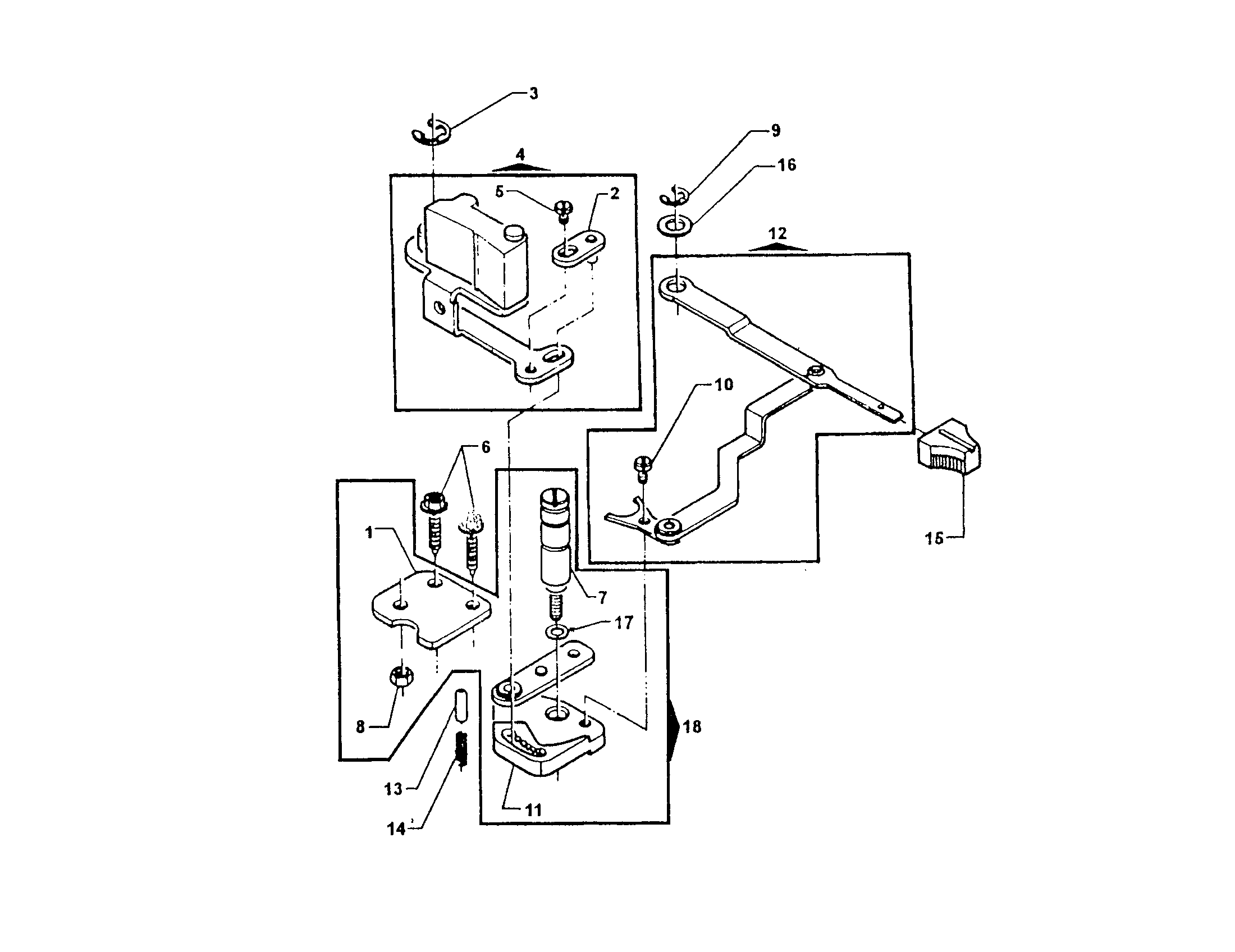

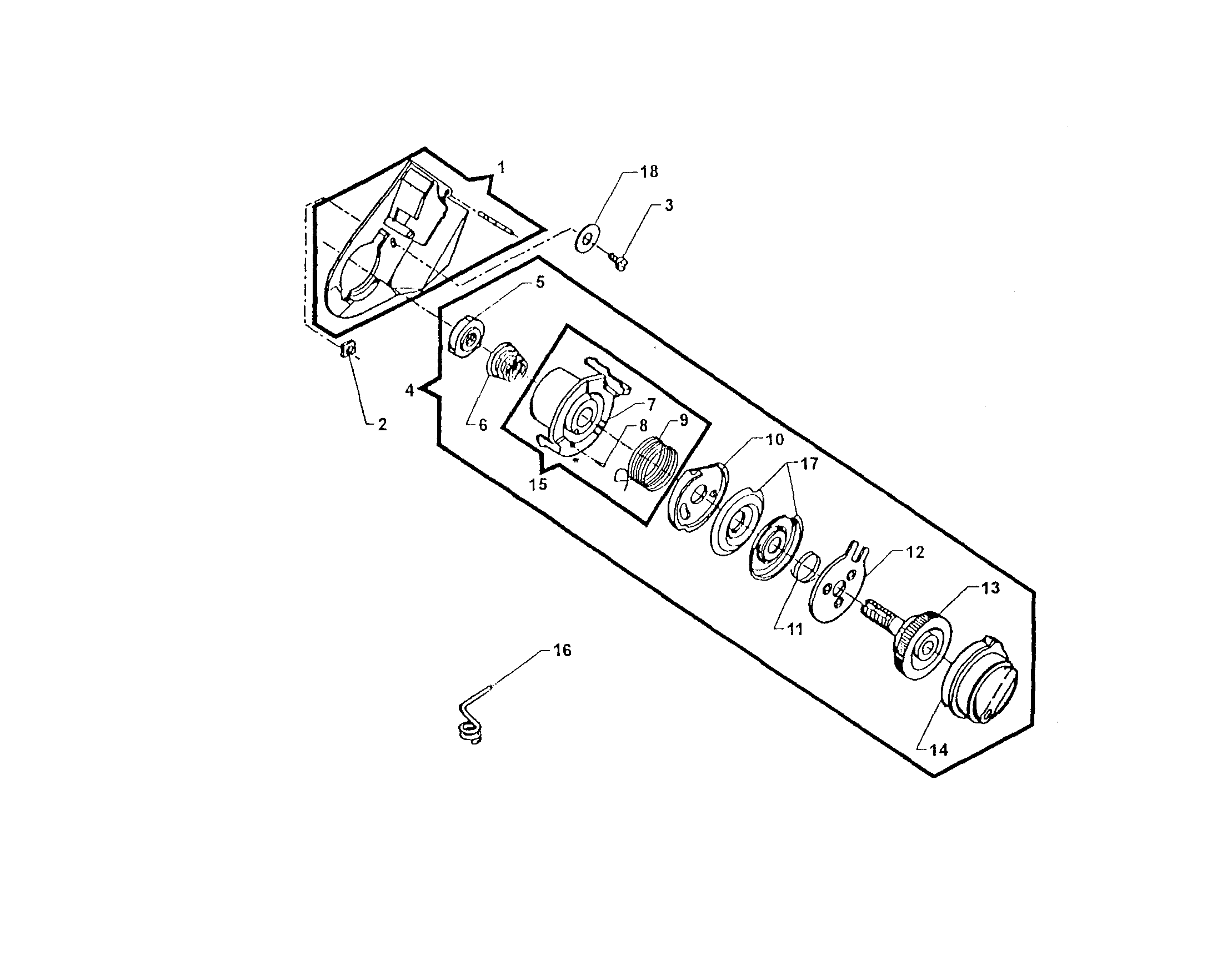

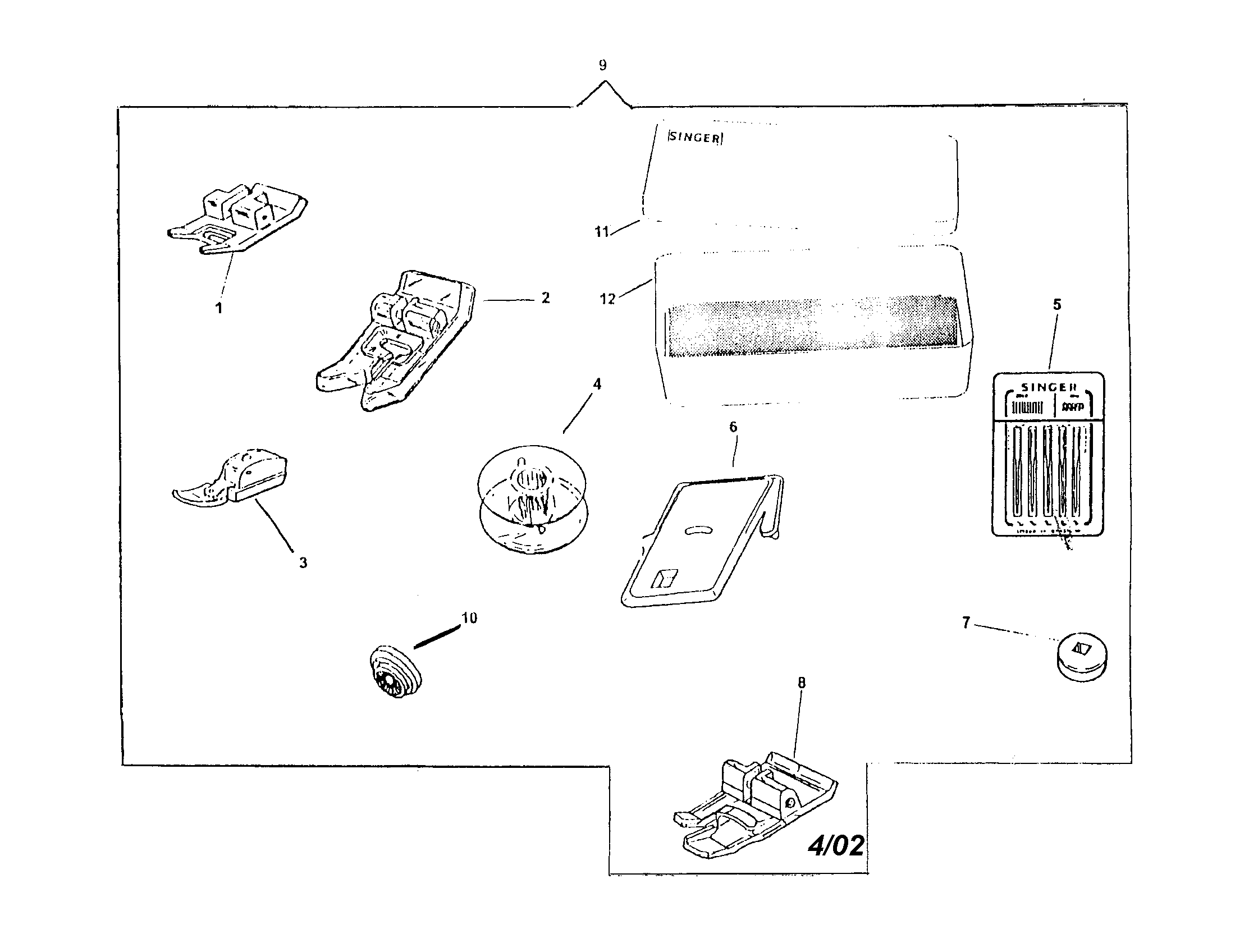

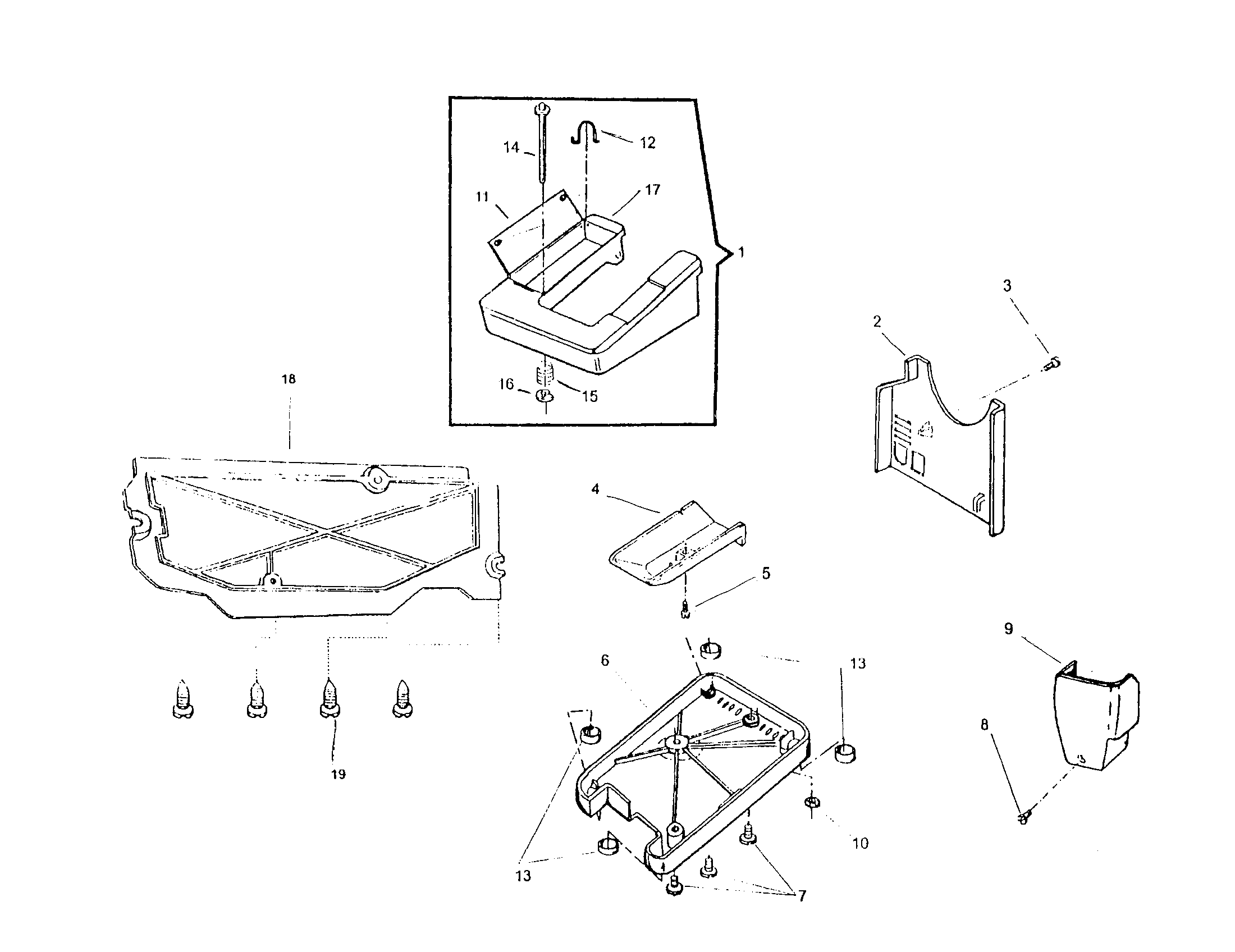

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 403 parts  |

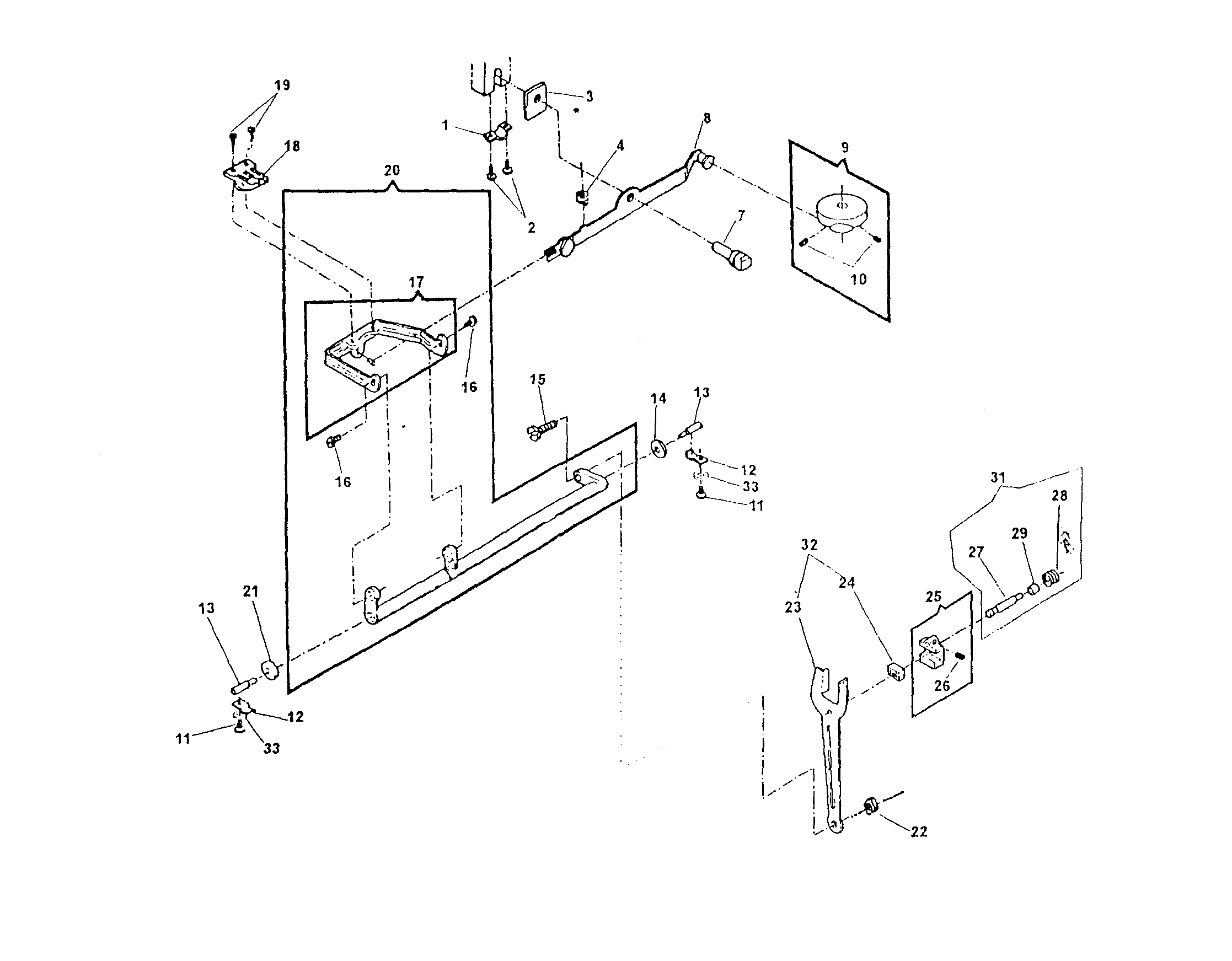

Lever 356166
#17

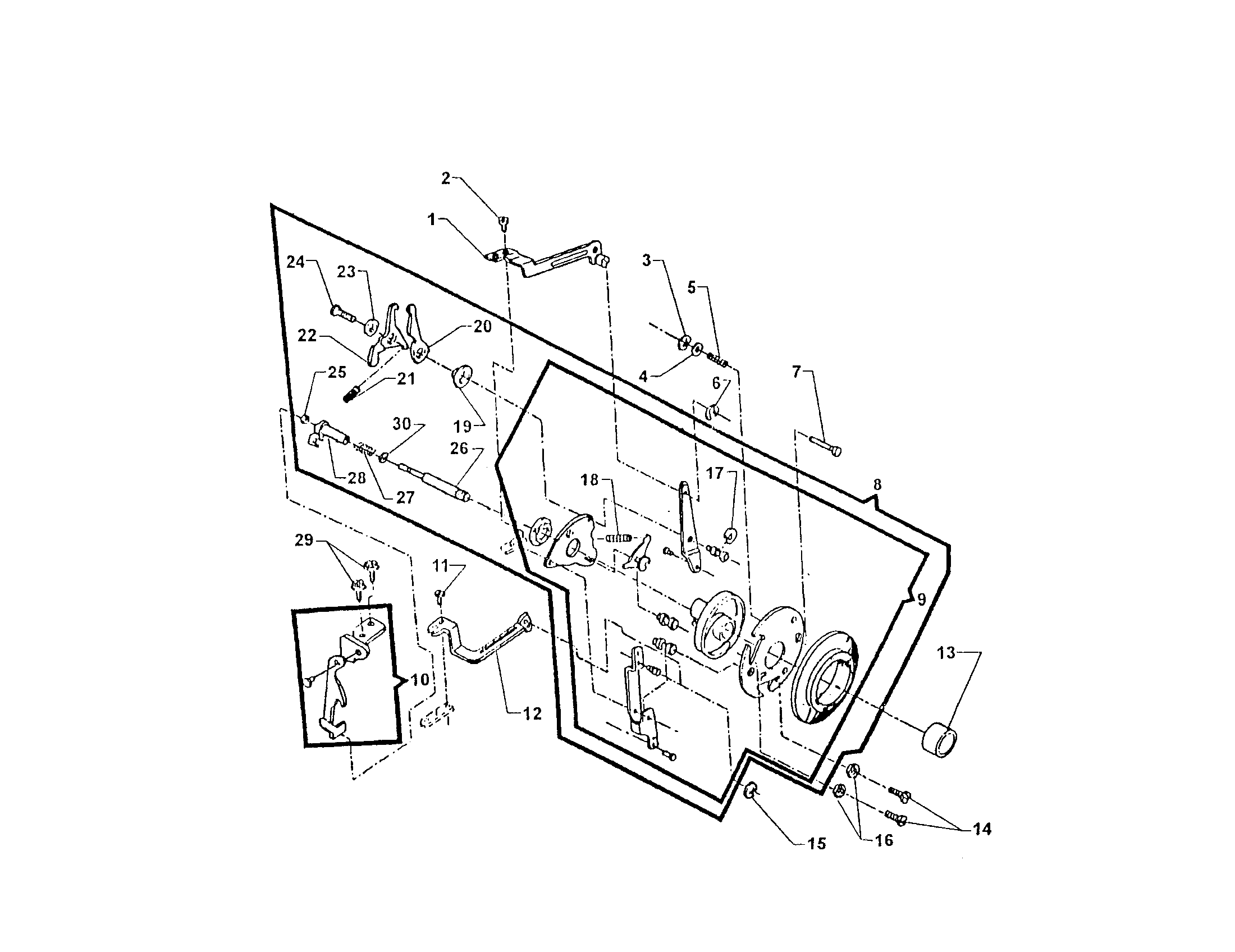

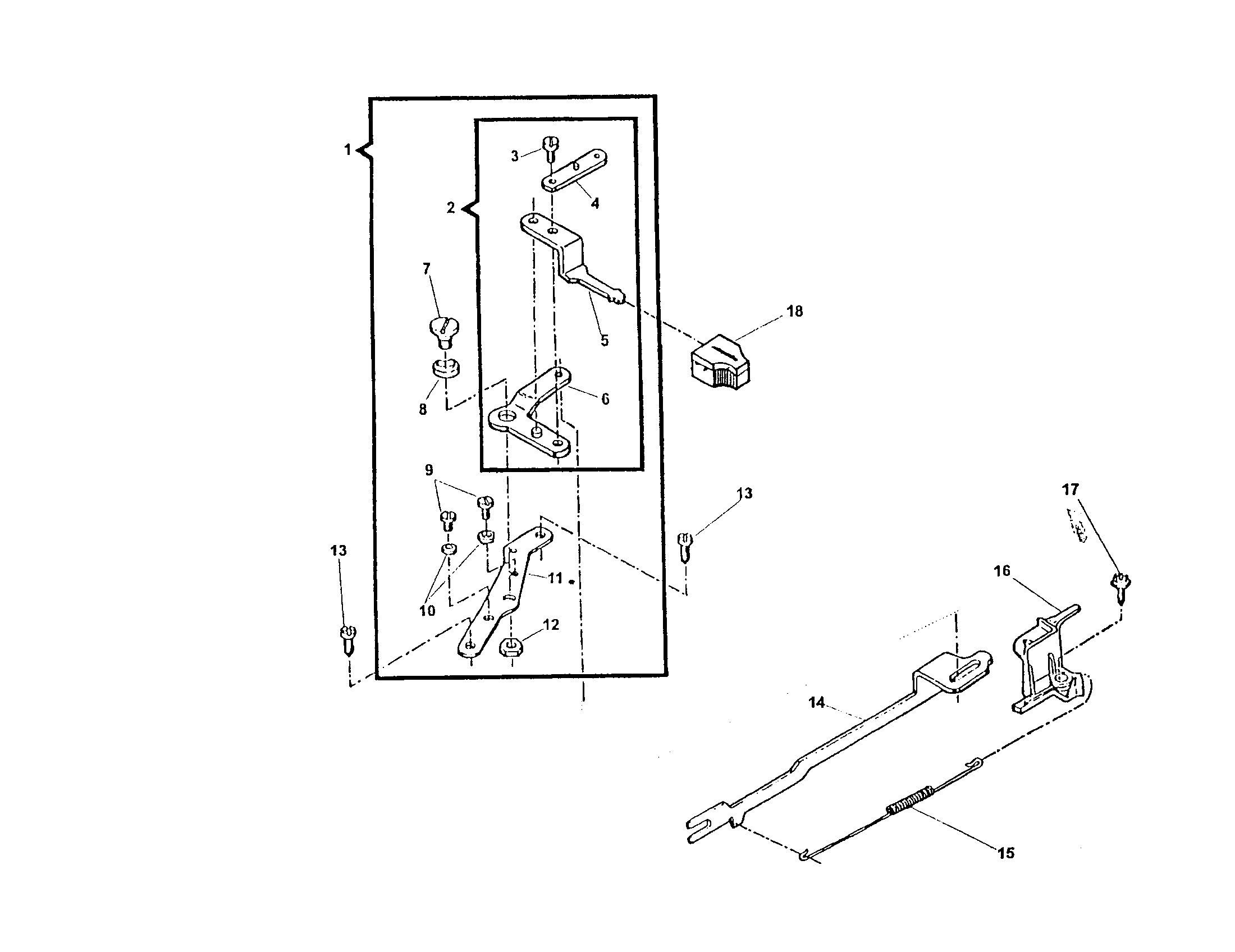

Cam controlled feed diagram

Lever

Part #356166

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 531793
#11

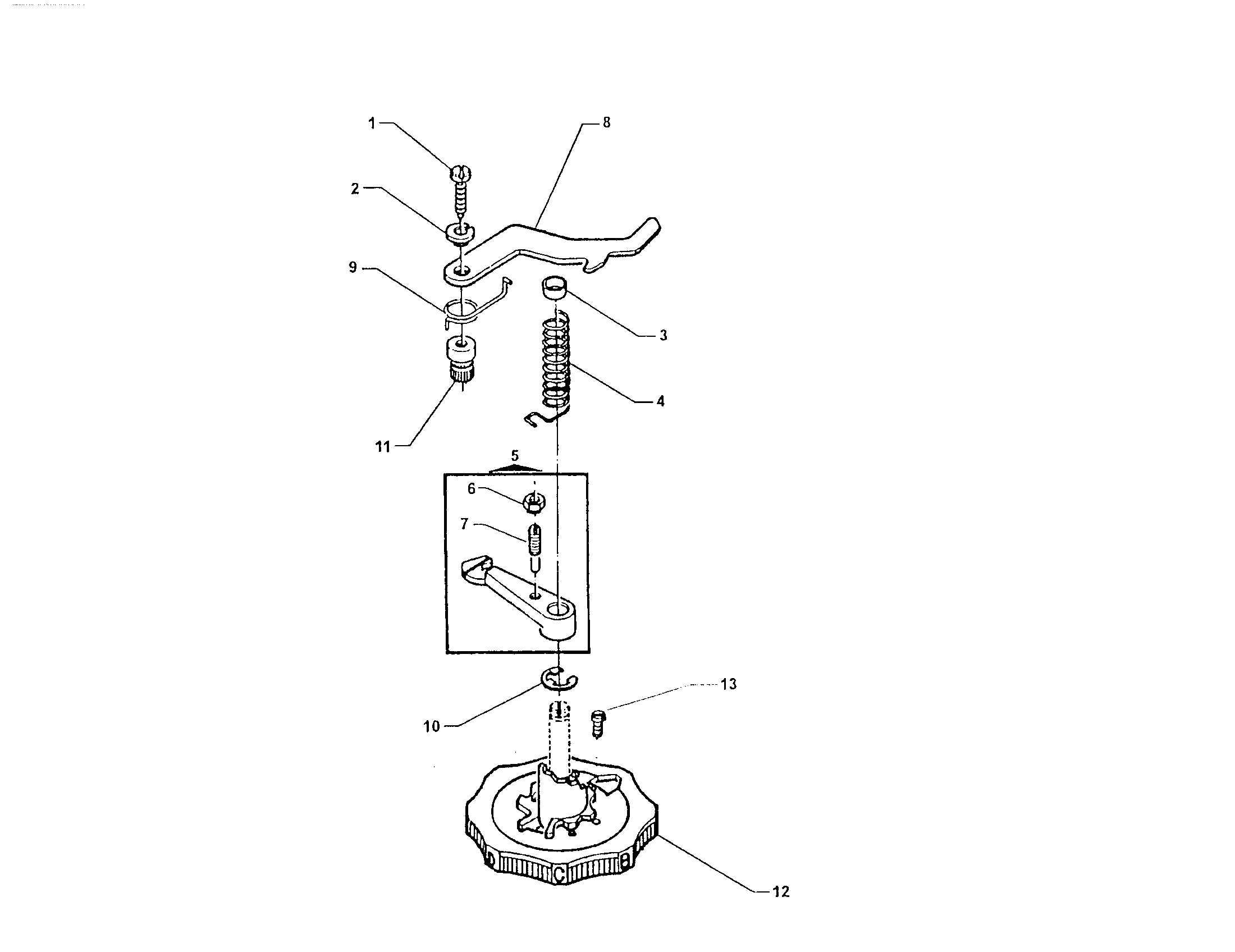

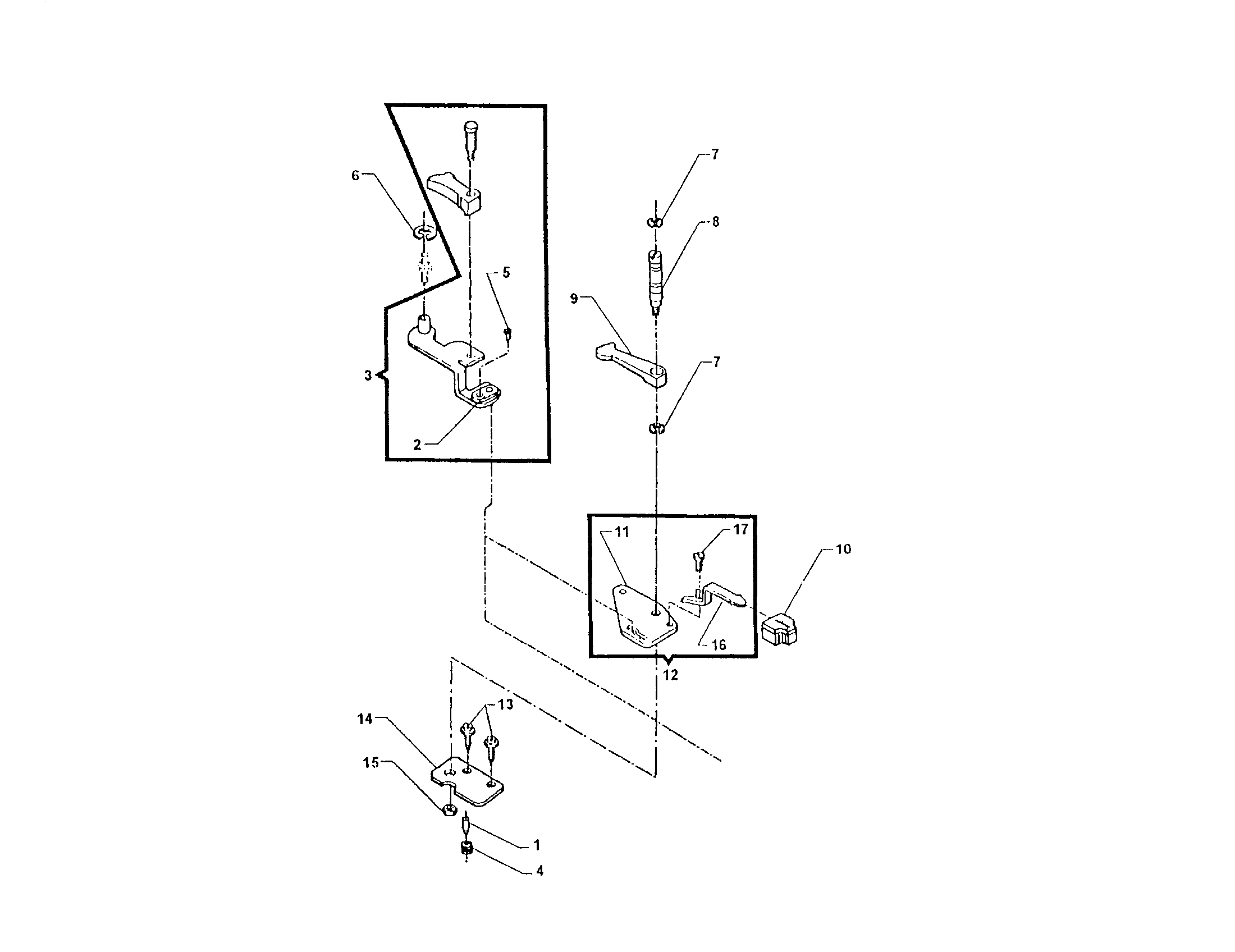

Bight amplitude diagram

Mounting bracket

Part #531793

The manufacturer no longer makes this part, and there's no substitute part

Bk Shaft Cpl 446216
#20

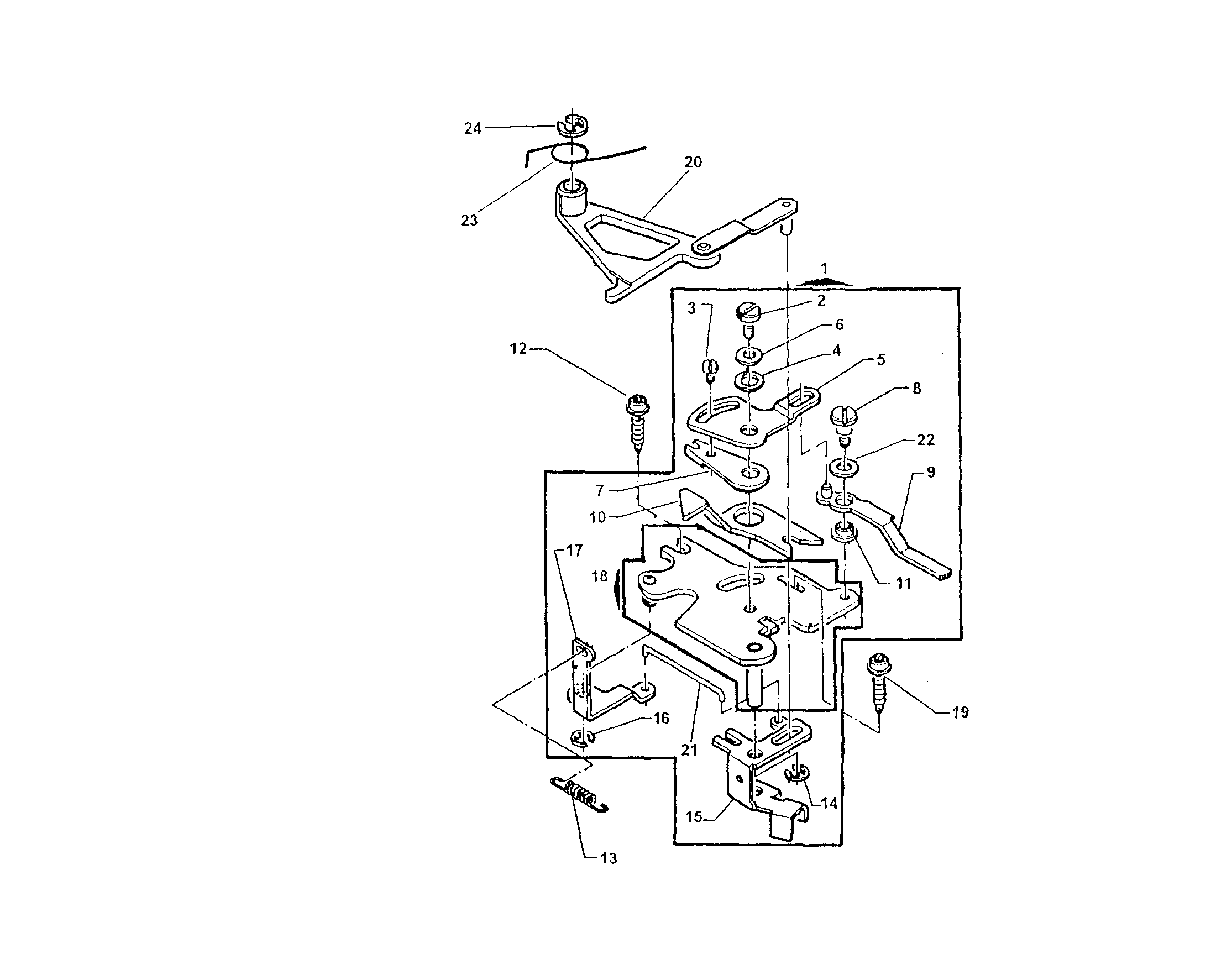

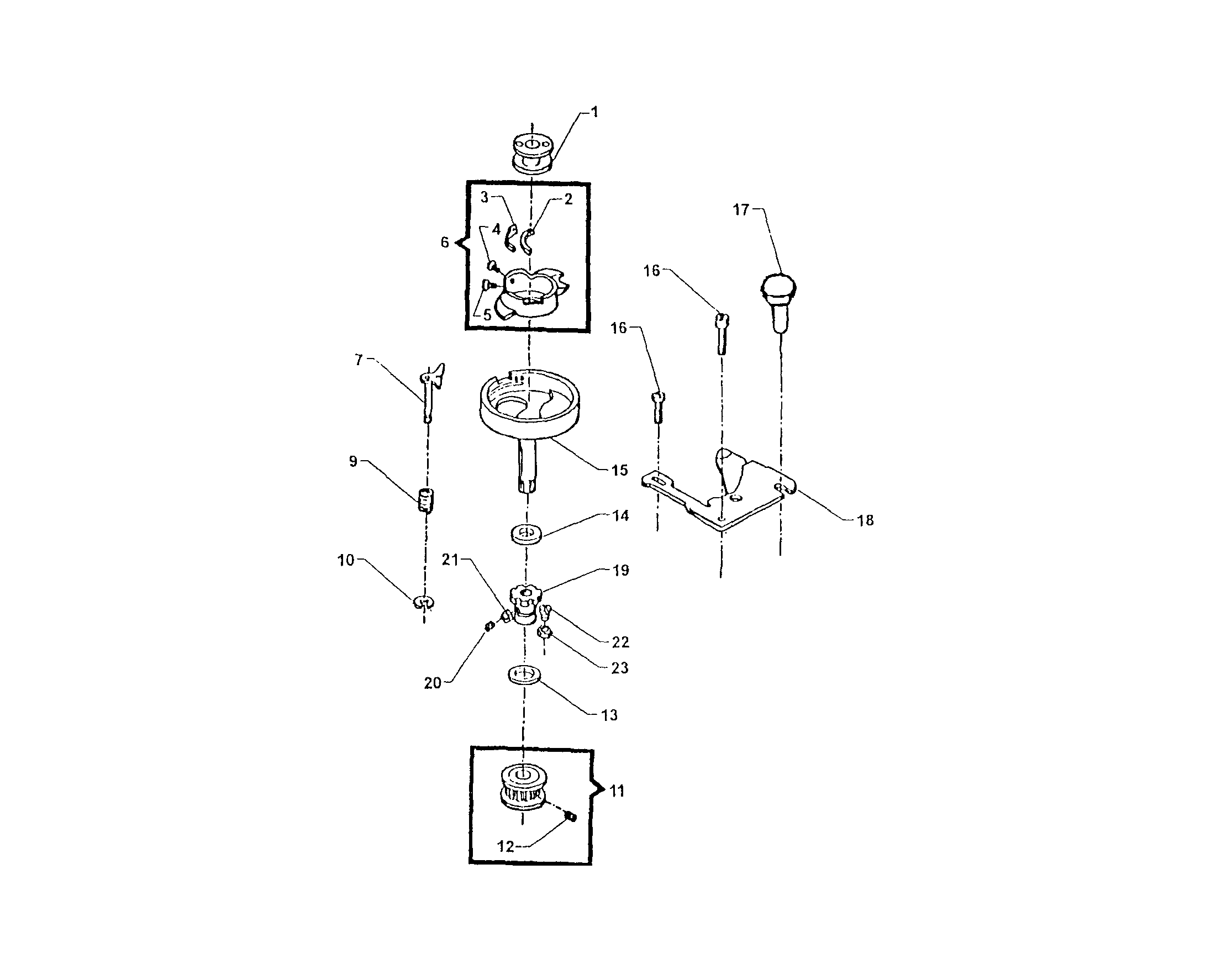

Feed system diagram

Bk shaft cpl

Part #446216

The manufacturer no longer makes this part, and there's no substitute part

Arm Shft Cpl 531684
#5

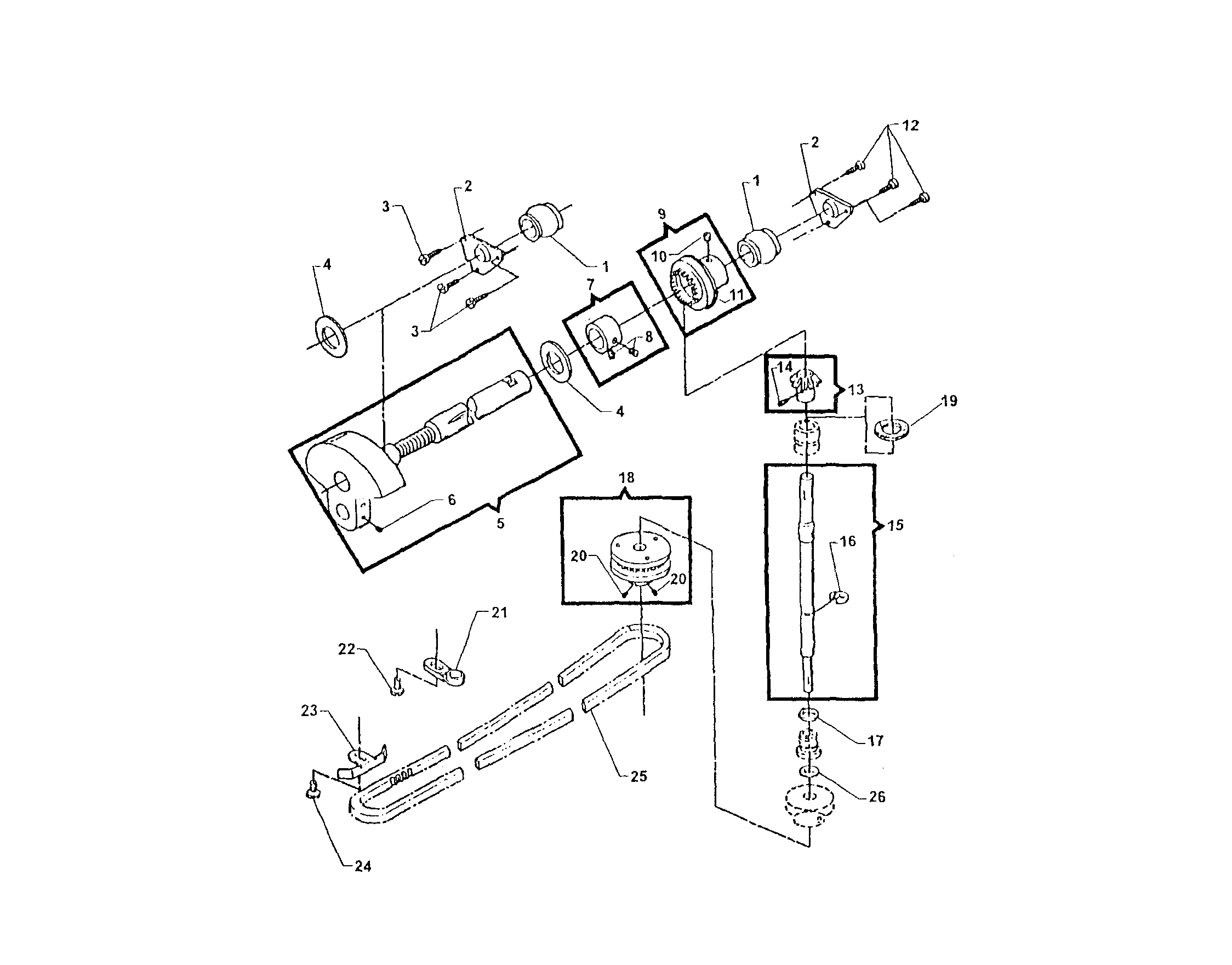

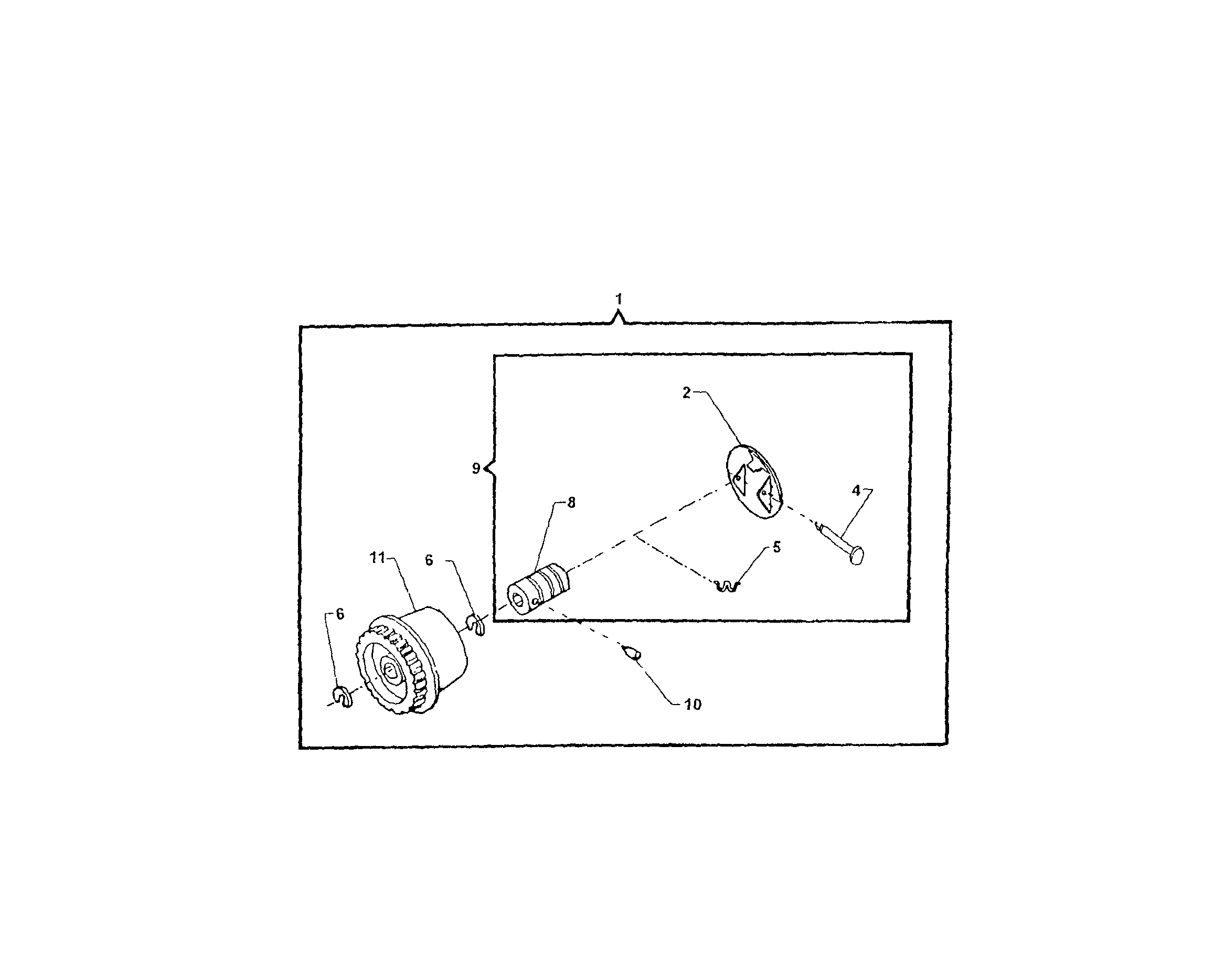

Arm shaft drive diagram

Arm shft cpl

Part #531684

The manufacturer no longer makes this part, and there's no substitute part

Lead Grommet 179908
#4

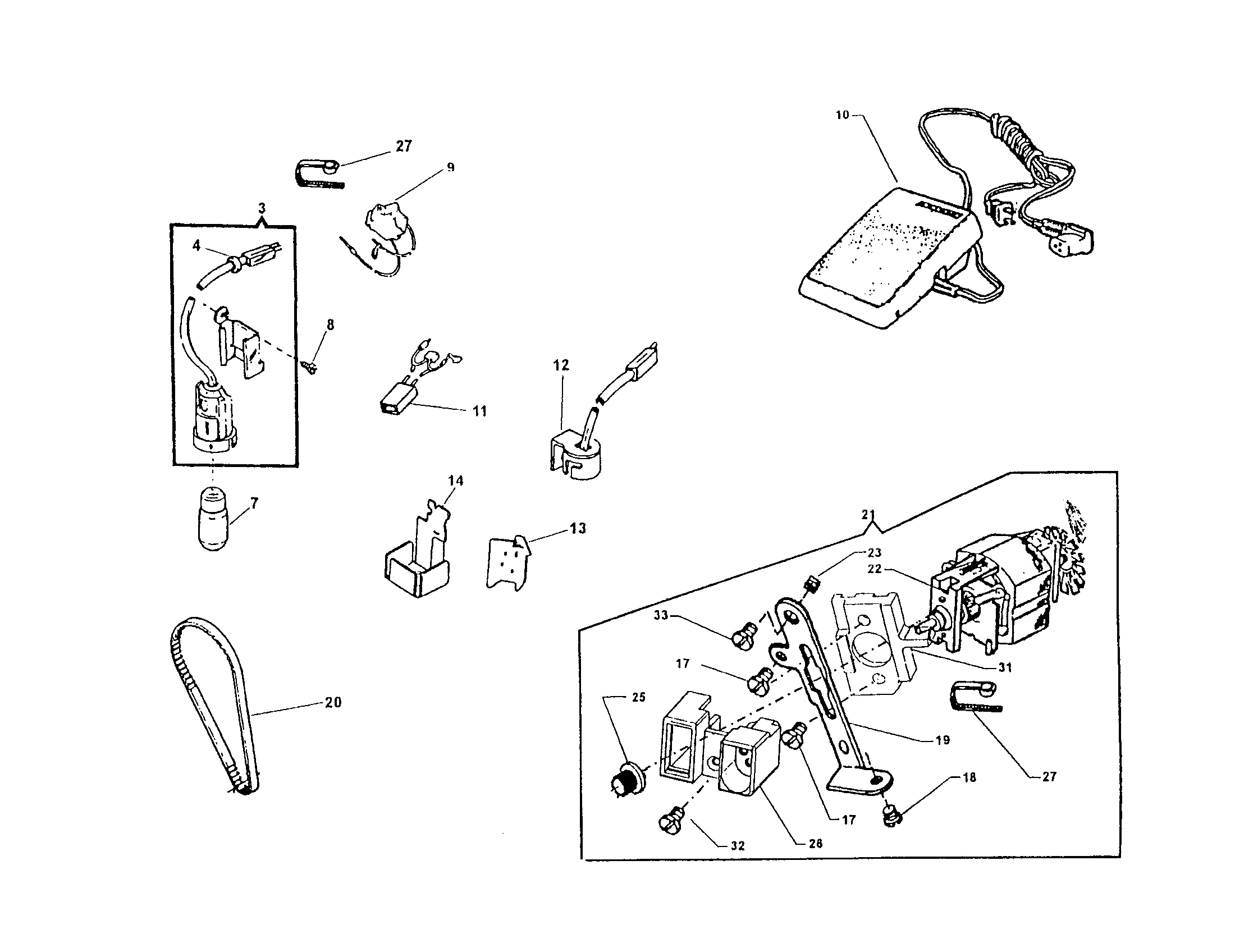

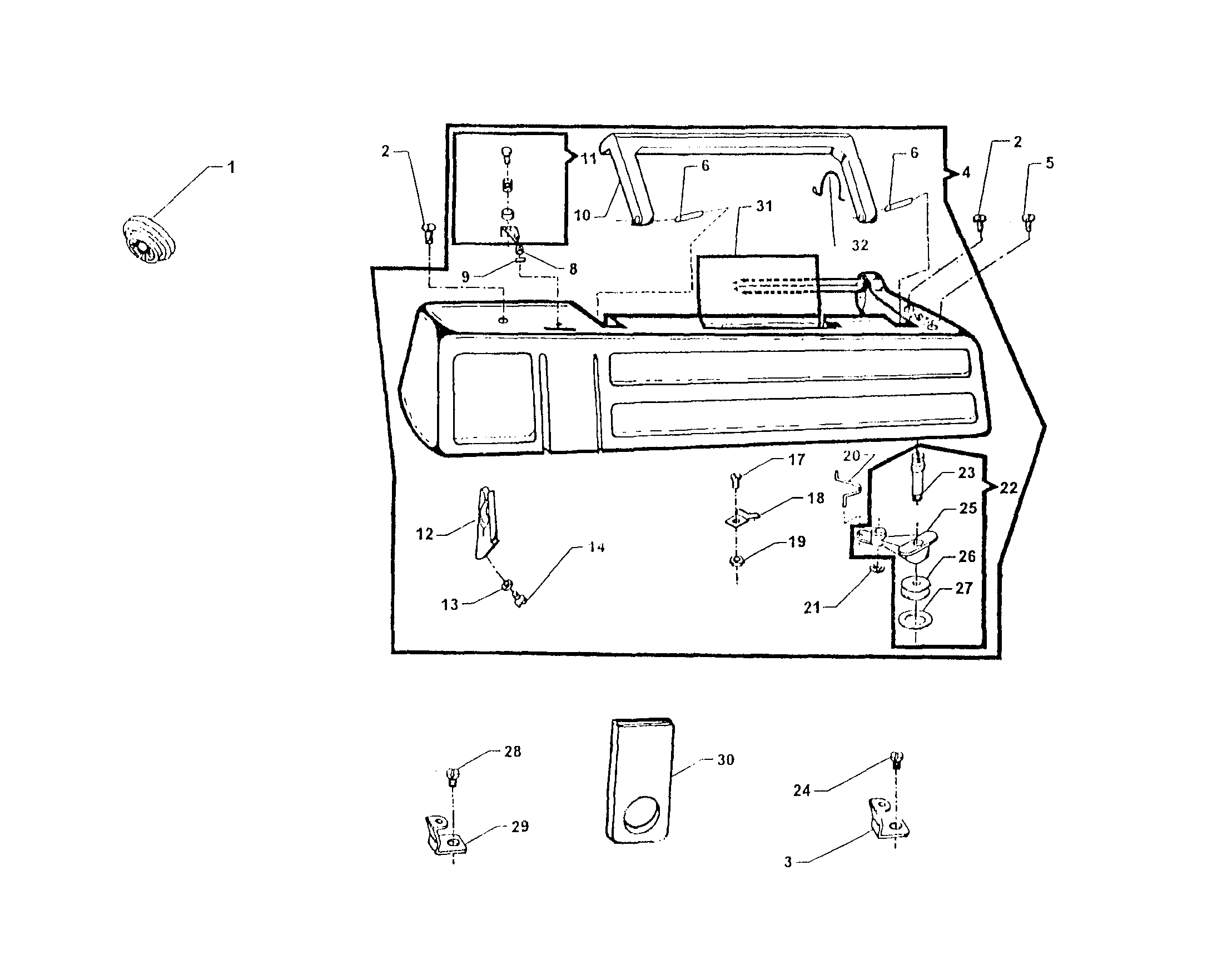

Electrical equipment diagram

Lead grommet

Part #179908

The manufacturer no longer makes this part, and there's no substitute part

Take-up Stud 446260
#2

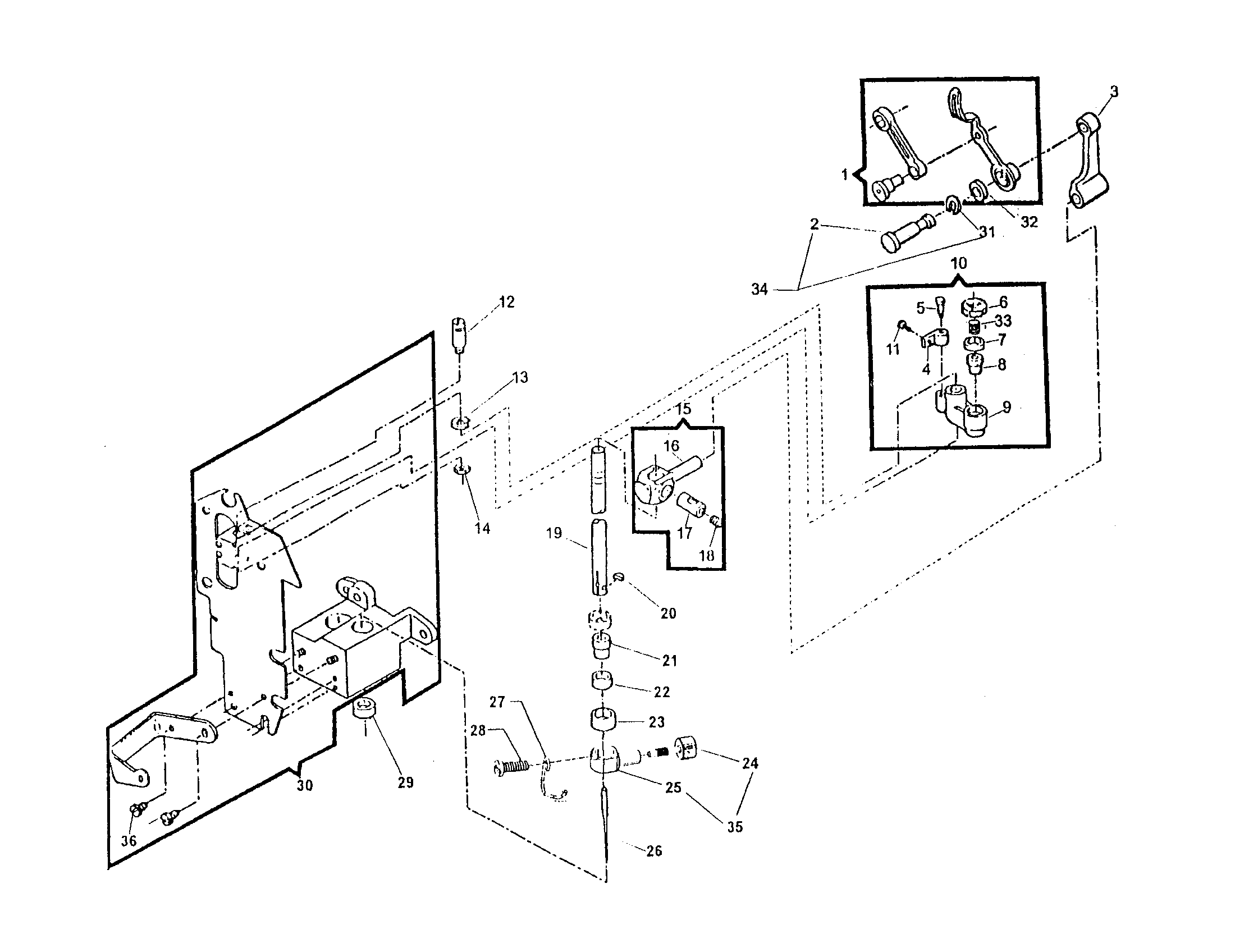

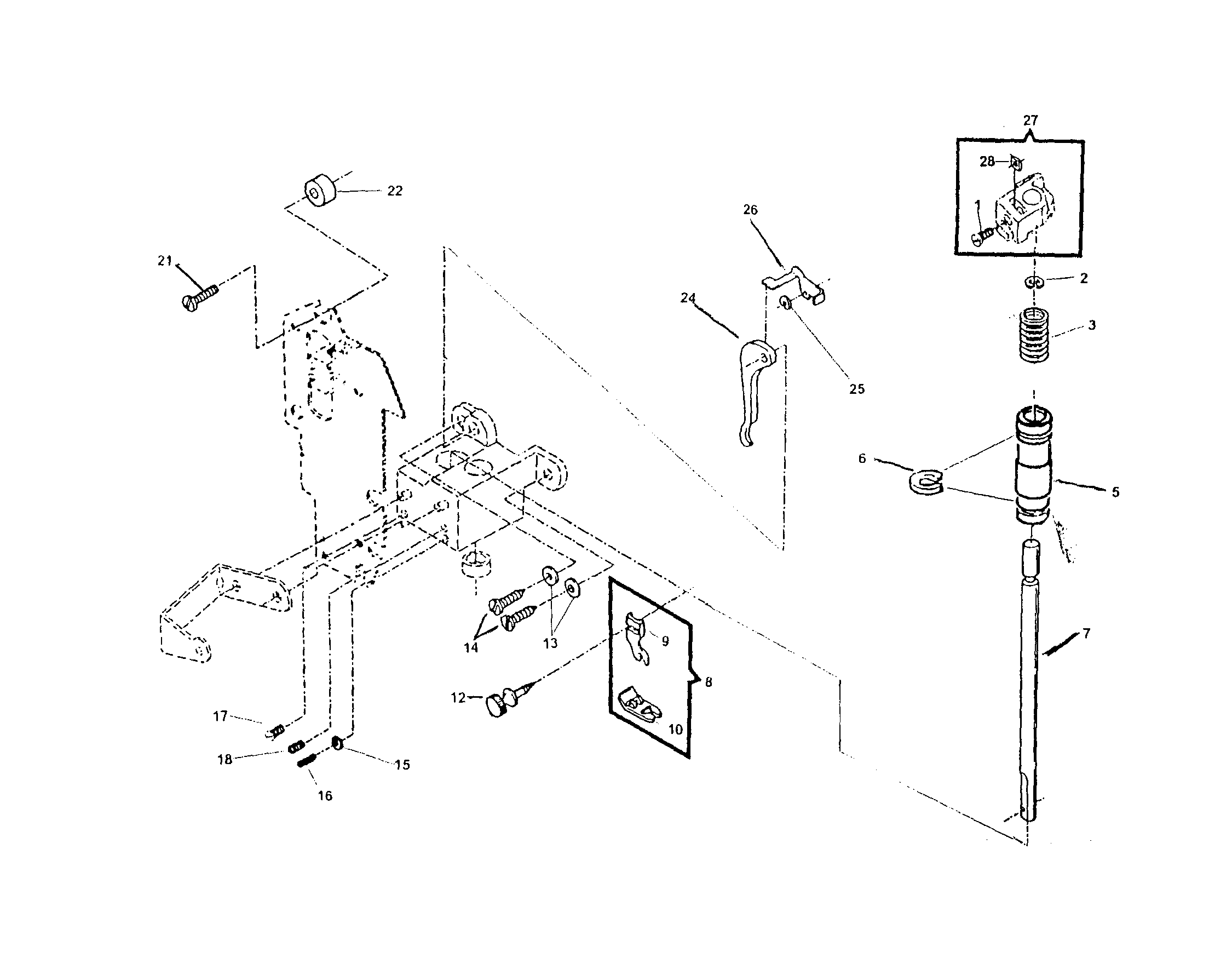

Needle bar diagram

Take-up stud

Part #446260

The manufacturer no longer makes this part, and there's no substitute part

Take-up Lvr 445672
#1

Needle bar diagram

Take-up lvr

Part #445672

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 353492
#4

Cam controlled feed diagram

Spring washer

Part #353492

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Feed Dog Rocker Shaft Center 446487-001
#13

Feed system diagram

Sewing machine feed dog rocker shaft center

Part #446487-001

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Feed Dog Screw 355235-451
#19

Feed system diagram

Sewing machine feed dog screw

Part #355235-451

The manufacturer no longer makes this part, and there's no substitute part
