Upright Freezer

Model # FUF21SVCRWW Official GE freezer

Here are the diagrams and repair parts for Official GE FUF21SVCRWW freezer, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
FUF21SVCRWW Freestanding Freezers
Freezer Dryer Filter WR86X10044
#740

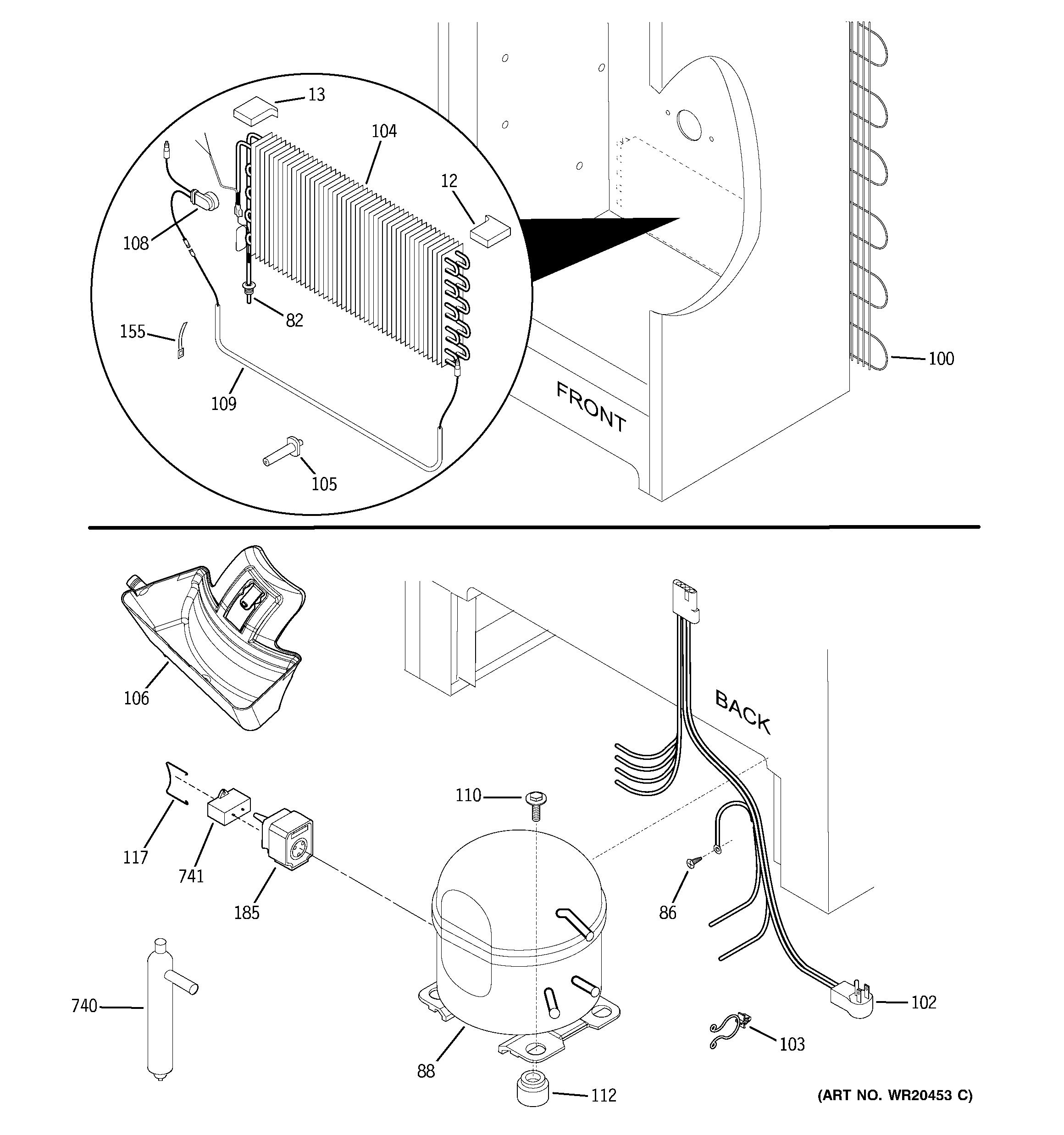

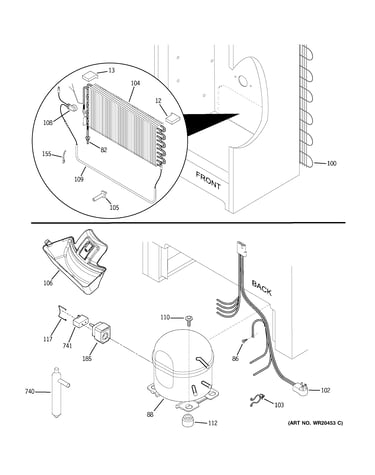

Unit parts diagram

Freezer dryer filter

Part #WR86X10044

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10044. Substitute parts can look different from the original.
BEST SELLER
$79.18
7% OFF Phone Price : $85.18
In Stock
Light Shield WR02X12994
#34

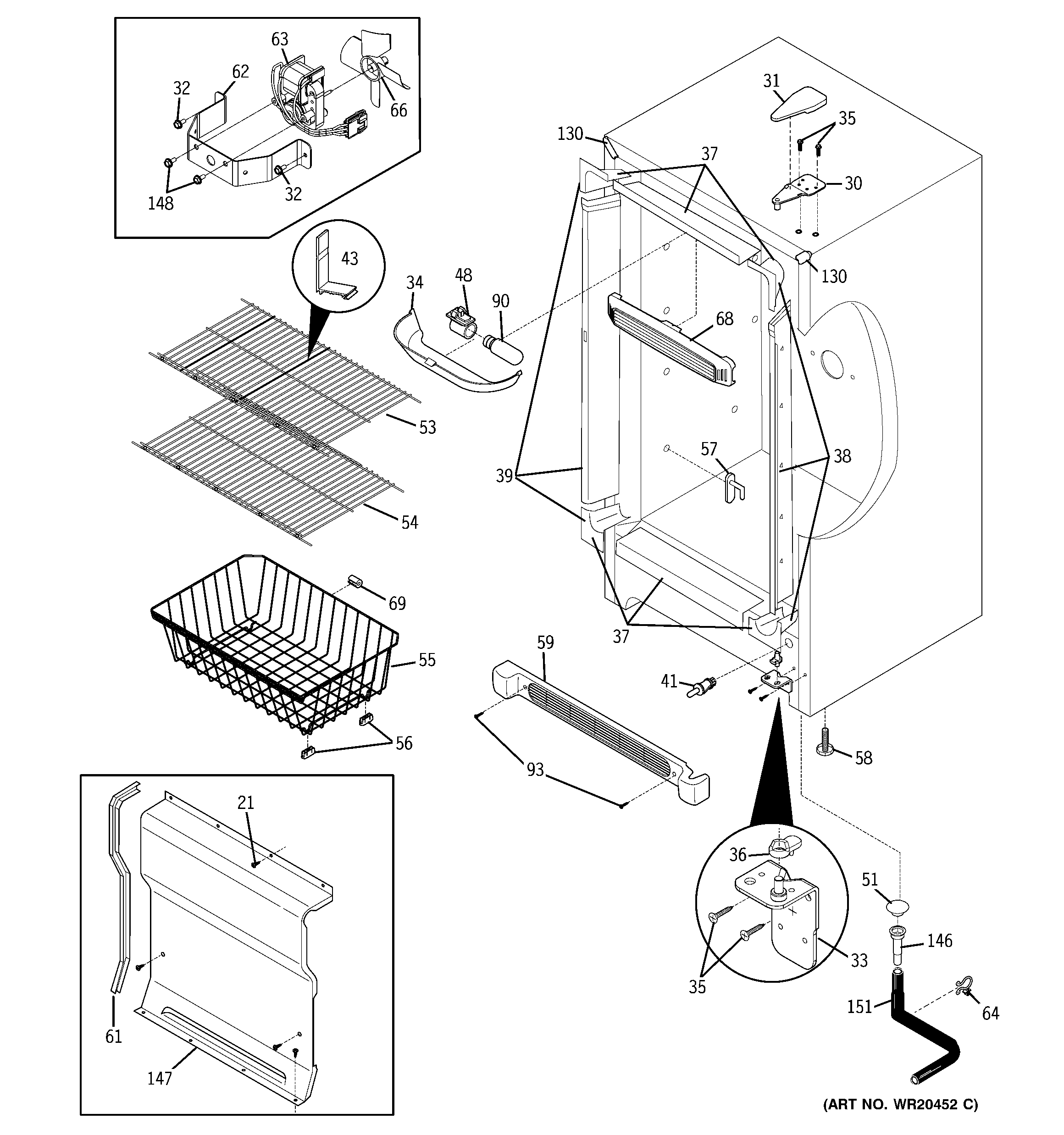

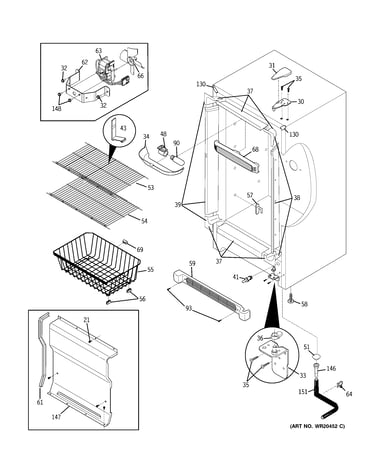

Cabinet diagram

Light shield

Part #WR02X12994

In Stock
Screw, #8, 1 WR01X10915
#32

Cabinet diagram

Screw, #8, 1

Part #WR01X10915

In Stock
Spring Clip WR01X10870
#45

Freezer door diagram

Spring clip

Part #WR01X10870

This item is not returnable
In Stock
G.e. Freezer Door Gasket WR24X10010
#8

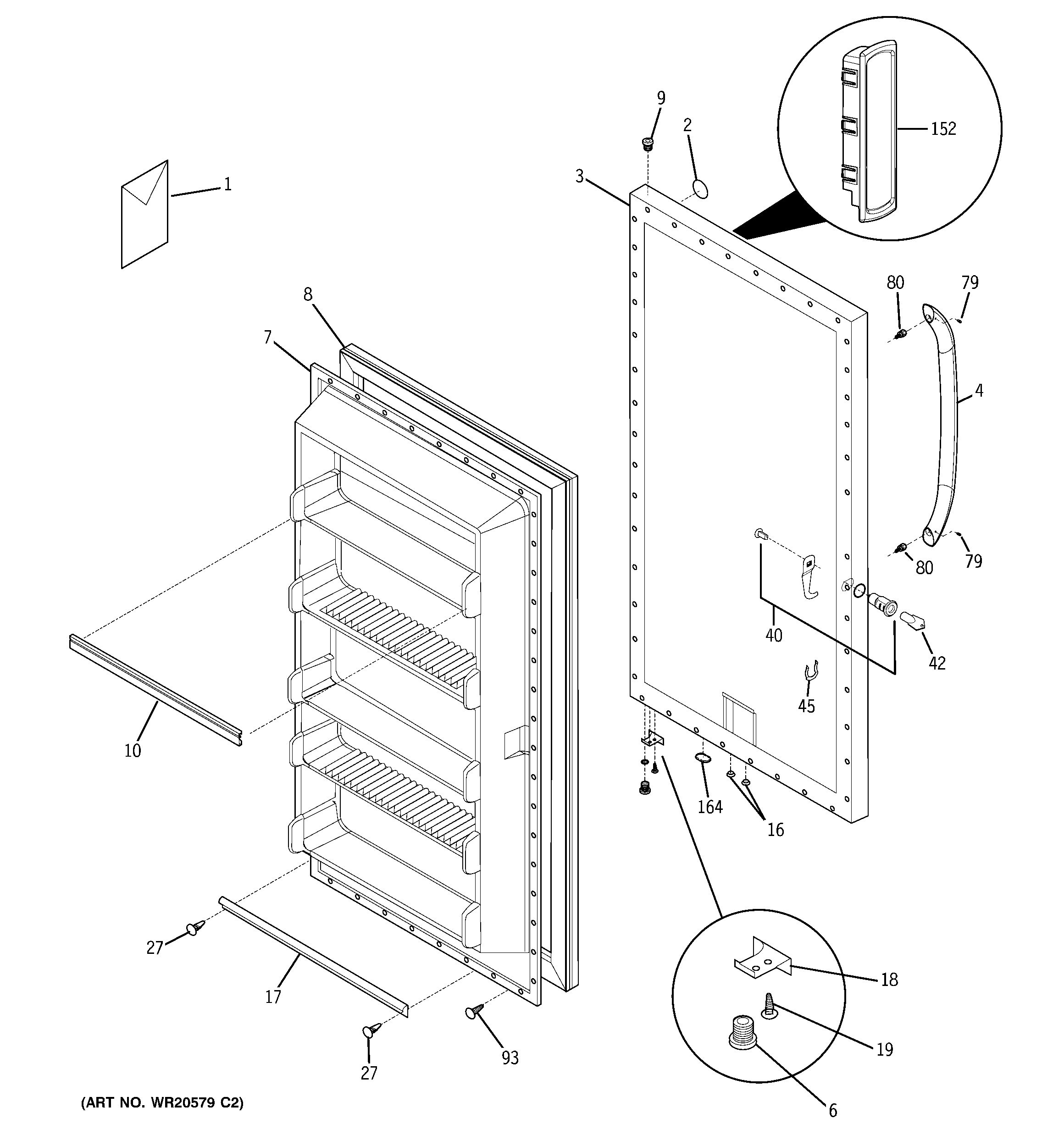

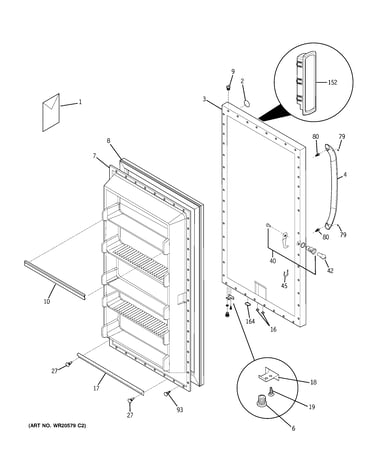

Freezer door diagram

G.e. freezer door gasket

Part #WR24X10010

$205.37
6% OFF Phone Price : $217.37
In Stock
Door Screw WR02X12989
#19

Freezer door diagram

Door screw

Part #WR02X12989

This item is not returnable
In Stock
Hex Washer Head Screw WR01X10798
#148

Cabinet diagram

Hex washer head screw

Part #WR01X10798

In Stock
Insulator Evaporator WR02X13243
#13

Unit parts diagram

Insulator evaporator

Part #WR02X13243

In Stock
Strap-evap/h WR02X11458
#155

Unit parts diagram

Strap-evap/h

Part #WR02X11458

$33.20
15% OFF Phone Price : $39.20
In Stock
Support Evaporator WR02X12991
#105

Unit parts diagram

Support evaporator

Part #WR02X12991

This item is not returnable
In Stock
