Model # 25324422102 Official Kenmore Elite freezer
Here are the diagrams and repair parts for Official Kenmore Elite 25324422102 freezer, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for25324422102 Freestanding Freezers
- #4

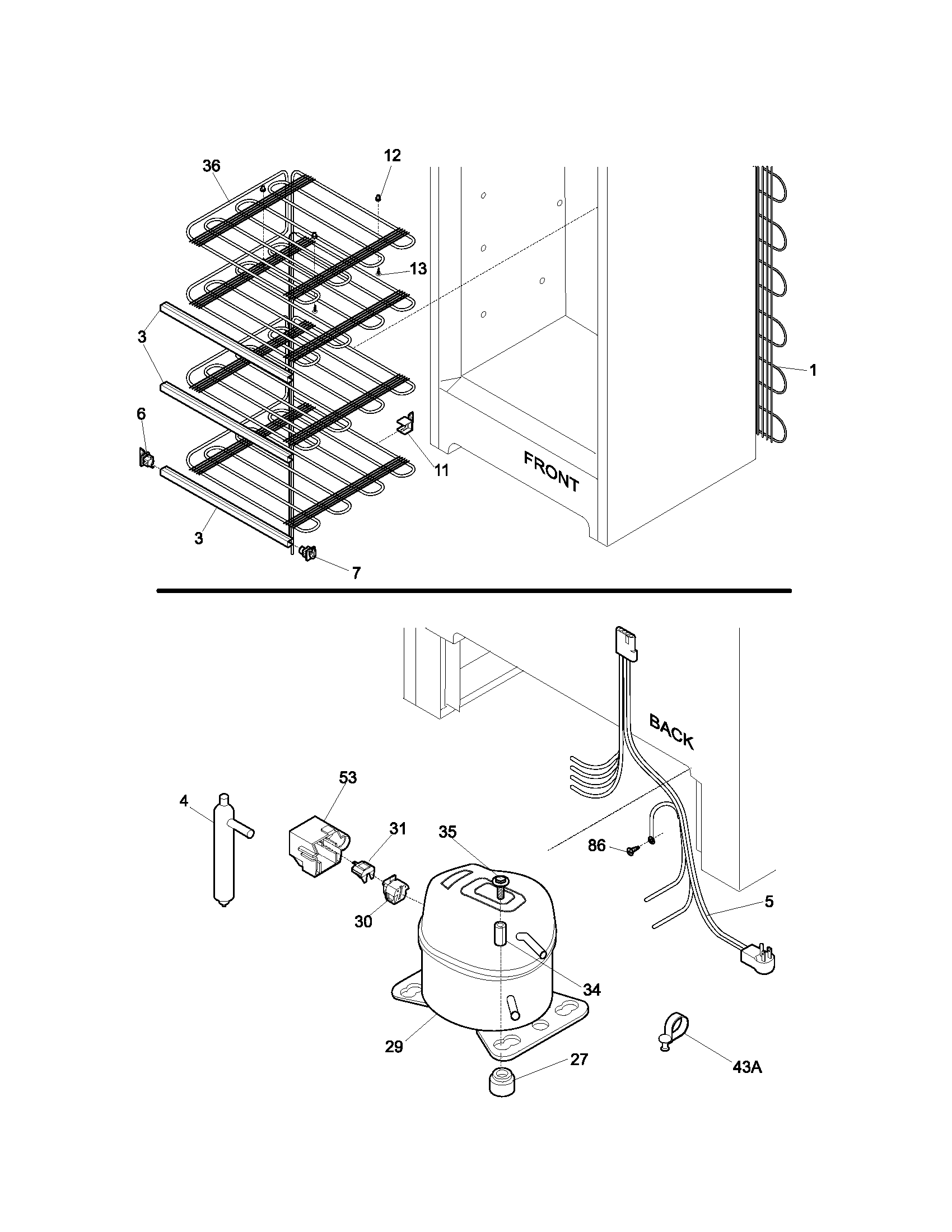

System diagram
Filter drierPart #216938600
Replaced by #5303305677
?Manufacturer substitutionThis part replaces 216938600. Substitute parts can look different from the original.$12.47 |14% OFF Phone Price : $14.47In Stock - #5

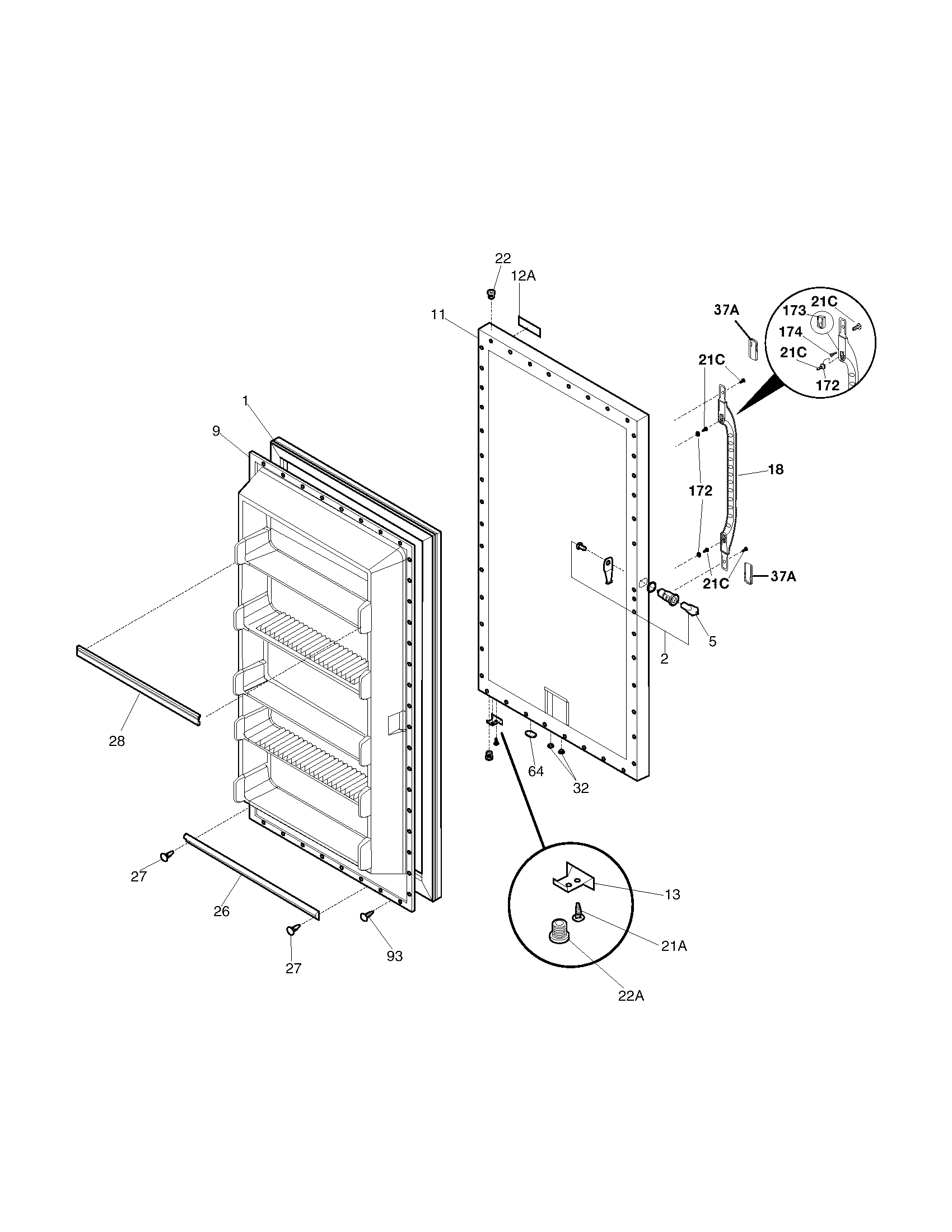

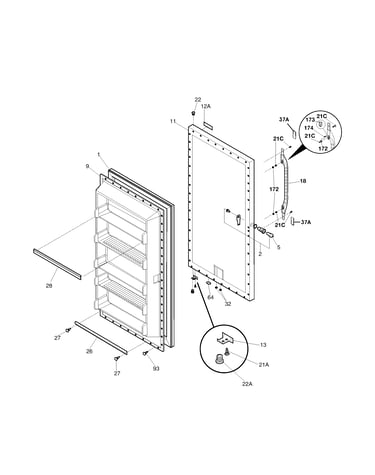

Door diagram
Freezer door keyPart #216702900
Replaced by #297147700
?Manufacturer substitutionThis part replaces 216702900. Substitute parts can look different from the original.$9.31 |10% OFF Phone Price : $10.31In Stock - #1
Door diagram
Freezer door gasketPart #216522306
Replaced by #5304507201
?Manufacturer substitutionThis part replaces 216522306. Substitute parts can look different from the original.$143.54 |8% OFF Phone Price : $155.54In Stock - #15

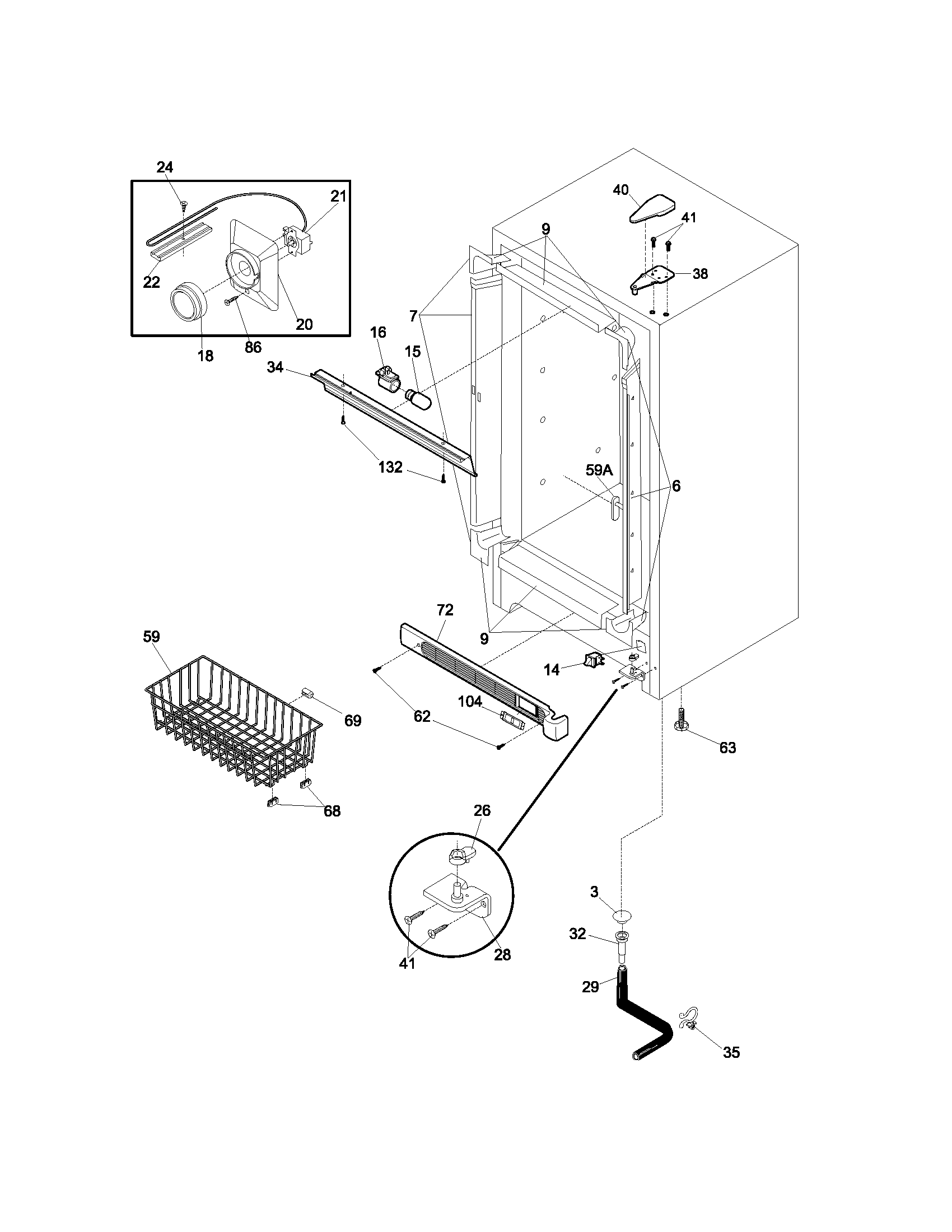

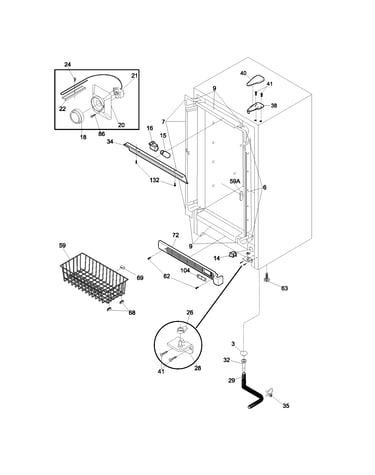

Cabinet diagram
Freezer light bulbPart #216846400
Replaced by #5304517886
?Manufacturer substitutionThis part replaces 216846400. Substitute parts can look different from the original.$51.18 |10% OFF Phone Price : $57.18In Stock - #18
Door diagram
Upright freezer door handle (white)Part #218803901
Replaced by #297272500
?Manufacturer substitutionThis part replaces 218803901. Substitute parts can look different from the original.$54.77 |10% OFF Phone Price : $60.77In Stock - #14
Cabinet diagram
Freezer door switchPart #216822900
$54.19 |10% OFF Phone Price : $60.19In Stock - #174
Door diagram
ScrewPart #240521301
Replaced by #240521303
?Manufacturer substitutionThis part replaces 240521301. Substitute parts can look different from the original.$14.37 |12% OFF Phone Price : $16.37In Stock - #22
Door diagram
Freezer door hinge bearingPart #216970800
Replaced by #216970802
?Manufacturer substitutionThis part replaces 216970800. Substitute parts can look different from the original.This item is not returnable$11.14 |15% OFF Phone Price : $13.14In Stock - #173
Door diagram
Kelvinator freezer door handle mounting blockPart #218396700
$37.22 |14% OFF Phone Price : $43.22In Stock - #NI
Cabinet diagram
Touch paintPart #5303305324
Replaced by #5303321319
?Manufacturer substitutionThis part replaces 5303305324. Substitute parts can look different from the original.This item is not returnable$15.15 |12% OFF Phone Price : $17.15In Stock
