Model # MFC09M1BW0 Official Universal/Multiflex (Frigidaire) chest freezer - 5995251799

Here are the diagrams and repair parts for Official Universal/Multiflex (Frigidaire) MFC09M1BW0 chest freezer - 5995251799, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

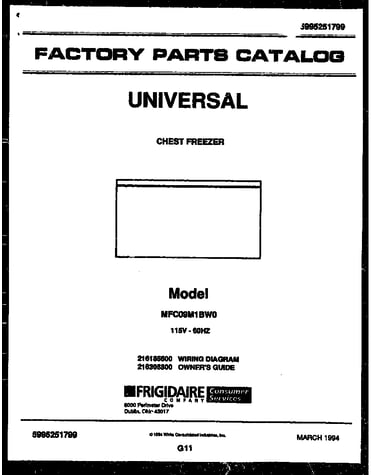

Model diagram and schematic

SEARCH WITHIN THIS MODEL

Filters

Screws

ALL PARTS

Showing 10 of 38 parts |

#28

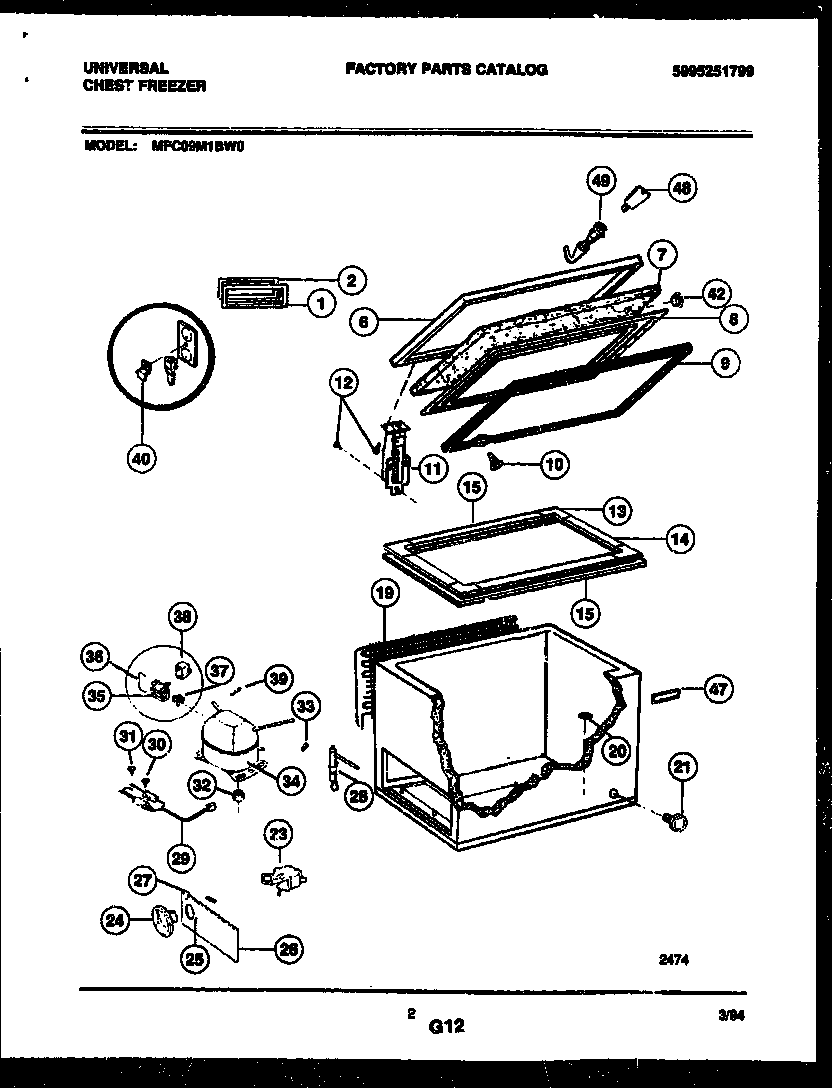

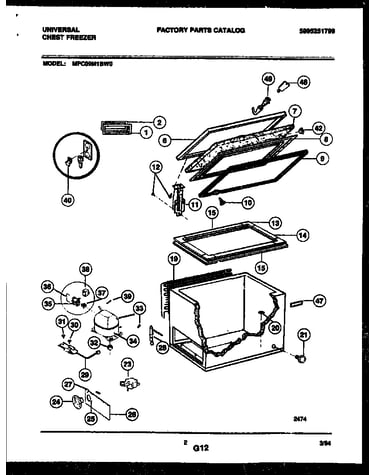

Chest freezer parts diagram

Filter

Part #5308000027

Replaced by #5303305677

$12.71 |

14% OFF Phone Price : $14.71

In Stock

Qty

#48

Chest freezer parts diagram

Key

Part #5308037402

Replaced by #297147700

$9.07 |

10% OFF Phone Price : $10.07

In Stock

Qty

#38

Chest freezer parts diagram

Capacitor

Part #216236300

Replaced by #5304464438

$45.87 |

12% OFF Phone Price : $51.87

In Stock

Qty

Chest freezer parts diagram

Gasket

Part #3200692

Replaced by #216481001

$144.01 |

8% OFF Phone Price : $156.01

In Stock

Qty

#32

Chest freezer parts diagram

Grommet

Part #215175000

Replaced by #218513300

$36.56 |

14% OFF Phone Price : $42.56

In Stock

Qty

#33

Chest freezer parts diagram

Freezer wire harness clamp

Part #5303212614

This item is not returnable

$2.16

In Stock

Qty

Refrigerator Evaporator Cover Screw 08037851

#31

Chest freezer parts diagram

Refrigerator evaporator cover screw

Part #08037851

This item is not returnable

$3.51

In Stock

Qty

#49

Chest freezer parts diagram

Cylinder lock

Part #5303283905

$12.99

In Stock

Qty

Freezer Inner Door Panel Rivet 5303212828

#10

Chest freezer parts diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |

9% OFF Phone Price : $21.49

In Stock

Qty

Chest Freezer Temperature Control 5303212610

#23

Chest freezer parts diagram

Chest freezer temperature control

Part #5303212610

Replaced by #5304496560

$35.89 |

14% OFF Phone Price : $41.89

In Stock

Qty

Most common symptoms to help you fix your freestanding freezers

Choose a symptom to see related freezer repairs.

View all

Why don't the lights in my freezer work?

Main causes: burned out light bulb, bad door or lid switch, faulty LED light board, wiring failure, control system failu…

What should I do when my freezer's high-temperature alarm sounds?

Main causes: lack of power, bad compressor, refrigerant leak, bad thermistor, defrost system failure, dirty condenser co…

Why isn't my freezer cooling?

Main causes: compressor failure, no refrigerant, faulty sensor, control failure, broken defrost heater, bad defrost bi-m…

Why does my freezer have a lot of frost inside?

Main causes: damaged door or lid gasket, cracked cabinet liner, bad defrost bi-metal thermostat, broken defrost heater, …

Why is my freezer too warm?

Main causes: excessive frost, bad defrost heater, bad defrost bi-metal, control system failure, low refrigerant charge, …

Why is my freezer hot on the outside?

Main causes: dirty condenser coils, condenser fan failure, dirty bottom front grill, leaky door or lid gasket…

Why isn't my freezer running?

Main causes: lack of power, control system failure, broken compressor start relay, locked up compressor, compressor moto…

Why is my freezer so noisy?

Main causes: leaky door or lid gasket, broken defrost heater, bad defrost bi-metal thermostat, defrost control failure, …
