Kenmore
Microwave/Hood Combo

Model # 72181043700 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72181043700 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

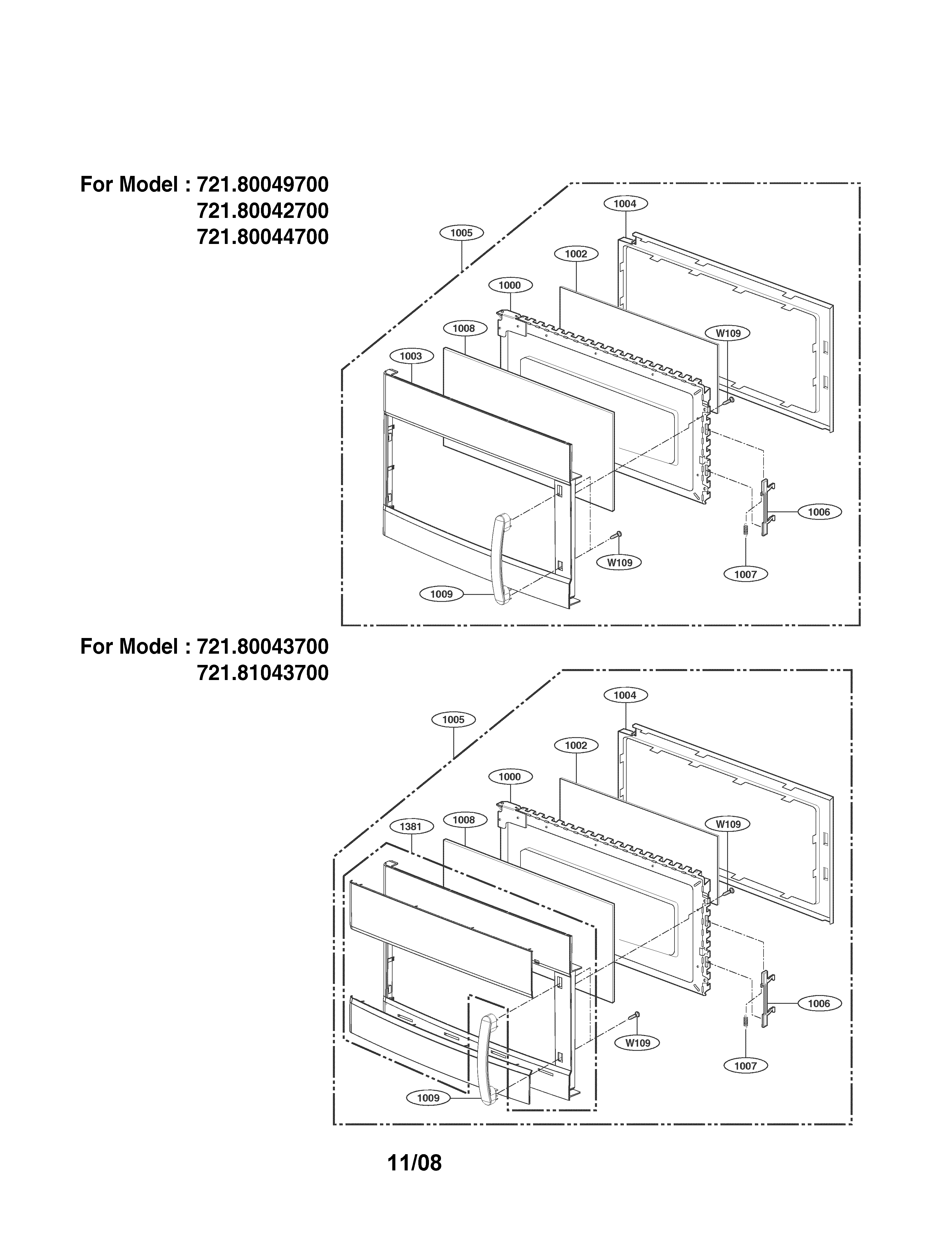

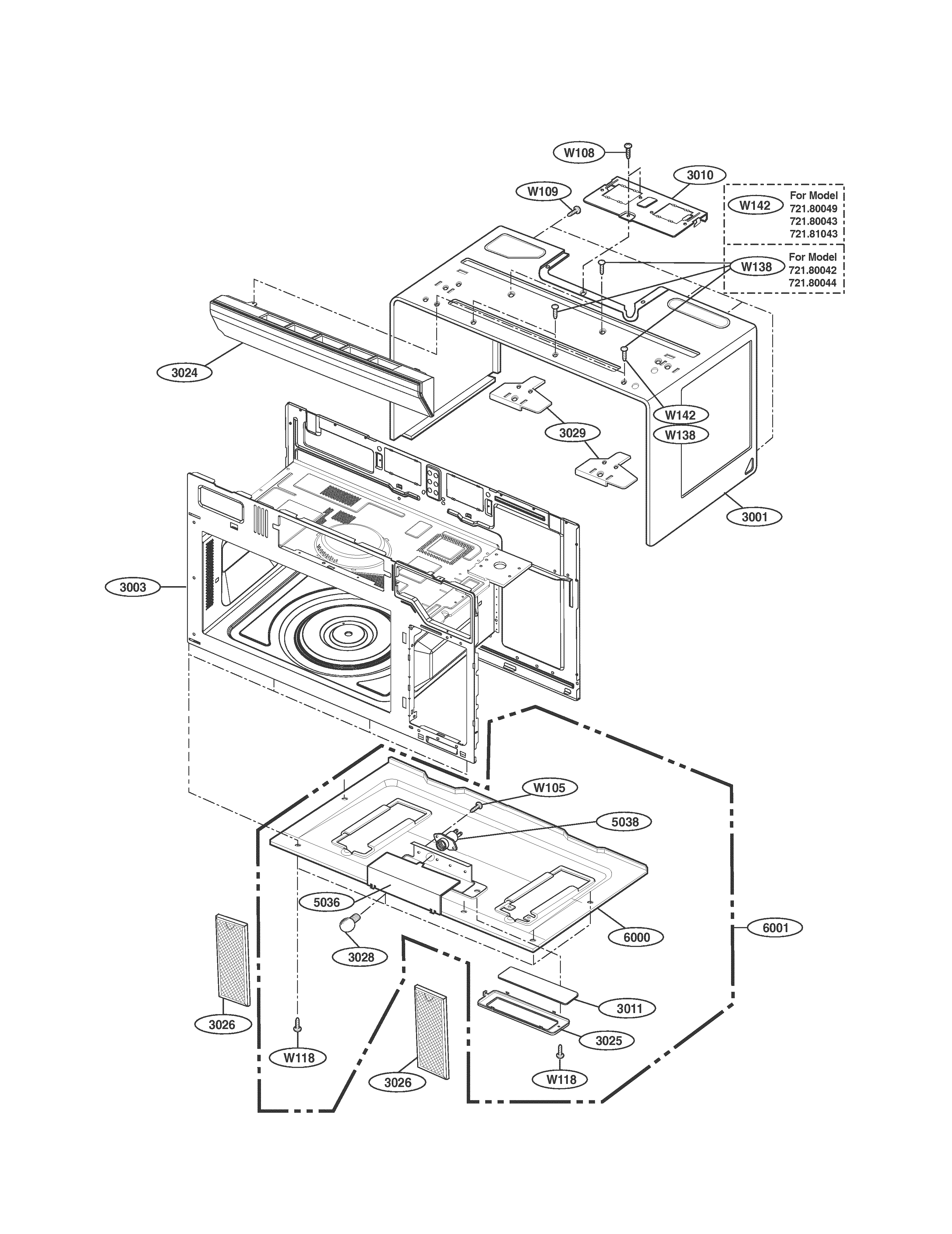

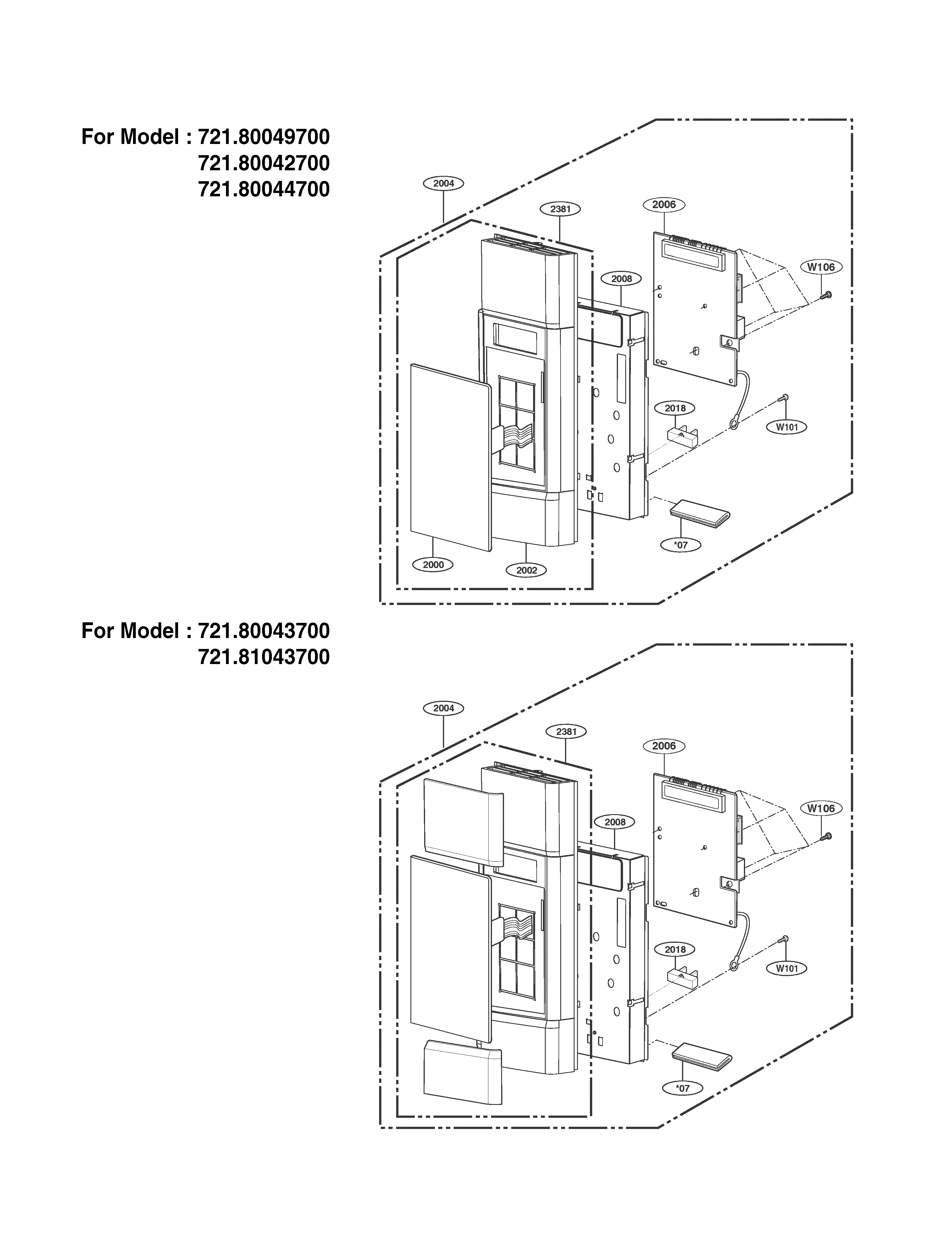

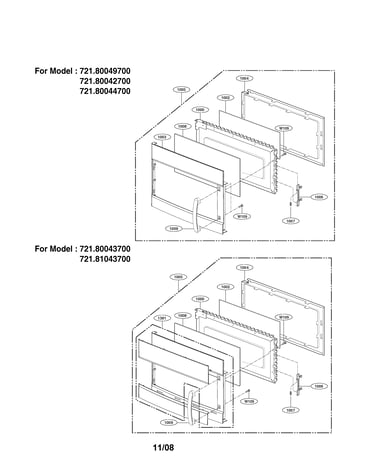

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Microwave Magnetron (replaces 2b71165l, 2b71165p) 2B71165R
#5009

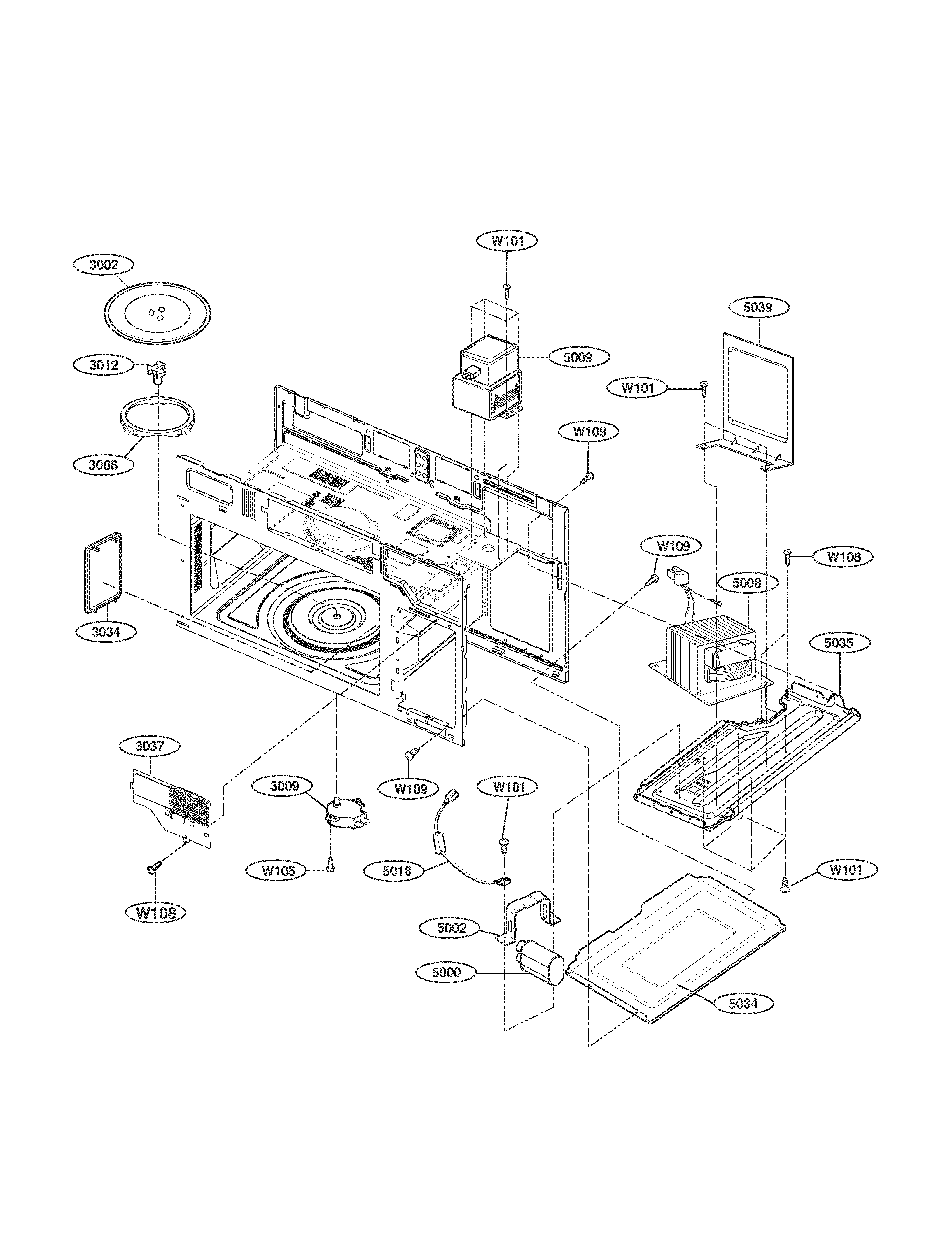

Interior fig 1 diagram

Microwave magnetron (replaces 2b71165l, 2b71165p)

Part #2B71165R

BEST SELLER
$91.94 |
6% OFF Phone Price : $97.94
In Stock
Microwave Door Interlock Switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f) 6600W1K001C
#4003

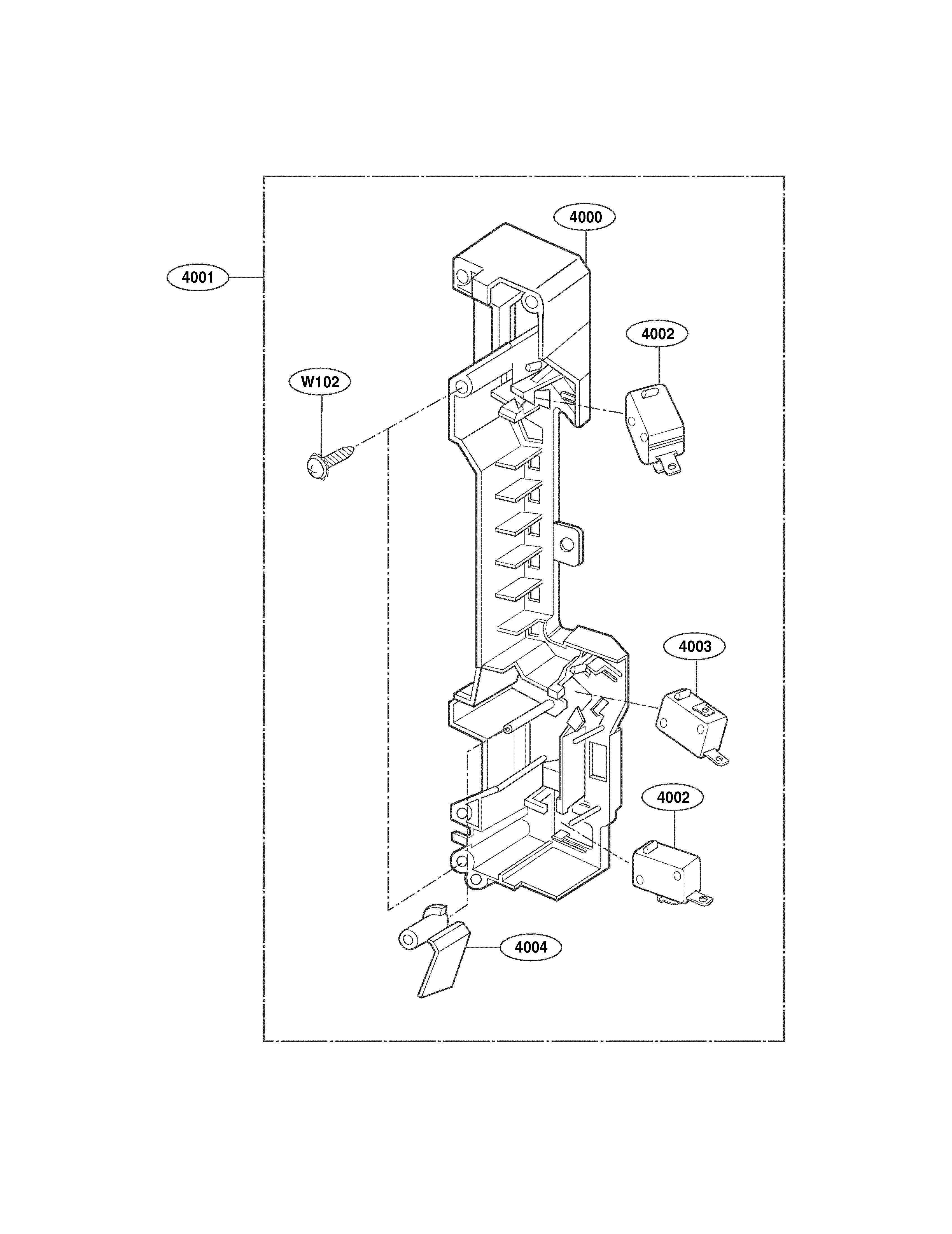

Latch board diagram

Microwave door interlock switch (replaces 3b73361e, 6600w1k004e, 6600w1k004f)

Part #6600W1K001C

BEST SELLER
$11.77 |
15% OFF Phone Price : $13.77
In Stock
Microwave Door Interlock Switch (replaces 6600w1k003d) 6600W1K001D
#4002

Latch board diagram

Microwave door interlock switch (replaces 6600w1k003d)

Part #6600W1K001D

BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Fuse 3B74133Q
#5001

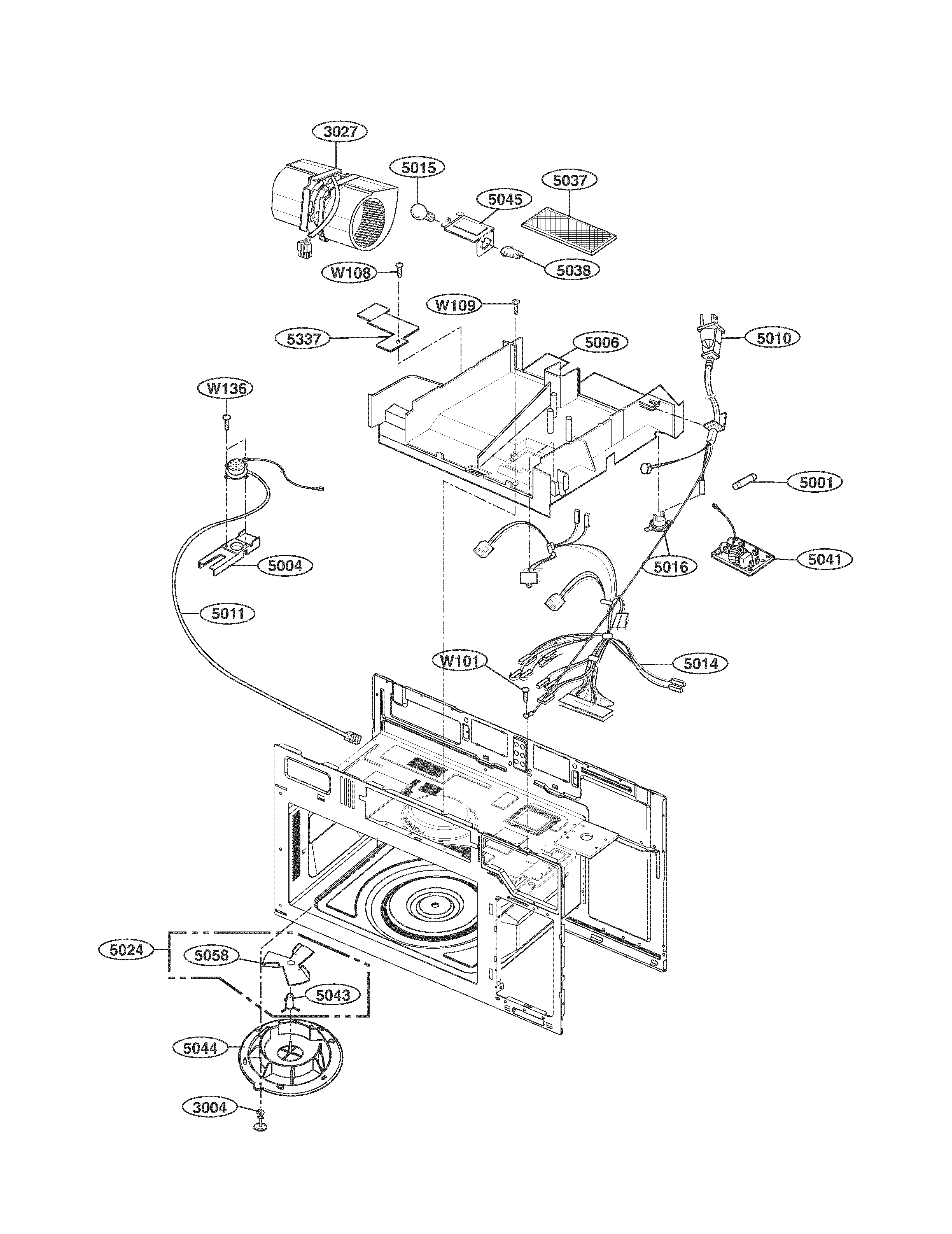

Interior fig 2 diagram

Microwave fuse

Part #3B74133Q

BEST SELLER
This item is not returnable
$5.99 |
14% OFF Phone Price : $6.99
In Stock
Microwave Glass Turntable Tray (replaces 1b71961f) 1B71961H
#3002

Interior fig 1 diagram

Microwave glass turntable tray (replaces 1b71961f)

Part #1B71961H

BEST SELLER
$32.53 |
16% OFF Phone Price : $38.53
In Stock
Microwave Charcoal Filter 5230W1A011C
#5037

Interior fig 2 diagram

Microwave charcoal filter

Part #5230W1A011C

Replaced by #5230W1A011E

?
Manufacturer substitution
This part replaces 5230W1A011C. Substitute parts can look different from the original.
BEST SELLER
$13.93 |
13% OFF Phone Price : $15.93
In Stock
Cover 3550W1A126B
#5044

Interior fig 2 diagram

Cover

Part #3550W1A126B

Replaced by #3550W1A126D

?
Manufacturer substitution
This part replaces 3550W1A126B. Substitute parts can look different from the original.
BEST SELLER
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Microwave Exhaust Damper Bracket (replaces 3b72144a) 4810W1A151A
#6010

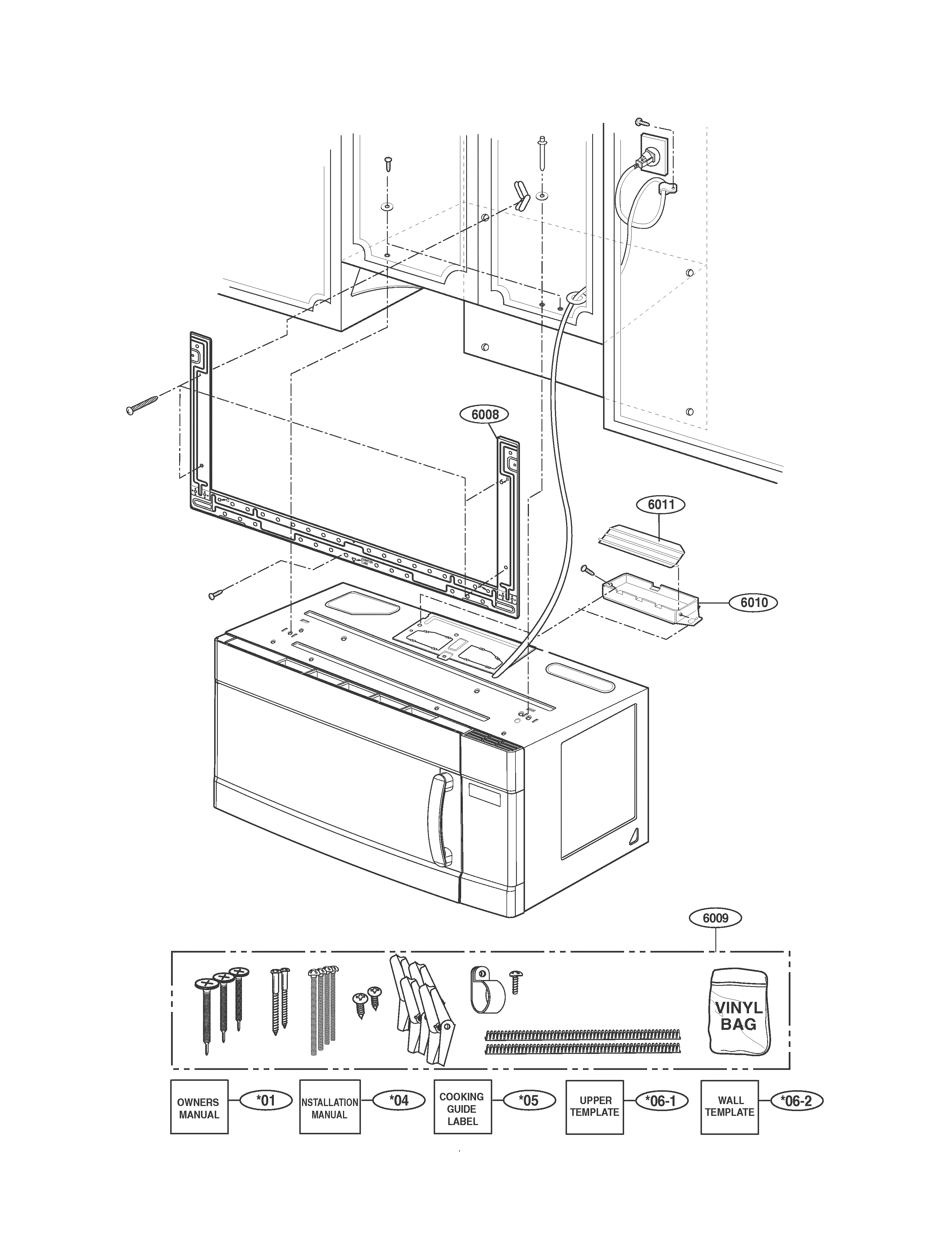

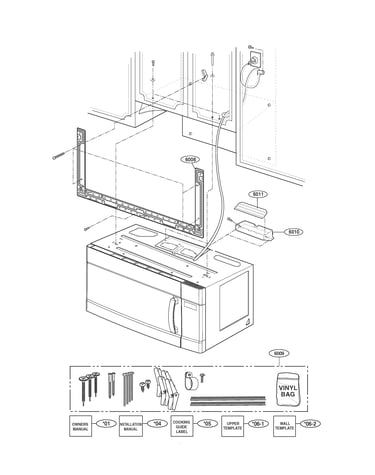

Installation parts diagram

Microwave exhaust damper bracket (replaces 3b72144a)

Part #4810W1A151A

BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Microwave Turntable Motor Coupler (replaces 3b72373a, 3b72373d) 4370W1A006B
#3012

Interior fig 1 diagram

Microwave turntable motor coupler (replaces 3b72373a, 3b72373d)

Part #4370W1A006B

BEST SELLER
This item is not returnable
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

Interior fig 2 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
