Model # KDDO24RVX00 Official KitchenAid refrigerator/freezer drawer

Here are the diagrams and repair parts for Official KitchenAid KDDO24RVX00 refrigerator/freezer drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

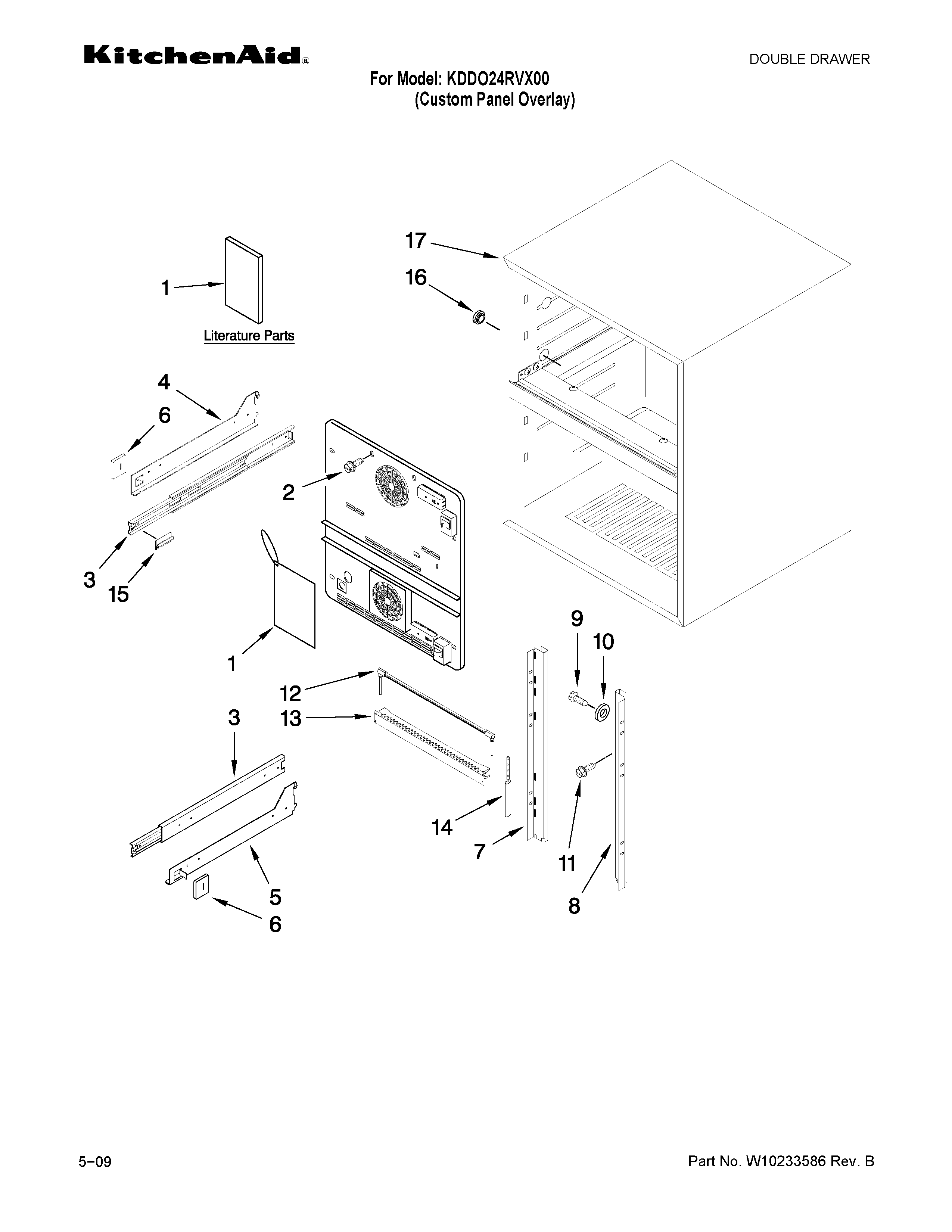

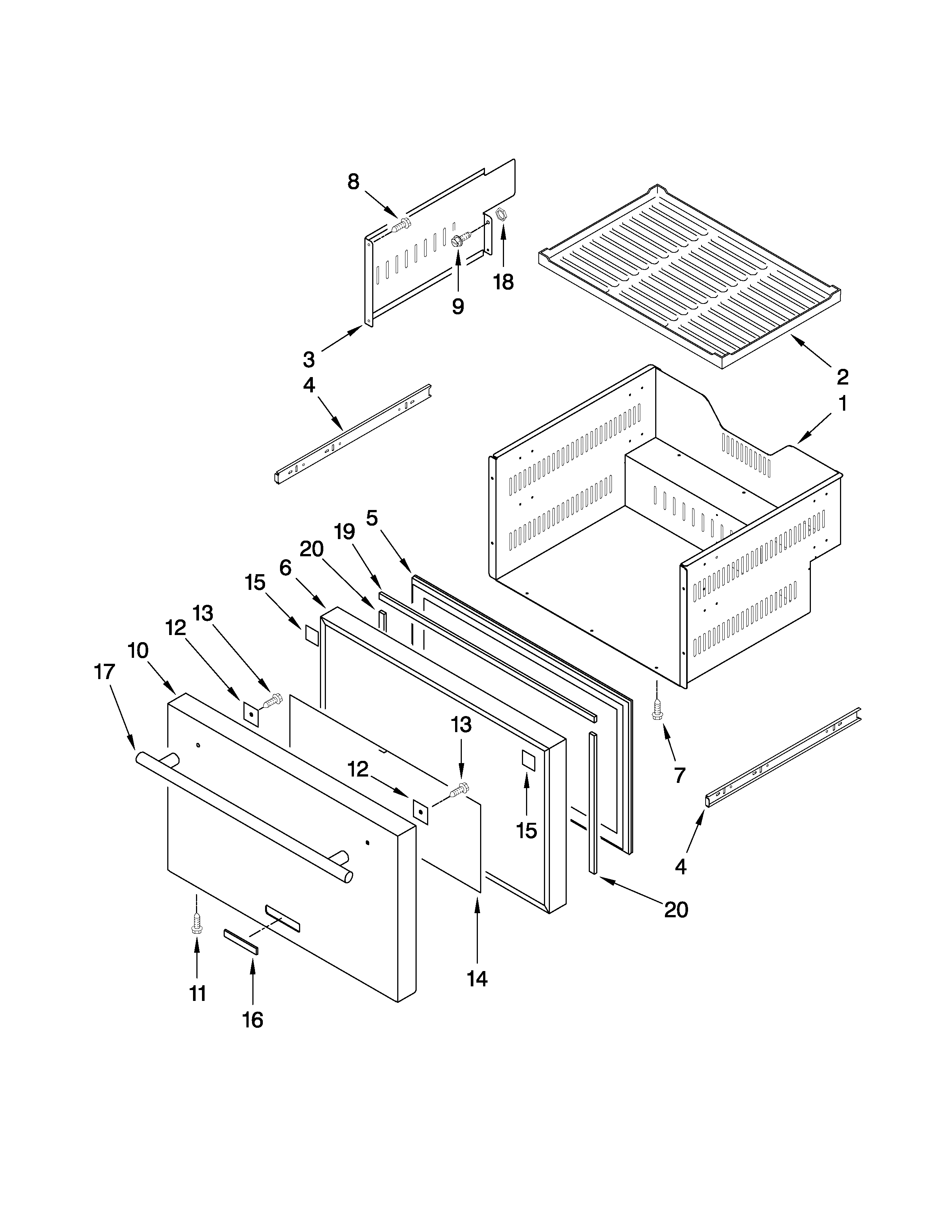

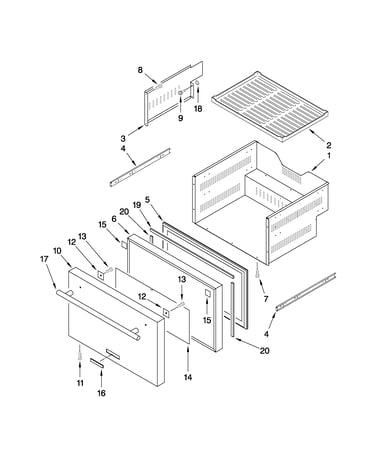

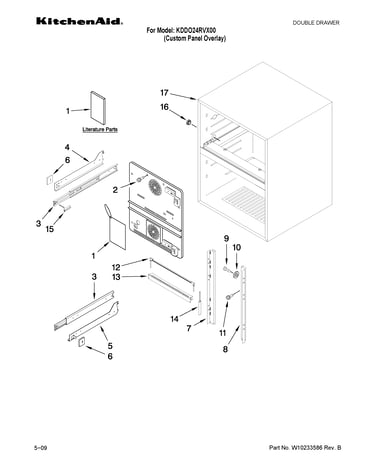

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 129 parts  |
Compressor 4344775
#1

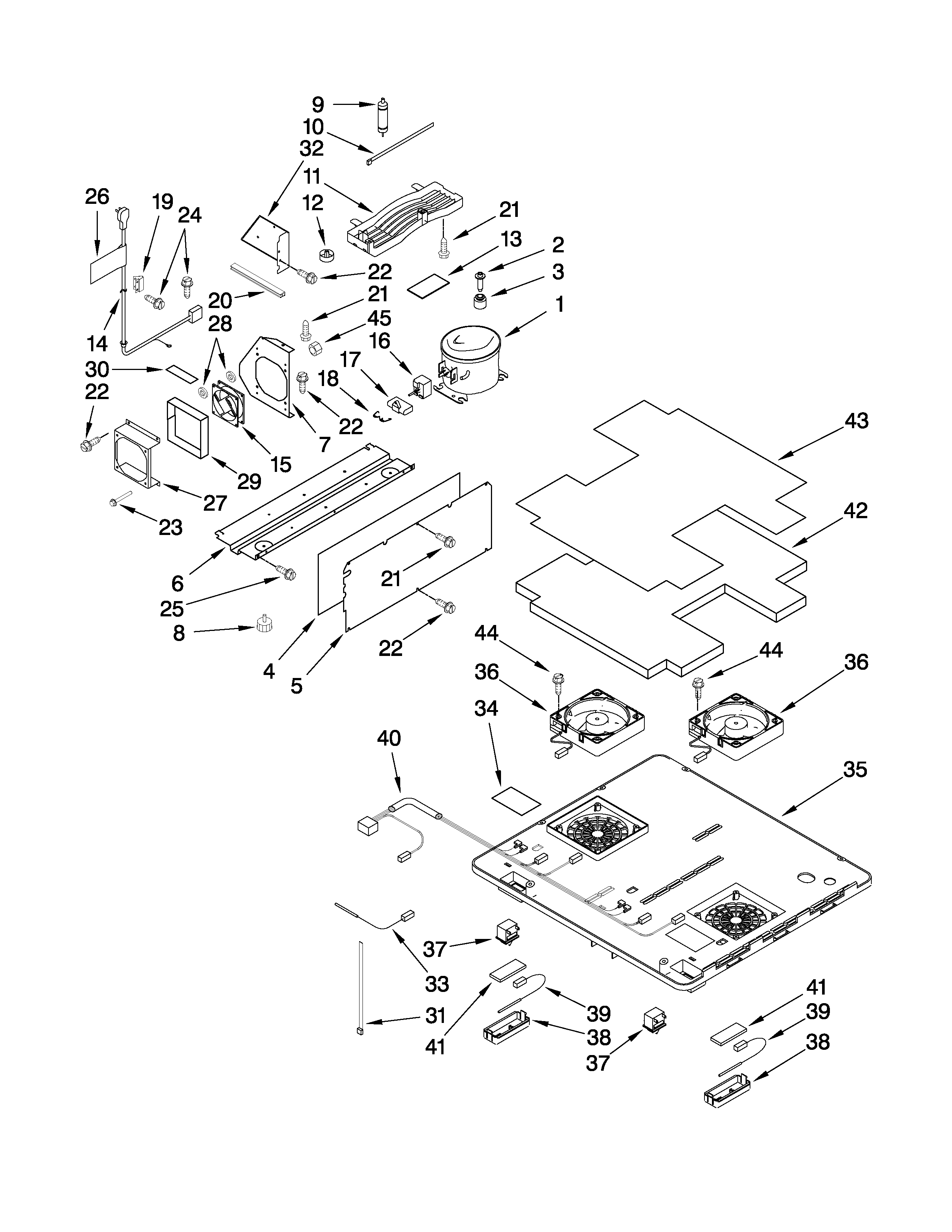

Unit parts diagram

Compressor

Part #4344775

Replaced by #8201787

?
Manufacturer substitution
This part replaces 4344775. Substitute parts can look different from the original.
$405.15 |
$12.00 OFF Phone Price : $417.15
In Stock
Screw W10204865
Screw

Part #W10204865

Replaced by #W10837731

?
Manufacturer substitution
This part replaces W10204865. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw W10204644
#14

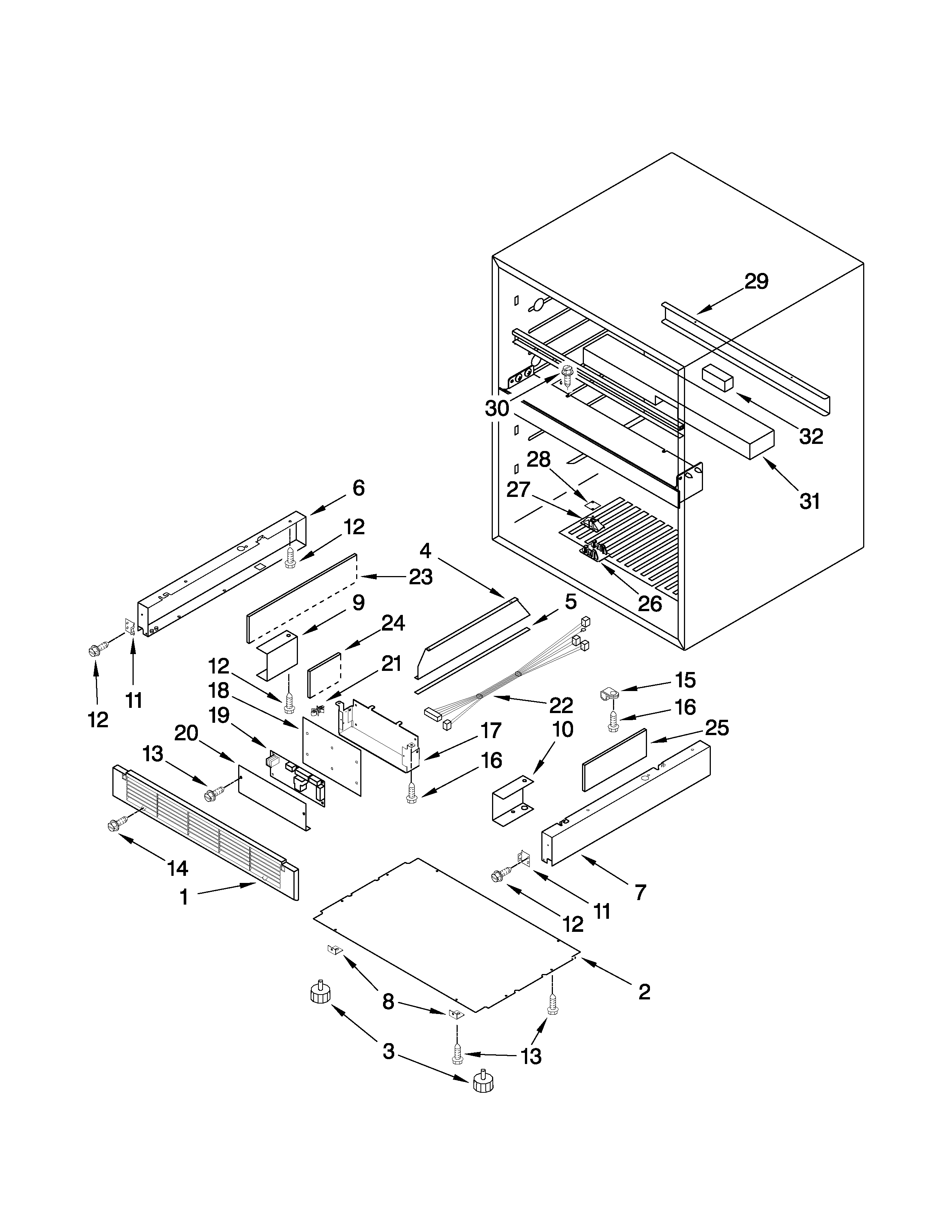

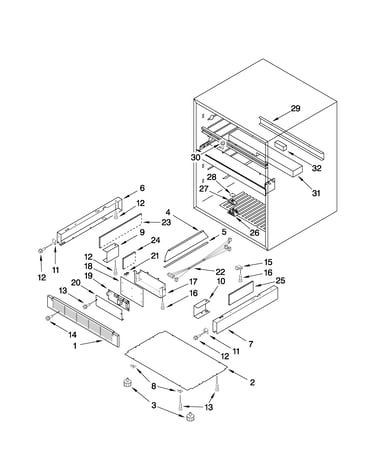

Liner parts diagram

Refrigerator screw

Part #W10204644

Replaced by #W10837731

?
Manufacturer substitution
This part replaces W10204644. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Wire Harness W10204884
#16

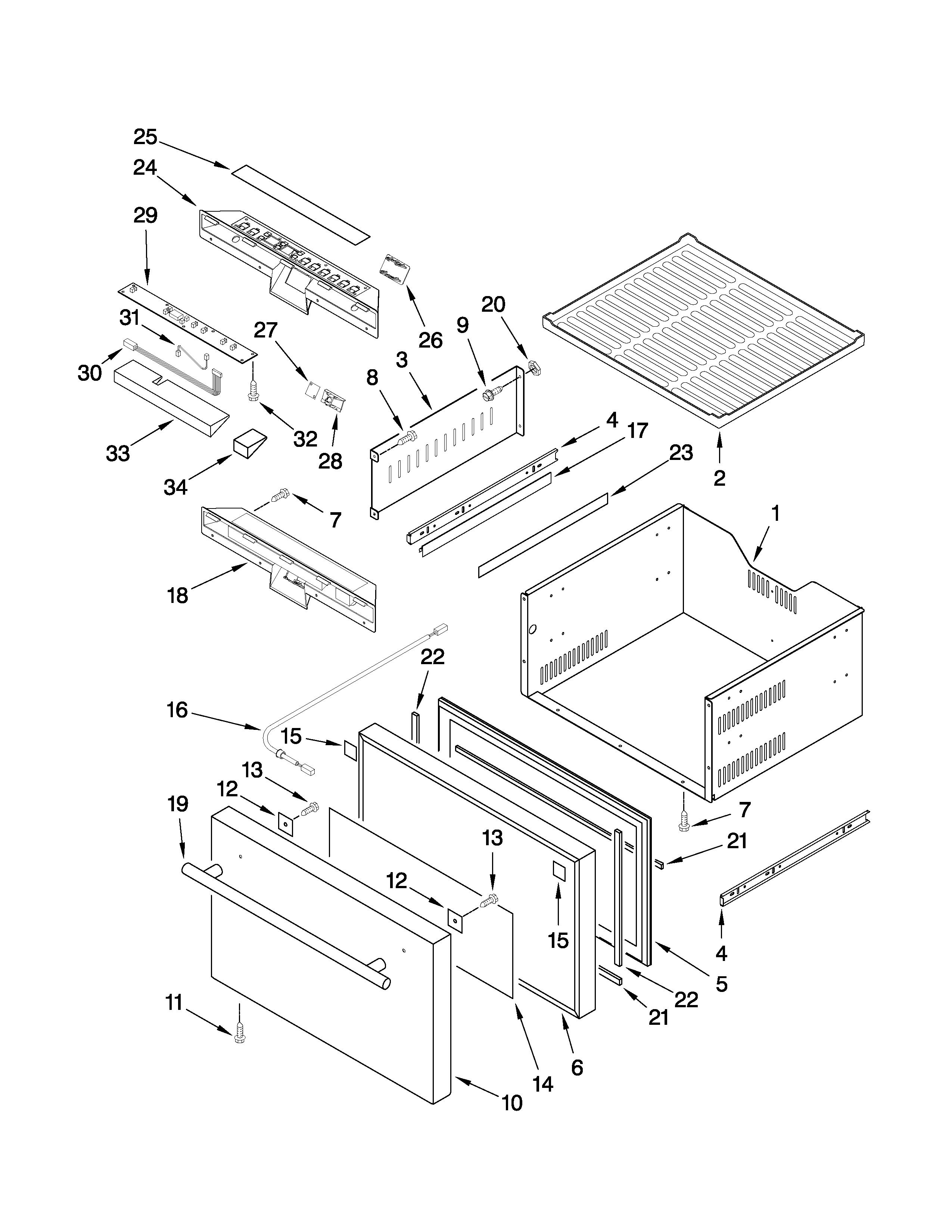

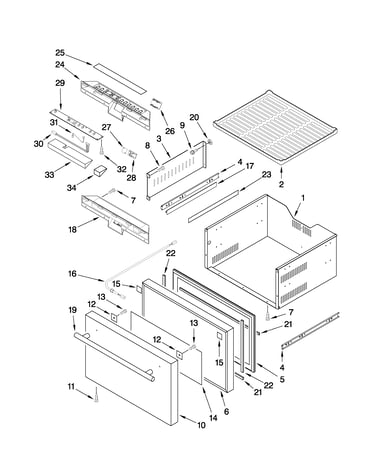

Upper drawer parts diagram

Refrigerator wire harness

Part #W10204884

Replaced by #W10488357

?
Manufacturer substitution
This part replaces W10204884. Substitute parts can look different from the original.
$144.00 |
8% OFF Phone Price : $156.00
In Stock
Evaporator Motor W10204942
#36

Unit parts diagram

Evaporator motor

Part #W10204942

Replaced by #W10854409

?
Manufacturer substitution
This part replaces W10204942. Substitute parts can look different from the original.
$147.98 |
8% OFF Phone Price : $159.98
In Stock
Start Device 4344776
#16

Unit parts diagram

Start device

Part #4344776

Replaced by #WP4344776

?
Manufacturer substitution
This part replaces 4344776. Substitute parts can look different from the original.
$75.93 |
7% OFF Phone Price : $81.93
In Stock
Capacitor 4344837
#17

Unit parts diagram

Capacitor

Part #4344837

Replaced by #WP1188476

?
Manufacturer substitution
This part replaces 4344837. Substitute parts can look different from the original.
$69.30 |
8% OFF Phone Price : $75.30
In Stock
Refrigerator Toe Grille W10204635
#1

Liner parts diagram

Refrigerator toe grille

Part #W10204635

$81.69 |
7% OFF Phone Price : $87.69
In Stock
Refrigerator Control Board Wire Harness, Upper W10204933
#30

Upper drawer parts diagram

Refrigerator control board wire harness, upper

Part #W10204933

$82.87
In Stock
Drier Tube W10163273
#9

Unit parts diagram

Drier tube

Part #W10163273

$33.58
In Stock
