Kenmore Elite
Canister Vacuum

Model # 11621814410 Official Kenmore Elite vacuum

Here are the diagrams and repair parts for Official Kenmore Elite 11621814410 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Vacuum Motor Safety Filter 8175084
#40

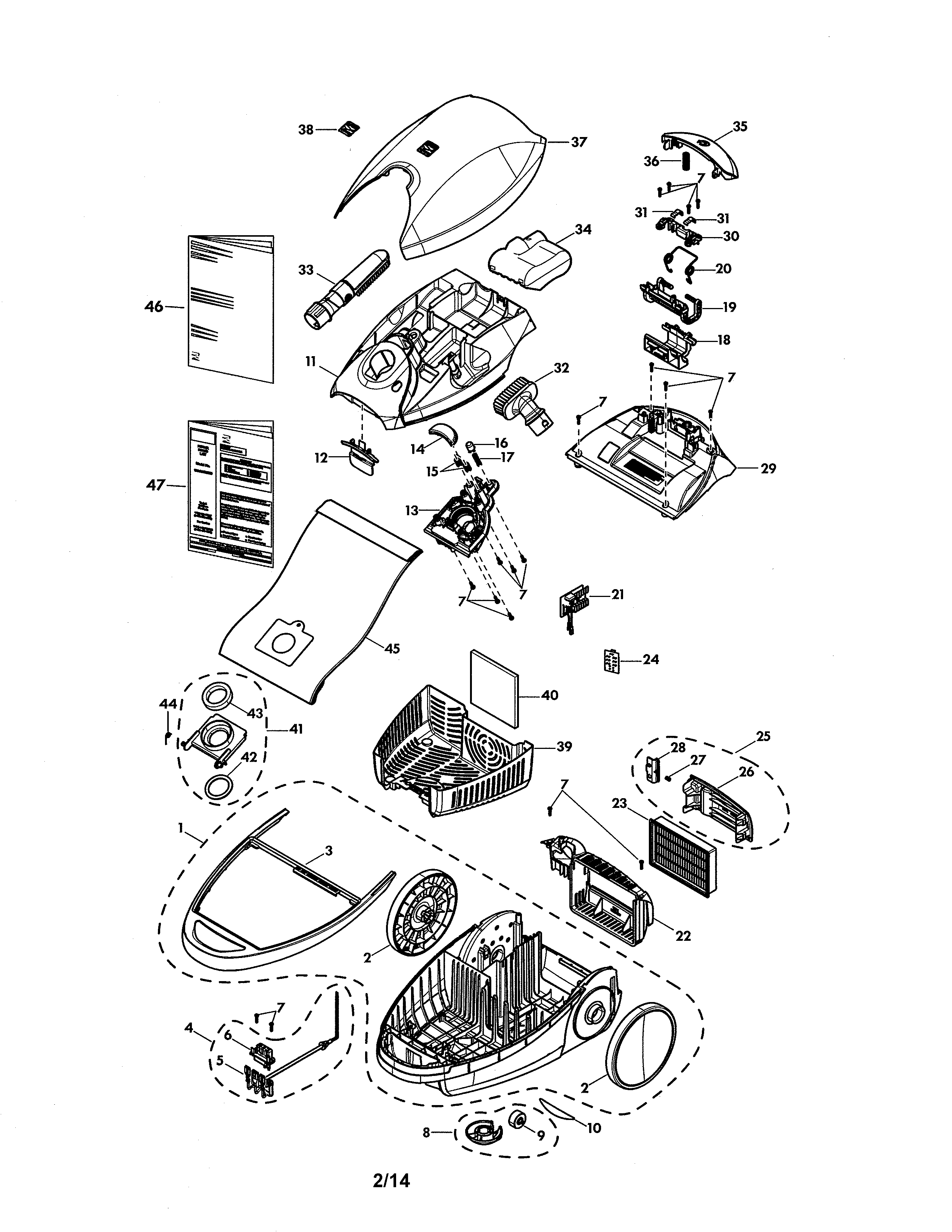

Canister diagram

Vacuum motor safety filter

Part #8175084

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Dust Brush KC94QDWCZV06
#32

Canister diagram

Vacuum dust brush

Part #KC94QDWCZV06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter KC44KDXEZ000
#5

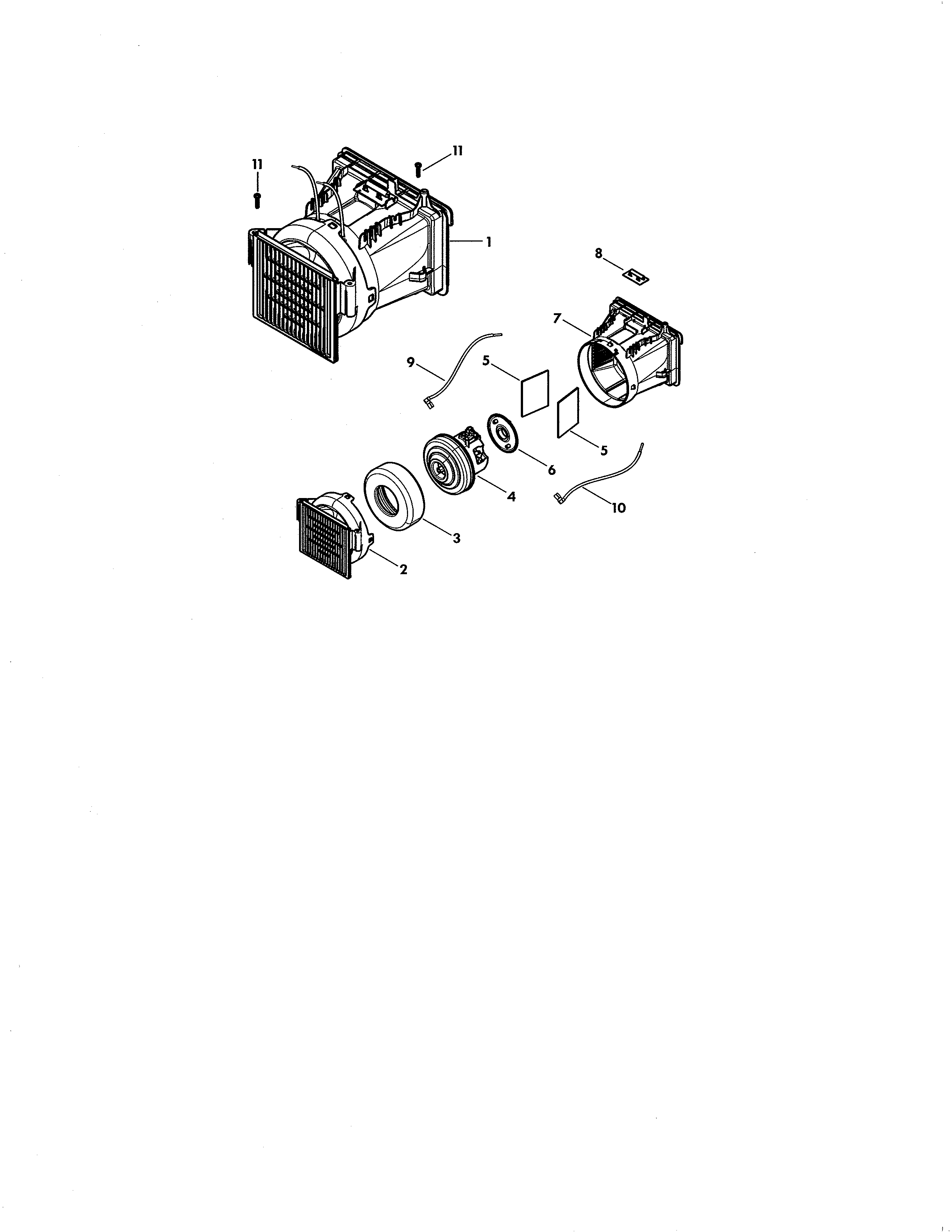

Canister motor diagram

Vacuum filter

Part #KC44KDXEZ000

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Crevice Tool KC60RDKNZV06
#21

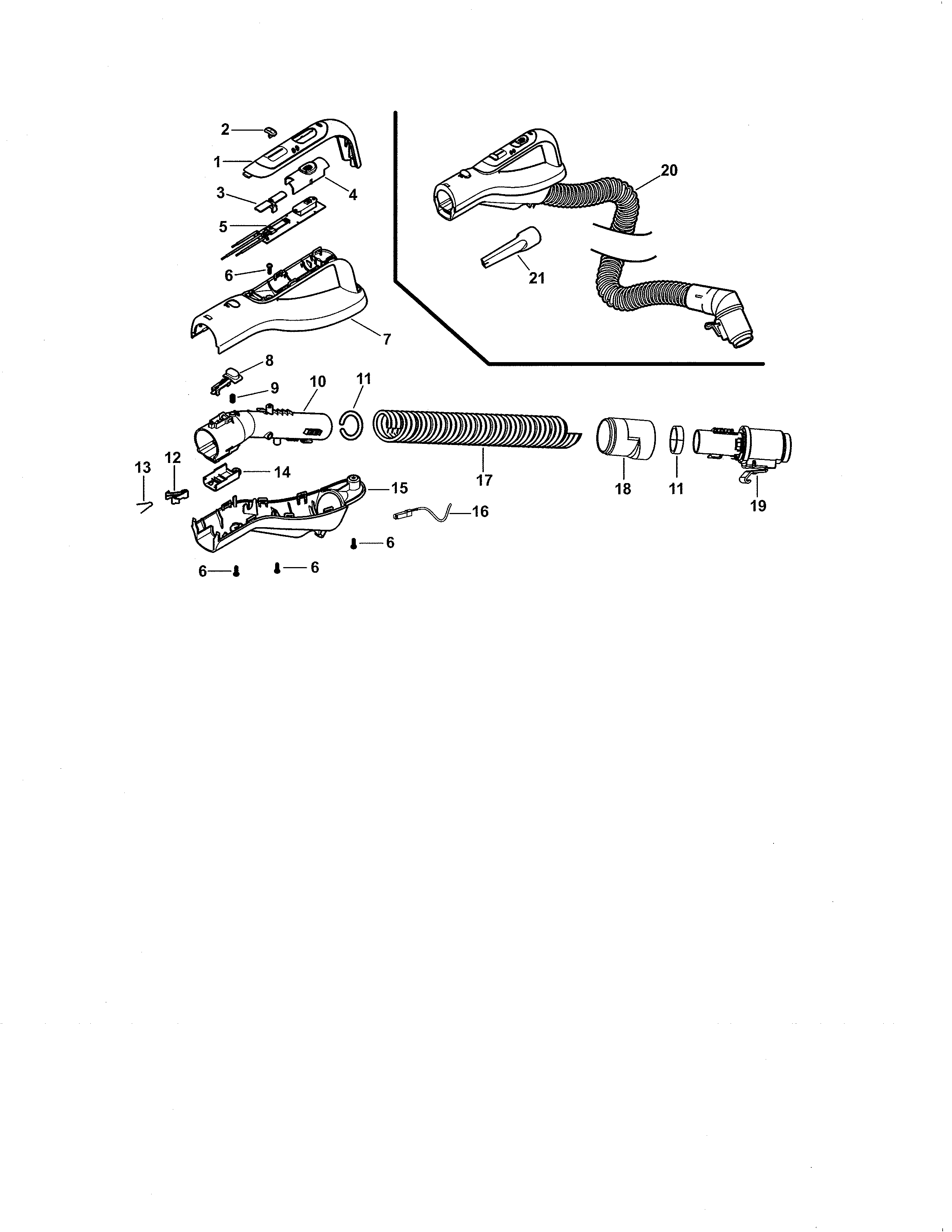

Hose & handle diagram

Vacuum crevice tool

Part #KC60RDKNZV06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Swivel KC70SDWCZV06
#6

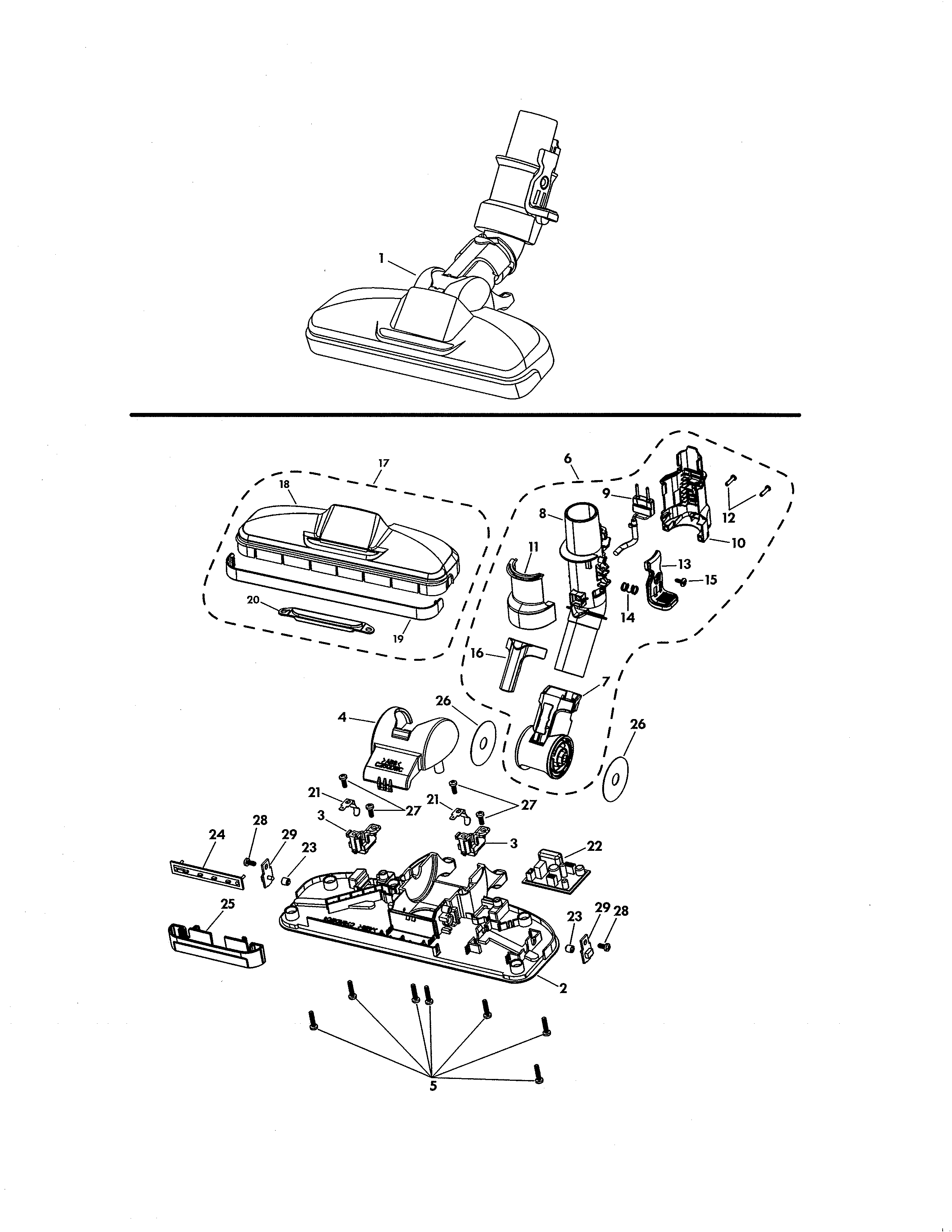

Floor brush diagram

Vacuum hose swivel

Part #KC70SDWCZV06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Jr. KC85PDKMZV0X
#34

Canister diagram

Vacuum powermate jr.

Part #KC85PDKMZV0X

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Attachment Release Button KC13DDKNZMUH
#8

Hose & handle diagram

Vacuum attachment release button

Part #KC13DDKNZMUH

The manufacturer no longer makes this part, and there's no substitute part

Buckle KC01DDWCZV06
#12

Canister diagram

Buckle

Part #KC01DDWCZV06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Bottom Wand Release Button KC13DDMMZMUH
#18

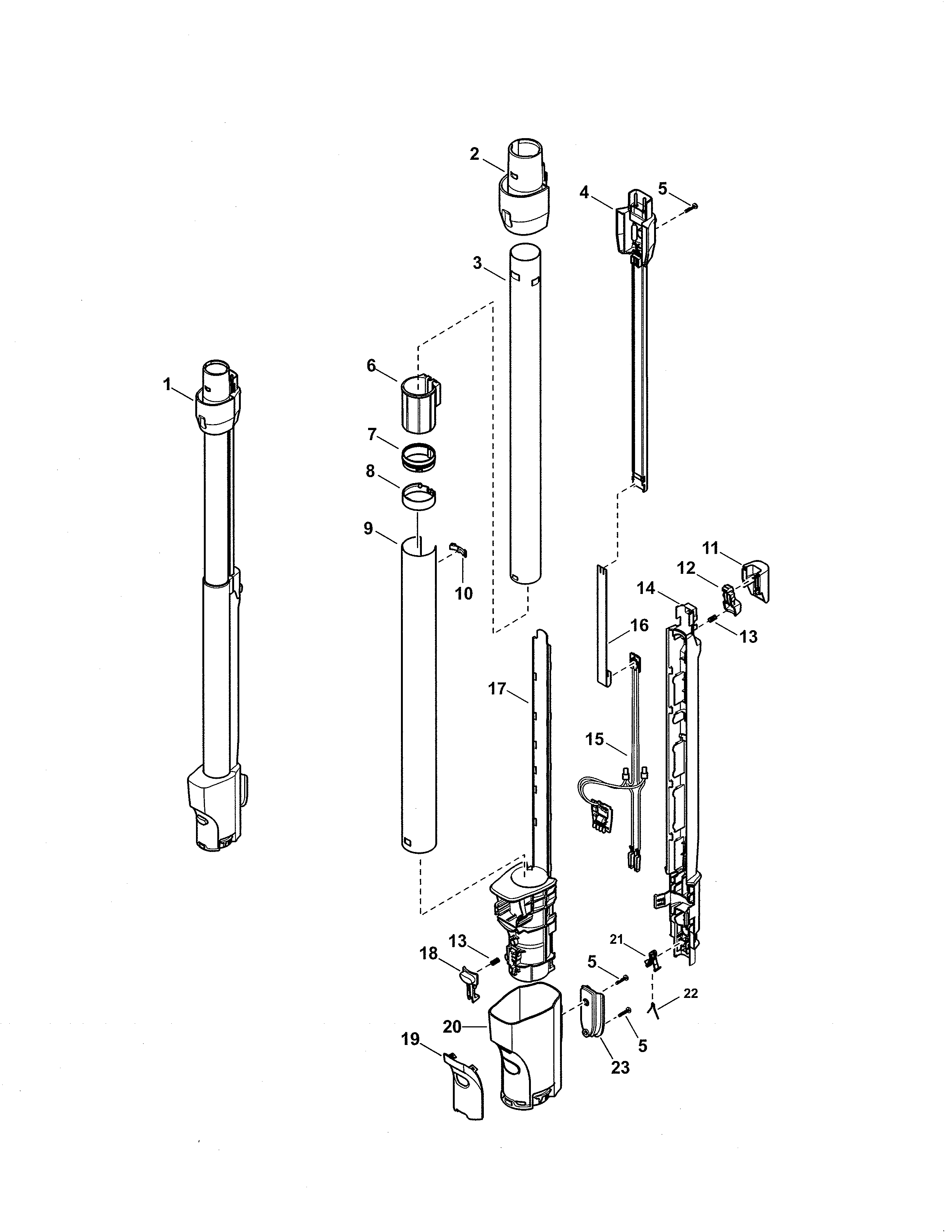

Telescoping wand diagram

Vacuum bottom wand release button

Part #KC13DDMMZMUH

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wand Flat Cable KC65VDKNZ000
#16

Telescoping wand diagram

Vacuum wand flat cable

Part #KC65VDKNZ000

The manufacturer no longer makes this part, and there's no substitute part
