LG
Washer

Model # WT5270CW Official LG washer

Here are the diagrams and repair parts for Official LG WT5270CW washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Washer Drive Shaft And Shifter Assembly AEN73131403
#K170

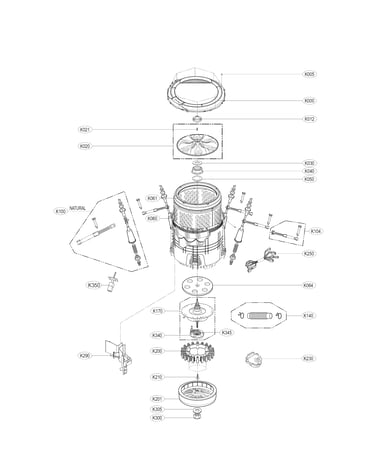

Tub assembl diagram

Washer drive shaft and shifter assembly

Part #AEN73131403

Replaced by #AEN73131406

?
Manufacturer substitution
This part replaces AEN73131403. Substitute parts can look different from the original.
BEST SELLER
$208.24 |
5% OFF Phone Price : $220.24
In Stock
Washer Water-level Pressure Switch 6501EA1001R
#A200

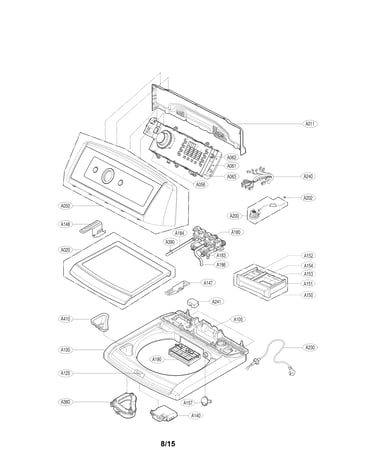

Top cover parts diagram

Washer water-level pressure switch

Part #6501EA1001R

BEST SELLER
$38.97 |
13% OFF Phone Price : $44.97
In Stock
Washer Washplate AGZ72909702
#K020

Tub assembl diagram

Washer washplate

Part #AGZ72909702

Replaced by #AGZ72909711

?
Manufacturer substitution
This part replaces AGZ72909702. Substitute parts can look different from the original.
BEST SELLER
$152.01 |
7% OFF Phone Price : $164.01
In Stock
Washer Motor Stator (replaces Agf77725080) AJB73816004
#K200

Tub assembl diagram

Washer motor stator (replaces agf77725080)

Part #AJB73816004

BEST SELLER
$207.91 |
5% OFF Phone Price : $219.91
In Stock
Nut 4020FA4208M
#K040

Tub assembl diagram

Nut

Part #4020FA4208M

Replaced by #4020FA4208J

?
Manufacturer substitution
This part replaces 4020FA4208M. Substitute parts can look different from the original.
BEST SELLER
$52.71 |
10% OFF Phone Price : $58.71
In Stock
Washer Washplate Cap MBL65219301
#K012

Tub assembl diagram

Washer washplate cap

Part #MBL65219301

Replaced by #5006EA3009B

?
Manufacturer substitution
This part replaces MBL65219301. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
17% OFF Phone Price : $34.54
In Stock
Washer Drain Hose (replaces 5215ea1001a, Aem73653001, Aem73732903, Aem74053001, Mej62685201) AEM73732901
#F100

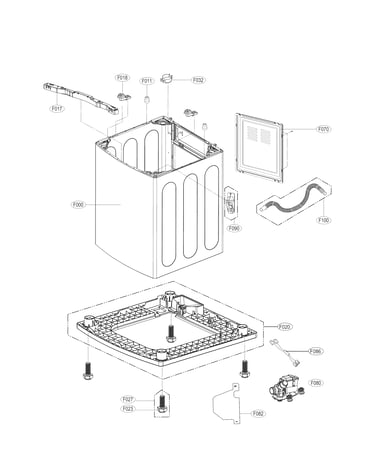

Outer case parts diagram

Washer drain hose (replaces 5215ea1001a, aem73653001, aem73732903, aem74053001, mej62685201)

Part #AEM73732901

BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Washer Drain Hose AEM73652901
#K140

Tub assembl diagram

Washer drain hose

Part #AEM73652901

Replaced by #AEM73213001

?
Manufacturer substitution
This part replaces AEM73652901. Substitute parts can look different from the original.
BEST SELLER
$35.00 |
15% OFF Phone Price : $41.00
In Stock
Washer Clutch Band MCJ61941202
#K345

Tub assembl diagram

Washer clutch band

Part #MCJ61941202

Replaced by #MCJ61861201

?
Manufacturer substitution
This part replaces MCJ61941202. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Washer Shifter Motor 4681EA1009H
#K230

Tub assembl diagram

Washer shifter motor

Part #4681EA1009H

Replaced by #4681EA1009C

?
Manufacturer substitution
This part replaces 4681EA1009H. Substitute parts can look different from the original.
BEST SELLER
$82.00 |
7% OFF Phone Price : $88.00
In Stock
