Model # WF209ANW/XAA-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WF209ANW-XAA-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

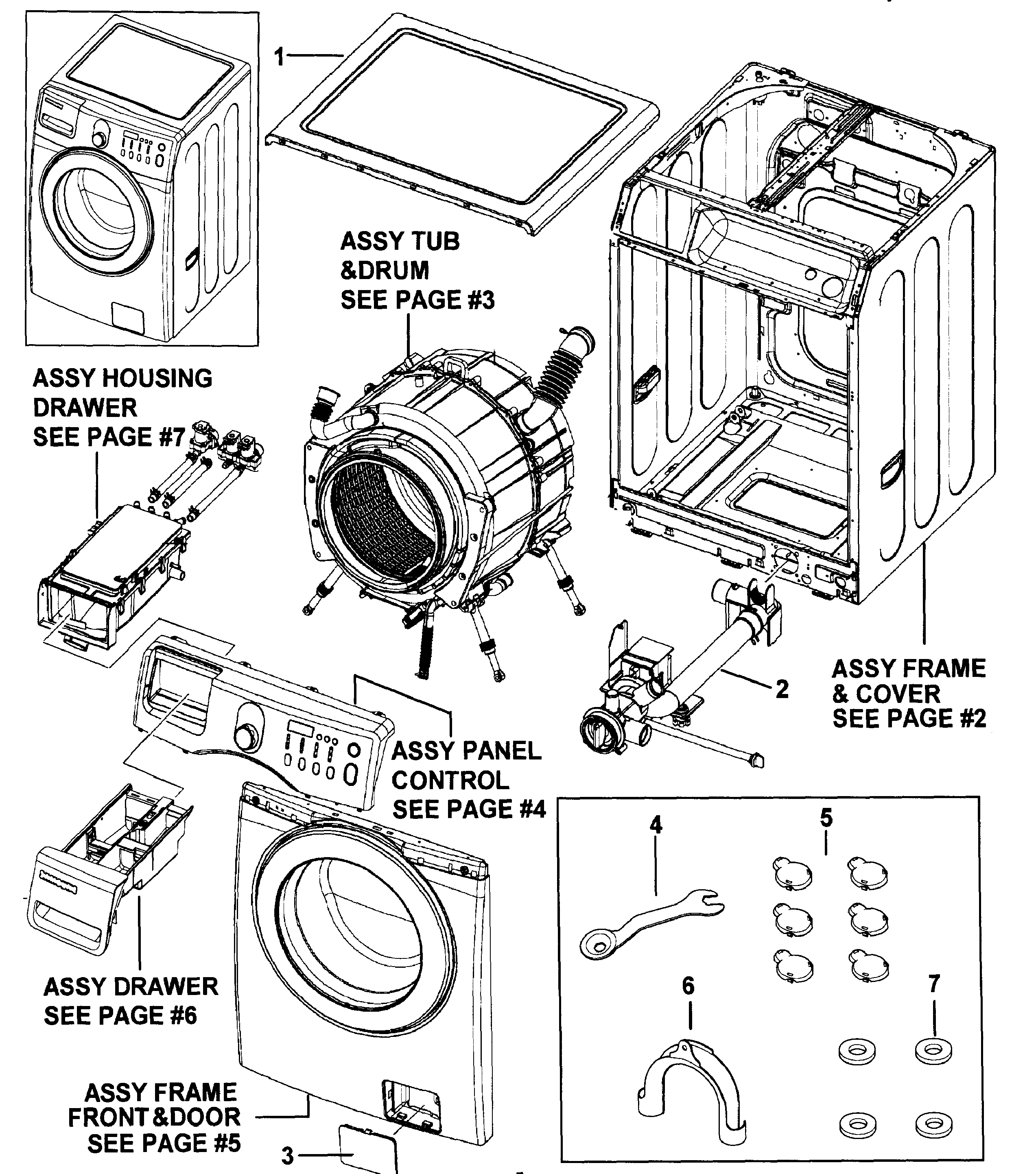

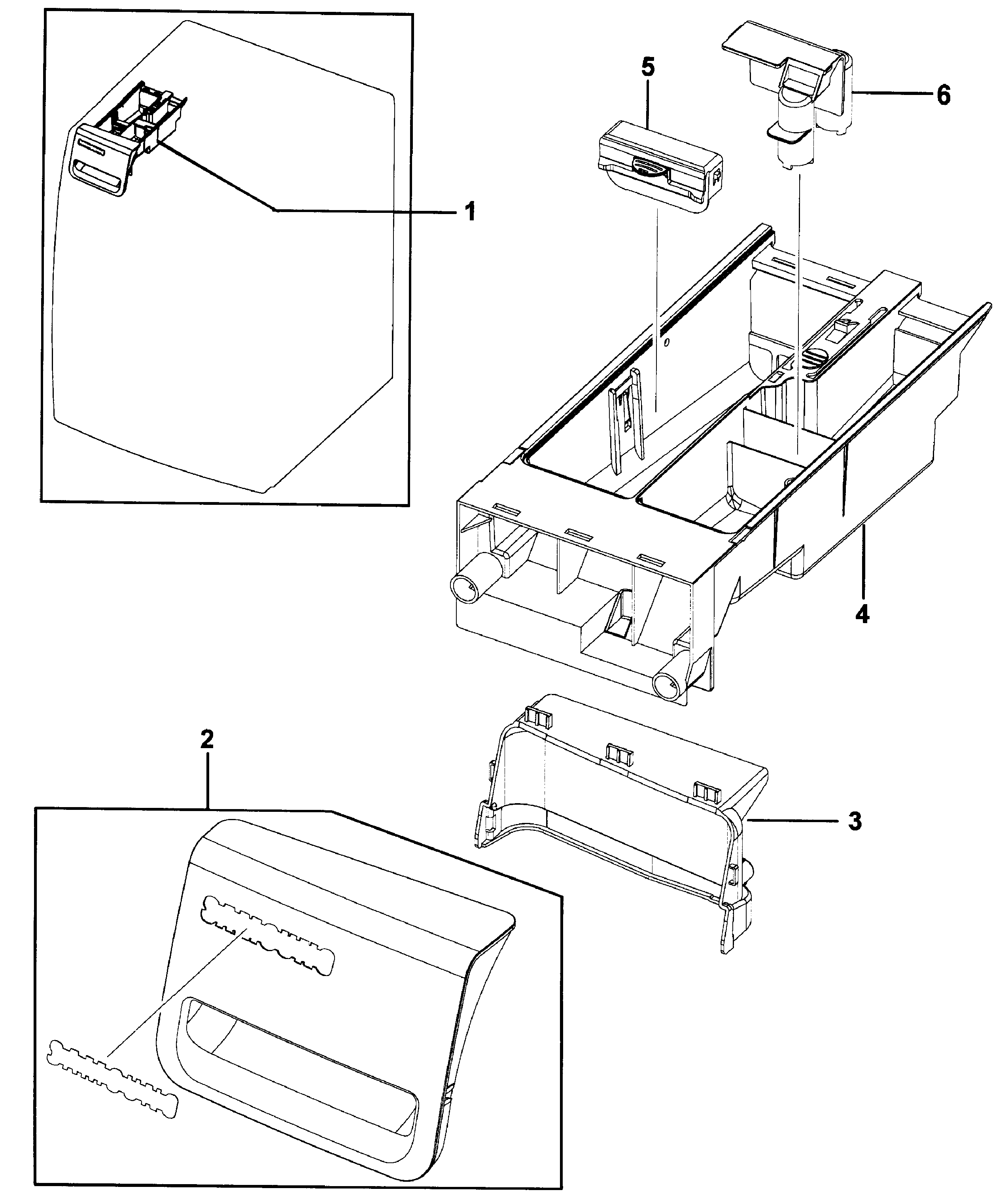

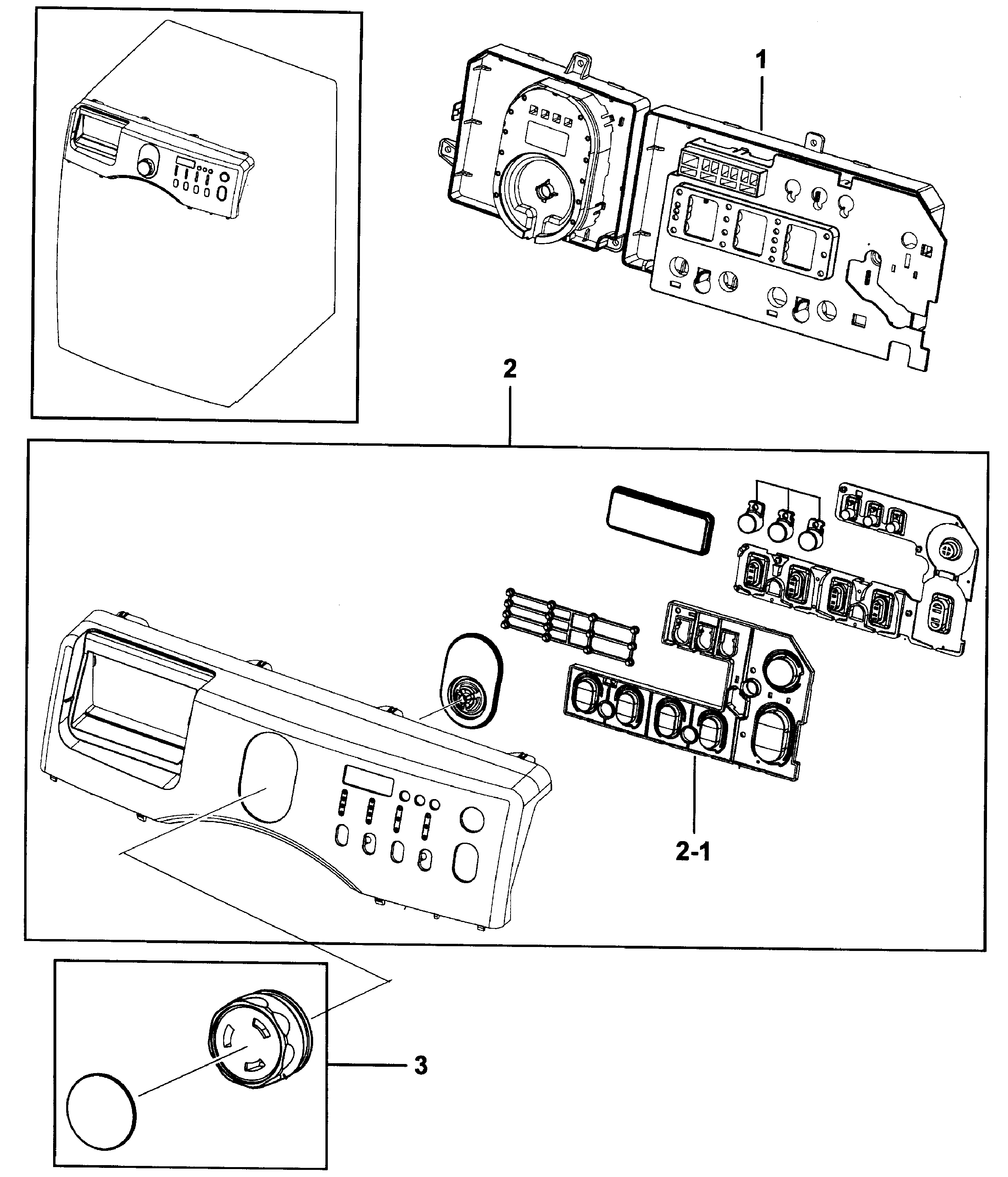

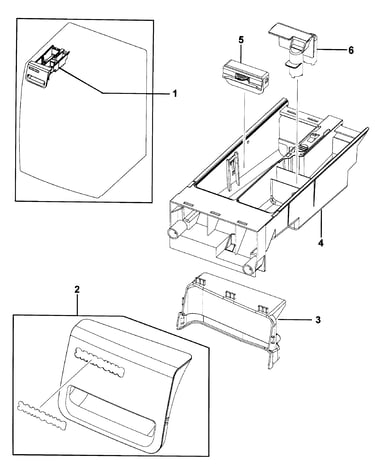

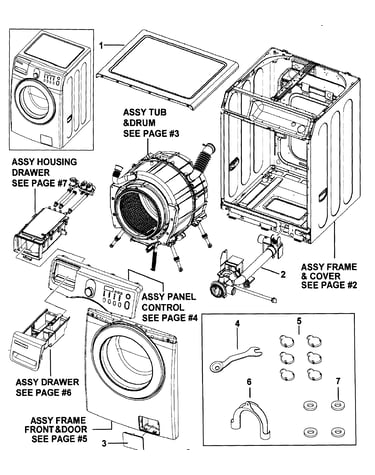

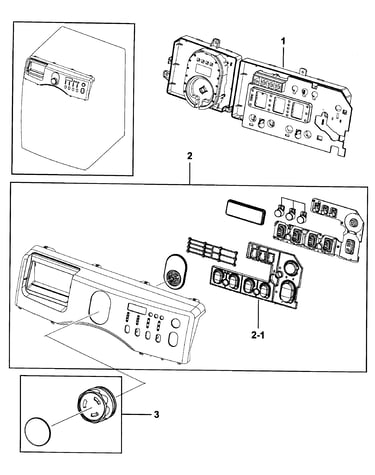

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 131 parts  |
Washer Shock Absorber (replaces Dc66-00650d) DC66-00470A
#7

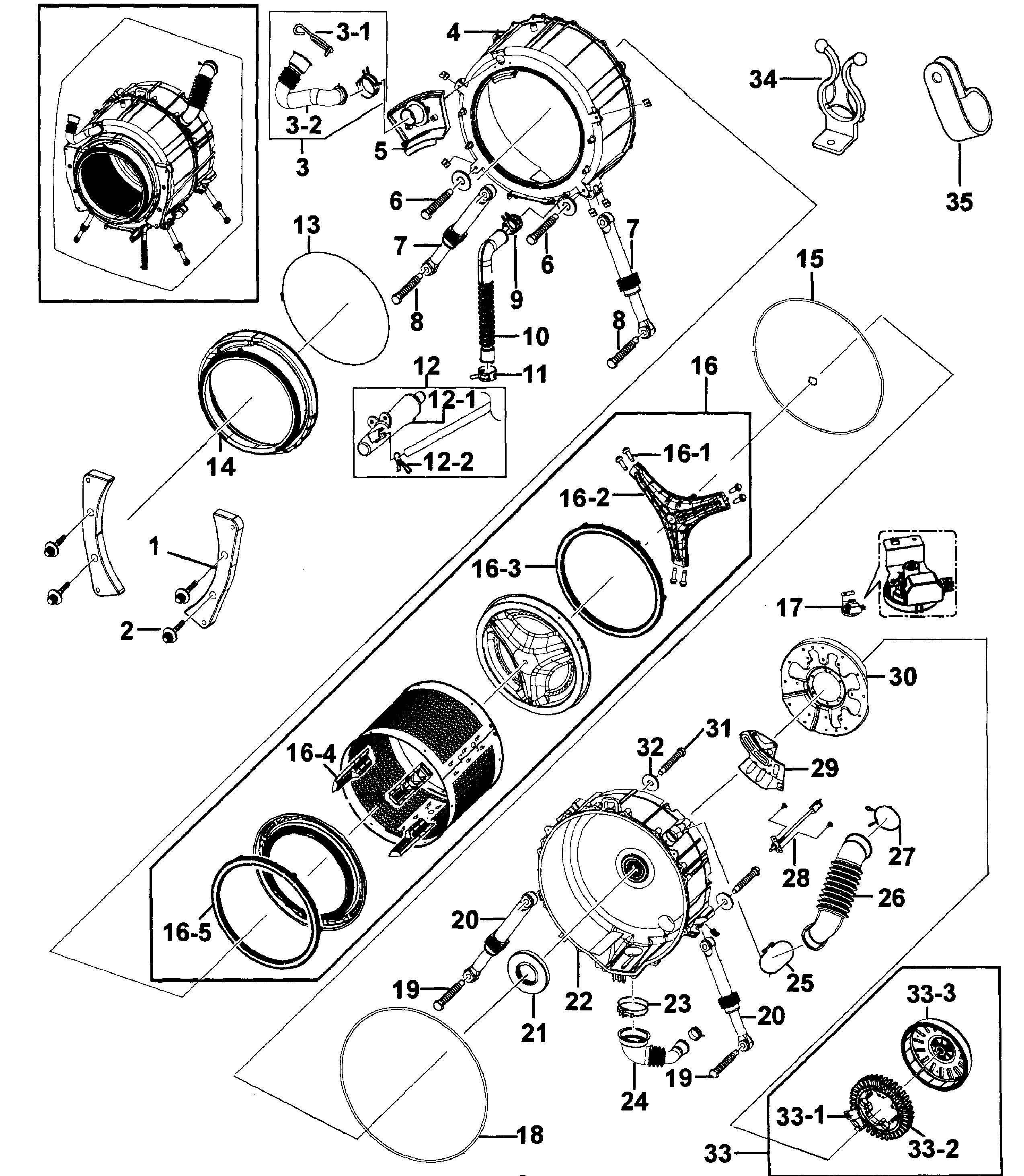

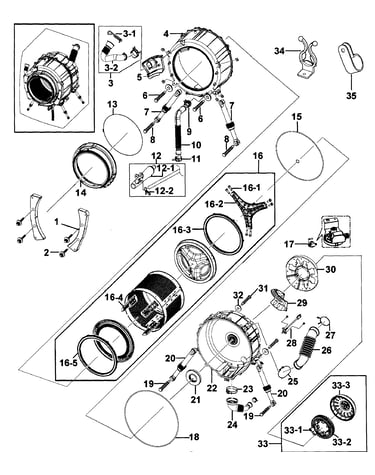

Drum assy diagram

Washer shock absorber (replaces dc66-00650d)

Part #DC66-00470A

BEST SELLER
$49.01 |
11% OFF Phone Price : $55.01
In Stock
Washer Bolt (replaces Dc60-40138a) DC97-02412A
#2

Drum assy diagram

Washer bolt (replaces dc60-40138a)

Part #DC97-02412A

BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Washer Water Inlet Valve (replaces Dc62-30314h) DC62-30314K
#2

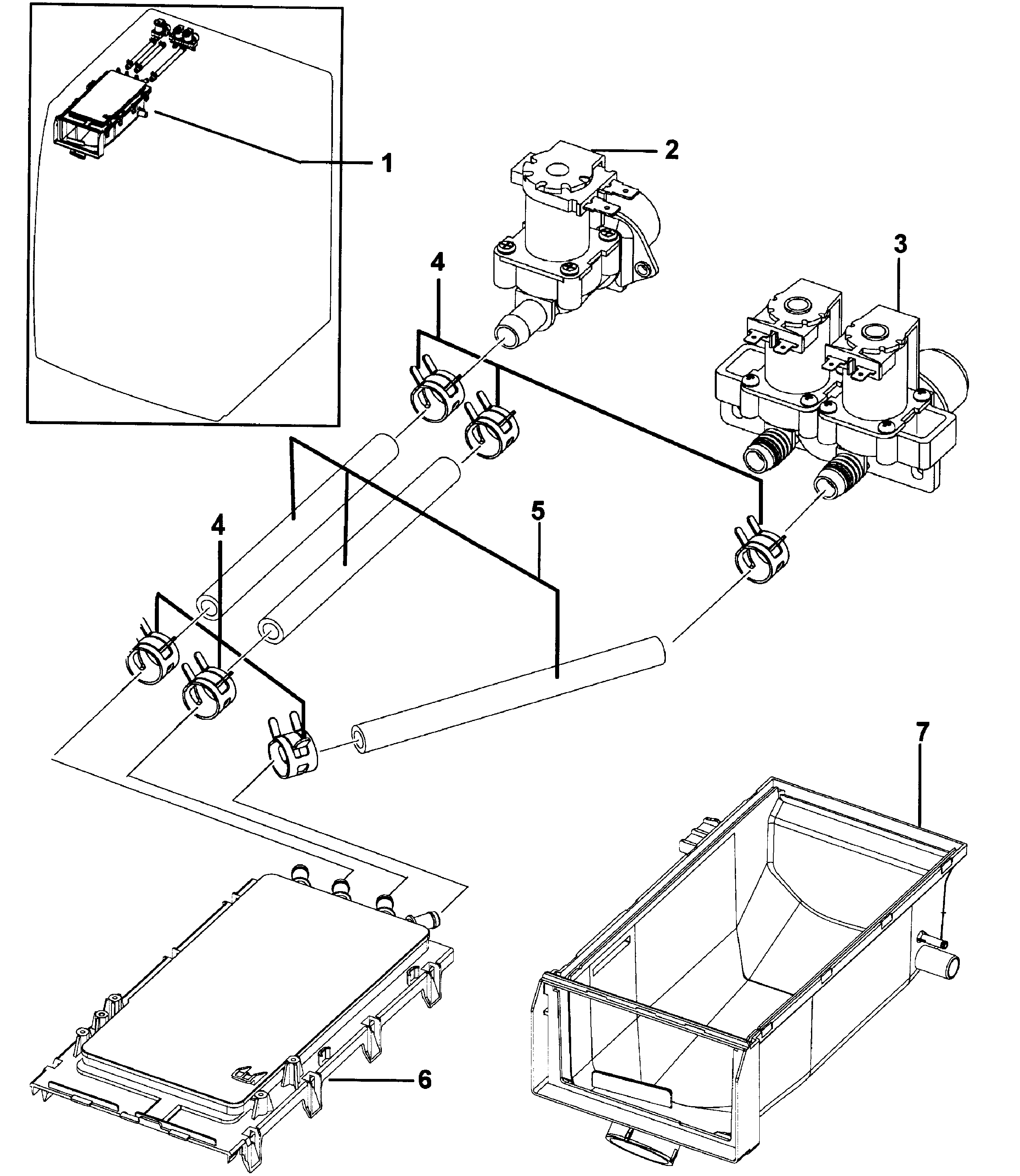

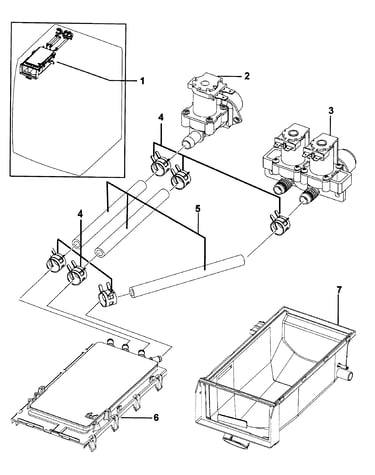

Drawer housing diagram

Washer water inlet valve (replaces dc62-30314h)

Part #DC62-30314K

BEST SELLER
$61.69 |
9% OFF Phone Price : $67.69
In Stock
Washer Door Boot Spring Clamp DC97-04973B
#15

Drum assy diagram

Washer door boot spring clamp

Part #DC97-04973B

BEST SELLER
$10.94 |
15% OFF Phone Price : $12.94
In Stock
Washer Door Lock DC64-00519B
#4

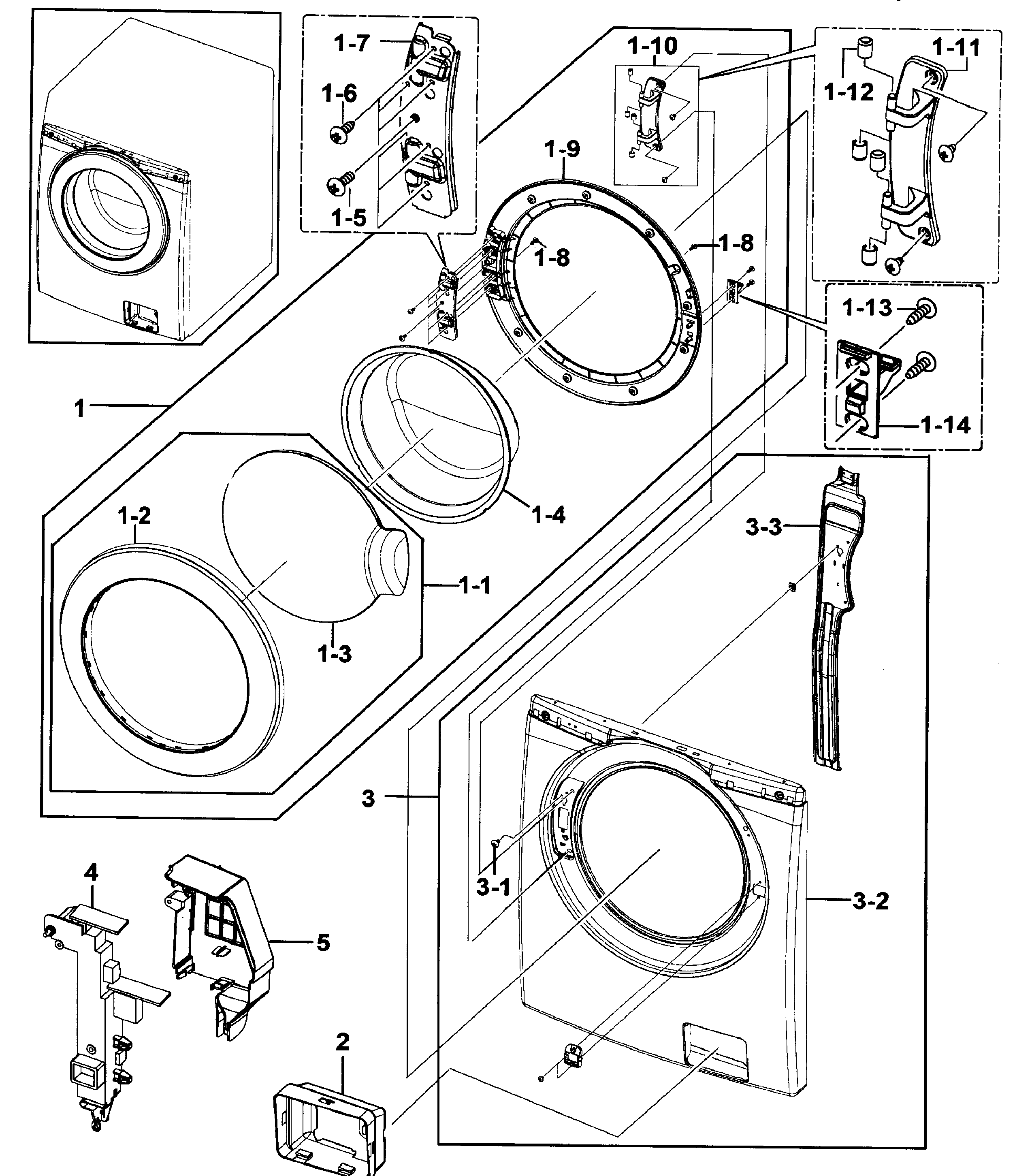

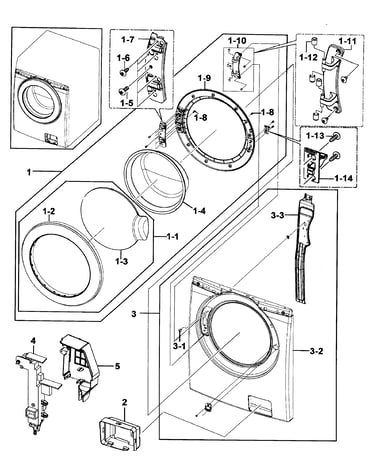

Front/door diagram

Washer door lock

Part #DC64-00519B

BEST SELLER
$28.89 |
17% OFF Phone Price : $34.89
In Stock
Washer Bolt (replaces 6011-001491) DC60-40137A
#16-1

Drum assy diagram

Washer bolt (replaces 6011-001491)

Part #DC60-40137A

BEST SELLER
$8.59 |
10% OFF Phone Price : $9.59
In Stock
Washer Drain Hose (replaces Dc67-00330c) DC97-15273A
#15

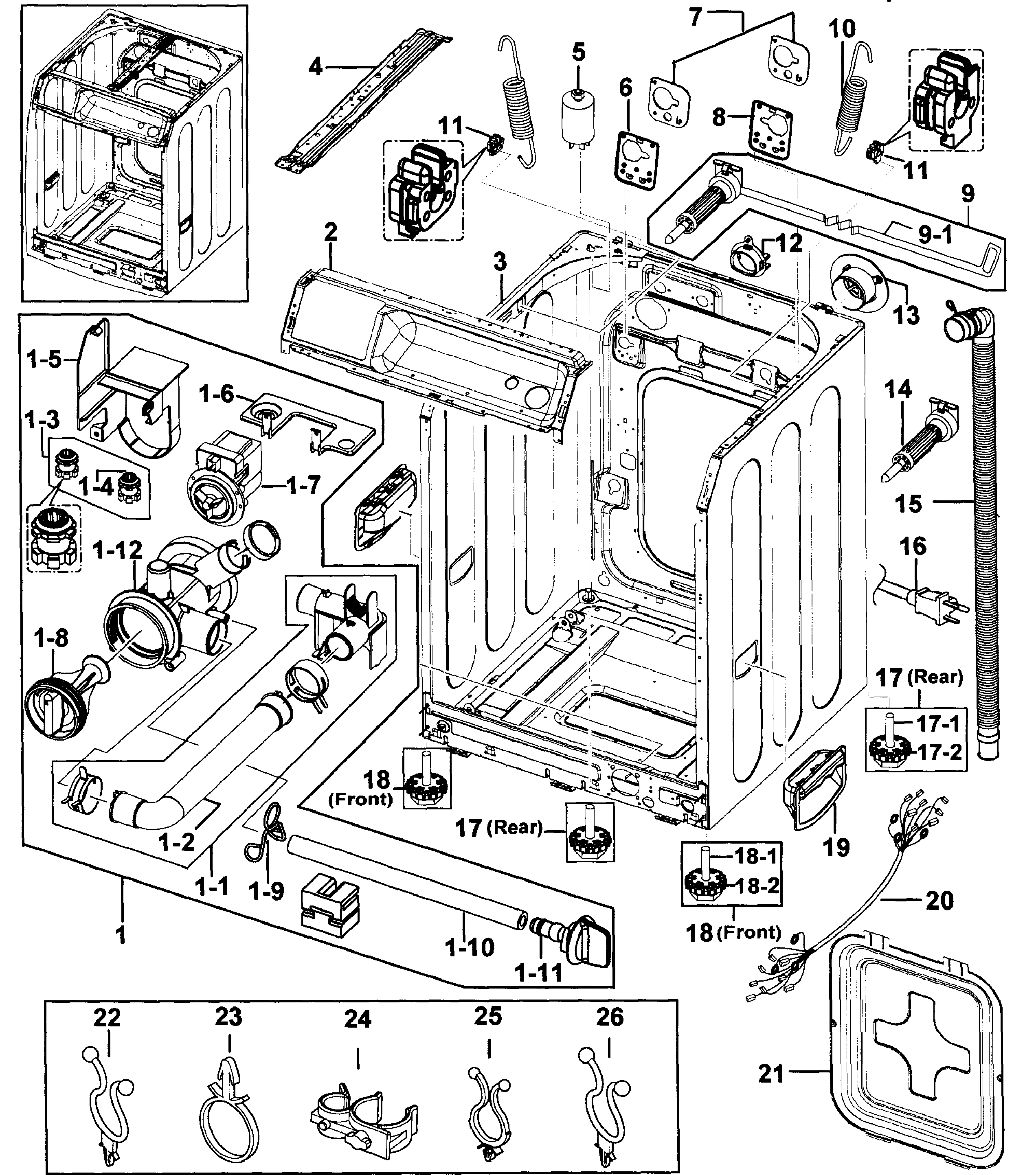

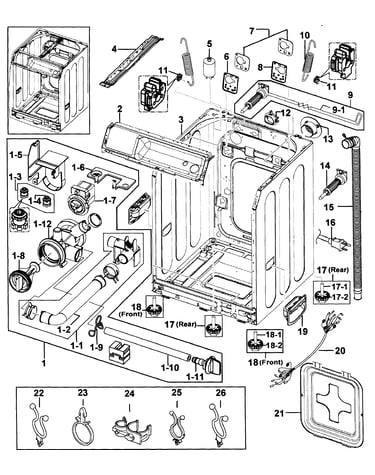

Cabinet diagram
