Model # 661475790 Official Sears 26" men's 21-speed lotus bicycle - 4000m

Here are the diagrams and repair parts for Official Sears 661475790 26" men's 21-speed lotus bicycle - 4000m, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Bearing Set 019016
#6

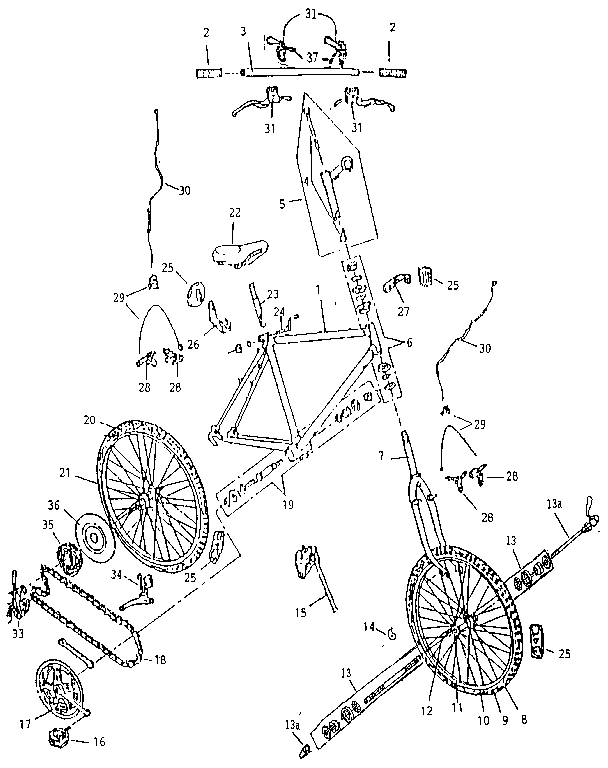

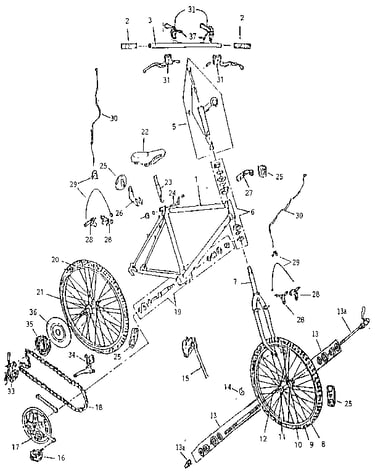

Men's 26" lotus 4000m 21 spd. diagram

Bearing set

Part #019016

The manufacturer no longer makes this part, and there's no substitute part

Brake Shoe Set 104014
#39

Men's 26" lotus 4000m 21 spd. diagram

Brake shoe set

Part #104014

The manufacturer no longer makes this part, and there's no substitute part

Cant. Brakes 023030
#28

Men's 26" lotus 4000m 21 spd. diagram

Cant. brakes

Part #023030

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Crnk Fln Nut 061002

#NI

All parts diagram

Ming ta crnk fln nut

Part #061002

The manufacturer no longer makes this part, and there's no substitute part

Huffy Cutter 103030

#NI

All parts diagram

Huffy cutter

Part #103030

The manufacturer no longer makes this part, and there's no substitute part

Handlebar 009071
#3

Men's 26" lotus 4000m 21 spd. diagram

Handlebar

Part #009071

The manufacturer no longer makes this part, and there's no substitute part

Lifestyler Seat Pin 034005
#24

Men's 26" lotus 4000m 21 spd. diagram

Lifestyler seat pin

Part #034005

The manufacturer no longer makes this part, and there's no substitute part

Stem Assm. 011073
#5

Men's 26" lotus 4000m 21 spd. diagram

Stem assm.

Part #011073

The manufacturer no longer makes this part, and there's no substitute part

Ming Ta Quik Release 115001
Ming ta quik release

Part #115001

The manufacturer no longer makes this part, and there's no substitute part

Crank Extrtr 103012

#NI

All parts diagram

Crank extrtr

Part #103012

The manufacturer no longer makes this part, and there's no substitute part
