Model # FGCH20M7LW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FGCH20M7LW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Filter Drier 216987501
#4

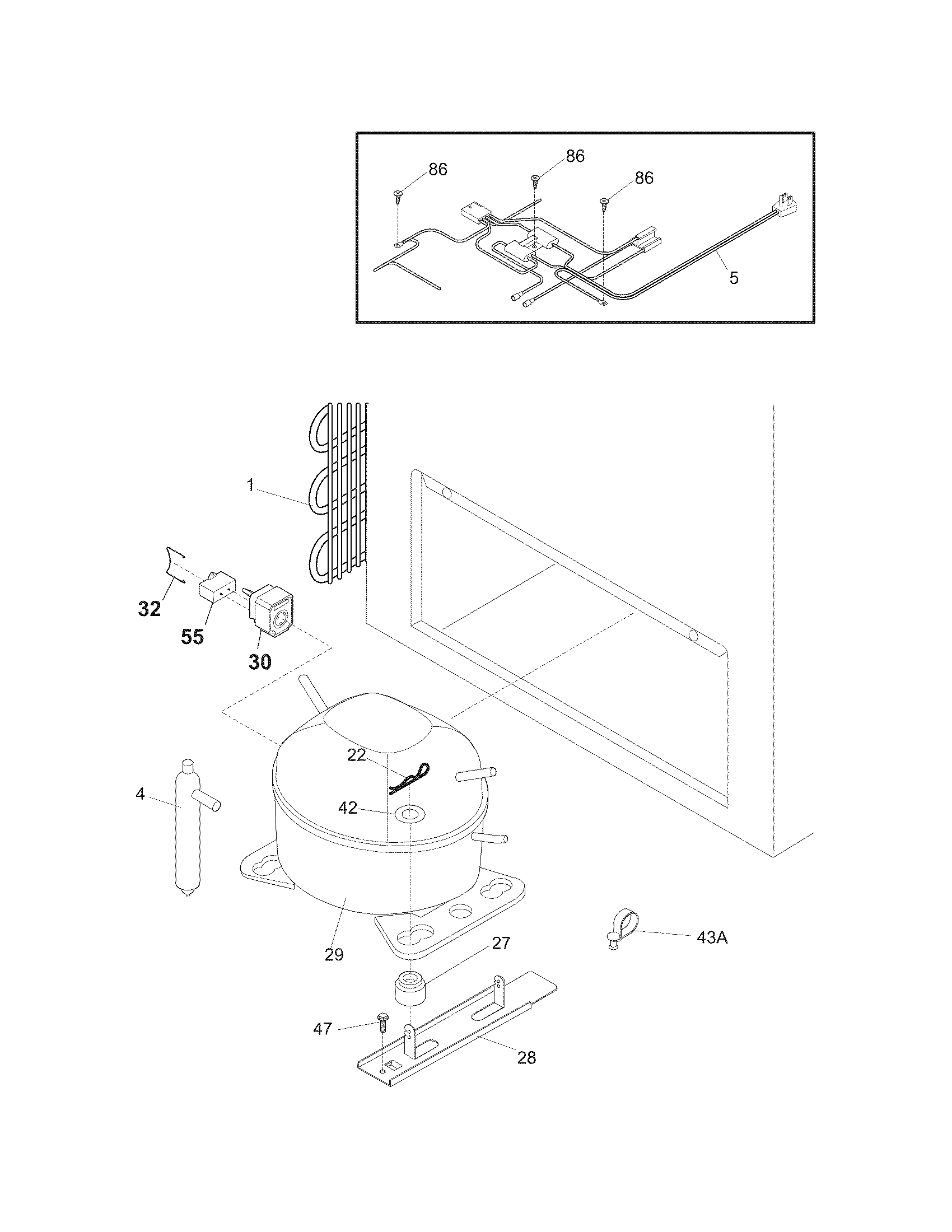

System diagram

Filter drier

Part #216987501

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216987501. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gibson Freezer Door Key (replaces 216702900, 7297147700) 297147700
#5

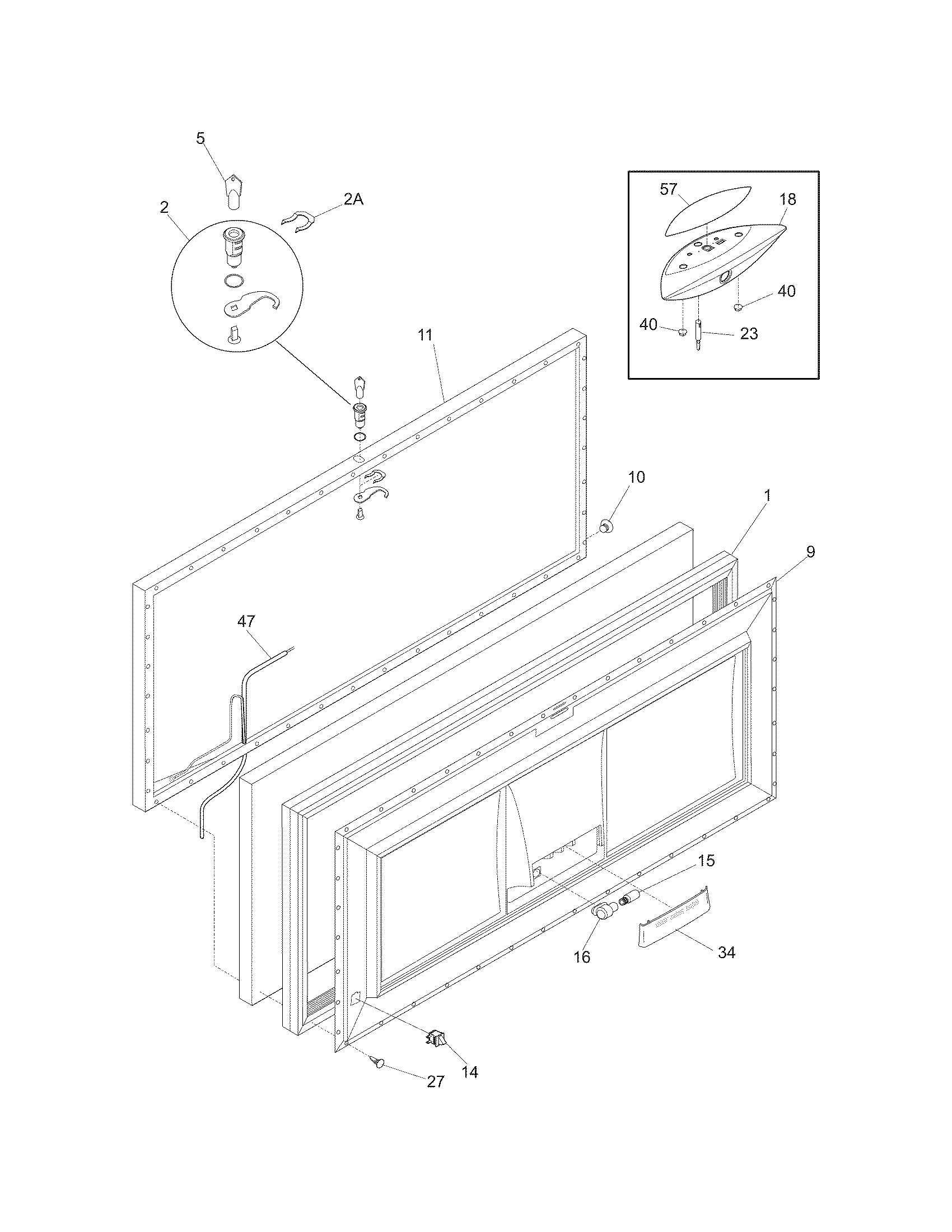

Door diagram

Gibson freezer door key (replaces 216702900, 7297147700)

Part #297147700

BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Refrigerator Capacitor 216985001
#55

System diagram

Refrigerator capacitor

Part #216985001

Replaced by #297286803

?
Manufacturer substitution
This part replaces 216985001. Substitute parts can look different from the original.
BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Compressor 297223400
#29

System diagram

Compressor

Part #297223400

Replaced by #5304478809

?
Manufacturer substitution
This part replaces 297223400. Substitute parts can look different from the original.
$351.19 |
$12.00 OFF Phone Price : $363.19
In Stock
Kelvinator Freezer Electronic Control Board (replaces 7216954218) 216954218
#30

System diagram

Kelvinator freezer electronic control board (replaces 7216954218)

Part #216954218

$53.83 |
10% OFF Phone Price : $59.83
In Stock
Freezer Temperature Control Knob 216707200
#18

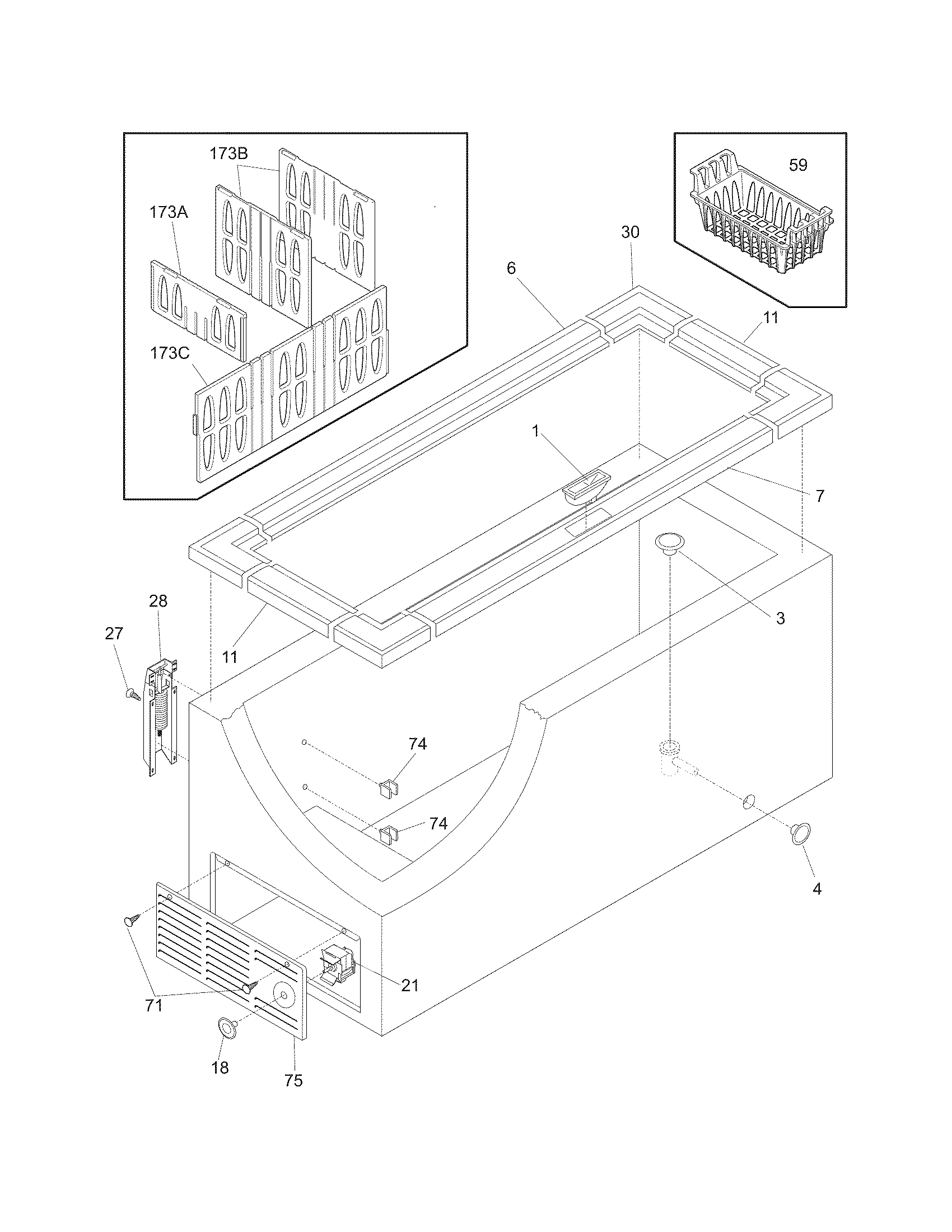

Cabinet diagram
