Craftsman
Front-Engine Lawn Tractor

Model # 502256117 Official Craftsman riding lawn mower

Here are the diagrams and repair parts for Official Craftsman 502256117 riding lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

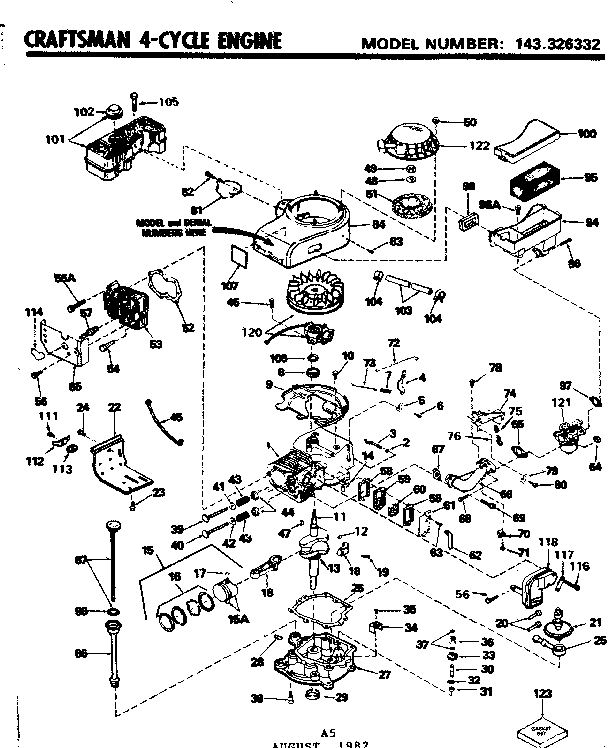

  View engine

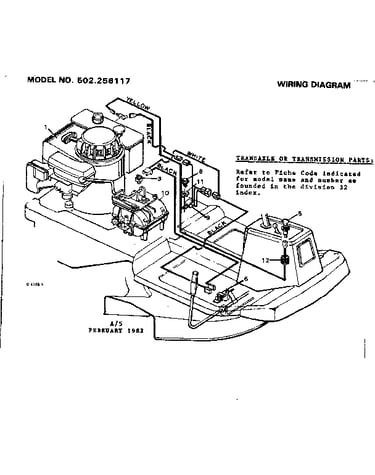

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 401 parts  |
Tire 24396
#63

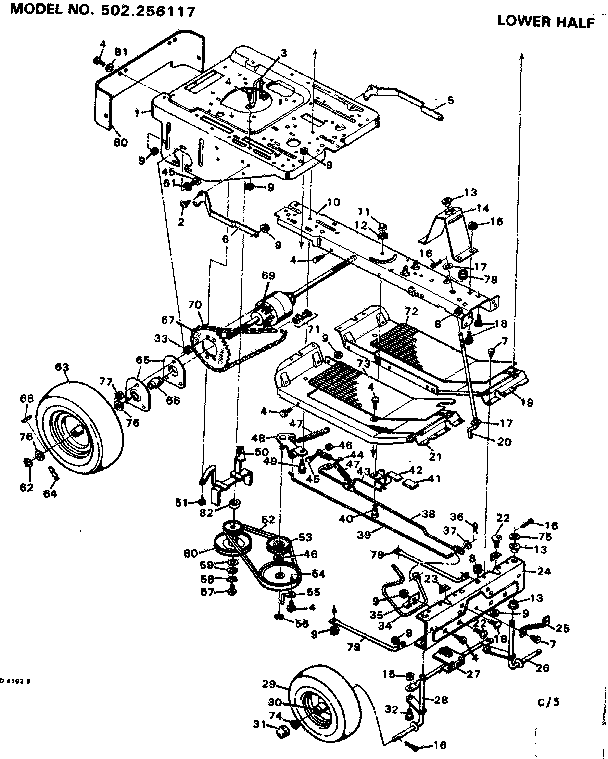

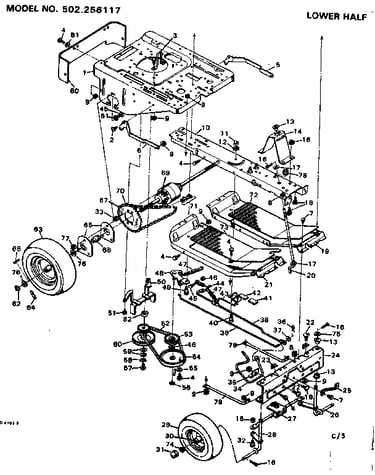

Drive assembly diagram

Tire

Part #24396

Replaced by #532122073

?
Manufacturer substitution
This part replaces 24396. Substitute parts can look different from the original.
BEST SELLER
$59.79 |
9% OFF Phone Price : $65.79
In Stock
Washer 780001
#8

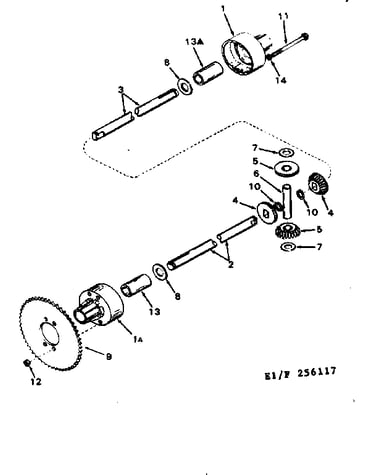

Differential diagram

Washer

Part #780001

Replaced by #780001

?
Manufacturer substitution
This part replaces 780001. Substitute parts can look different from the original.
This item is not returnable
$4.34
In Stock
Housing 24384
#51

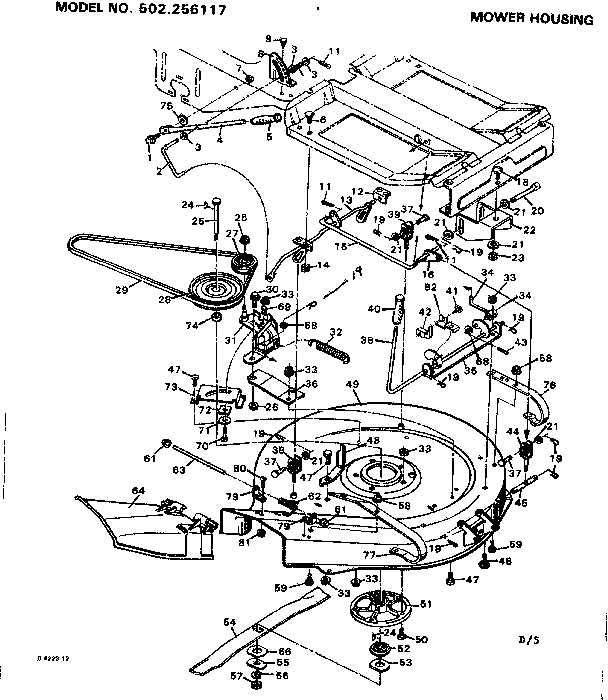

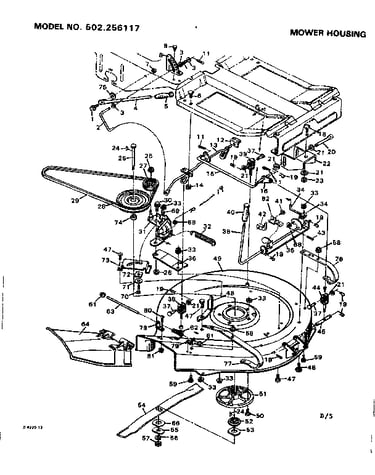

Mower deck diagram

Housing

Part #24384

Replaced by #492574MA

?
Manufacturer substitution
This part replaces 24384. Substitute parts can look different from the original.
$68.99 |
8% OFF Phone Price : $74.99
In Stock
Spacer 24533Z
Spacer

Part #24533Z

Replaced by #91925MA

?
Manufacturer substitution
This part replaces 24533Z. Substitute parts can look different from the original.
$22.54
In Stock
Washer 780096
#7

Differential diagram

Washer

Part #780096

Replaced by #780096

?
Manufacturer substitution
This part replaces 780096. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Differential Axle 55000
#69

Drive assembly diagram

Differential axle

Part #55000

Replaced by #794299

?
Manufacturer substitution
This part replaces 55000. Substitute parts can look different from the original.
$154.92
In Stock
Pinion 778068
#5

Differential diagram

Pinion

Part #778068

Replaced by #778131

?
Manufacturer substitution
This part replaces 778068. Substitute parts can look different from the original.
$32.71 |
15% OFF Phone Price : $38.71
In Stock
Snap Ring 792018
#10

Differential diagram

Snap ring

Part #792018

Replaced by #792018

?
Manufacturer substitution
This part replaces 792018. Substitute parts can look different from the original.
This item is not returnable
$4.37
In Stock
Cotter Pin 30X20
#66

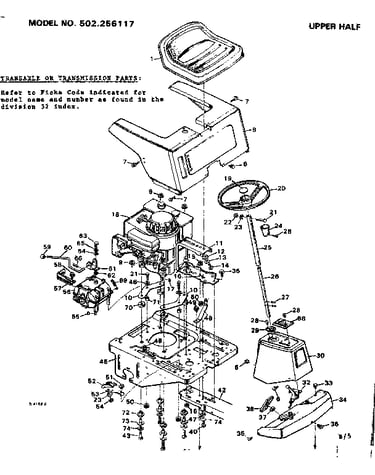

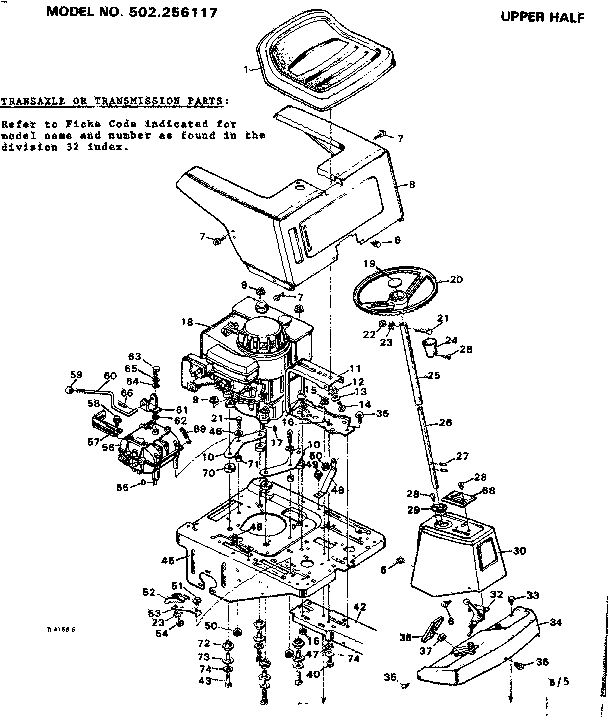

Chassis and enclosures diagram

Cotter pin

Part #30X20

Replaced by #703312

?
Manufacturer substitution
This part replaces 30X20. Substitute parts can look different from the original.
This item is not returnable
$7.14
In Stock
Wheel 24390E
#63A

Drive assembly diagram

Wheel

Part #24390E

Replaced by #407928MA

?
Manufacturer substitution
This part replaces 24390E. Substitute parts can look different from the original.
$79.49 |
7% OFF Phone Price : $85.49
In Stock
