Craftsman
Gas Walk-Behind Mower

Model # 917388510 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917388510 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 204 parts  |
Lock Nut 83923
#39

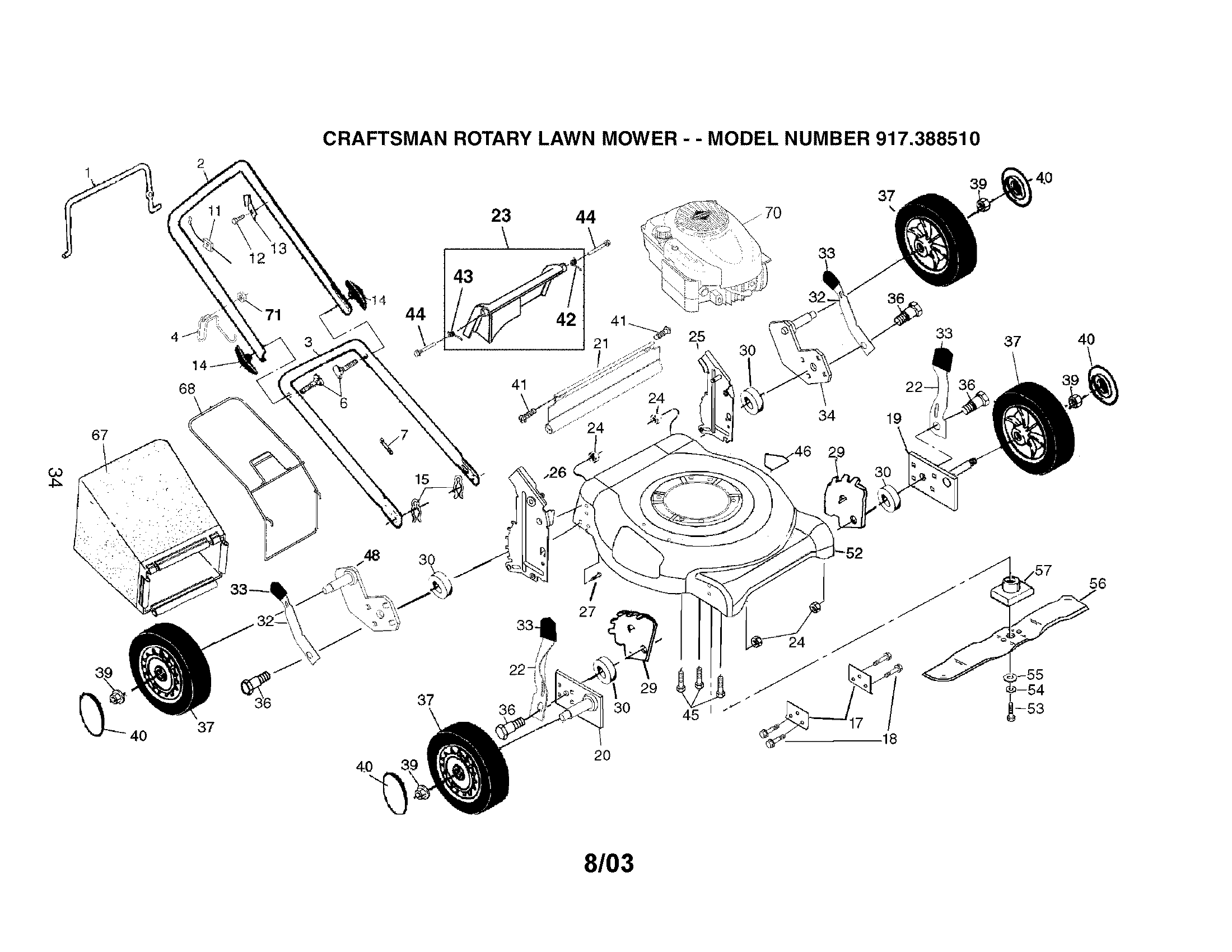

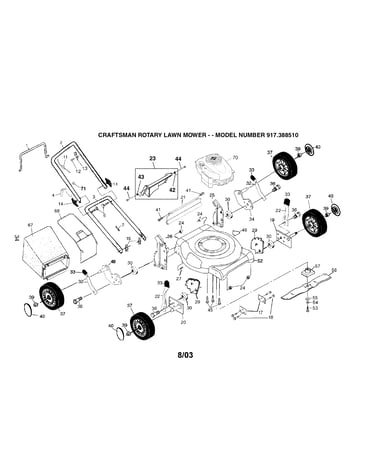

Engine/handle/bag/housing diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Belt, 21-in 175064
#56

Engine/handle/bag/housing diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.13 |
21% OFF Phone Price : $28.13
In Stock
Handle Knob 181254
#14

Engine/handle/bag/housing diagram

Handle knob

Part #181254

Replaced by #532185577

?
Manufacturer substitution
This part replaces 181254. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 131959
#6

Engine/handle/bag/housing diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Grass Bag 185451
#67

Engine/handle/bag/housing diagram

Lawn mower grass bag

Part #185451

Replaced by #532410666

?
Manufacturer substitution
This part replaces 185451. Substitute parts can look different from the original.
BEST SELLER
$66.54 |
8% OFF Phone Price : $72.54
In Stock
Nut 132004
#71

Engine/handle/bag/housing diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#41

Engine/handle/bag/housing diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
American Yard Products Lawn Mower Anti-fold Bracket 186079
#4

Engine/handle/bag/housing diagram

American yard products lawn mower anti-fold bracket

Part #186079

Replaced by #586122501

?
Manufacturer substitution
This part replaces 186079. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Selector Knob 185348
#33

Engine/handle/bag/housing diagram

Selector knob

Part #185348

Replaced by #532087877

?
Manufacturer substitution
This part replaces 185348. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Husqvarna Lawn & Garden Equipment Lock Nut 73930500
#24

Engine/handle/bag/housing diagram

Husqvarna lawn & garden equipment lock nut

Part #73930500

Replaced by #873930500

?
Manufacturer substitution
This part replaces 73930500. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
