Model # MGDB725BW0 Official Maytag gas dryer

Here are the diagrams and repair parts for Official Maytag MGDB725BW0 gas dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

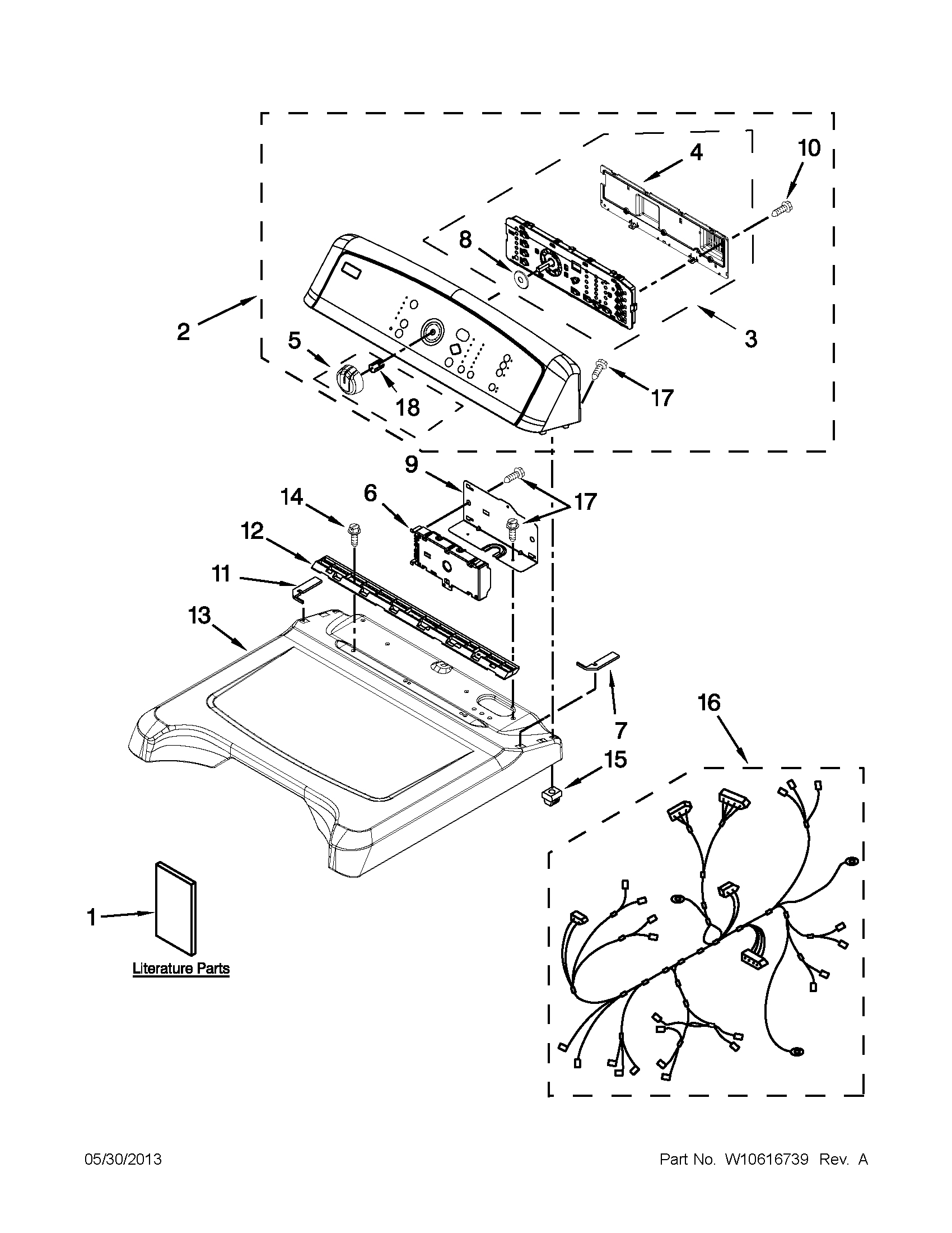

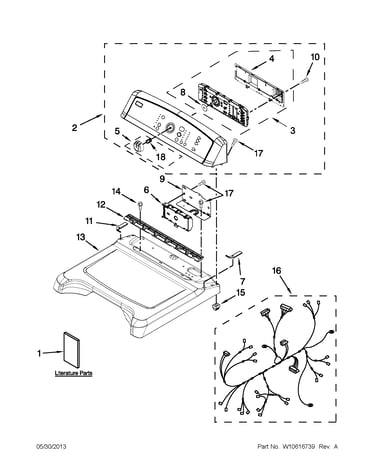

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MGDB725BW0 Gas Dryer
Dryer Drum Support Roller W10314171
#21

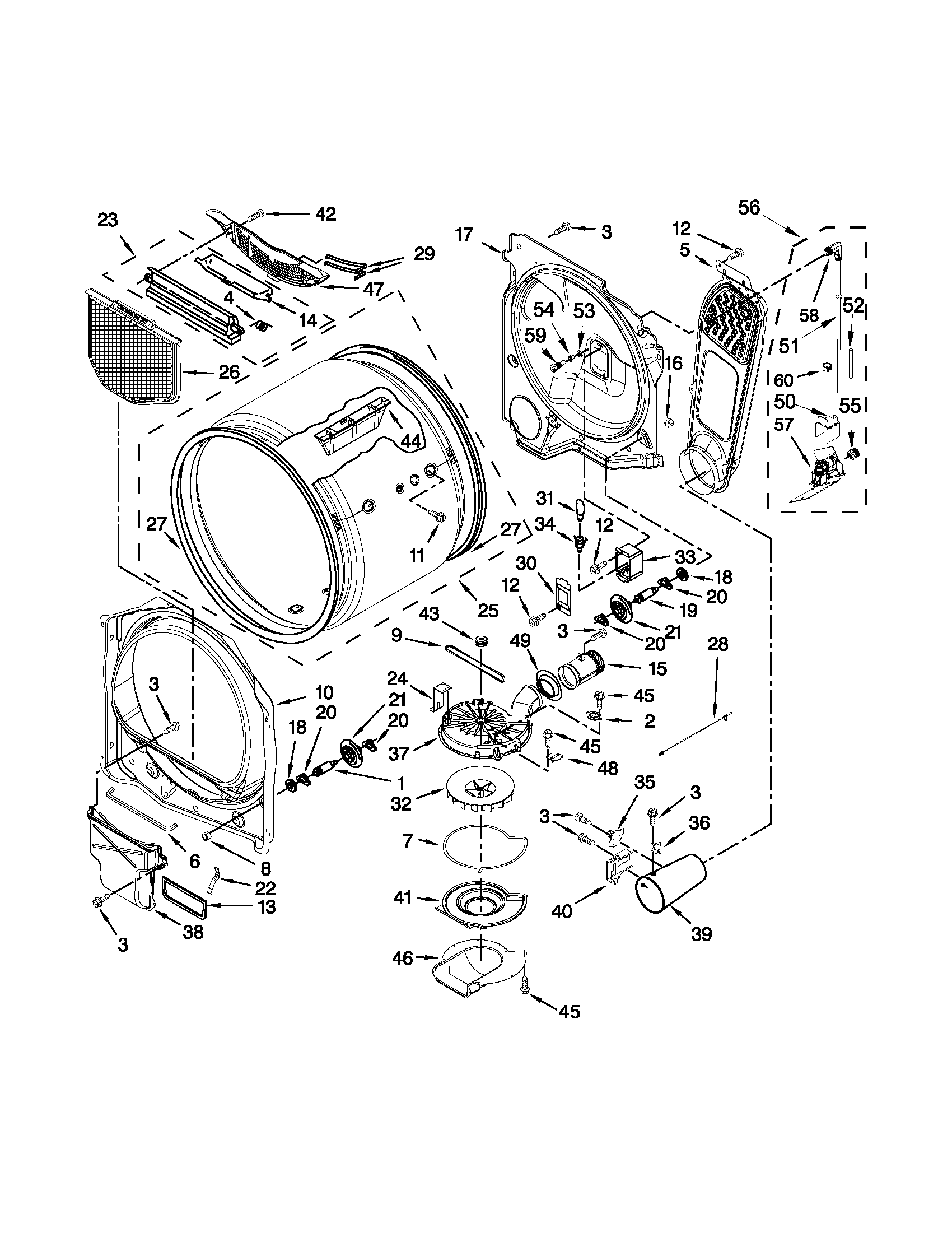

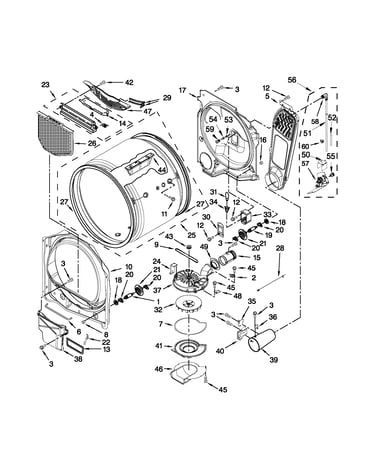

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
4.19 (21)
BEST SELLER
$13.04 |
13% OFF Phone Price : $15.04
In Stock
Dryer Valve Coil Kit 694540
#13

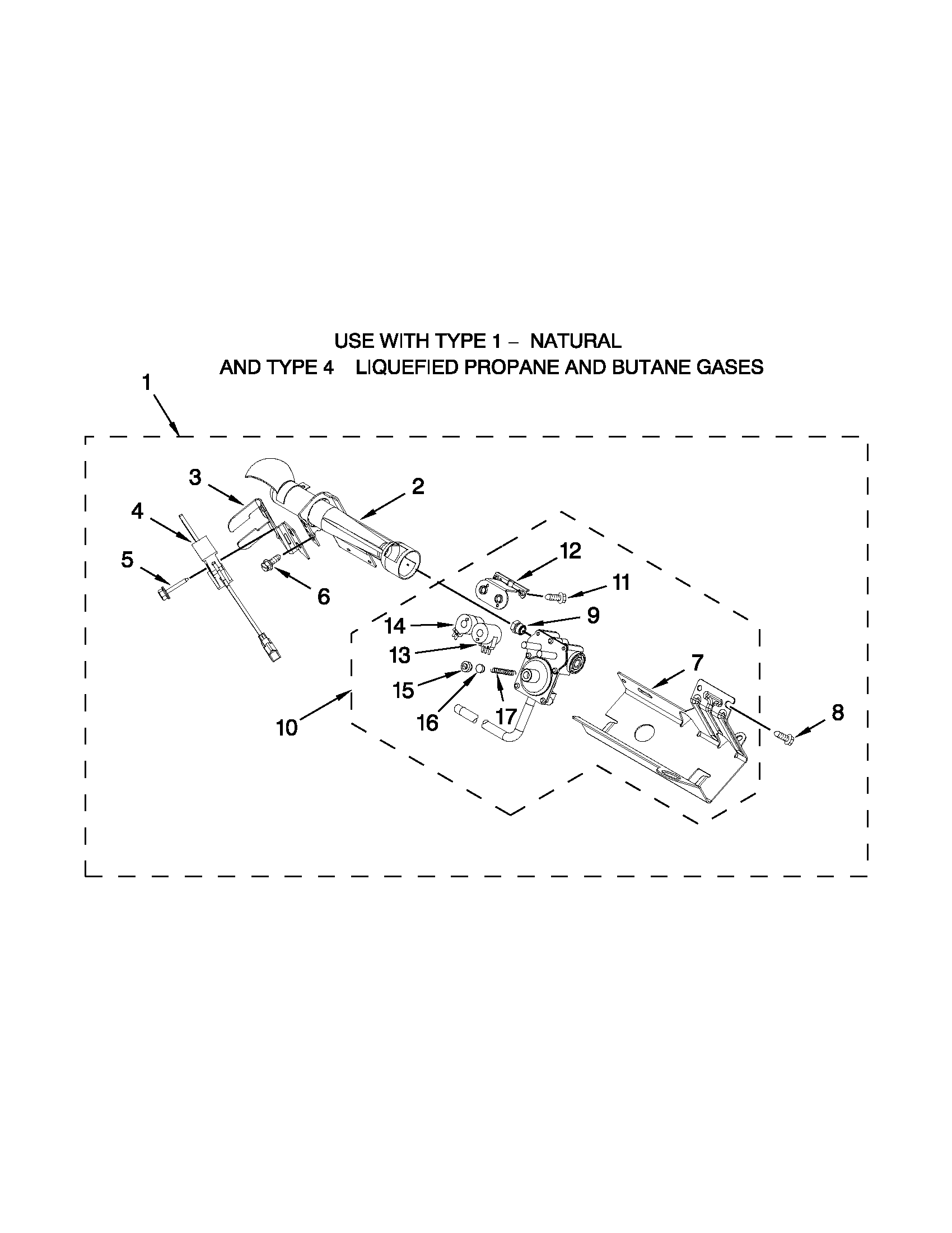

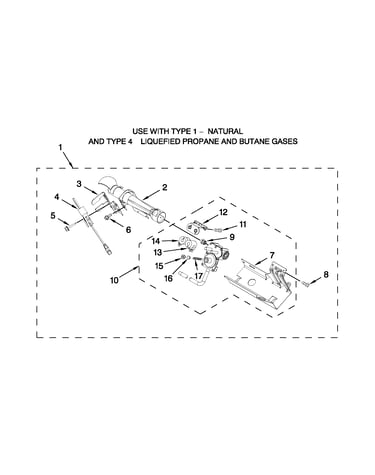

Burner assembly diagram

Dryer valve coil kit

Part #694540

Replaced by #279834

?
Manufacturer substitution
This part replaces 694540. Substitute parts can look different from the original.
4.67 (57)
BEST SELLER
$28.90 |
17% OFF Phone Price : $34.90
In Stock
Dryer Gas Valve Coil Kit 694539
#14

Burner assembly diagram

Dryer gas valve coil kit

Part #694539

Replaced by #279834

?
Manufacturer substitution
This part replaces 694539. Substitute parts can look different from the original.
4.67 (57)
BEST SELLER
$28.90 |
17% OFF Phone Price : $34.90
In Stock
Dryer Repair Kit 80047
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #80047

Replaced by #4392067

?
Manufacturer substitution
This part replaces 80047. Substitute parts can look different from the original.
3.77 (74)
BEST SELLER
$44.88 |
12% OFF Phone Price : $50.88
In Stock
Dryer Thermistor 8577274
#2

Bulkhead parts diagram

Dryer thermistor

Part #8577274

Replaced by #WP8577274

?
Manufacturer substitution
This part replaces 8577274. Substitute parts can look different from the original.
3.7 (33)
BEST SELLER
$31.53 |
16% OFF Phone Price : $37.53
In Stock
Igniter 686590
#4

Burner assembly diagram

Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
4.38 (37)
BEST SELLER
$28.59 |
17% OFF Phone Price : $34.59
In Stock
Dryer Idler Pulley W10547292
#13

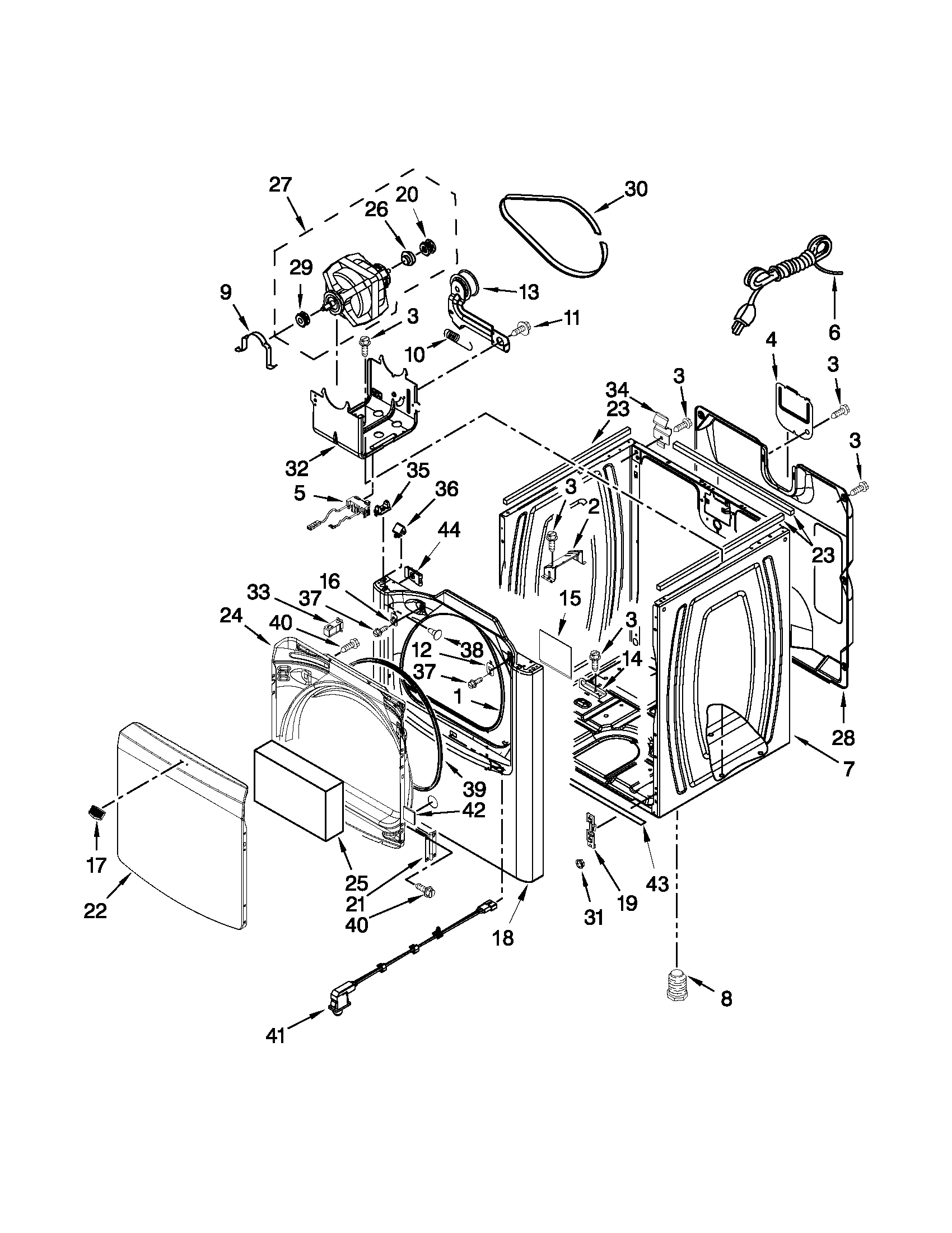

Cabinet parts diagram

Dryer idler pulley

Part #W10547292

Replaced by #WPW10547292

?
Manufacturer substitution
This part replaces W10547292. Substitute parts can look different from the original.
4.73 (22)
BEST SELLER
$26.60 |
18% OFF Phone Price : $32.60
In Stock
Screen W10596627
#26

Bulkhead parts diagram

Screen

Part #W10596627

Replaced by #W10120998

?
Manufacturer substitution
This part replaces W10596627. Substitute parts can look different from the original.
4.47 (114)
BEST SELLER
$53.37 |
10% OFF Phone Price : $59.37
In Stock
Dryer Support Roller Tri-ring Washer W10512946
#20

Bulkhead parts diagram

Dryer support roller tri-ring washer

Part #W10512946

Replaced by #WPW10512946

?
Manufacturer substitution
This part replaces W10512946. Substitute parts can look different from the original.
3.75 (4)
BEST SELLER
$6.85 |
13% OFF Phone Price : $7.85
In Stock
Dryer Radiant Sensor 338906
#40

Bulkhead parts diagram

Dryer radiant sensor

Part #338906

Replaced by #WP338906

?
Manufacturer substitution
This part replaces 338906. Substitute parts can look different from the original.
4 (10)
BEST SELLER
$32.03 |
16% OFF Phone Price : $38.03
In Stock
