Model # 45702 Official Sears 20" boys' cruiser bicycle

Here are the diagrams and repair parts for Official Sears 45702 20" boys' cruiser bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 36 parts |

#17

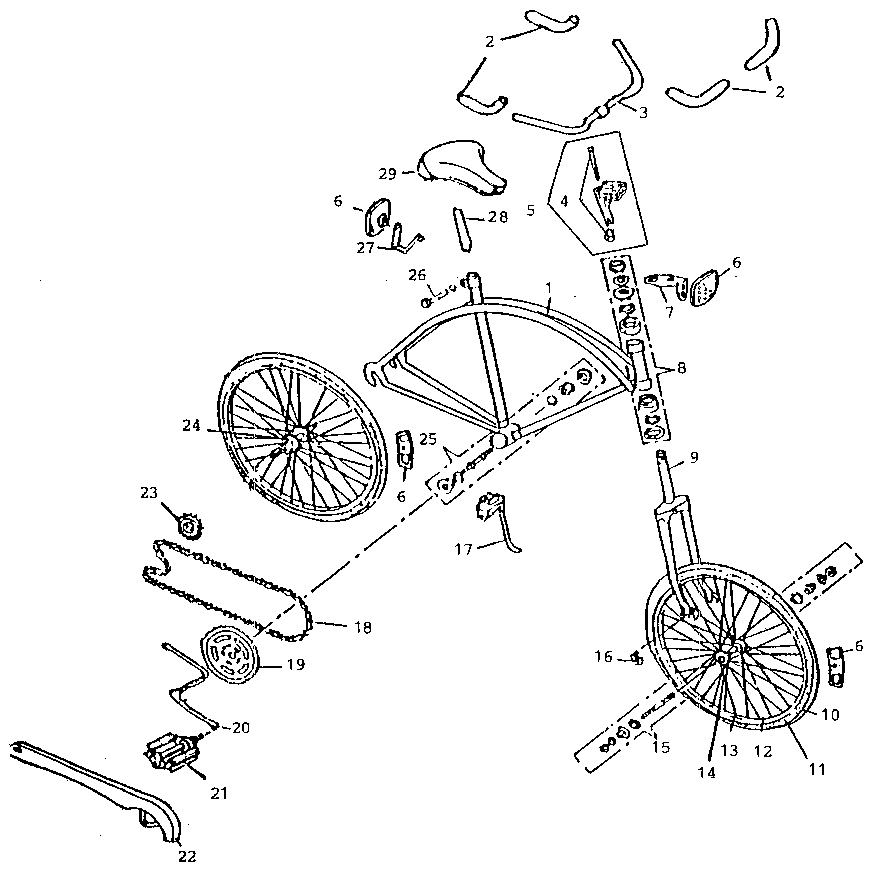

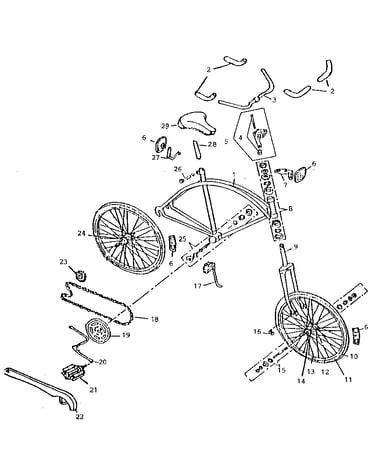

Unit parts diagram

Kickstand

Part #076008

The manufacturer no longer makes this part, and there's no substitute part

#10

Unit parts diagram

Craftsman tire

Part #040063

The manufacturer no longer makes this part, and there's no substitute part

#19

Unit parts diagram

Lifestyler ft sprkt 44t

Part #068002

The manufacturer no longer makes this part, and there's no substitute part

#18

Unit parts diagram

Kent chain w/link

Part #072007

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Bca tool

Part #103017

The manufacturer no longer makes this part, and there's no substitute part

#13

Unit parts diagram

Kent r spk/npl

Part #049511

The manufacturer no longer makes this part, and there's no substitute part

#NI

All parts diagram

Tool

Part #103007

The manufacturer no longer makes this part, and there's no substitute part

#15

Unit parts diagram

Axle/brg set

Part #053001

The manufacturer no longer makes this part, and there's no substitute part

Unit parts diagram

Fork

Part #005195

The manufacturer no longer makes this part, and there's no substitute part

#21

Unit parts diagram

Pedal

Part #070029

The manufacturer no longer makes this part, and there's no substitute part
