Model # 919165310 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919165310 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 66 parts |

#60

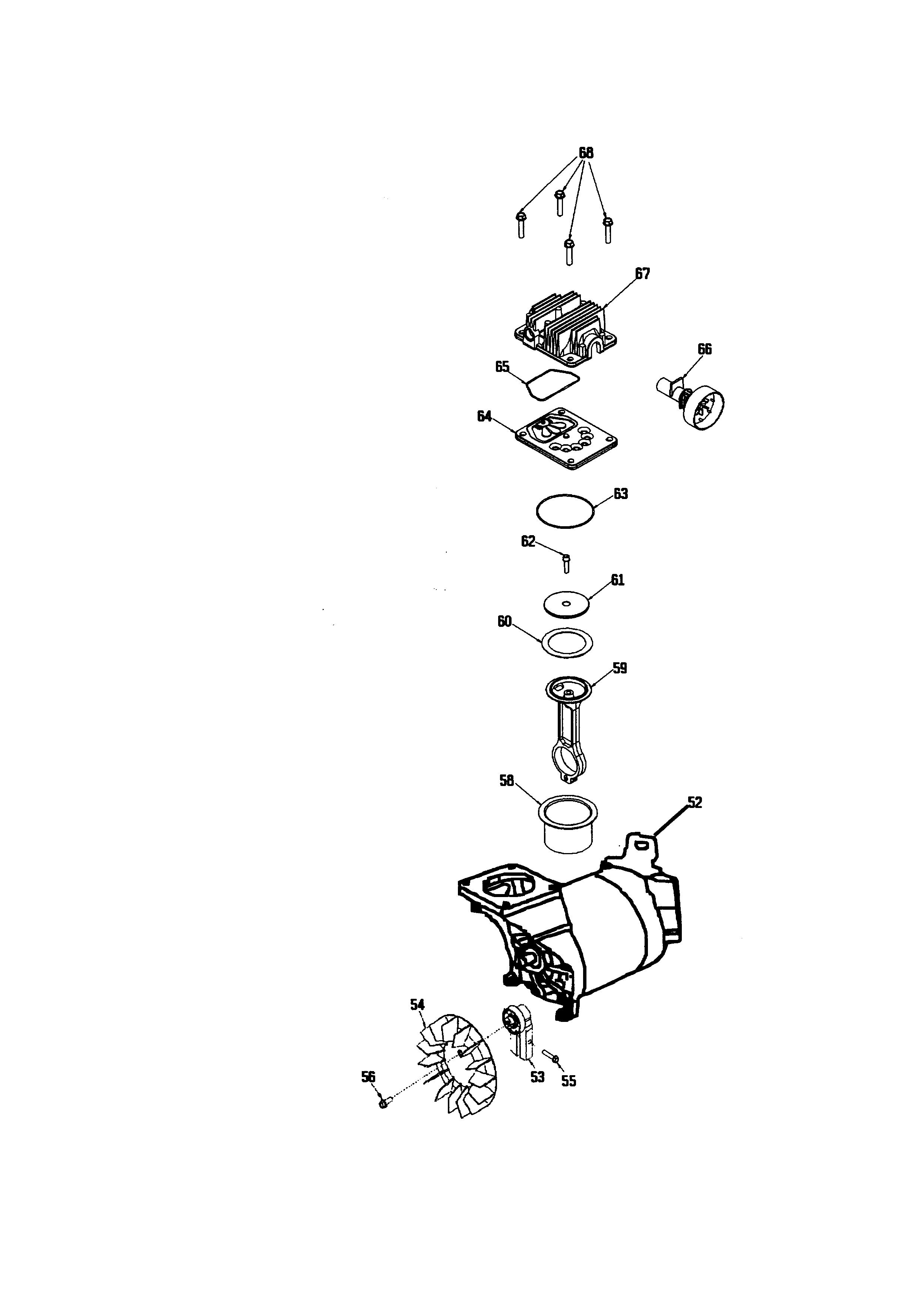

Compressor pump diagram

Air compressor compression ring

Part #DAC-308

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Valve Plate O-ring (replaces Stg-8156) SSG-8156

#63

Compressor pump diagram

Tower air compressor valve plate o-ring (replaces stg-8156)

Part #SSG-8156

The manufacturer no longer makes this part, and there's no substitute part

#33

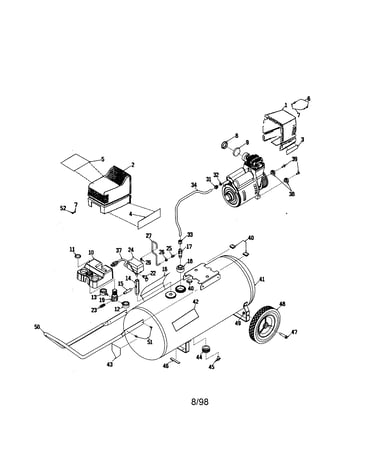

Air compressor diagram

Air compressor compression nut

Part #SSP-7813

The manufacturer no longer makes this part, and there's no substitute part

#37

Air compressor diagram

Air compressor power cord

Part #SUDL-413-2

The manufacturer no longer makes this part, and there's no substitute part

Tower Air Compressor Connecting Rod Screw SSF-3158-1

#62

Compressor pump diagram

Tower air compressor connecting rod screw

Part #SSF-3158-1

The manufacturer no longer makes this part, and there's no substitute part

#56

Compressor pump diagram

Air compressor fan blade screw

Part #SSF-586

The manufacturer no longer makes this part, and there's no substitute part

#15

Air compressor diagram

Air compressor manifold nipple

Part #SSP-480

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Manifold Assembly AC-0027-2

#14

Air compressor diagram

Air compressor manifold assembly

Part #AC-0027-2

The manufacturer no longer makes this part, and there's no substitute part

#42

Air compressor diagram

Air compressor nameplate

Part #LA-3069

The manufacturer no longer makes this part, and there's no substitute part

Air compressor diagram

Air compressor air filter retainer

Part #CAC-1373

The manufacturer no longer makes this part, and there's no substitute part
