Frigidaire
Dishwasher

Model # LFID2426TF2A Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire LFID2426TF2A dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

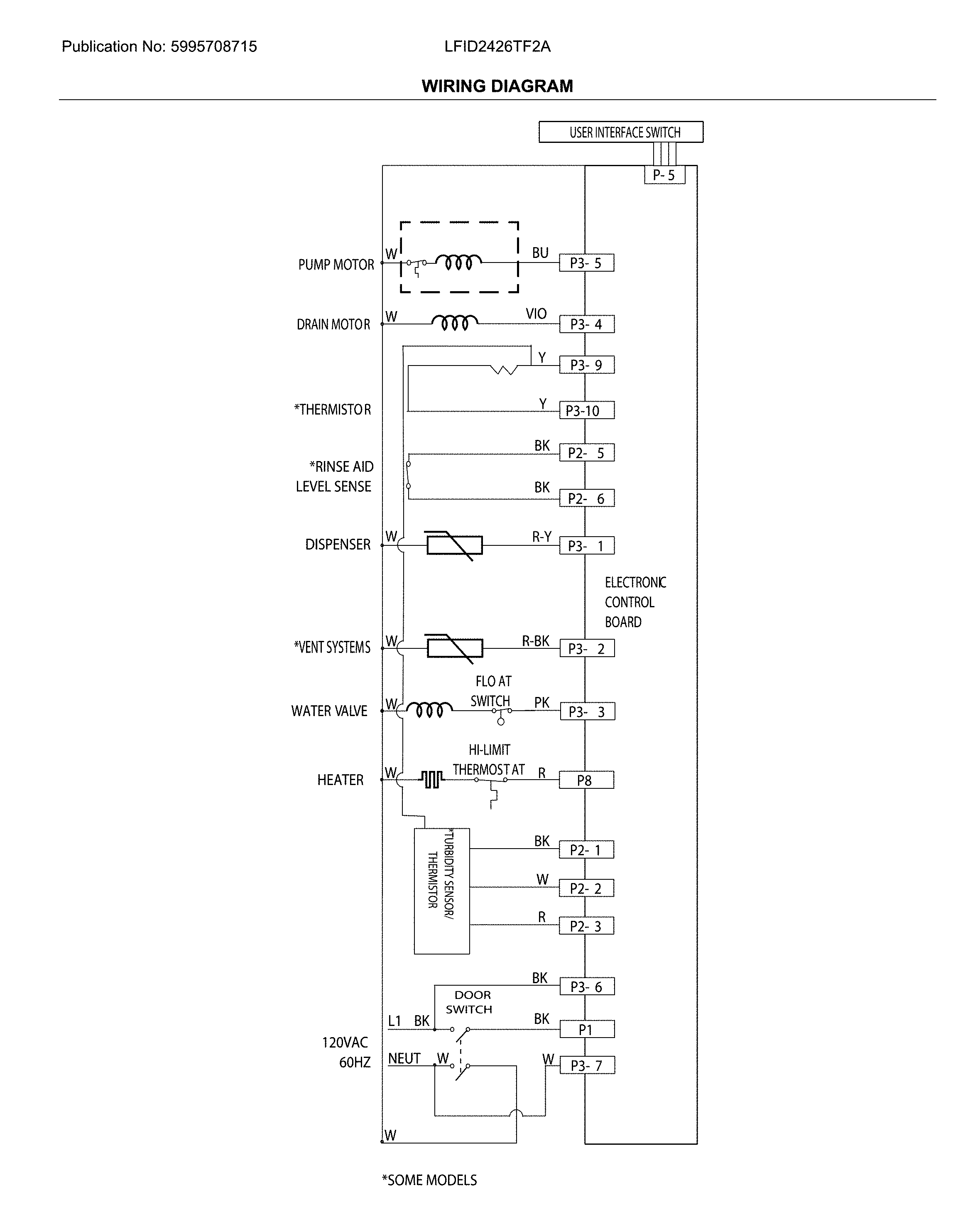

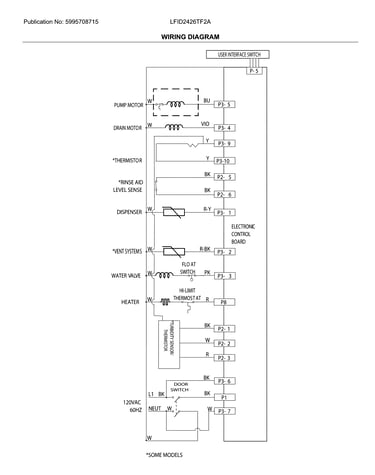

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Frigidaire Dishwasher Door Seal (replaces 154845301) 154827601
#3

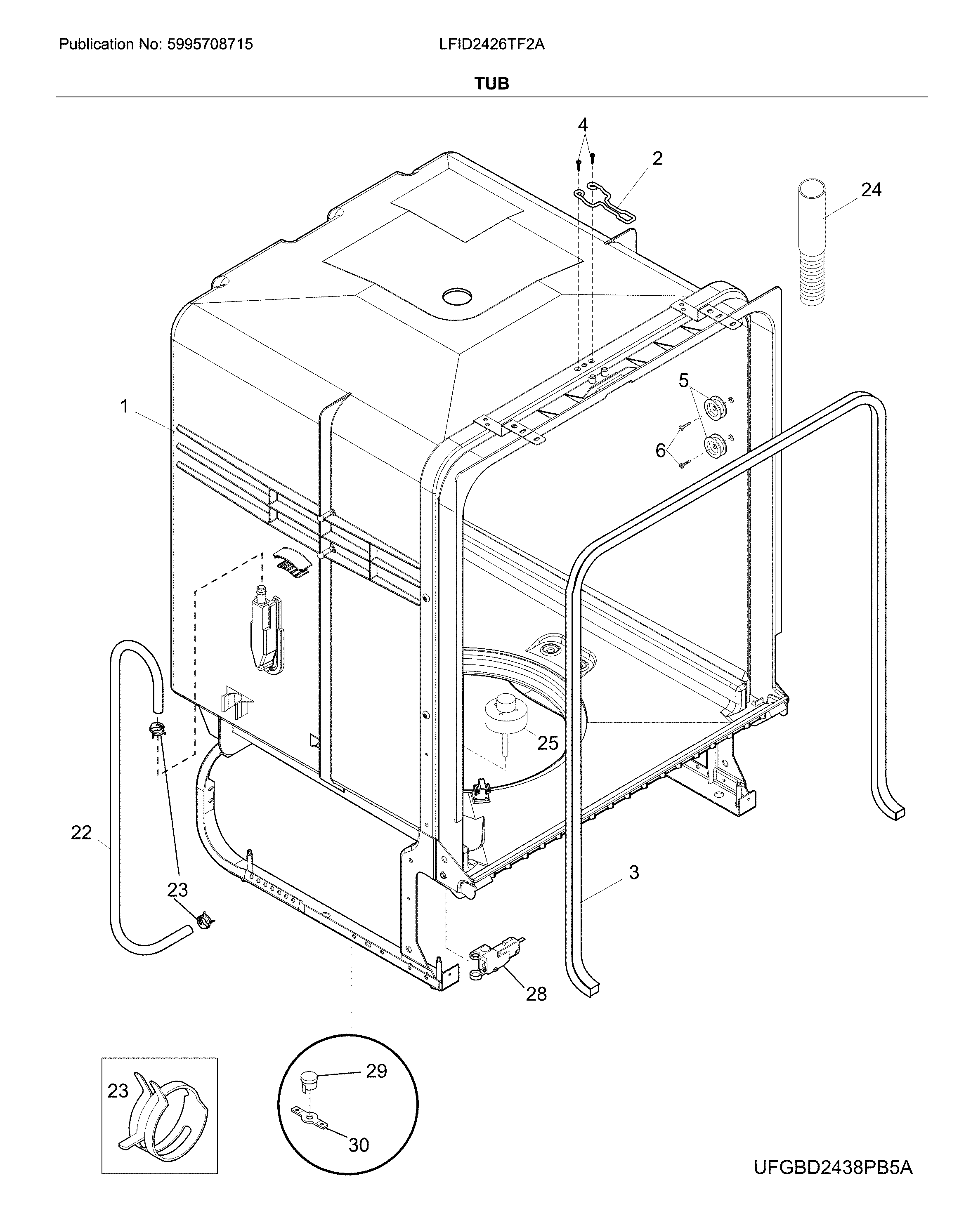

Tub diagram

Frigidaire dishwasher door seal (replaces 154845301)

Part #154827601

BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Dishwasher Door Latch 5304516818
#12

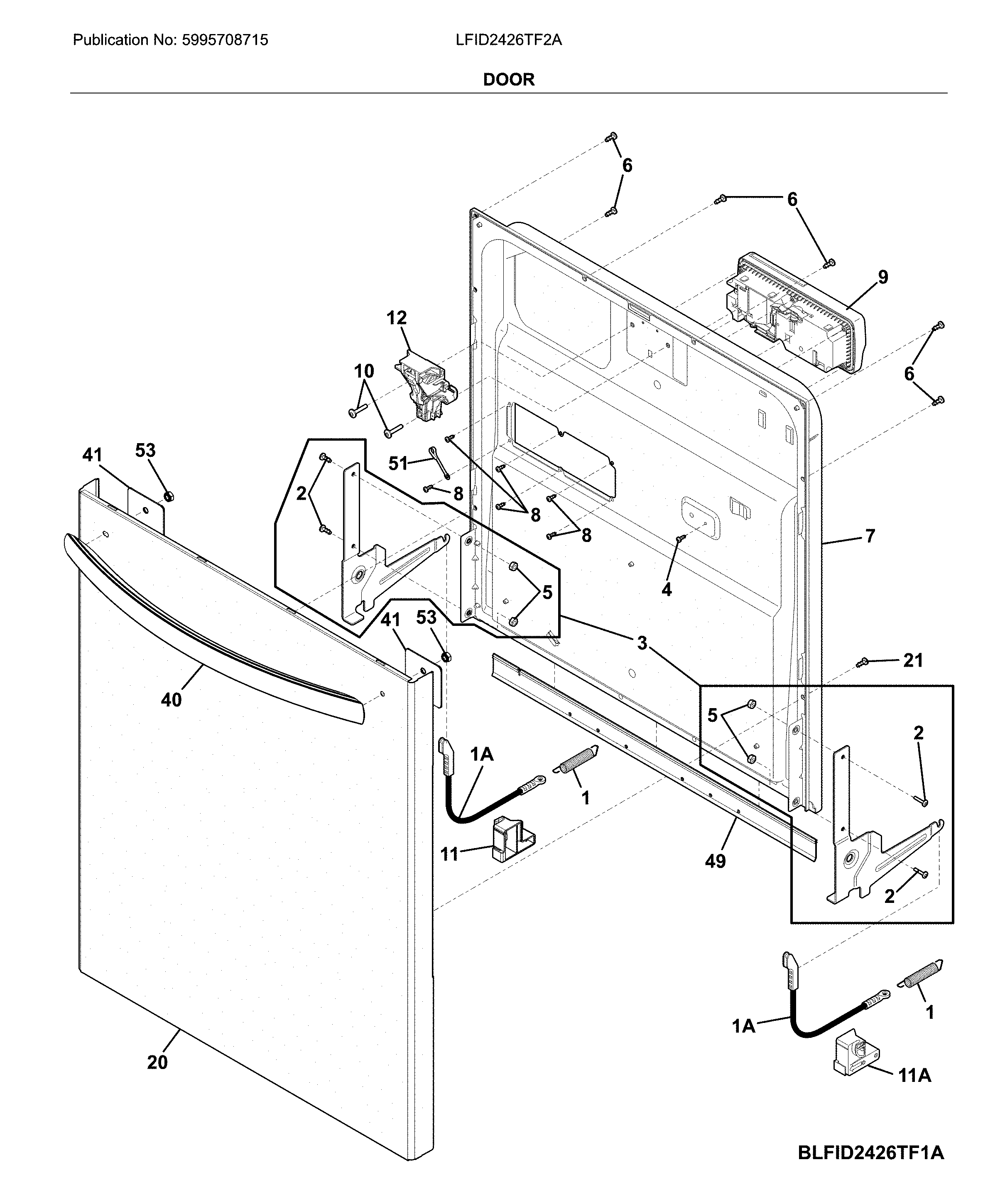

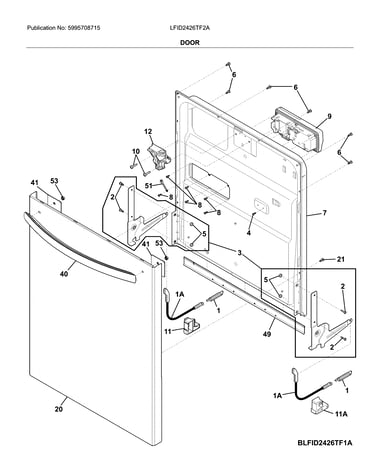

Door diagram

Dishwasher door latch

Part #5304516818

Replaced by #5304525218

?
Manufacturer substitution
This part replaces 5304516818. Substitute parts can look different from the original.
BEST SELLER
$37.57 |
14% OFF Phone Price : $43.57
In Stock
Dishwasher Pump And Motor Assembly (replaces 154588701, 154792801, 154794401) 154844301
#70

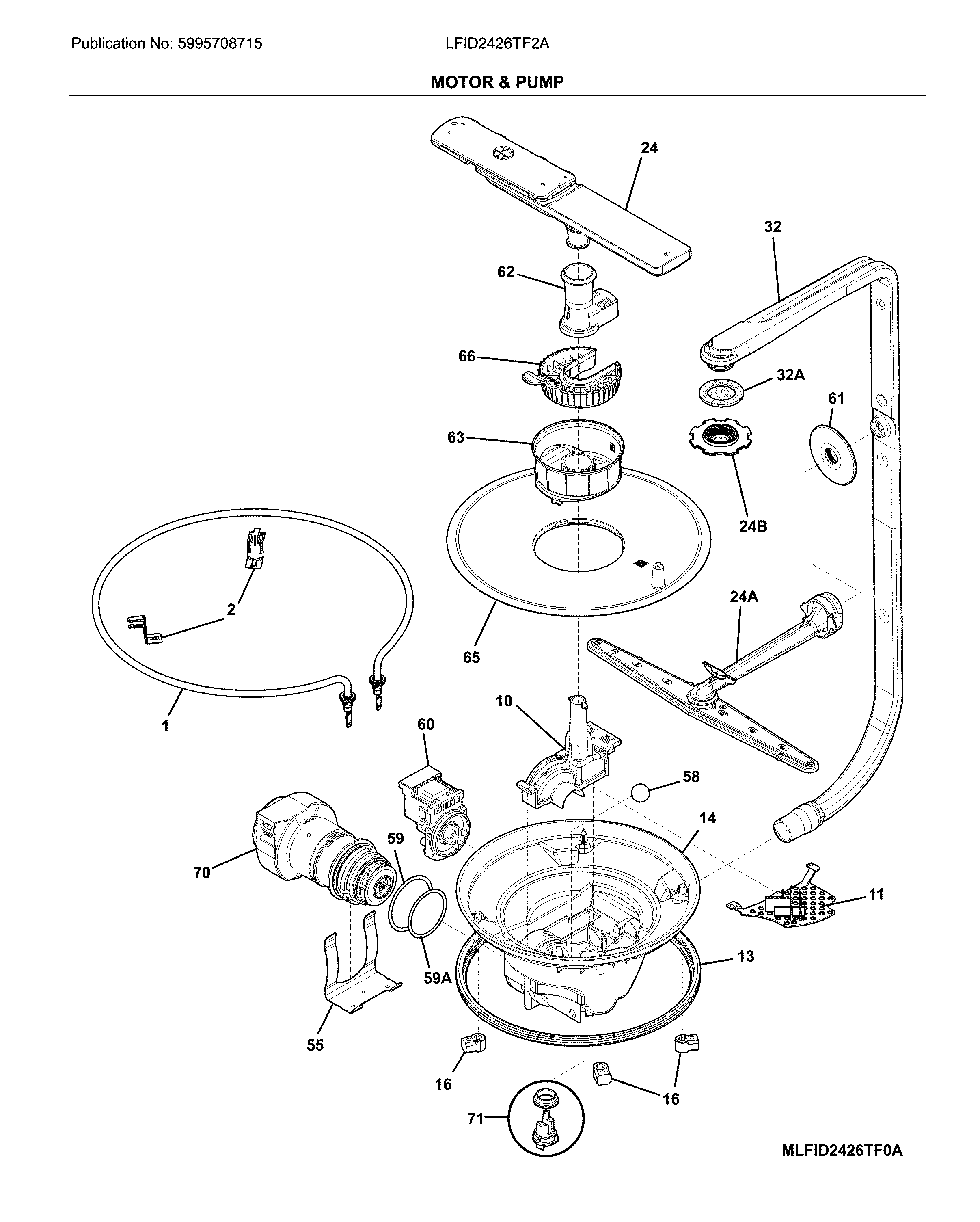

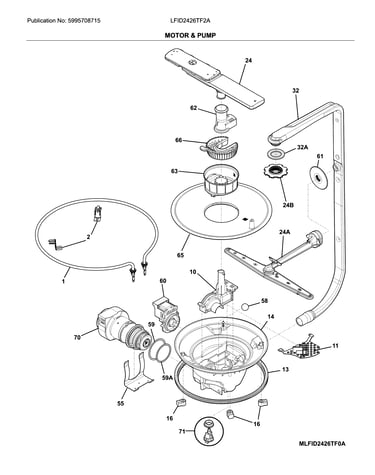

Motor & pump diagram

Dishwasher pump and motor assembly (replaces 154588701, 154792801, 154794401)

Part #154844301

BEST SELLER
$140.22 |
8% OFF Phone Price : $152.22
In Stock
Dishwasher Lower Spray Arm Support (replaces 5304506515) 5304518968
#62

Motor & pump diagram

Dishwasher lower spray arm support (replaces 5304506515)

Part #5304518968

BEST SELLER
$15.54 |
11% OFF Phone Price : $17.54
In Stock
Dishwasher Door Bottom Seal 5304500204
#49

Door diagram

Dishwasher door bottom seal

Part #5304500204

BEST SELLER
$27.18 |
18% OFF Phone Price : $33.18
In Stock
Dishwasher User Interface Control Button Assembly 5304518467
#2

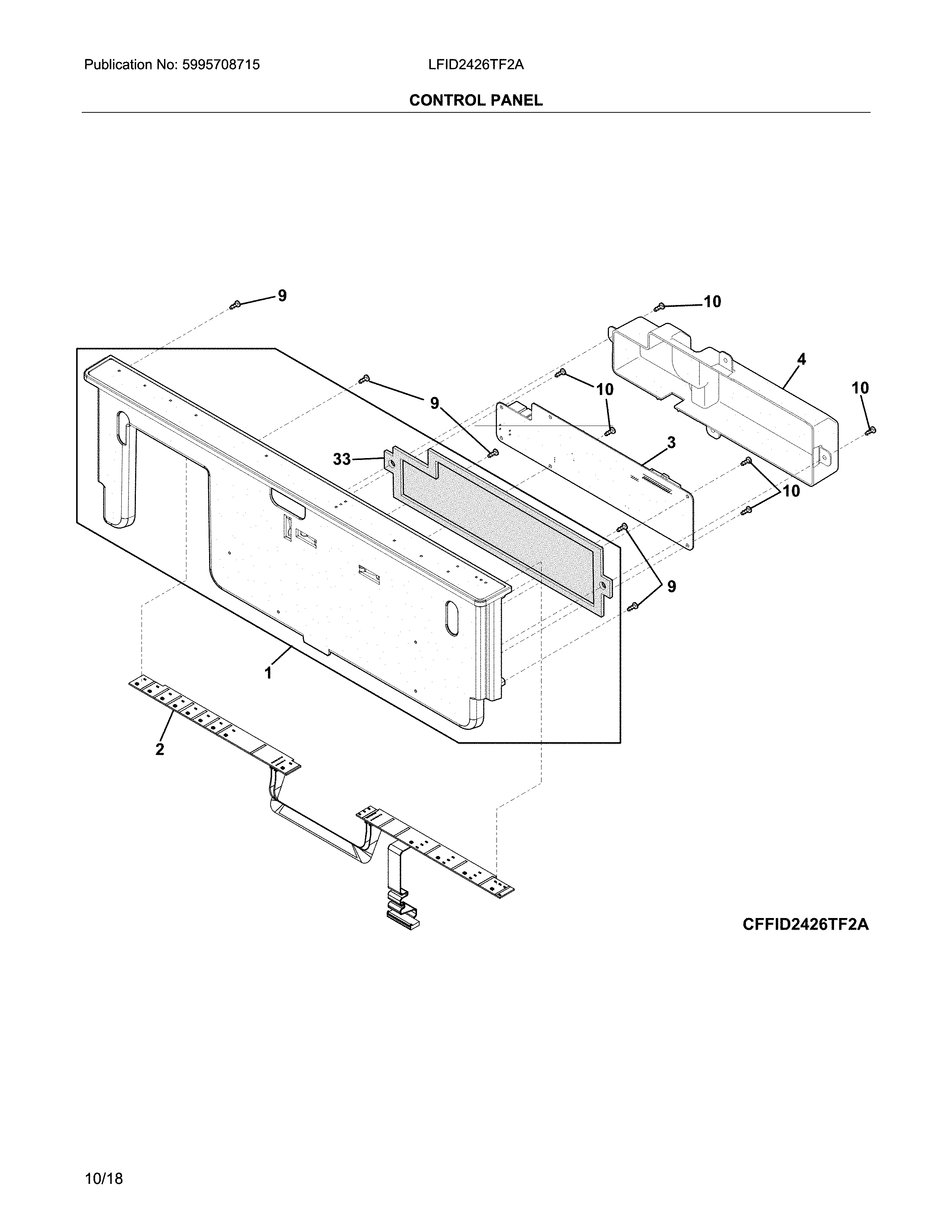

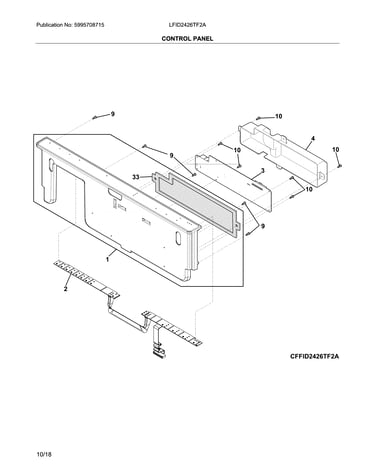

Control panel diagram

Dishwasher user interface control button assembly

Part #5304518467

BEST SELLER
$71.40 |
8% OFF Phone Price : $77.40
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Dishwasher Detergent Dispenser Assembly (replaces 154379202, 154860102) 5304506521
#9

Door diagram

Dishwasher detergent dispenser assembly (replaces 154379202, 154860102)

Part #5304506521

BEST SELLER
$58.78 |
9% OFF Phone Price : $64.78
In Stock
Dishwasher Door Cable 154578801
#1A

Door diagram

Dishwasher door cable

Part #154578801

Replaced by #154756401

?
Manufacturer substitution
This part replaces 154578801. Substitute parts can look different from the original.
BEST SELLER
$32.52
In Stock
Dishwasher Spray Arm Assembly (replaces 5304498136) 5304506740
#24A

Motor & pump diagram

Dishwasher spray arm assembly (replaces 5304498136)

Part #5304506740

BEST SELLER
$34.88 |
15% OFF Phone Price : $40.88
In Stock
