CONFIRM THE PART FITS

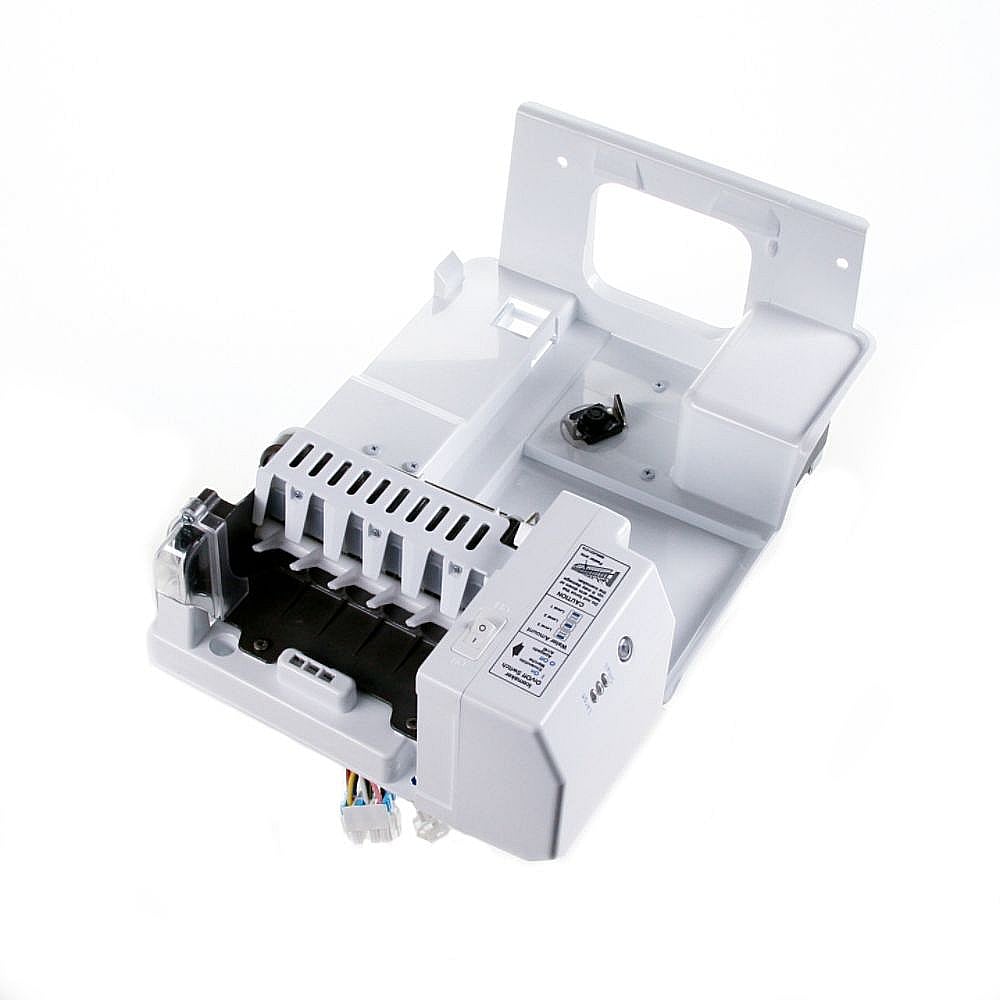

Refrigerator Ice Maker and Auger Motor Assembly 4681JA1006D
Part #4681JA1006D
This part fits
Part Information
This ice maker and auger motor assembly (part number 4681JA1006D) is for refrigerators.
Ice maker and auger motor assembly 4681JA1006D contains the complete ice maker and auger motor contained on a mounting bracket.
The ice maker and auger motor assembly mounting bracket has been redesigned. To install the new ice maker and auger motor, also order bracket part number MEG62543401. Remove the old assembly and install bracket MEG62543401 at the top of the door using the original upper screws. Slide the top of the new auger motor assembly into the bracket, then install the lower screws through the auger motor mounting bracket.
Safely store any food that could deteriorate while the power is off and unplug the refrigerator when installing this part. Wear work gloves to protect your hands.
Frequently Used Together
- $6.98 |13% OFF Phone Price : $7.98
- $6.98 |13% OFF Phone Price : $7.98
- $89.00 |6% OFF Phone Price : $95.00
- $6.98 |13% OFF Phone Price : $7.98
Top models using the same part
| Model Name | Model Number | Diagram Name |
|---|---|---|
| Model #79578759802 Kenmore Elite bottom-mount refrigerator | 79578759802 | All parts |
| Model #79578733804 Kenmore Elite bottom-mount refrigerator | 79578733804 | All parts |
| Model #LFX21975ST/00 LG bottom-mount refrigerator | LFX21975ST/00 | Ice bank part |
| Model #LFX25980ST/00 LG bottom-mount refrigerator | LFX25980ST/00 | Ice bank |
| Model #LFX25971SB/01 LG bottom-mount refrigerator | LFX25971SB/01 | Ice bank parts |
| Model #LFX25975ST/00 LG bottom-mount refrigerator | LFX25975ST/00 | Ice bank parts |
| Model #LFX25975SB/00 LG bottom-mount refrigerator | LFX25975SB/00 | Ice bank parts |
| Model #LFX25961SW/01 LG bottom-mount refrigerator | LFX25961SW/01 | Case parts |
| Model #LFX25971SB/02 LG bottom-mount refrigerator | LFX25971SB/02 | Ice bank parts |
| Model #LFX25961AL/00 LG bottom-mount refrigerator | LFX25961AL/00 | Ice bank parts |
Reviews
Much better design
No more freezing up or randomly overflowing the ice bin! However, the dispenser is still lacking. Sometimes seems like it can't break up the ice in the bin. Have to drill a couple of new holes and you also need to buy the mounting bracket adapter.
Mra4, Marietta, GA
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
ice maker replacement
was not sold the correct unit for our problem 3 mounting screw holes had to be drilled out for installing
Dissatified, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- More than 2 hours
Giving up on Sears, poor stuff
Although this was supposed to be a OEM replacement part, it was not. Had to drill two holes in the unit in order to properly attach it to door. Not to mention that the unit had a crack in the housing near the ice cube selector switch that I had to repair. I waited over a week to receive this part, and had I sent it back, just imagine how long I'd have to wait to get another part. By the time they received it and processed the exchange would have been forever. I think I'm done with Sears and their products. They used to be good, but not anymore. So sad.
Poor s, Tyner NC
Did you find this review helpful?
- Ease of Installation
- Difficult
- Duration of Installation
- 30 minutes - 1 hour
Yes, I would recommend this to a friend
Mounting holes
Not that bad of an install but had to drill all the holes on the new unit just to mount it. But I've dispenser works great.
KH123, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Moderate
- Duration of Installation
- 1 - 2 hours
Why didn't I buy this sooner?
I've been purchasing bags of ice for years worried it would be hard to find a replacement and the expense, but it was well worth it! Easy to install, and yes, had to screw in an additional screw where the old one was. Once installed, turned on and it made ice quickly! Had it for a few weeks now, and couldn't be happier. More room in my freezer without a bag of ice! Figure over time, it's a good investment since the refrigerator is still working well.
Lori C, Florida
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Easy to install
Install was easier with 2 people. Very simple though, 2 plugs and 3 screws and it was in. Although i did have to drill a hole for the top screw to go through.
Reallylongone, Undisclosed
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
The ice maker was easy to install.
Fit nicely in the door, just needed to drill a hole in the unit to attach in the door nicely.
Susie13, Melbourne, FL
Did you find this review helpful?
- Ease of Installation
- Very Easy
- Duration of Installation
- 30 minutes - 1 hour
Ice maker replacement for Kenmore Elite
It was not exactly like the old ice maker, but the electrical connections were the same and it did fit. I drilled a few holes to make sure it was secure. I did not get instructions so I could not get it to work, until I went on U-tube to see how to reset it. Just hold the size button on the side for 10 seconds to activate it. I did that an it now works perfectly
Doeyecare, North Carolina
Did you find this review helpful?
- Ease of Installation
- Easy
- Duration of Installation
- 30 minutes - 1 hour
