Kenmore
Upright Freezer

Model # 2539215781 Official Kenmore upright freezer

Here are the diagrams and repair parts for Official Kenmore 2539215781 upright freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Filter 5300152474
#29

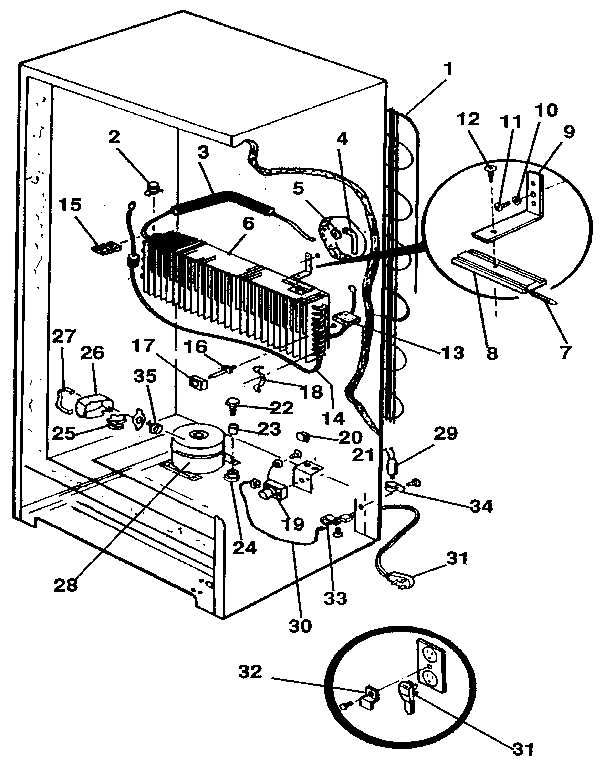

Unit diagram

Filter

Part #5300152474

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 5300152474. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 5308037402
#28

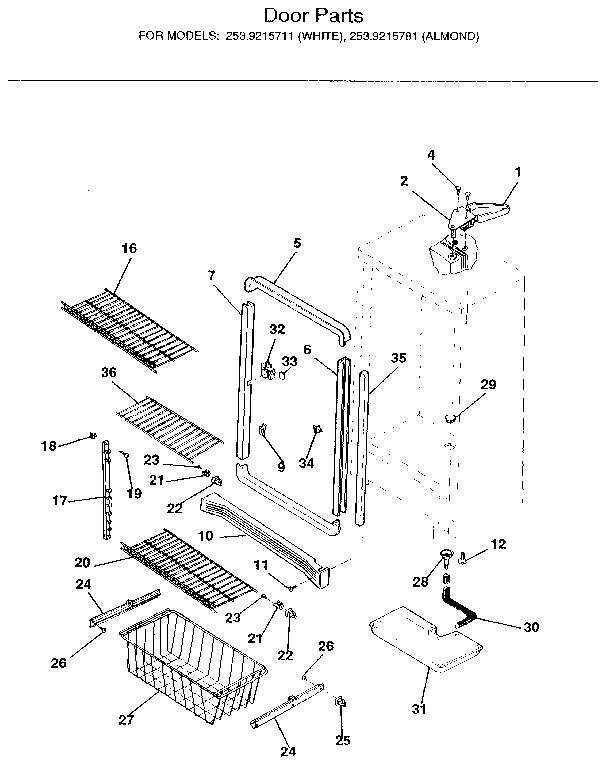

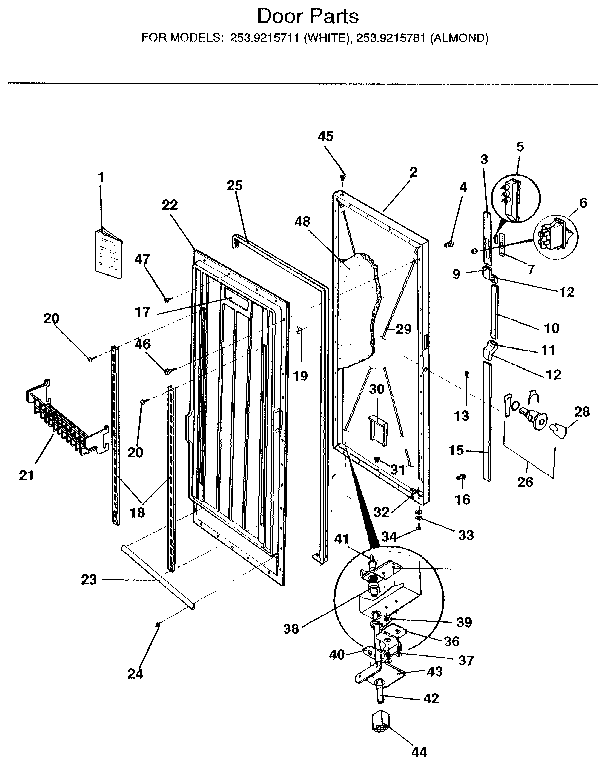

Door diagram

Key

Part #5308037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 5308037402. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Upright Freezer Defrost Timer 5308037967
#19

Unit diagram

Upright freezer defrost timer

Part #5308037967

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 3205519
#1

Liner diagram

Fan motor

Part #3205519

Replaced by #5304442620

?
Manufacturer substitution
This part replaces 3205519. Substitute parts can look different from the original.
$147.29 |
8% OFF Phone Price : $159.29
In Stock
Bulb 5303091423
#12

Liner diagram

Bulb

Part #5303091423

Replaced by #216846400

?
Manufacturer substitution
This part replaces 5303091423. Substitute parts can look different from the original.
$40.15 |
13% OFF Phone Price : $46.15
In Stock
Freezer Drain Hose Adapter 5308005500
#28

Door diagram

Freezer drain hose adapter

Part #5308005500

Replaced by #5304511843

?
Manufacturer substitution
This part replaces 5308005500. Substitute parts can look different from the original.
This item is not returnable
$13.42 |
13% OFF Phone Price : $15.42
In Stock
Freezer Inner Door Panel Rivet 5303212828
#24

Door diagram

Freezer inner door panel rivet

Part #5303212828

$19.49 |
9% OFF Phone Price : $21.49
In Stock
Touch-up Paint (white) 5300049587

#NI

All parts diagram

Touch-up paint (white)

Part #5300049587

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5300049587. Substitute parts can look different from the original.
This item is not returnable
$15.09 |
12% OFF Phone Price : $17.09
In Stock
Freezer Door Gasket (replaces 08010197, 3206252, 3206255, 5308016361, F000126006, F000900106, F0112642-2, F0122543-3, F122543-3, F122642-2, F126006, F129796, R000901025) 3206251
#25

Door diagram

Freezer door gasket (replaces 08010197, 3206252, 3206255, 5308016361, f000126006, f000900106, f0112642-2, f0122543-3, f122543-3, f122642-2, f126006, f129796, r000901025)

Part #3206251

$223.18 |
5% OFF Phone Price : $235.18
In Stock
Nut 3017666
Nut

Part #3017666

Replaced by #301036

?
Manufacturer substitution
This part replaces 3017666. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
