Kenmore
Sewing Machine

Model # 158521 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 158521 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

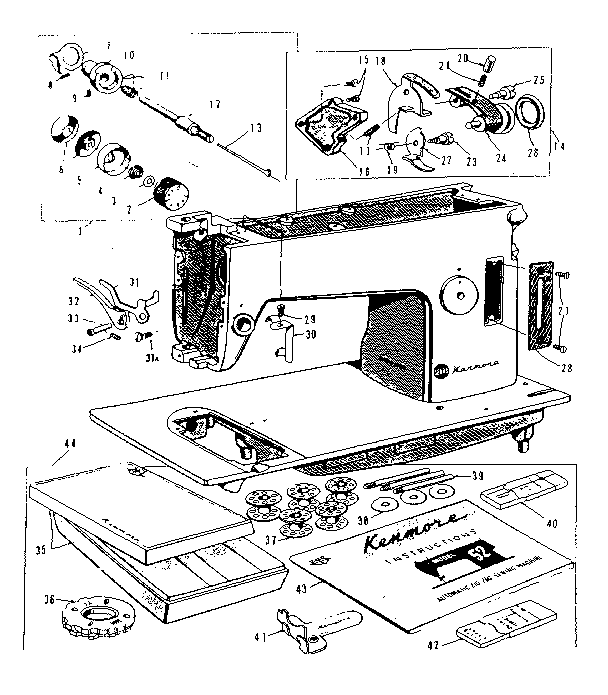

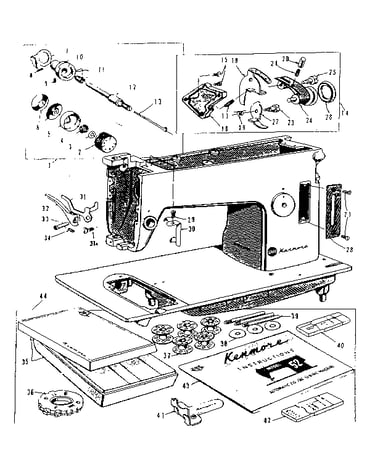

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 294 parts  |
Stud 2242
#21

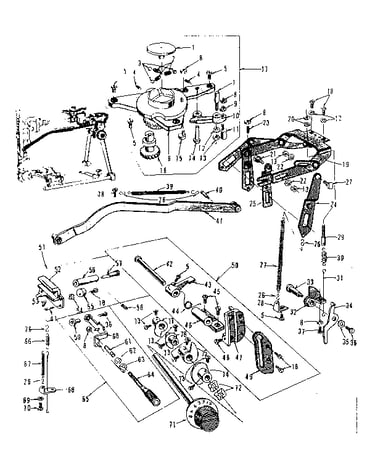

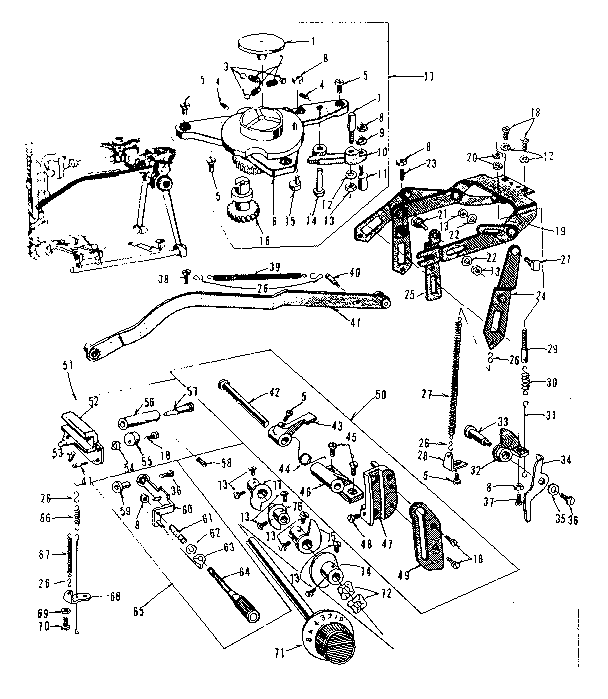

Zigzag guide assembly diagram

Stud

Part #2242

The manufacturer no longer makes this part, and there's no substitute part

Washer 2467
#54

Zigzag guide assembly diagram

Washer

Part #2467

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Regulator 2435
#51

Zigzag guide assembly diagram

Kenmore regulator

Part #2435

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Nut 91
#44

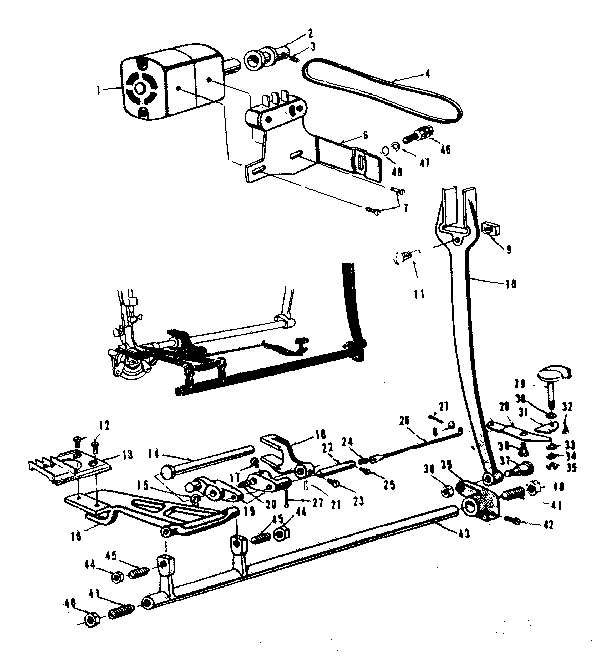

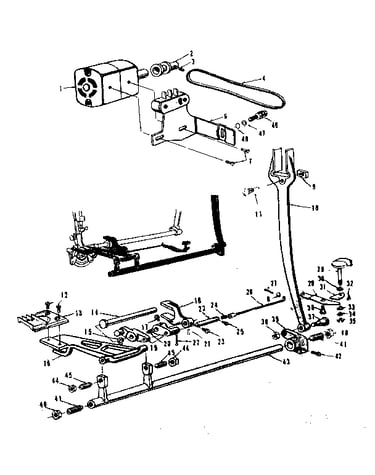

Feed regulator and motor assembly diagram

Sewing machine nut

Part #91

The manufacturer no longer makes this part, and there's no substitute part

Lever 8948
#28

Feed regulator and motor assembly diagram

Lever

Part #8948

The manufacturer no longer makes this part, and there's no substitute part

Main Shaft 2432
#12

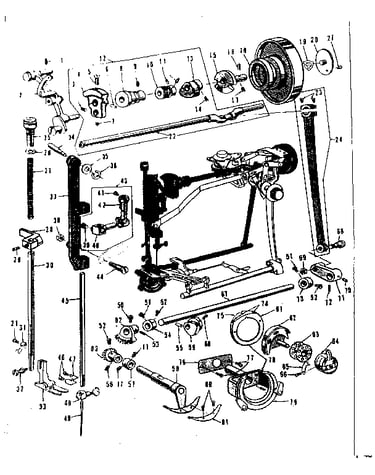

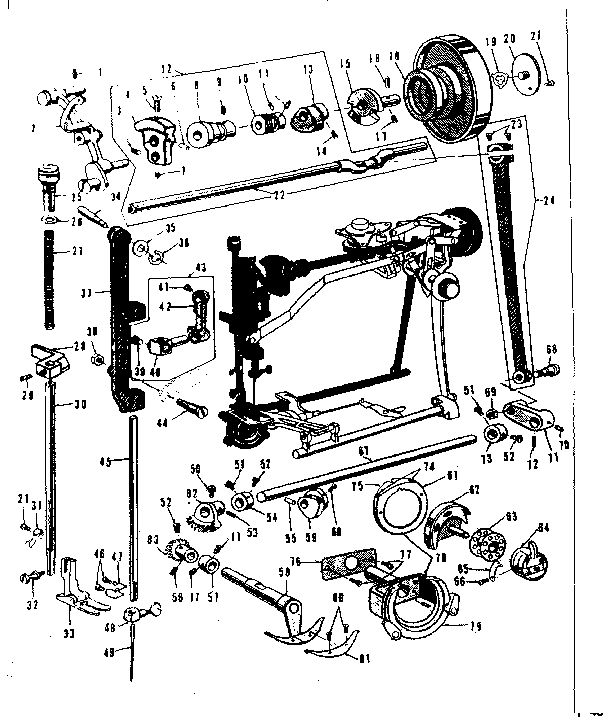

Presser bar and shuttle assembly diagram

Main shaft

Part #2432

The manufacturer no longer makes this part, and there's no substitute part

Cover 2333
#24

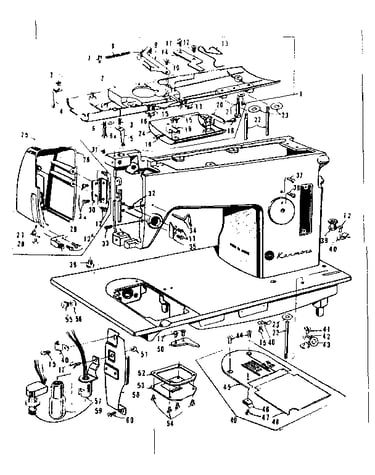

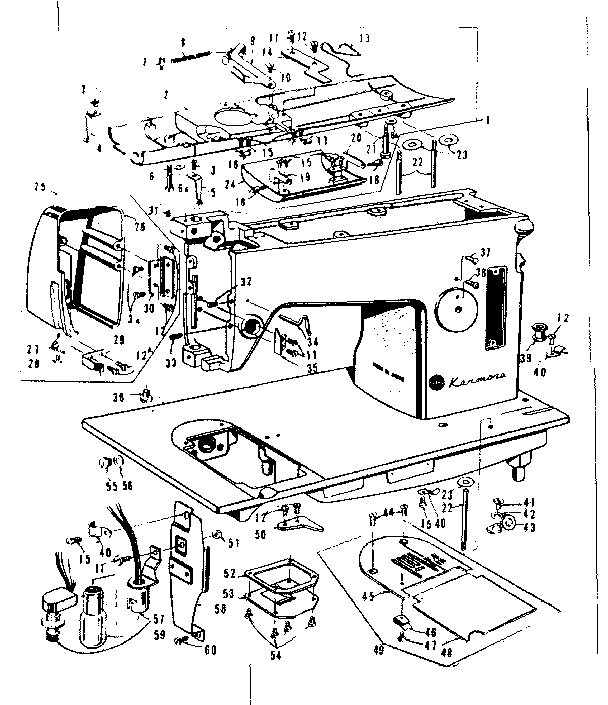

Needle plate diagram

Cover

Part #2333

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Feed Regulator 2488
#52

Zigzag guide assembly diagram

Kenmore feed regulator

Part #2488

The manufacturer no longer makes this part, and there's no substitute part

Bracket 2297
#28

Zigzag guide assembly diagram

Bracket

Part #2297

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Set Screw 39
#23

Presser bar and shuttle assembly diagram

Sewing machine set screw

Part #39

The manufacturer no longer makes this part, and there's no substitute part
