Model # HYG3657AWW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag HYG3657AWW washer/dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

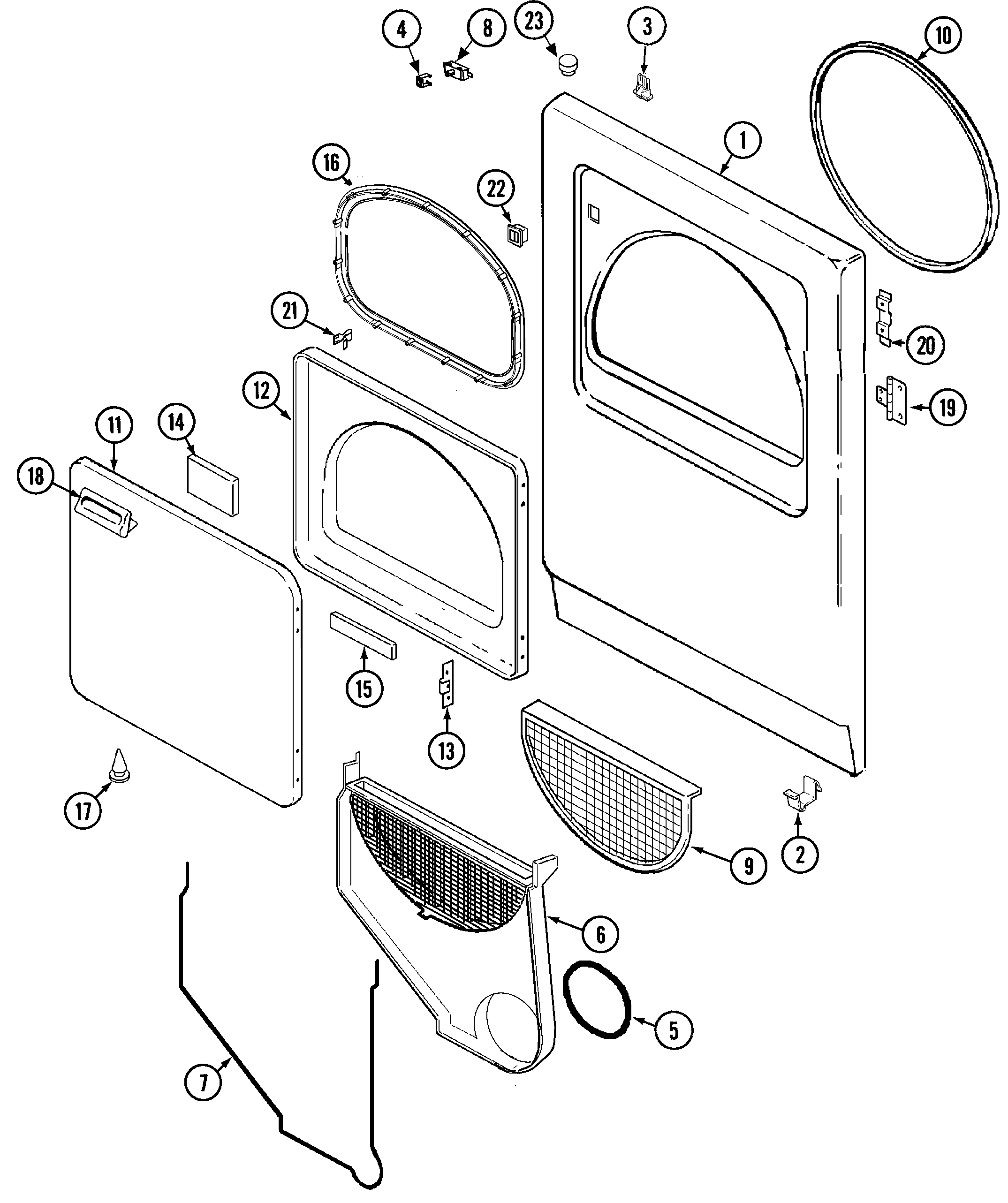

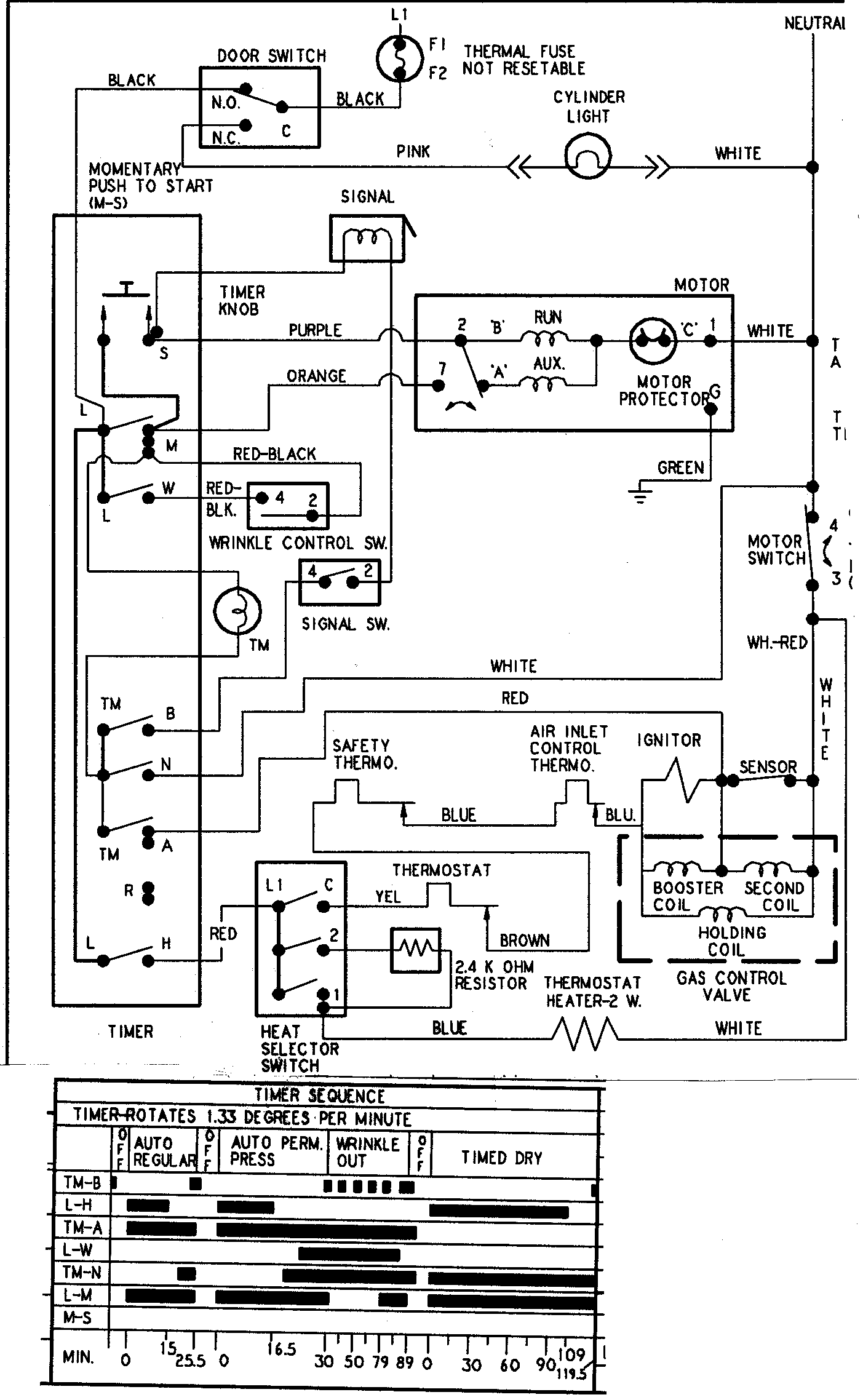

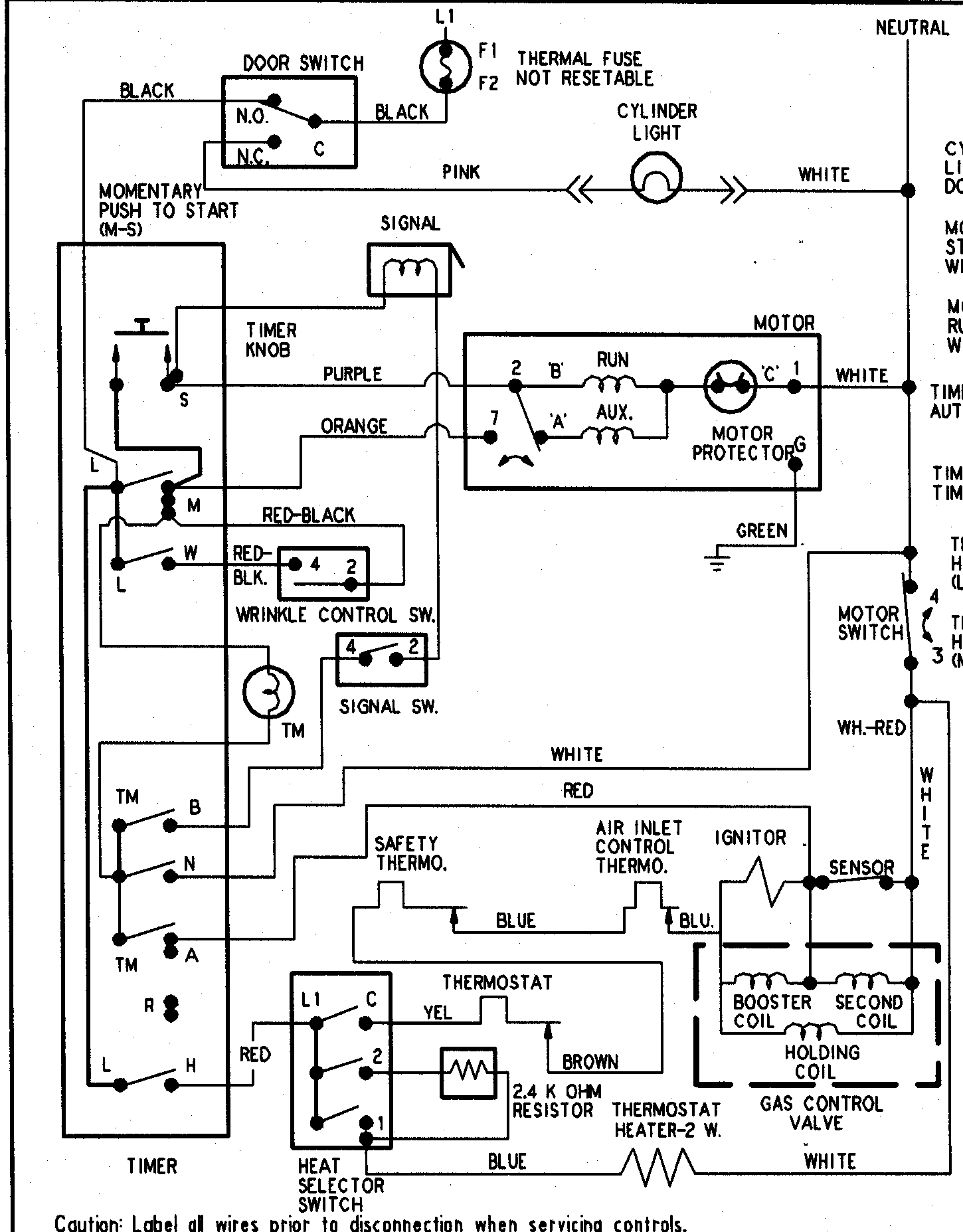

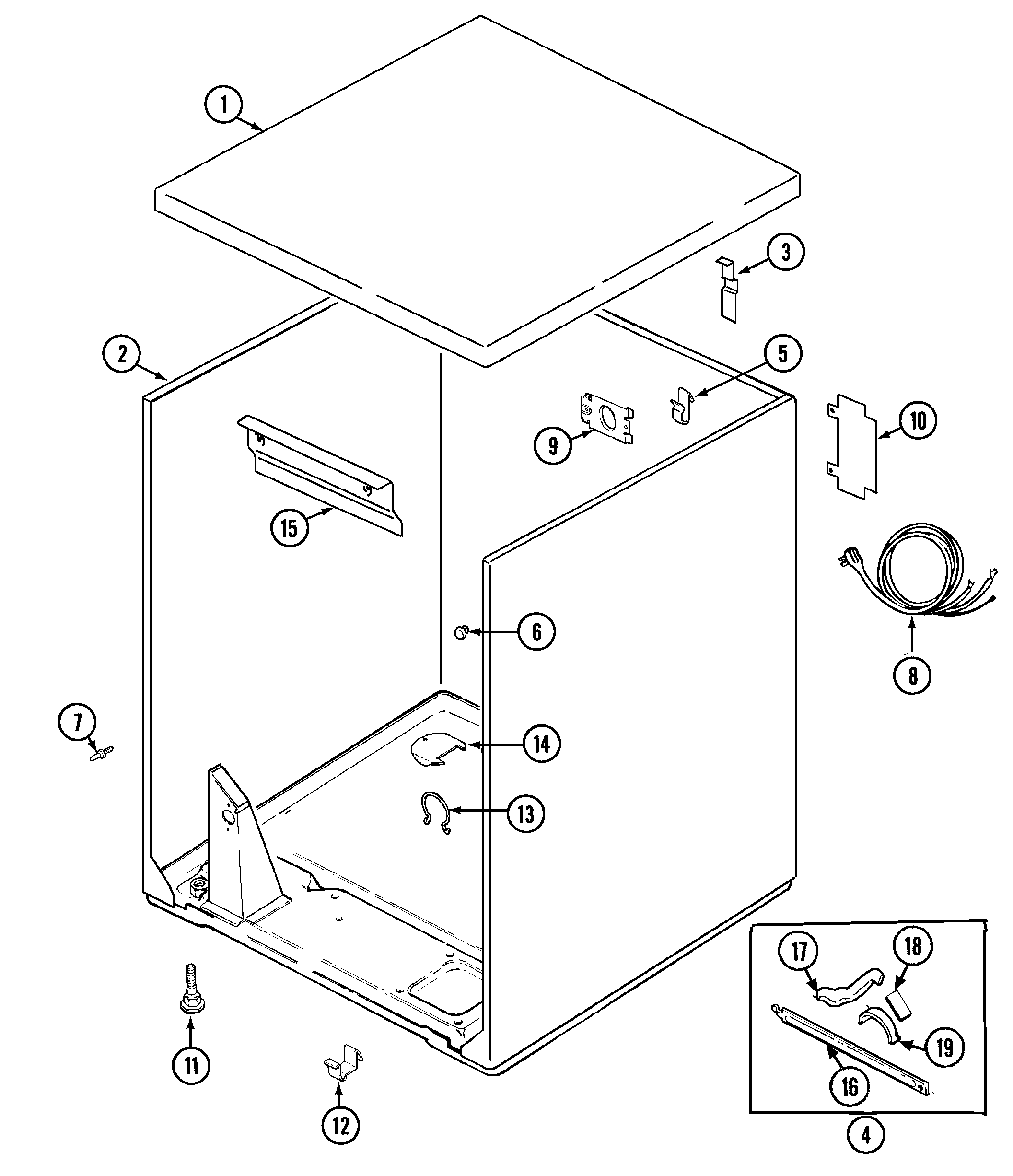

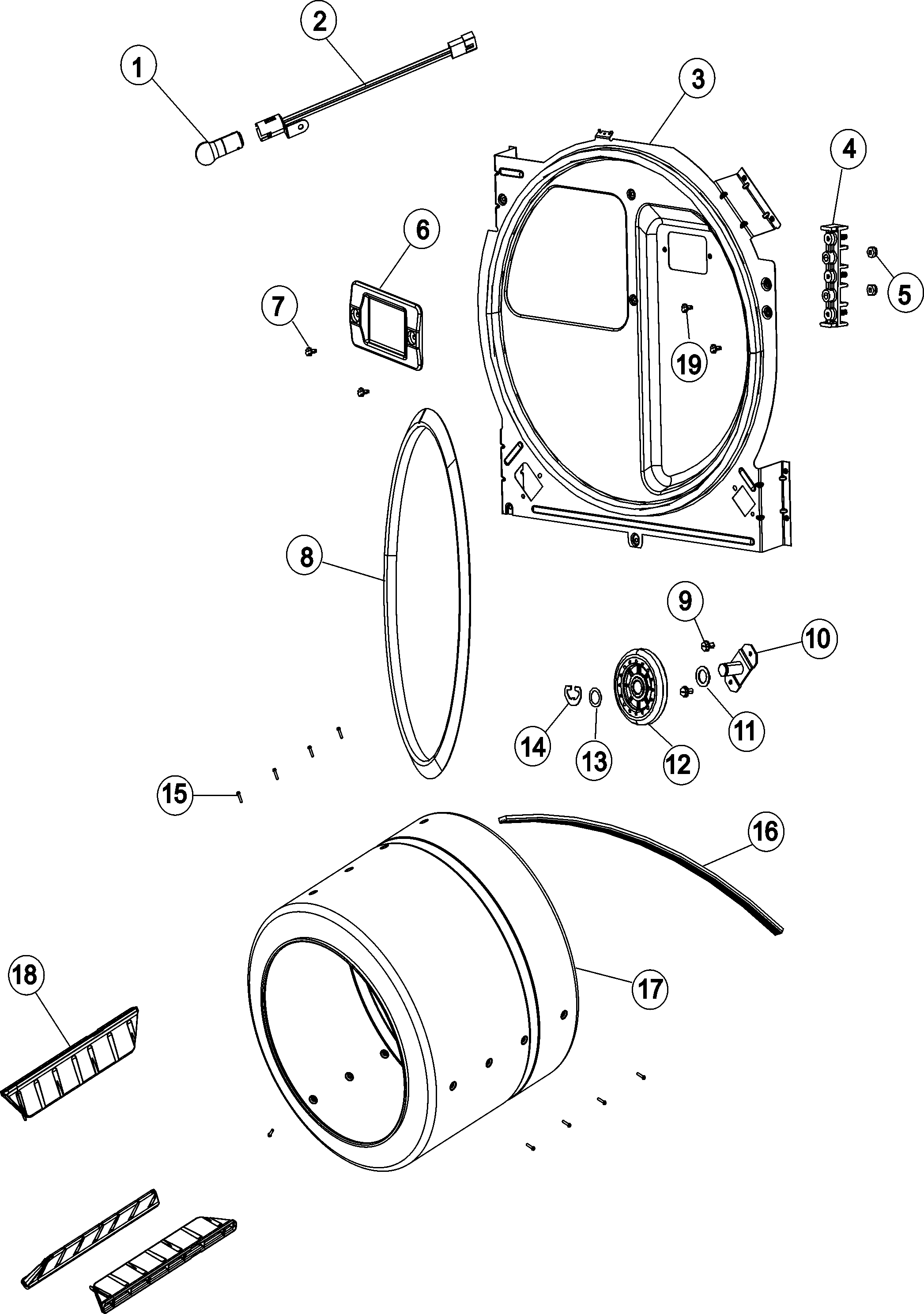

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |

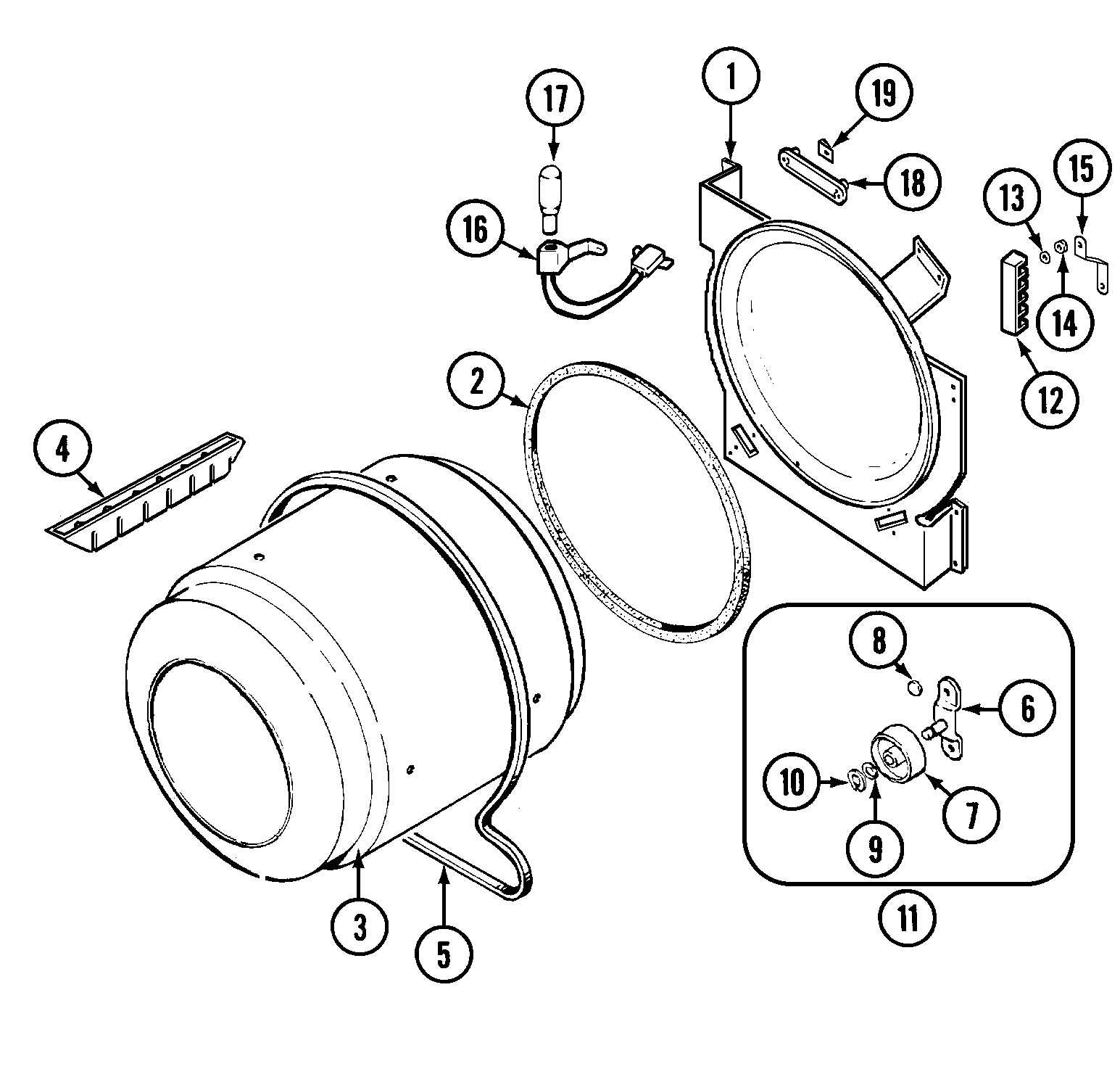

Dryer Drum Belt 31531589
Dryer drum belt

Part #31531589

Replaced by #341241

?
Manufacturer substitution
This part replaces 31531589. Substitute parts can look different from the original.
BEST SELLER
$12.56 |
14% OFF Phone Price : $14.56
In Stock
Dryer Valve Coil Kit 12001349
#3

Gas carrying diagram

Dryer valve coil kit

Part #12001349

Replaced by #279834

?
Manufacturer substitution
This part replaces 12001349. Substitute parts can look different from the original.
BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Dryer Drive Motor 31001589
#3

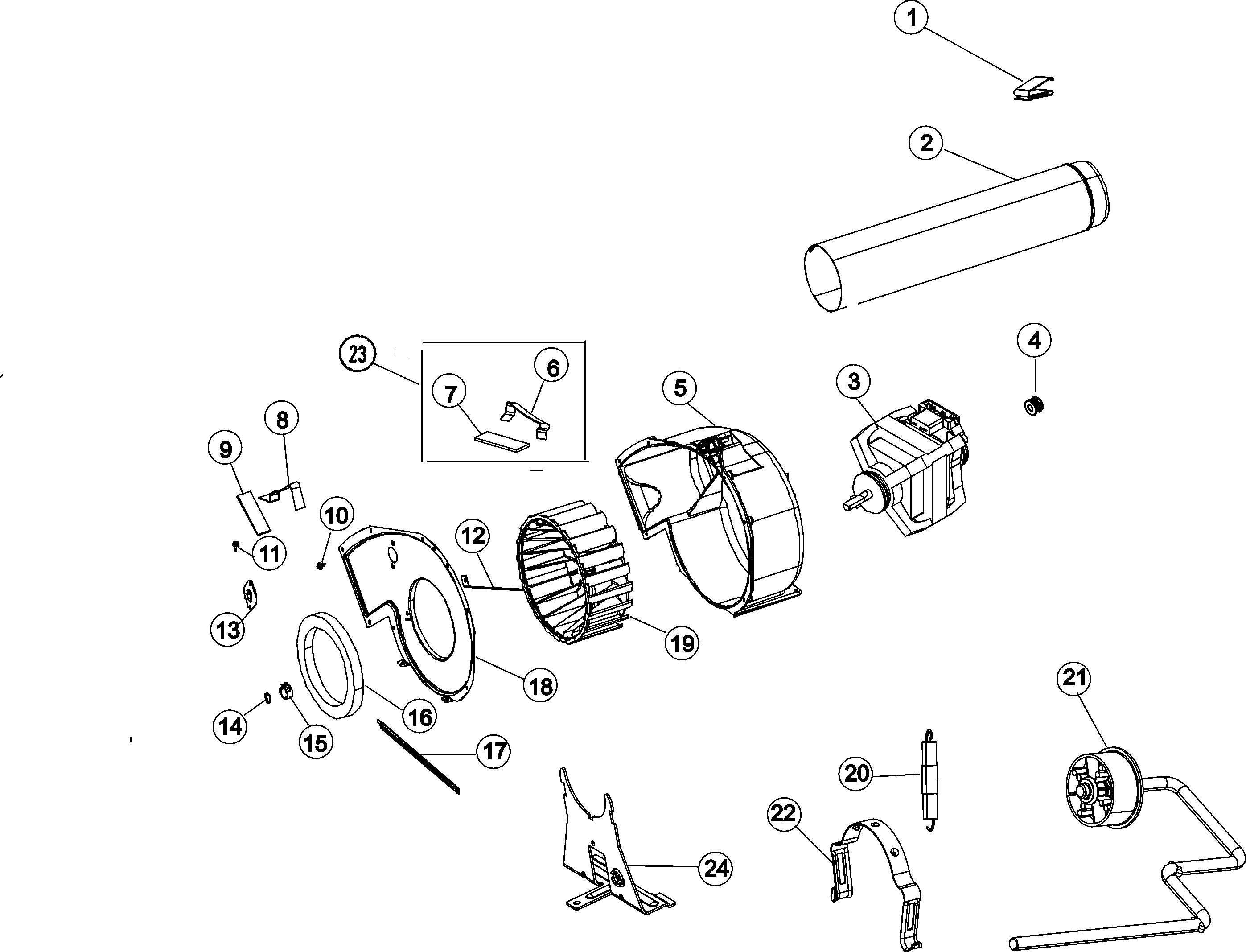

Motor & drive diagram

Dryer drive motor

Part #31001589

Replaced by #W10410996

?
Manufacturer substitution
This part replaces 31001589. Substitute parts can look different from the original.
BEST SELLER
$206.04 |
6% OFF Phone Price : $218.04
In Stock
Screw 25-7752
Screw

Part #25-7752

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 25-7752. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Thermal Fuse Kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526) LA-1053
#14

Gas carrying diagram

Dryer thermal fuse kit (replaces 53-0143, 53-0261, 53-1096, 53-1133, 53-1182, 53-1526)

Part #LA-1053

$35.29 |
15% OFF Phone Price : $41.29
In Stock
Dryer Drive Motor Pulley 31001535
#4

Motor & drive diagram

Dryer drive motor pulley

Part #31001535

Replaced by #WP31001535

?
Manufacturer substitution
This part replaces 31001535. Substitute parts can look different from the original.
$53.03 |
10% OFF Phone Price : $59.03
In Stock
Idler Arm 31001710
#21

Motor & drive diagram

Idler arm

Part #31001710

Replaced by #WP31001710

?
Manufacturer substitution
This part replaces 31001710. Substitute parts can look different from the original.
$63.09 |
9% OFF Phone Price : $69.09
In Stock
Dryer Burner Igniter 31001556
#6

Gas carrying diagram

Dryer burner igniter

Part #31001556

Replaced by #WP31001556

?
Manufacturer substitution
This part replaces 31001556. Substitute parts can look different from the original.
$39.84 |
13% OFF Phone Price : $45.84
In Stock
Dryer Screw 25-7101
Dryer screw

Part #25-7101

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 25-7101. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Knob Skirt 31001554
#5

Control panel diagram

Knob skirt

Part #31001554

Replaced by #WP37001184

?
Manufacturer substitution
This part replaces 31001554. Substitute parts can look different from the original.
$38.48 |
13% OFF Phone Price : $44.48
In Stock
