Kenmore
Sewing Machine

Model # 15810304 Official Kenmore sewing machine

Here are the diagrams and repair parts for Official Kenmore 15810304 sewing machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

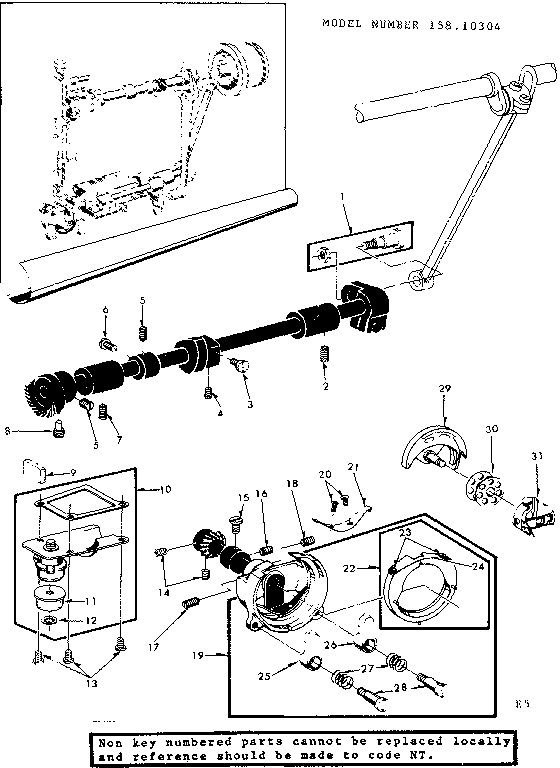

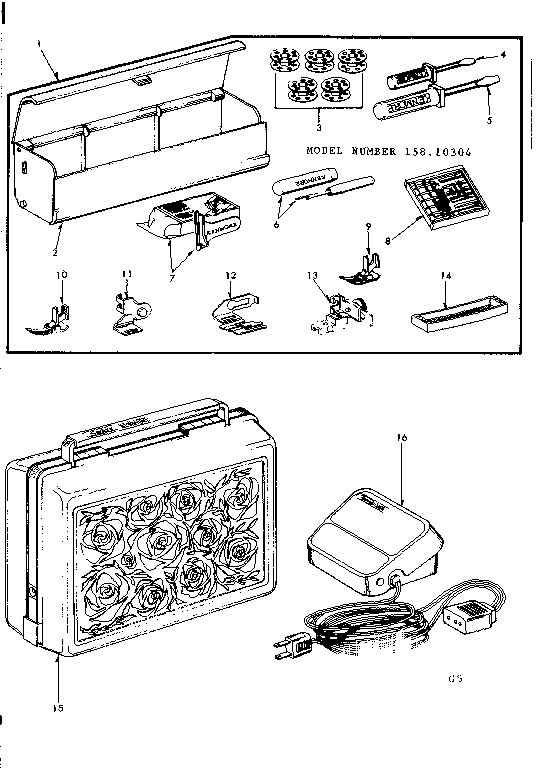

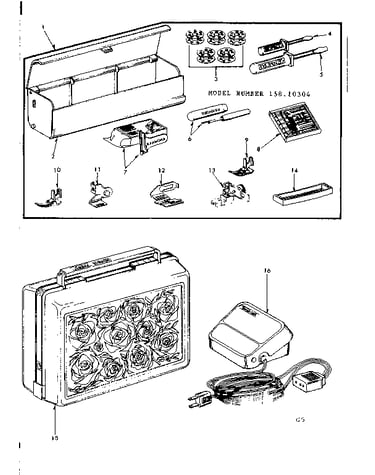

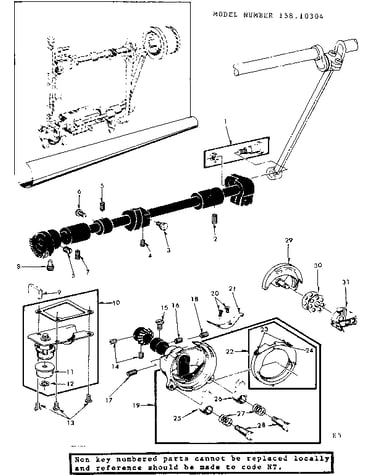

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 218 parts  |
Washer 8466
Washer

Part #8466

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 39255
#19

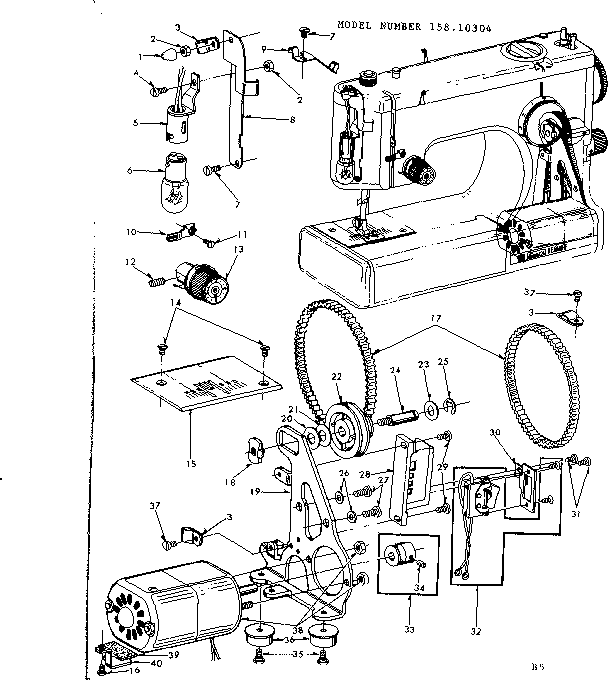

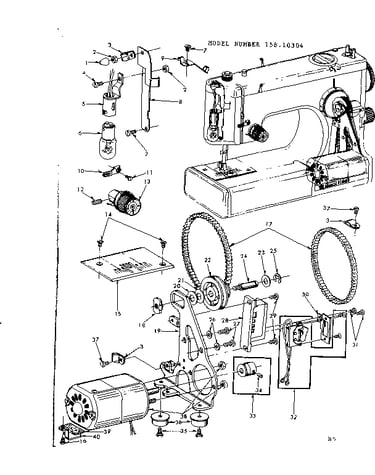

Motor assembly diagram

Motor bracket

Part #39255

The manufacturer no longer makes this part, and there's no substitute part

Pivot Stud 31601
#2

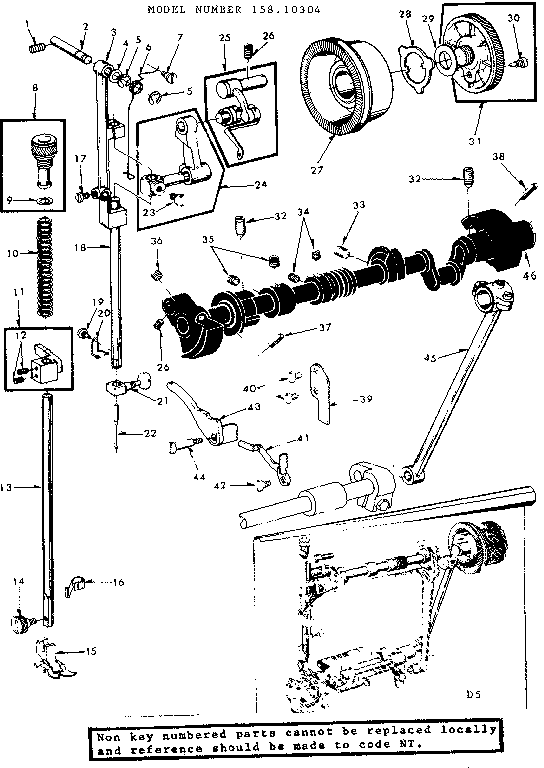

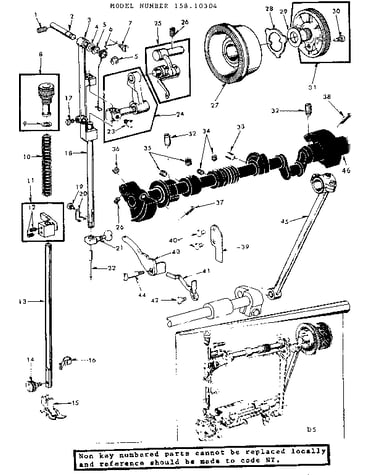

Presser bar diagram

Pivot stud

Part #31601

The manufacturer no longer makes this part, and there's no substitute part

Cap 35846
#1

Motor assembly diagram

Cap

Part #35846

The manufacturer no longer makes this part, and there's no substitute part

Sewing Machine Thread Guide 33080
#17

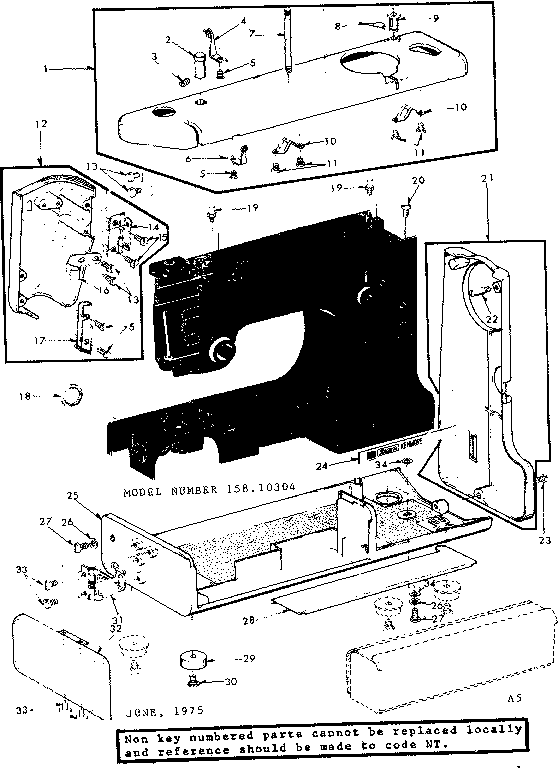

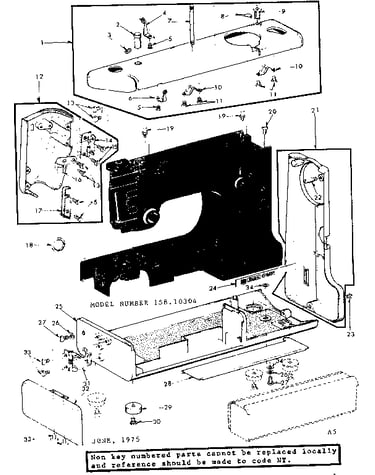

Base assembly diagram

Sewing machine thread guide

Part #33080

The manufacturer no longer makes this part, and there's no substitute part

Regulator 32587
#4

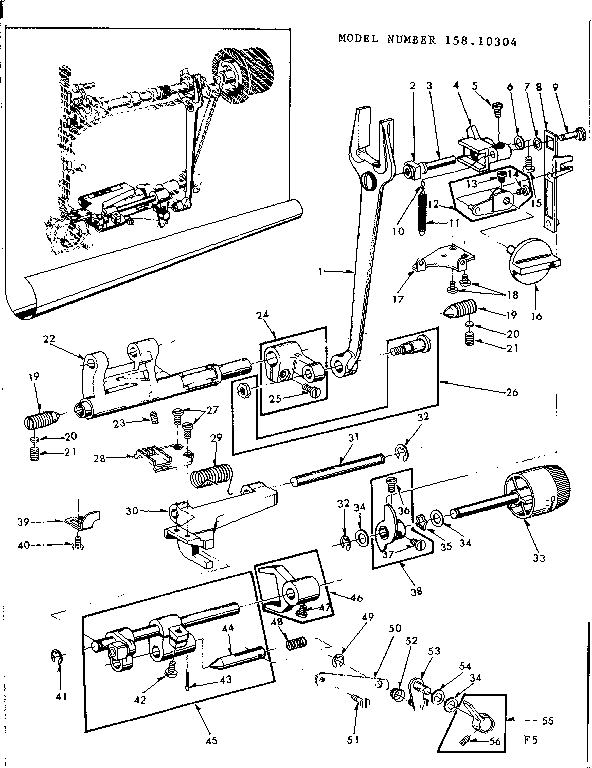

Feed regulator assembly diagram

Regulator

Part #32587

The manufacturer no longer makes this part, and there's no substitute part

Slider 33282
#8

Feed regulator assembly diagram

Slider

Part #33282

The manufacturer no longer makes this part, and there's no substitute part

Machine Base 37126
#25

Base assembly diagram

Machine base

Part #37126

The manufacturer no longer makes this part, and there's no substitute part

Support Bar 32559
#3

Presser bar diagram

Support bar

Part #32559

The manufacturer no longer makes this part, and there's no substitute part

Stud 8130
#11

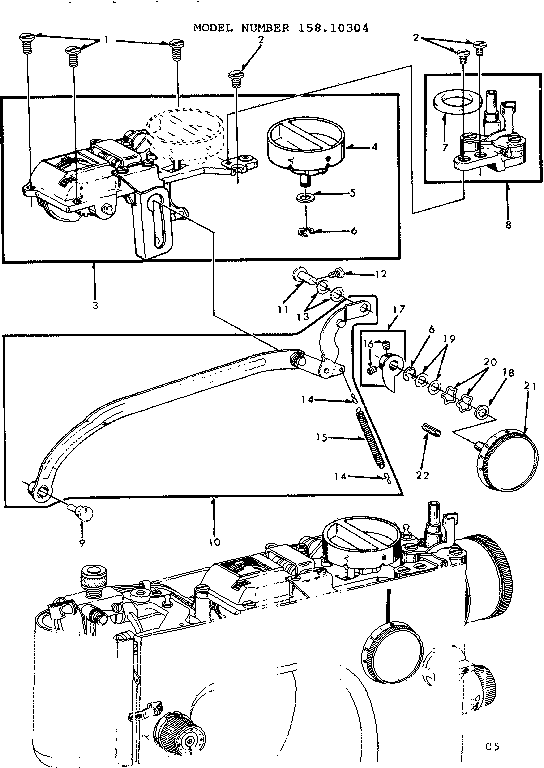

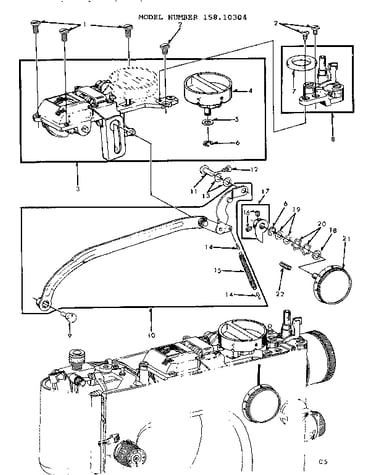

Zigzag guide bar assembly diagram

Stud

Part #8130

The manufacturer no longer makes this part, and there's no substitute part
