Model # 4042 Official Genie garage door opener

Here are the diagrams and repair parts for Official Genie 4042 garage door opener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 99 parts |

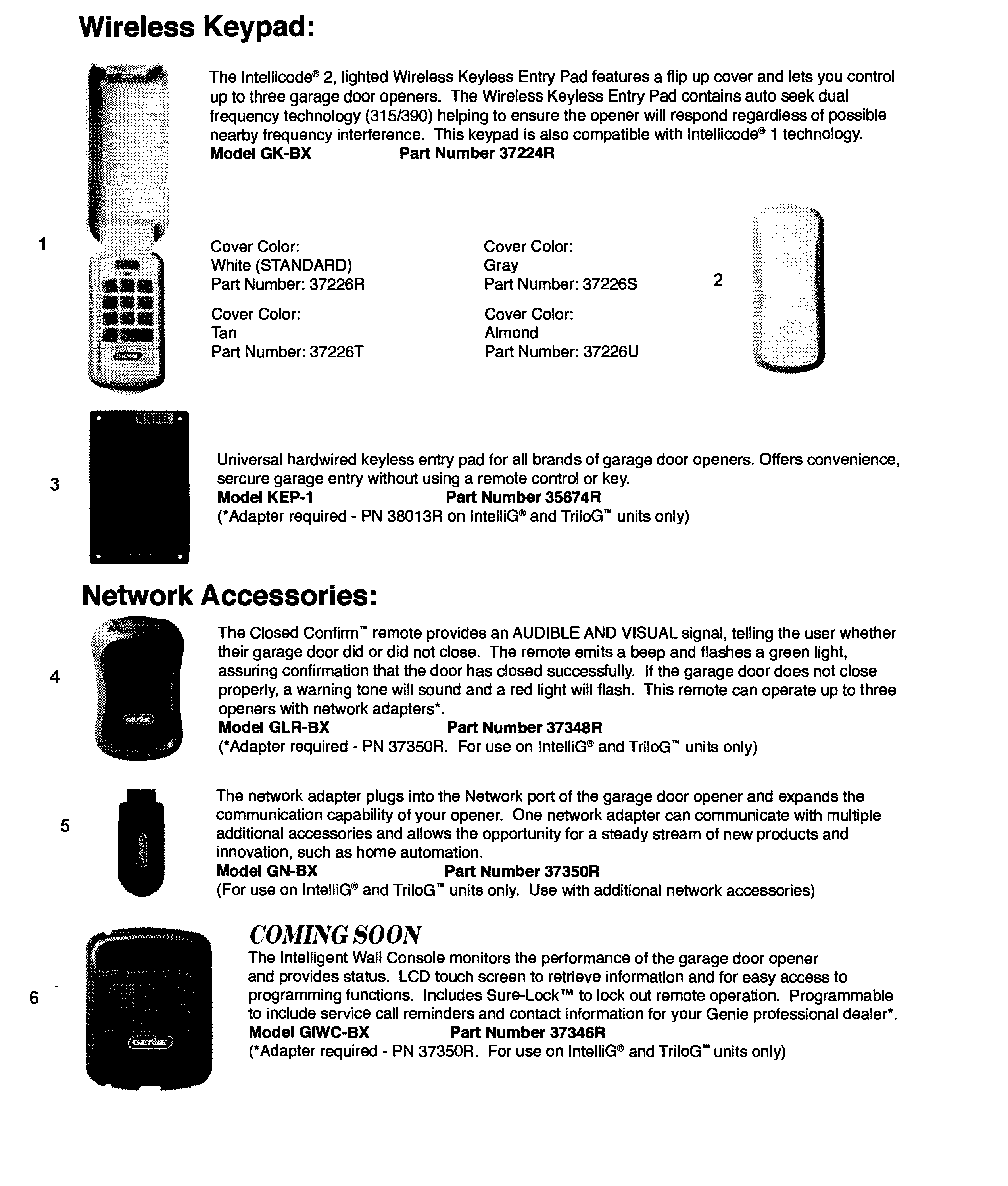

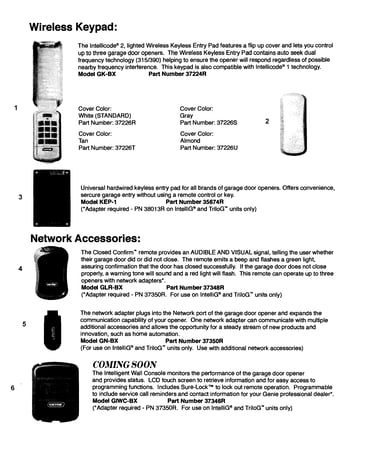

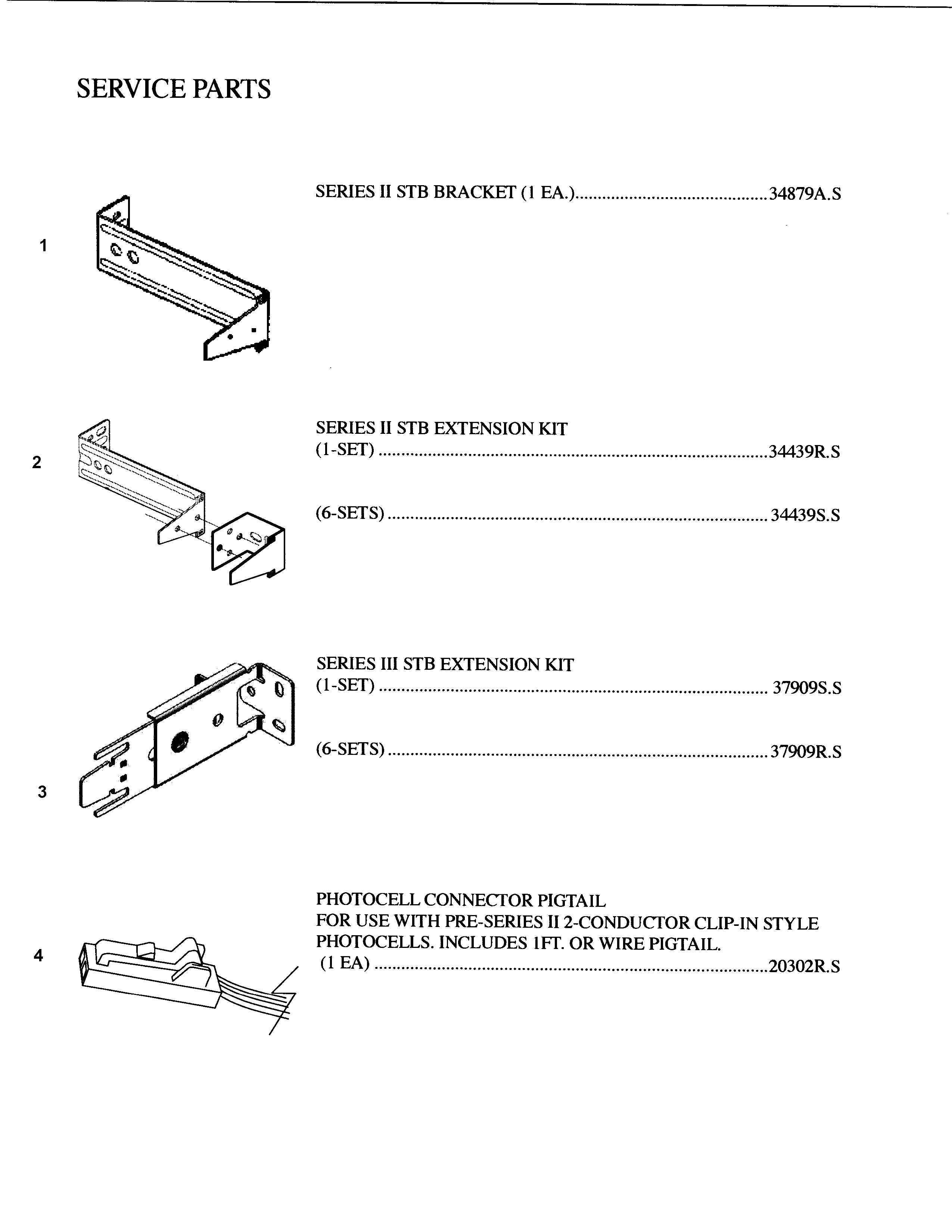

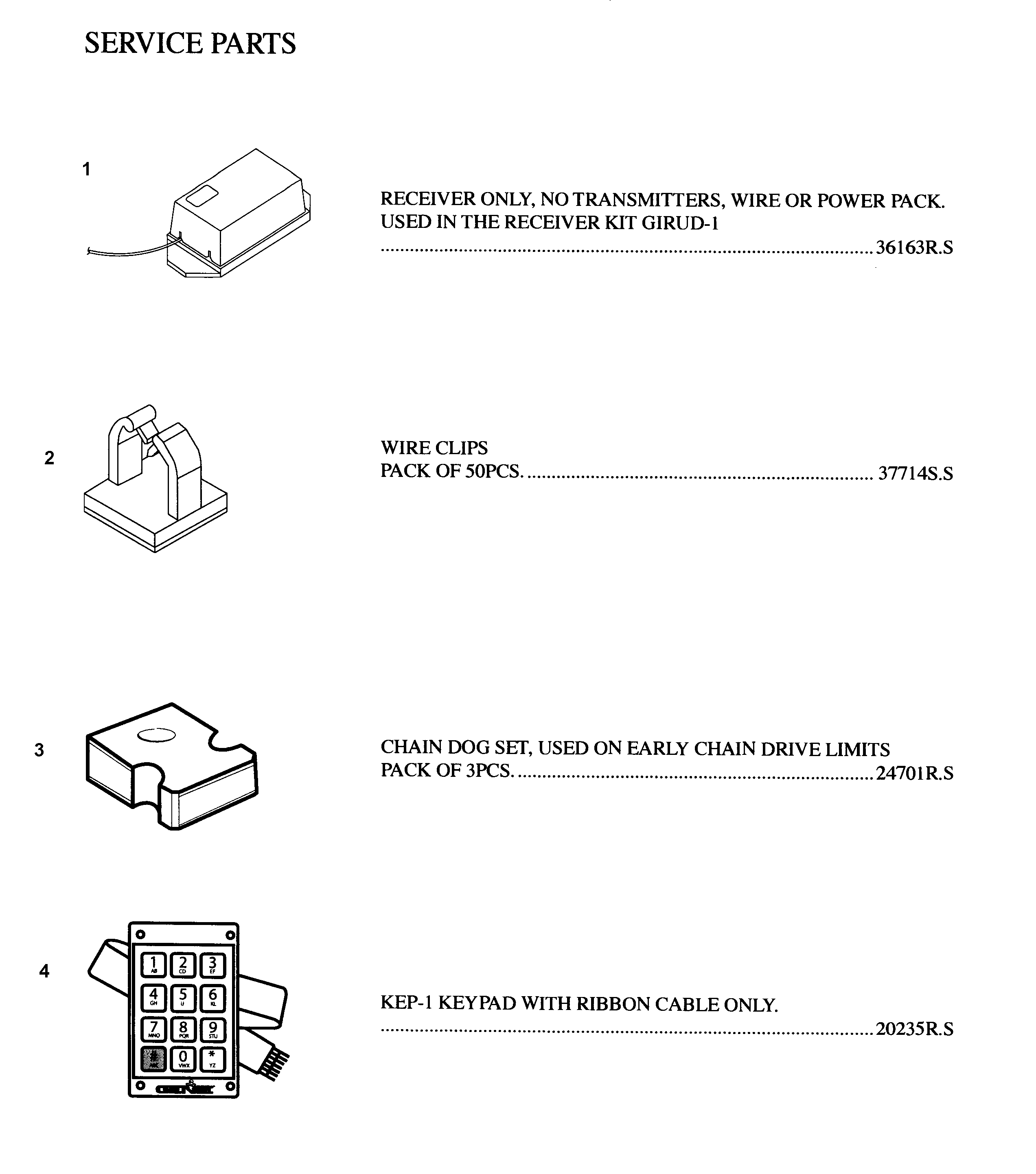

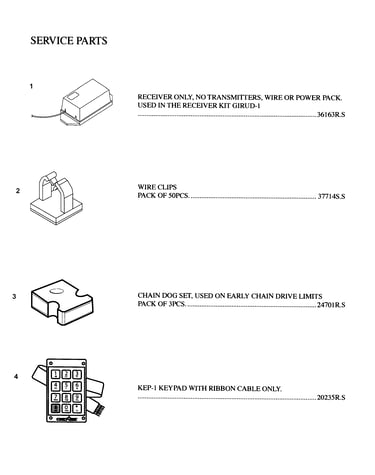

Accessories diagram

Garage door opener wireless keypad

Part #37224R

The manufacturer no longer makes this part, and there's no substitute part

Garage door opener trolley

Part #36773R.S

The manufacturer no longer makes this part, and there's no substitute part

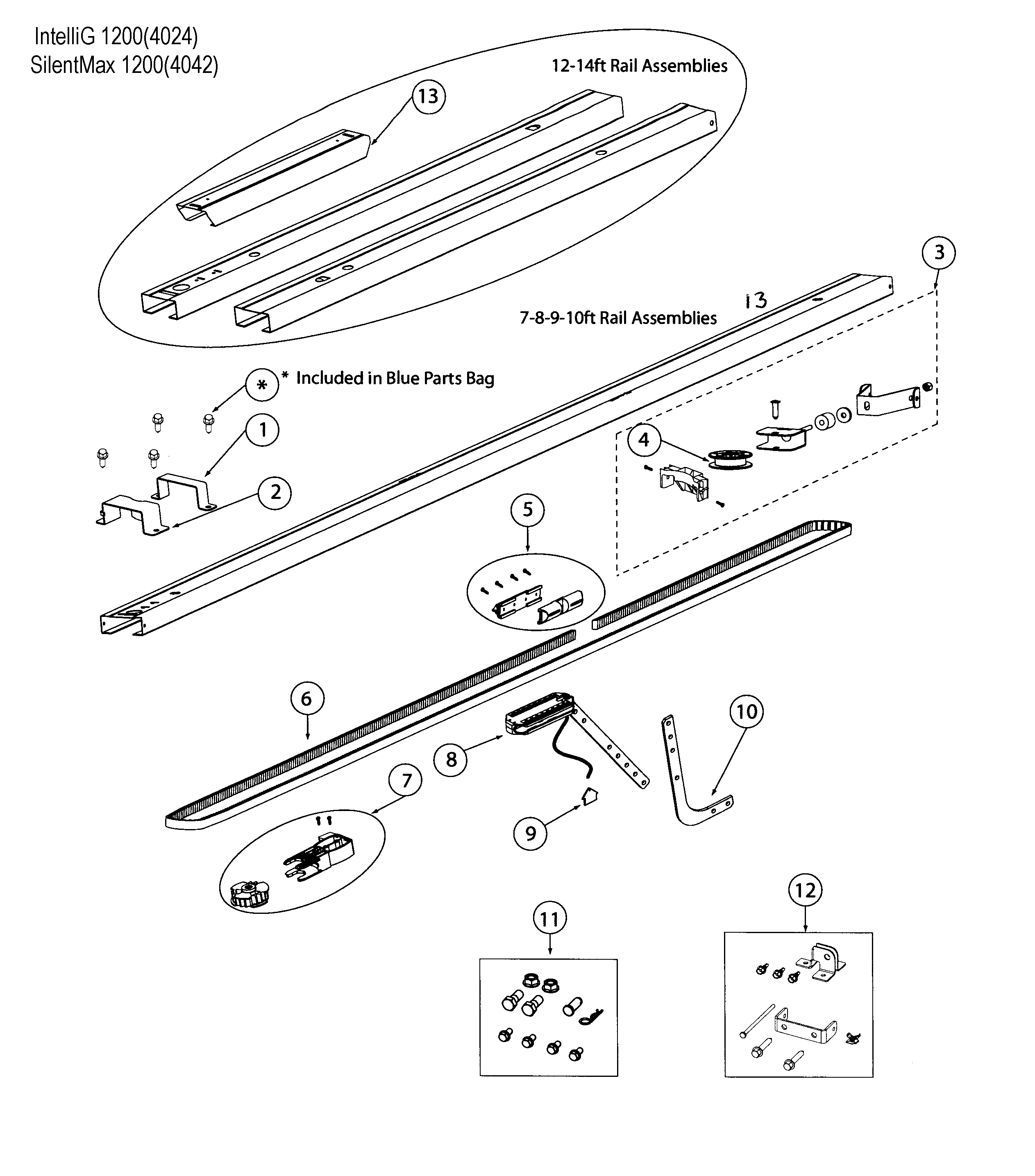

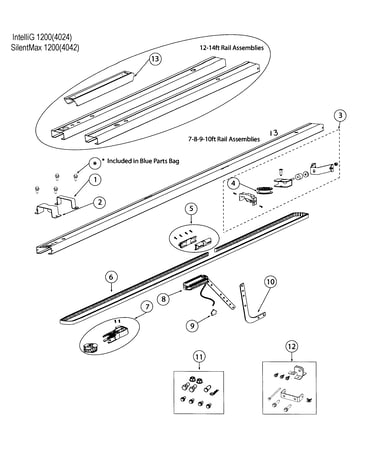

Belt rail assy diagram

Garage door opener belt assembly

Part #37561R.S

The manufacturer no longer makes this part, and there's no substitute part

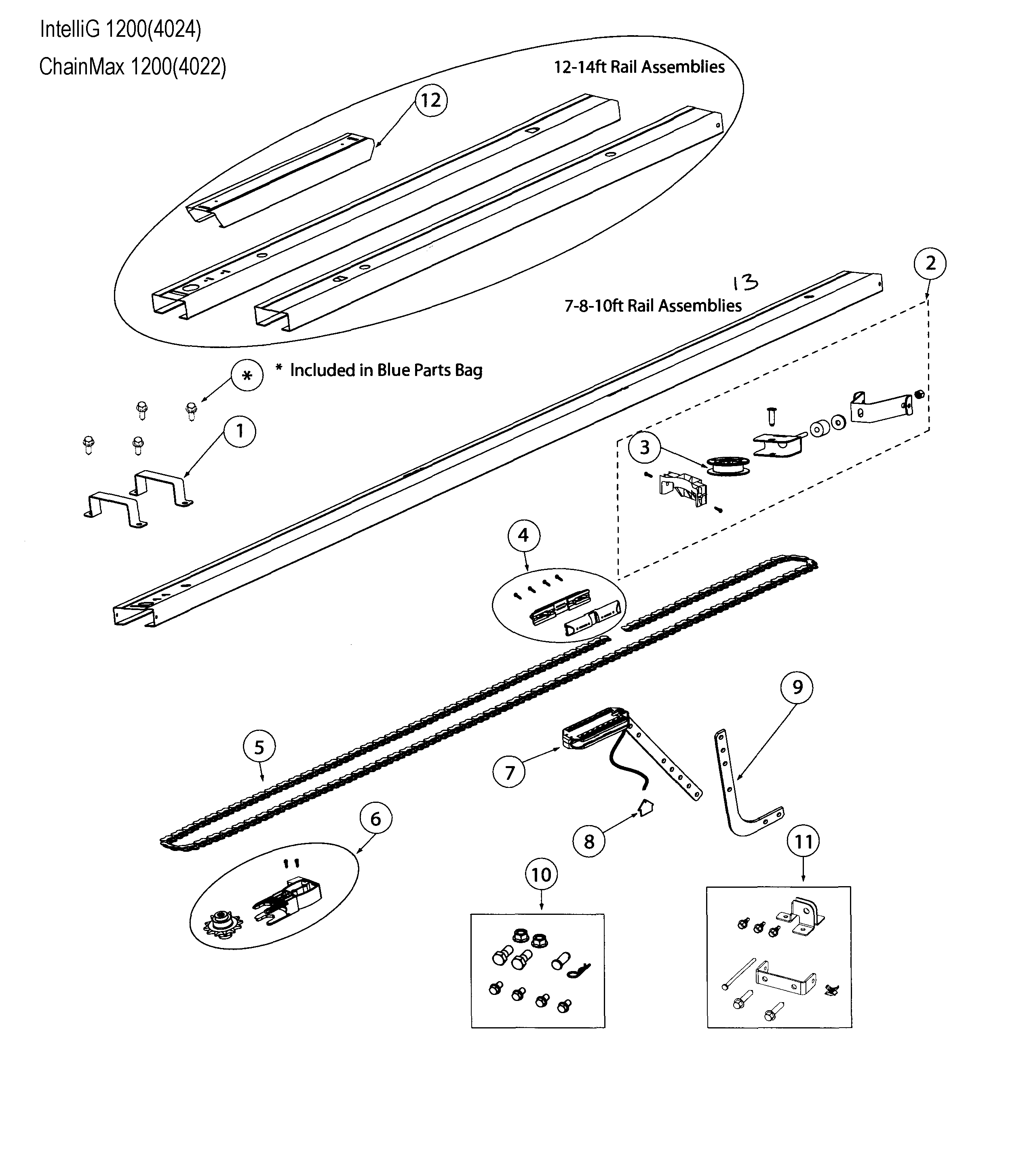

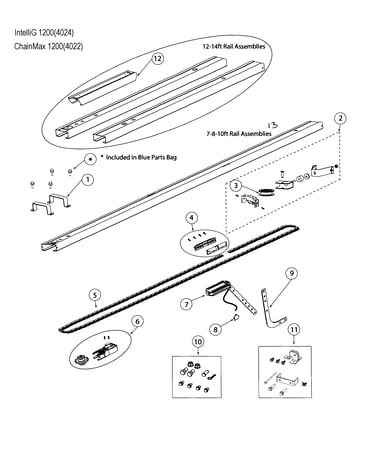

Chain rail assy diagram

Garage door opener chain-drive bullet

Part #37557R.S

The manufacturer no longer makes this part, and there's no substitute part

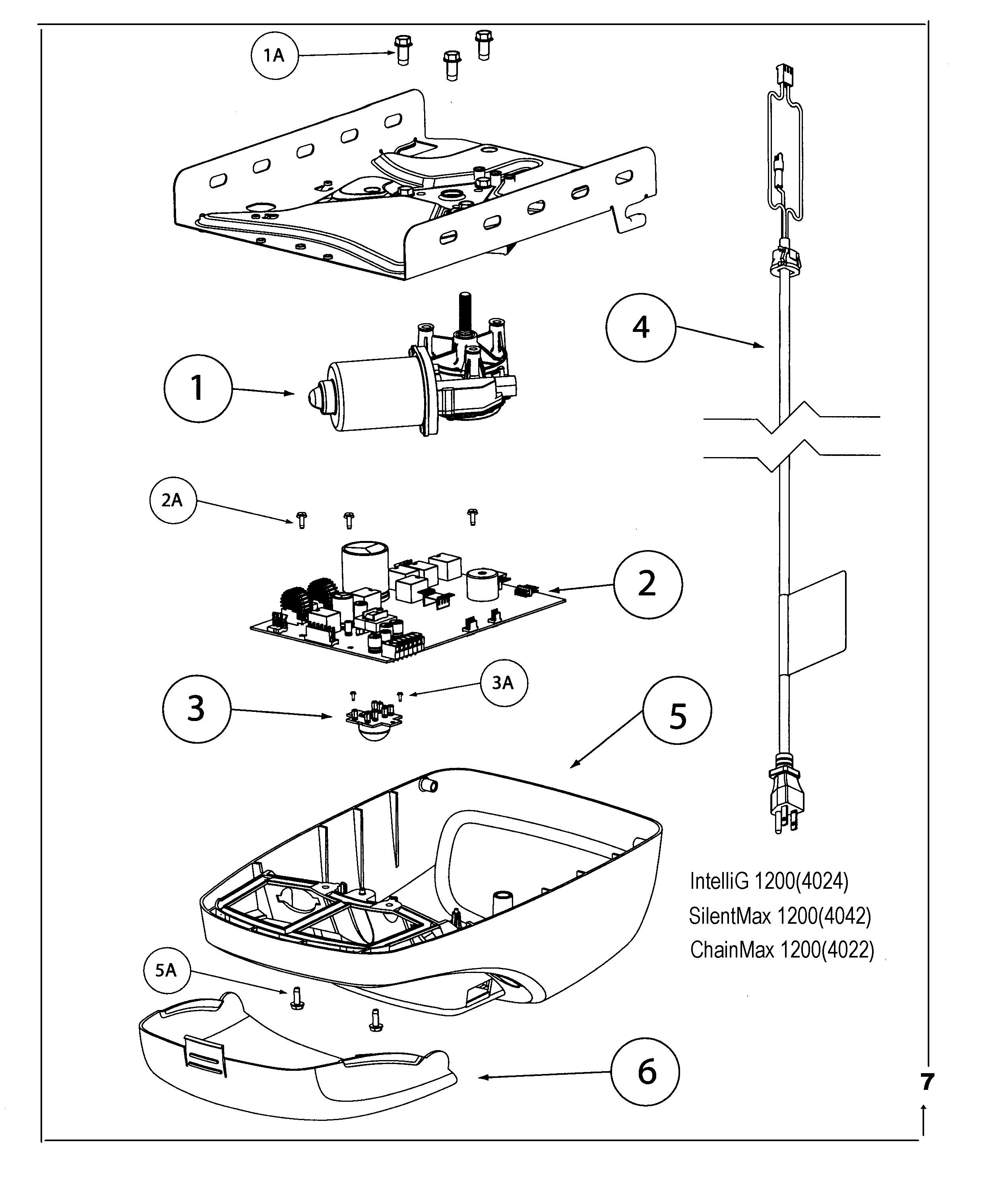

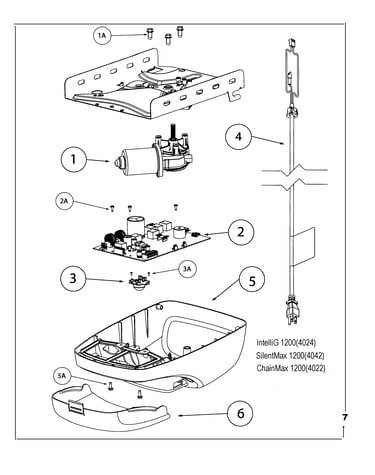

Head assy diagram

Garage door opener power cord

Part #37099A.S

The manufacturer no longer makes this part, and there's no substitute part

Garage door opener rail support bracket

Part #37216R.S

The manufacturer no longer makes this part, and there's no substitute part

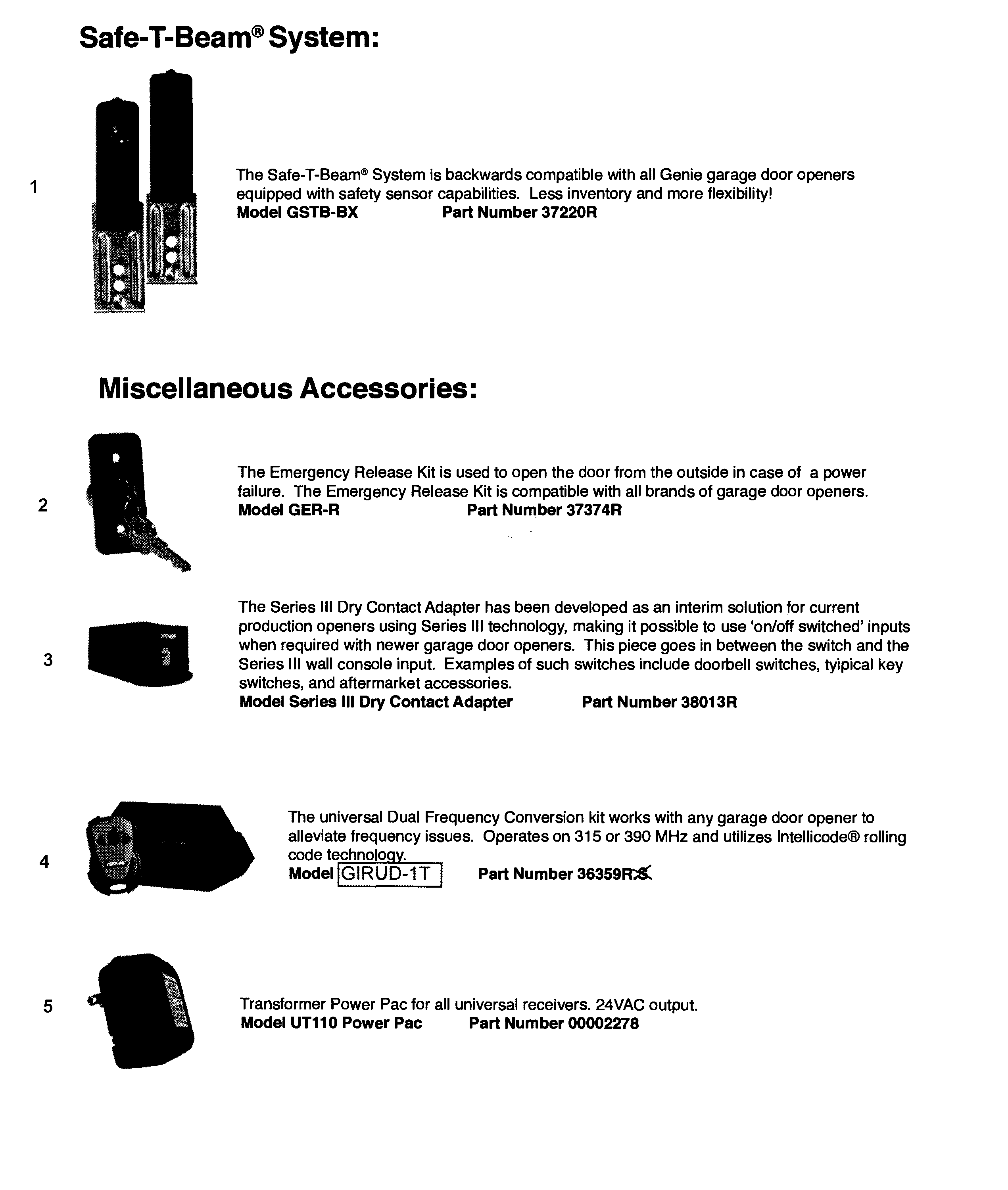

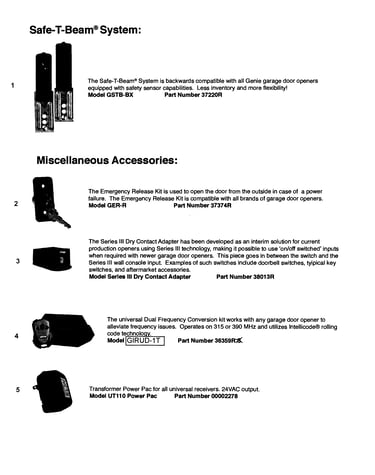

Accessories diagram

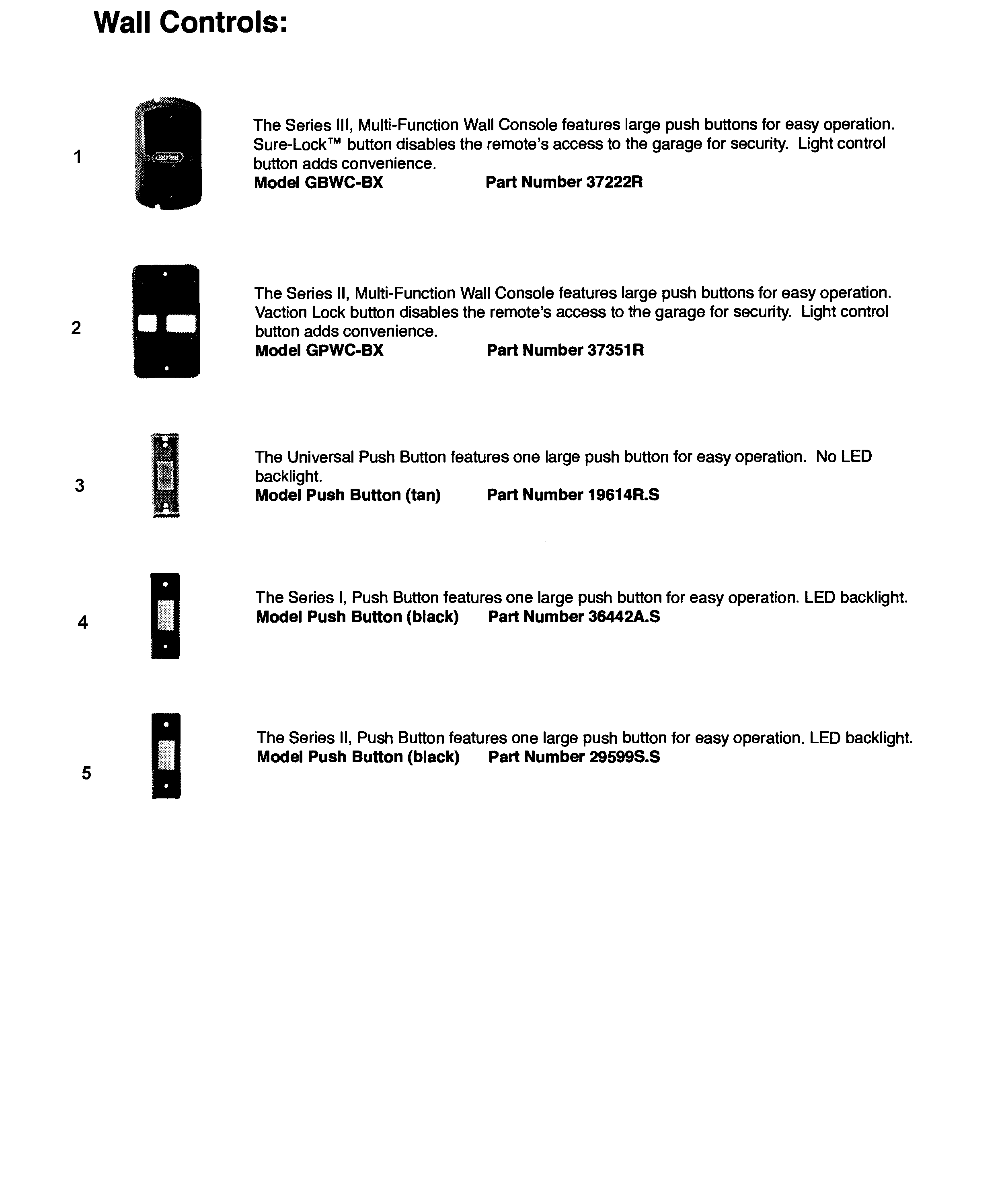

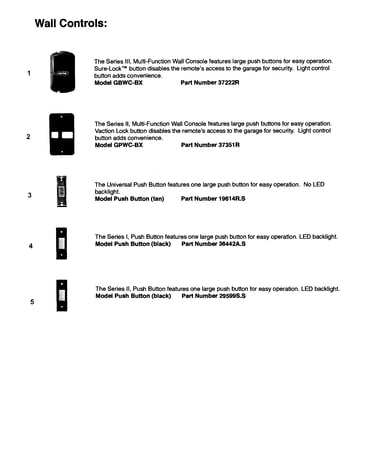

Push button

Part #19614R.S

The manufacturer no longer makes this part, and there's no substitute part

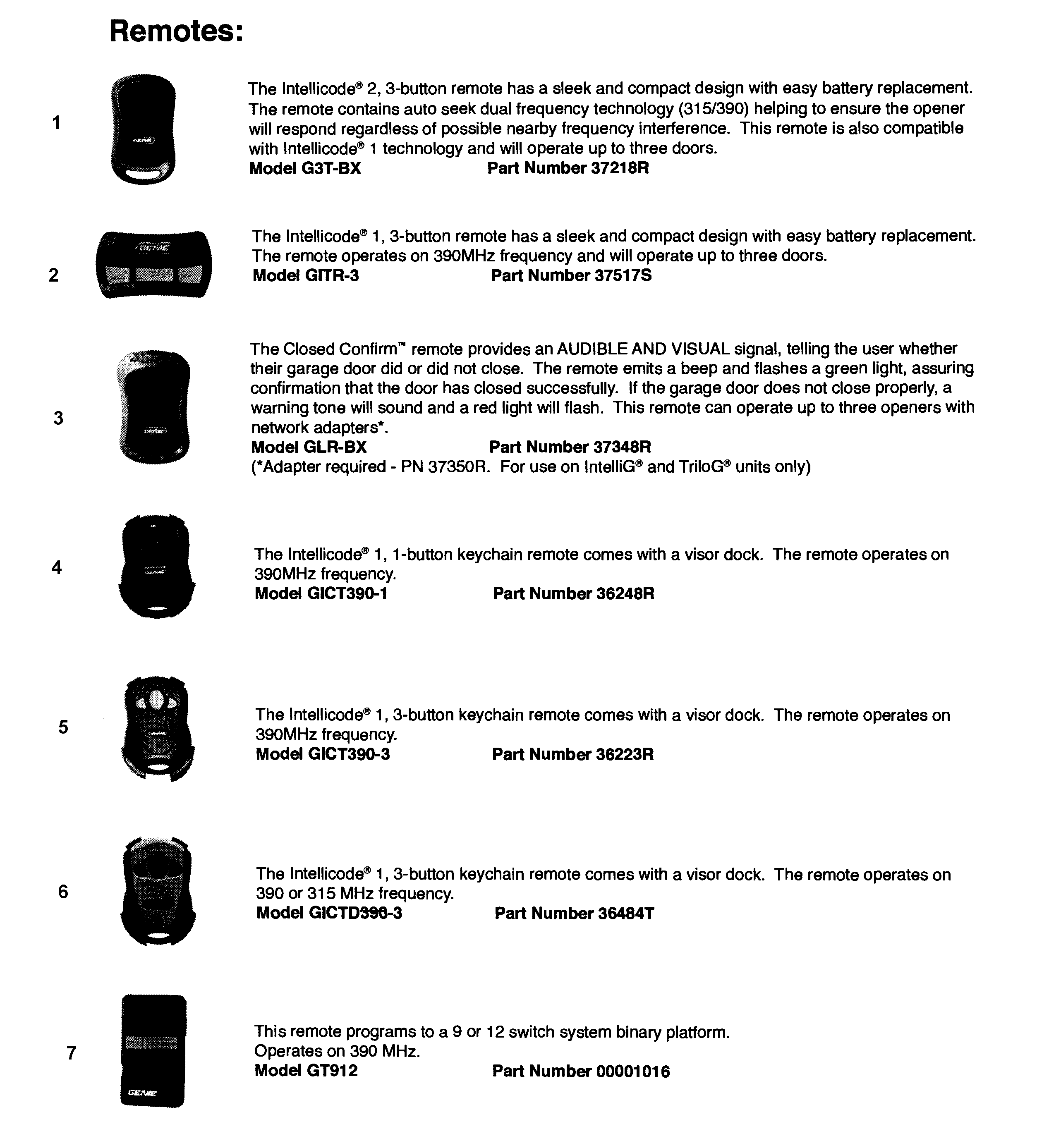

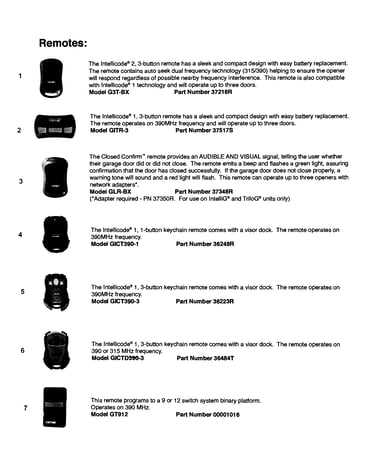

Accessories diagram

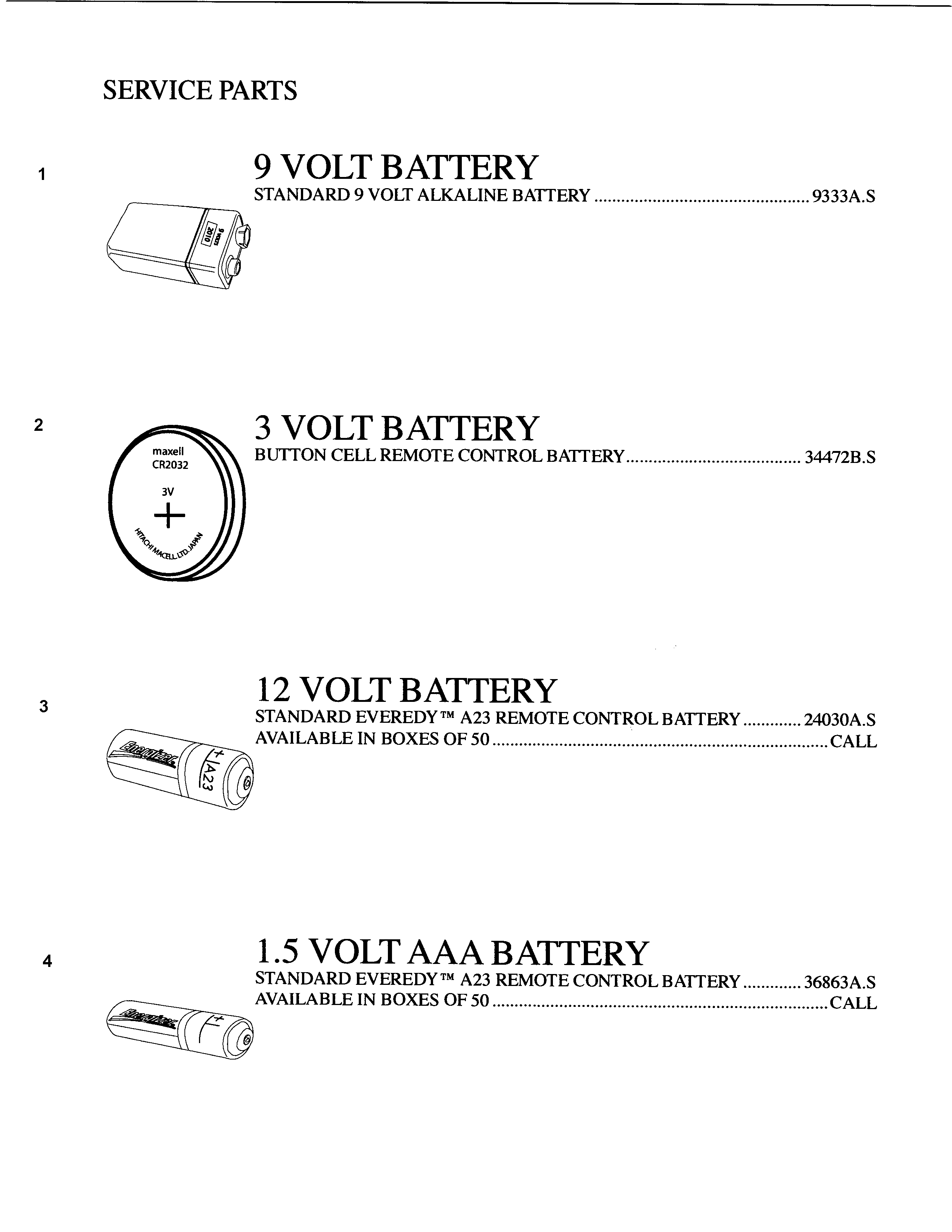

Garage door opener remote control battery

Part #34472B.S

The manufacturer no longer makes this part, and there's no substitute part

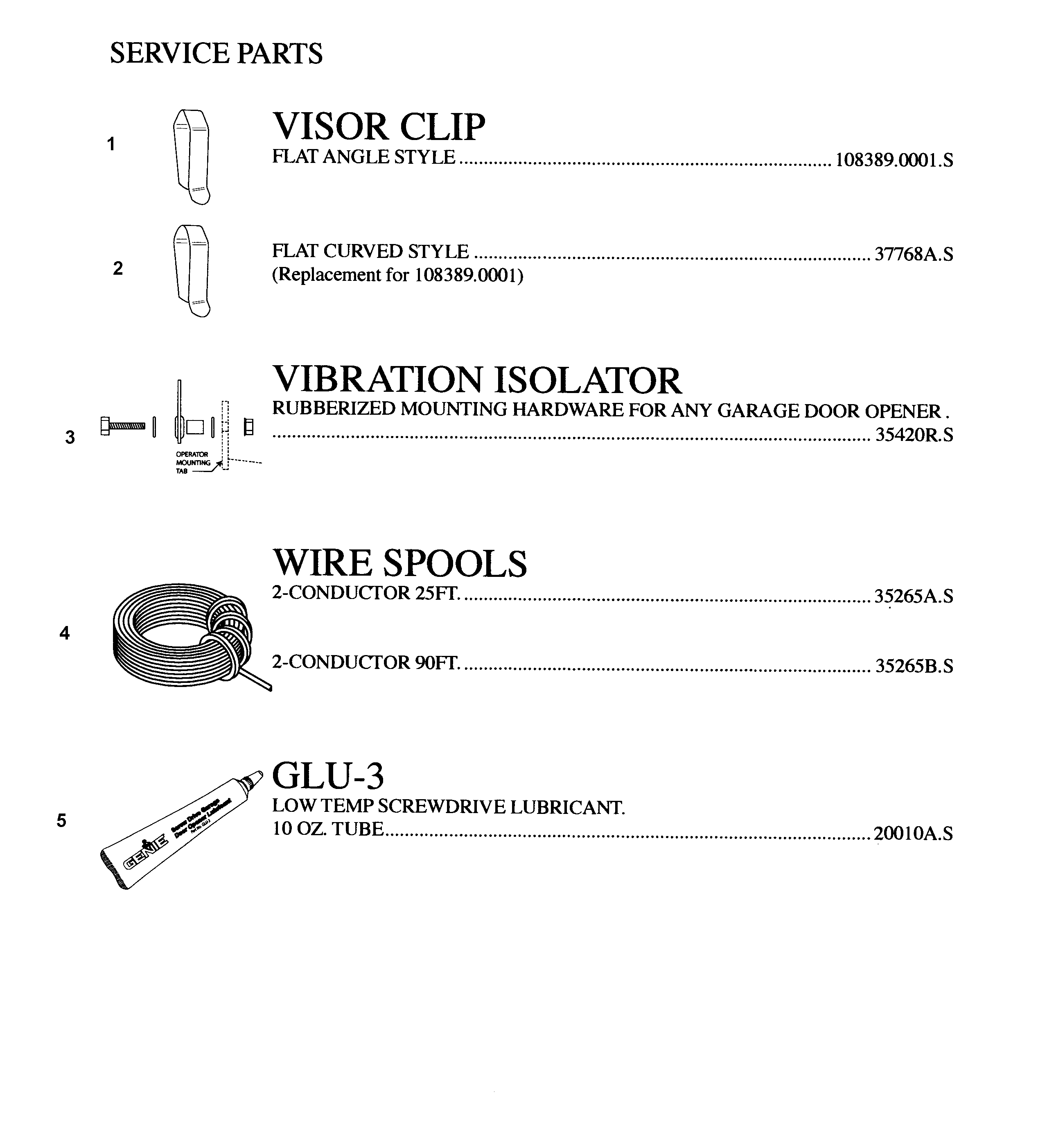

Garage Door Opener Bell Wire, 90-ft 35265B.S

#4A

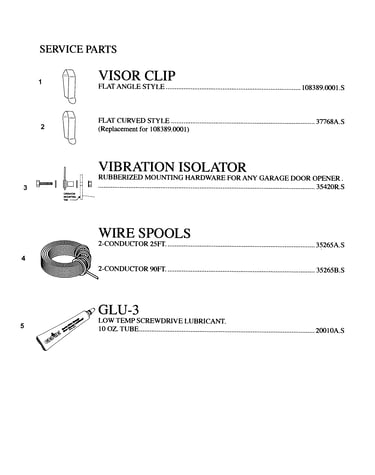

Accessories diagram

Garage door opener bell wire, 90-ft

Part #35265B.S

The manufacturer no longer makes this part, and there's no substitute part

#NI

Chain rail assy diagram

8' ext kit

Part #37301R

The manufacturer no longer makes this part, and there's no substitute part
