Model # WRS312SNHM02 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRS312SNHM02 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

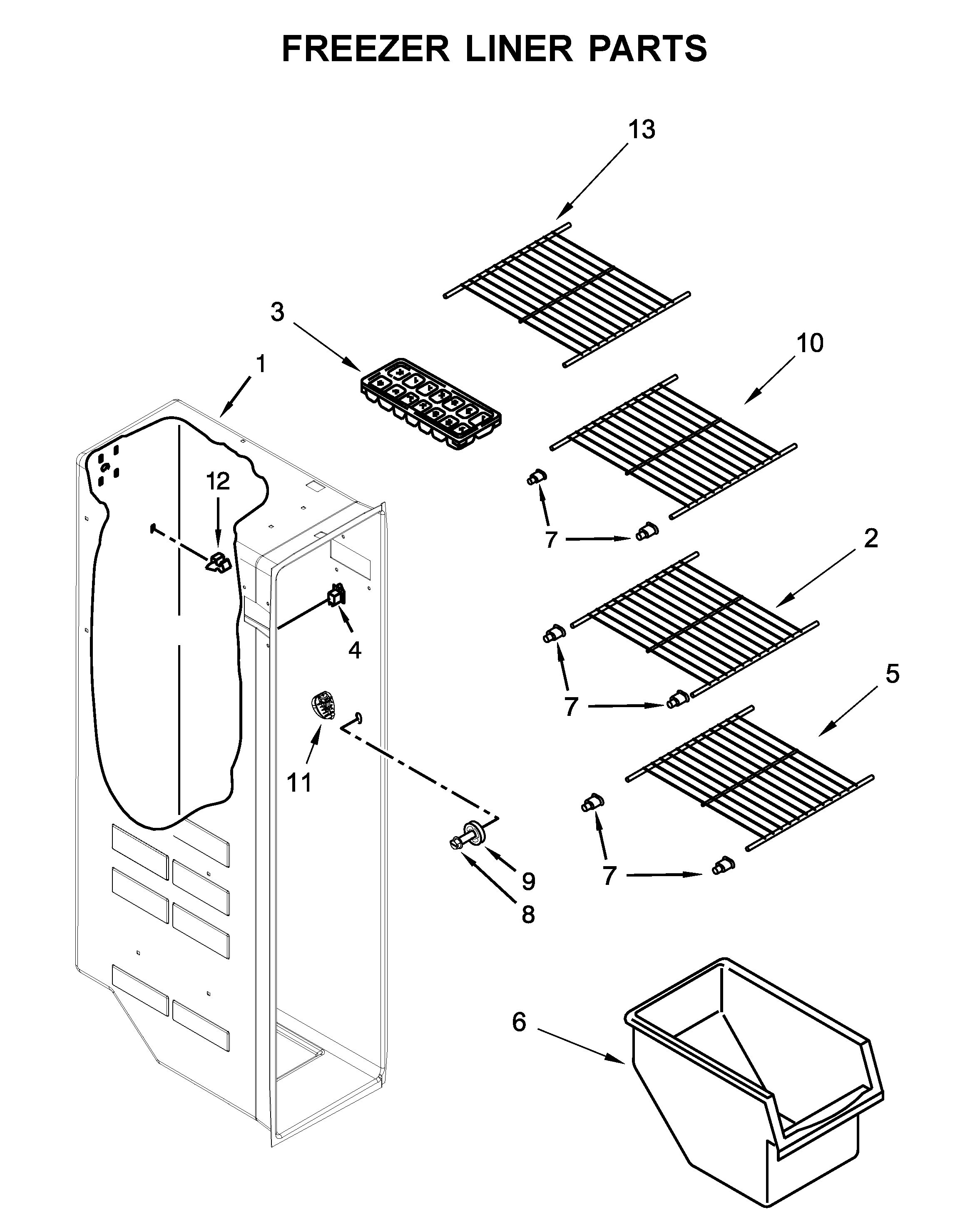

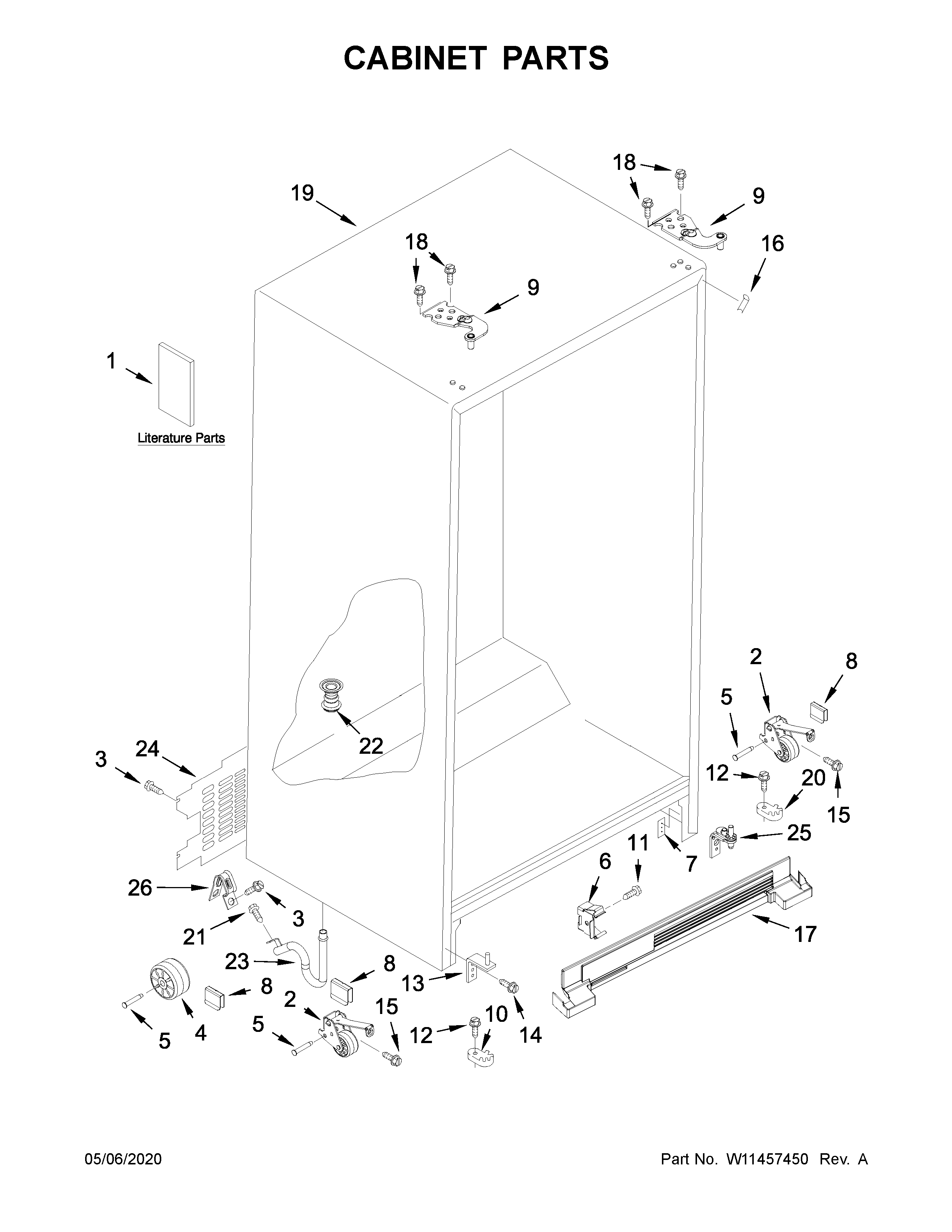

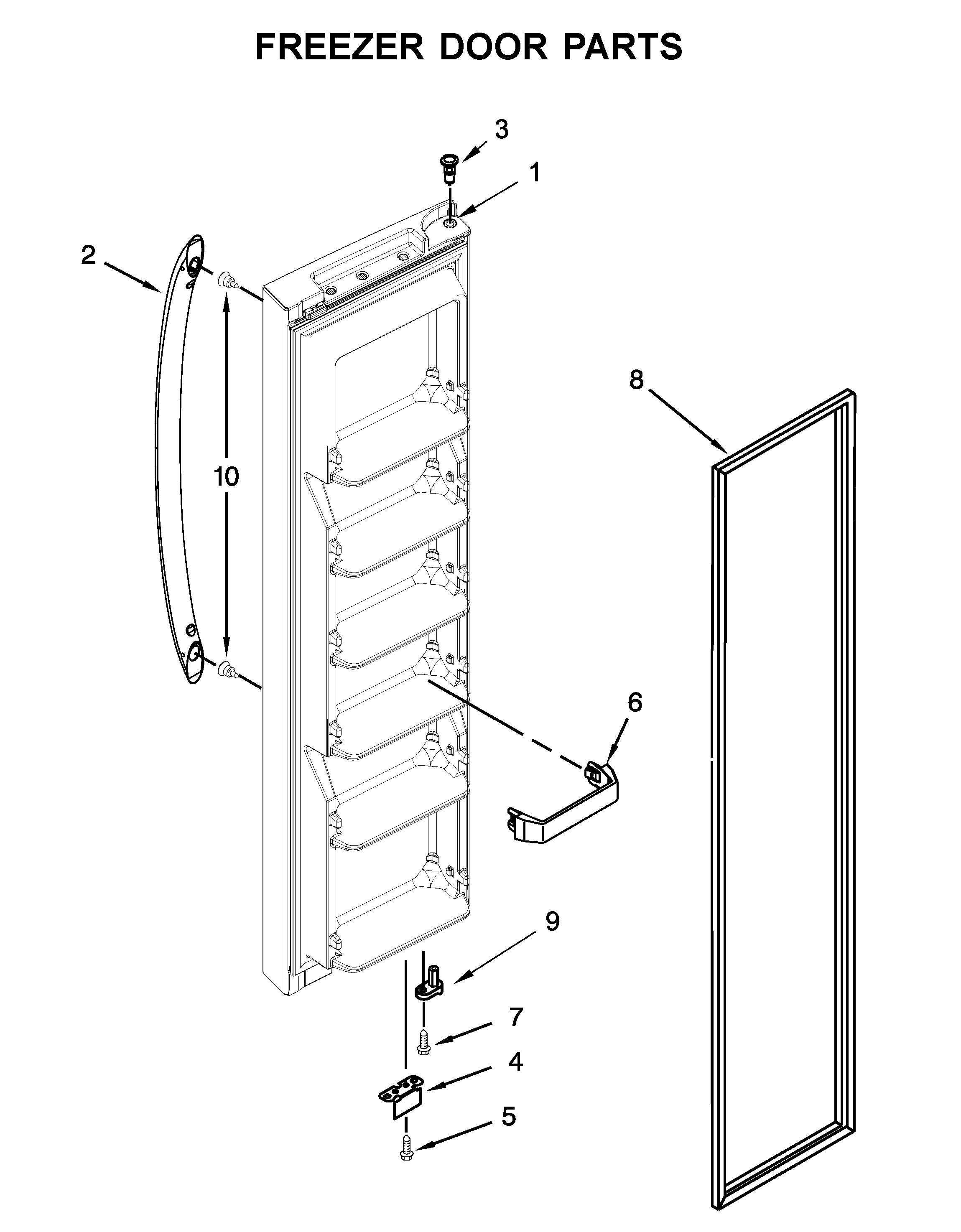

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 170 parts  |
Refrigerator Thermistor W10384183
#7

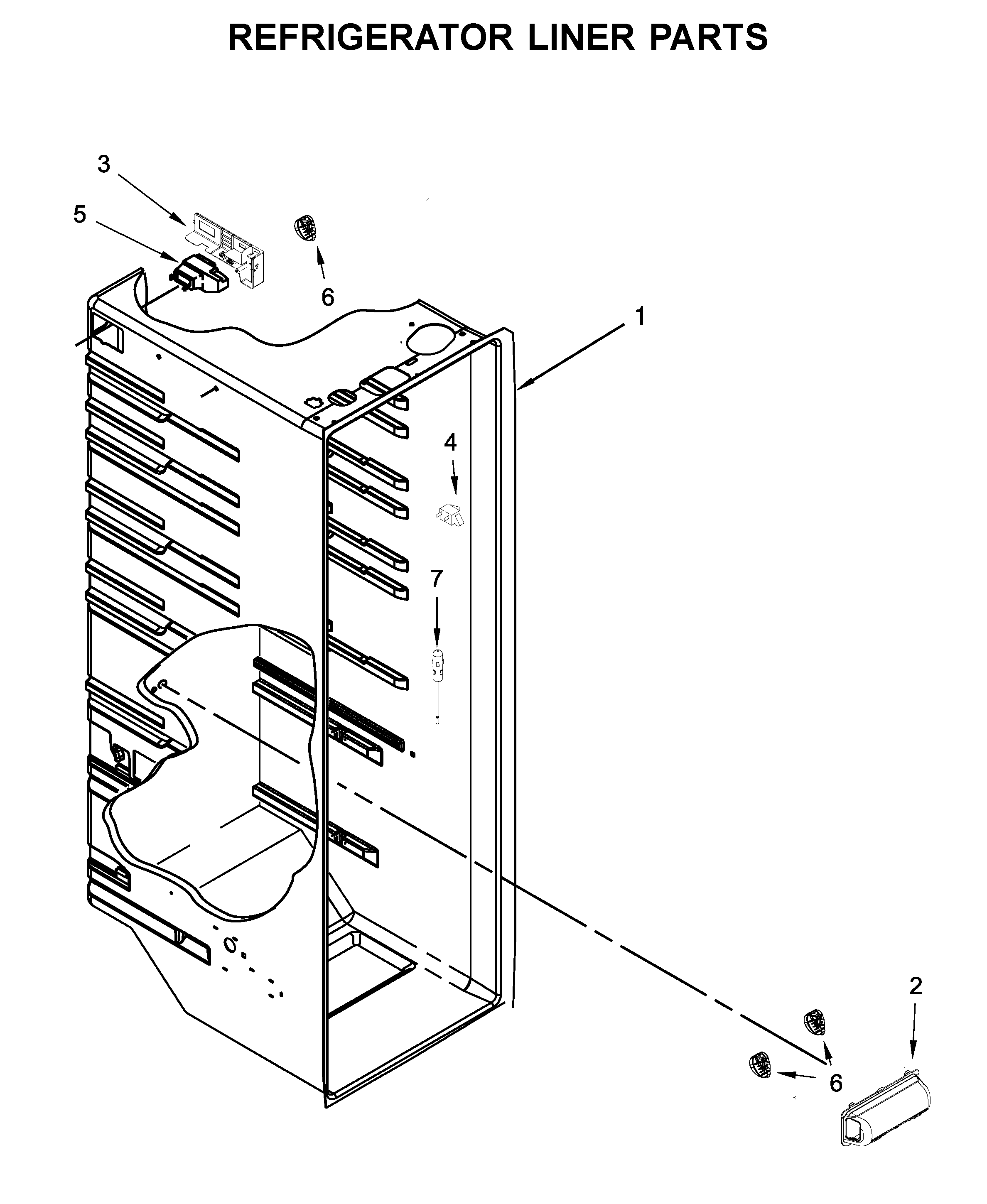

Refrigerator liner parts diagram

Refrigerator thermistor

Part #W10384183

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Light Switch 1118894
Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Led Light W11251749
Refrigerator led light

Part #W11251749

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11251749. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
In Stock
Refrigerator Start Relay W10197428
#14

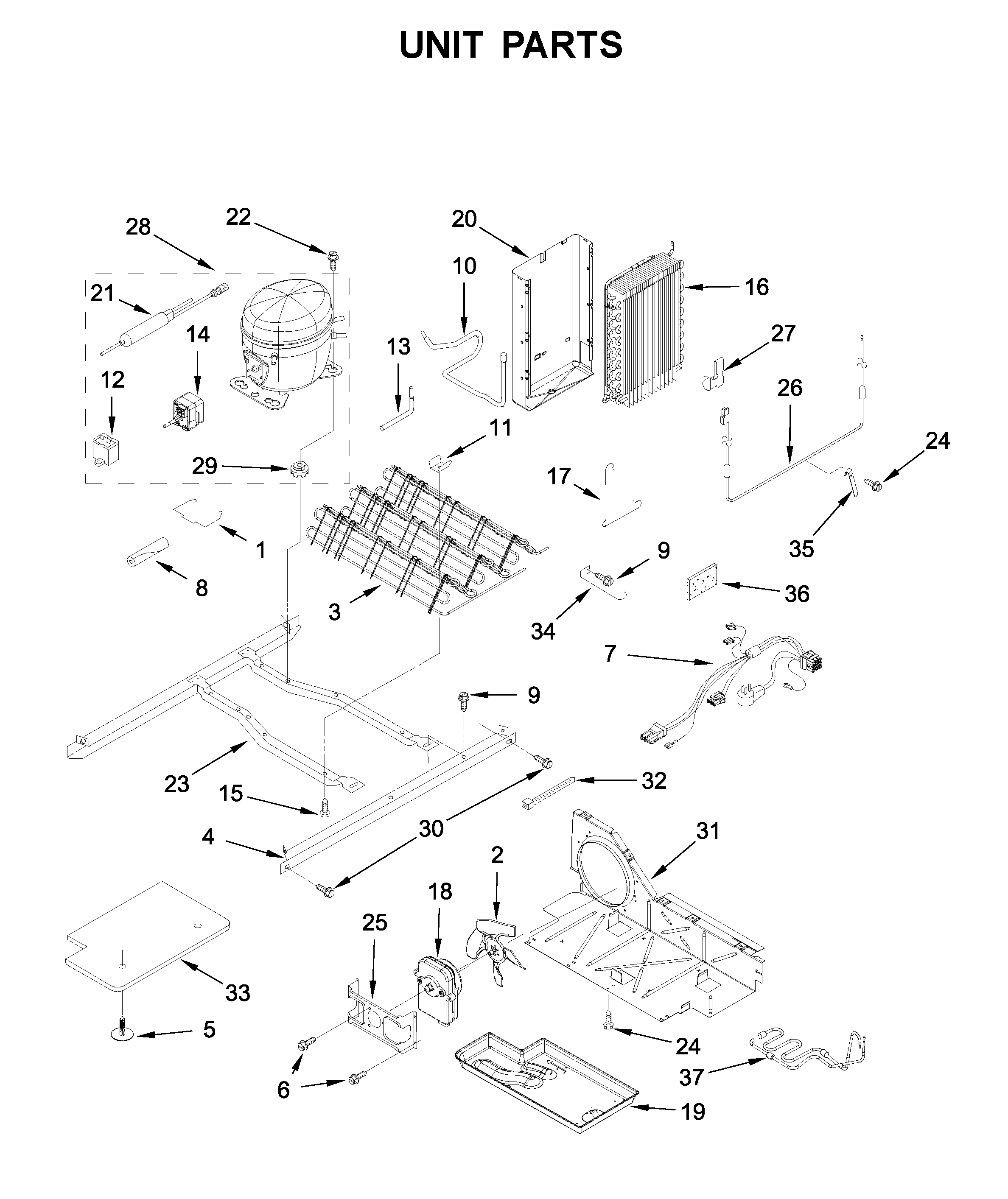

Unit parts diagram

Refrigerator start relay

Part #W10197428

Replaced by #WPW10197428

?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
BEST SELLER
$50.91 |
11% OFF Phone Price : $56.91
In Stock
Refrigerator Compressor W10253005
#28

Unit parts diagram

Refrigerator compressor

Part #W10253005

Replaced by #W10309988

?
Manufacturer substitution
This part replaces W10253005. Substitute parts can look different from the original.
BEST SELLER
$285.83 |
6% OFF Was : $304.56
In Stock
Refrigerator Run Capacitor W10350564
#12

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
Refrigerator Ice Maker Kit W10715708
#NI

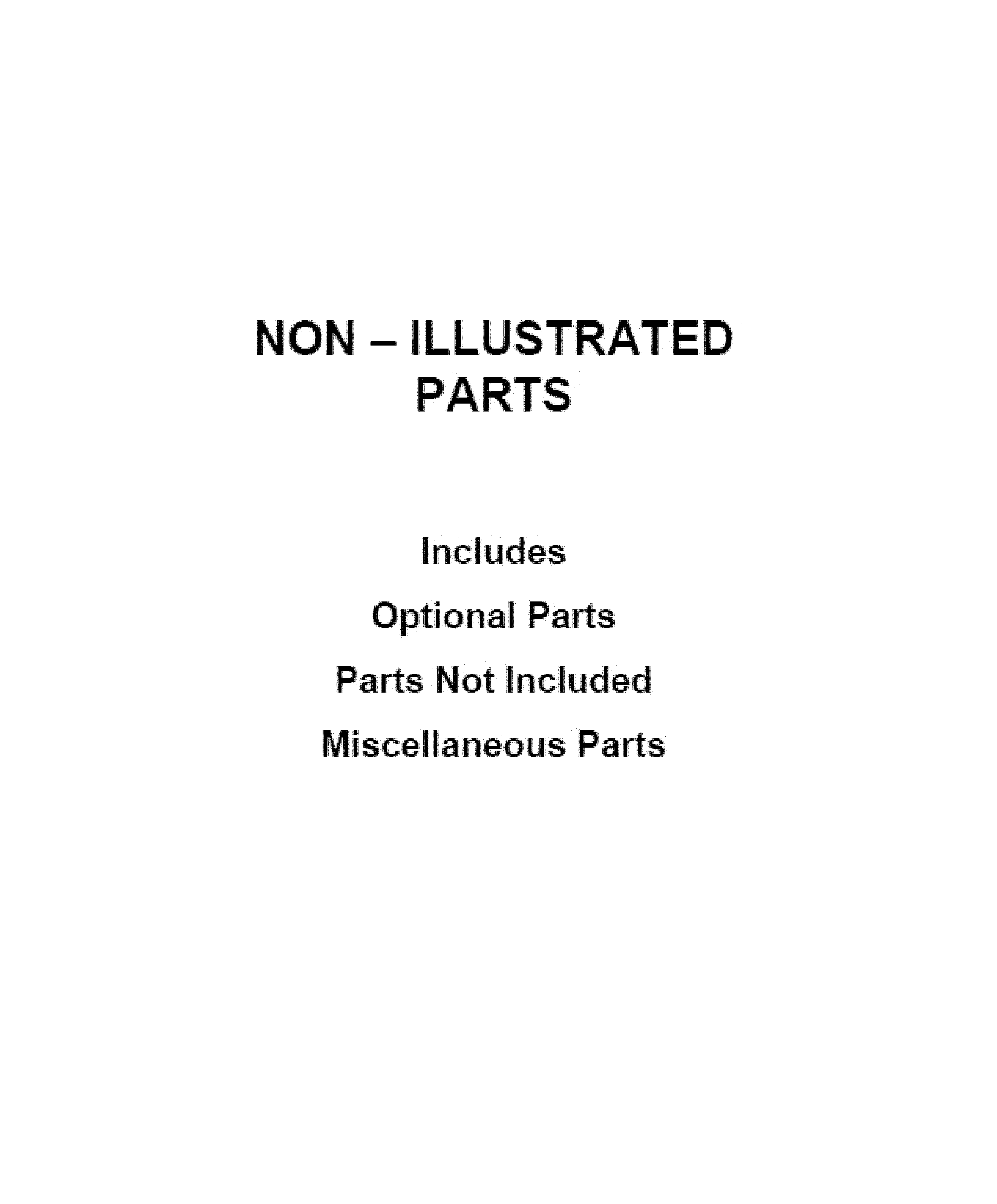

Optional parts diagram

Refrigerator ice maker kit

Part #W10715708

Replaced by #W11510803

?
Manufacturer substitution
This part replaces W10715708. Substitute parts can look different from the original.
BEST SELLER
$108.60 |
10% OFF Phone Price : $120.60
In Stock
Refrigerator Evaporator Fan Motor Wire Harness And Thermal Fuse Assembly W11342162
#12

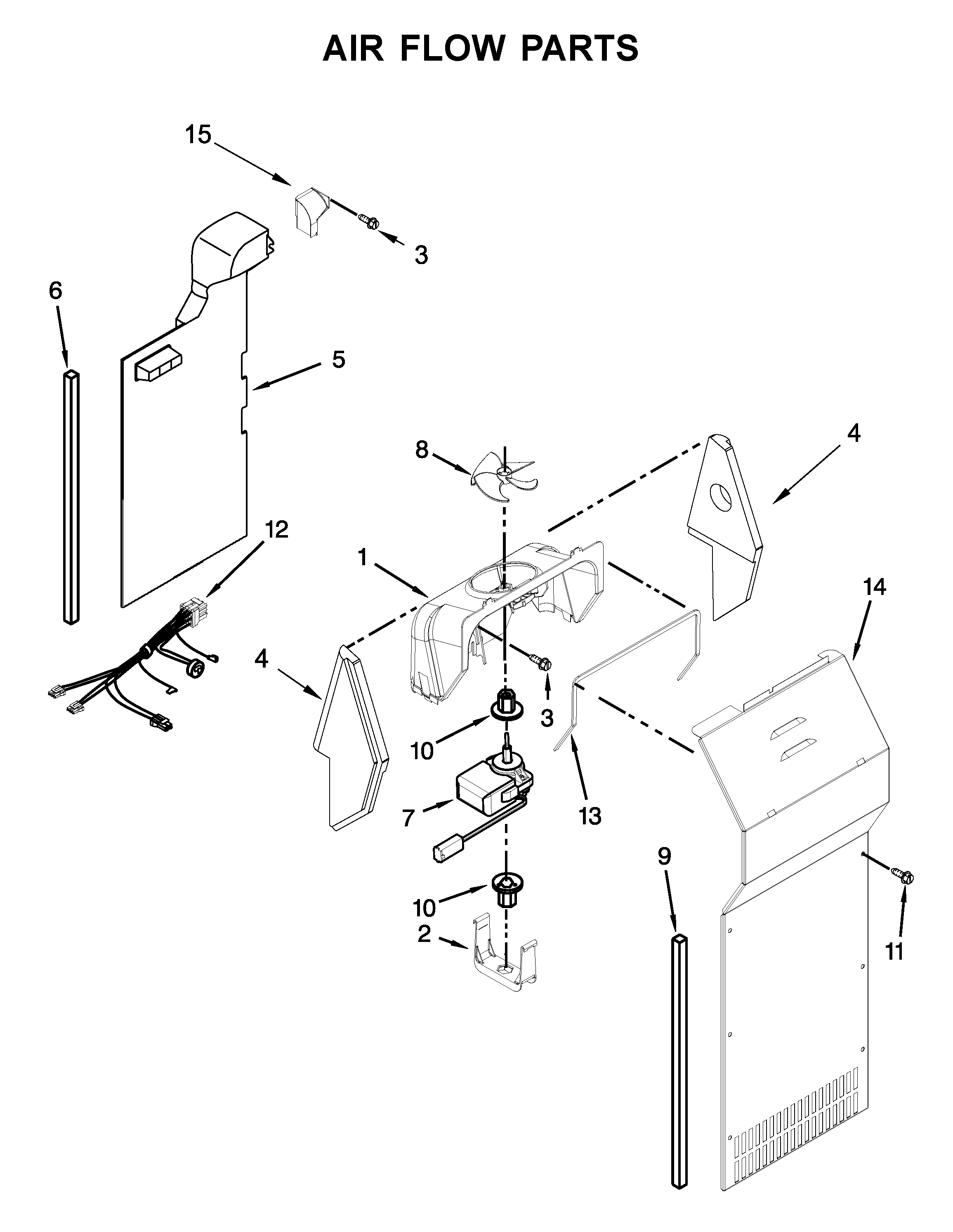

Air flow parts diagram

Refrigerator evaporator fan motor wire harness and thermal fuse assembly

Part #W11342162

Replaced by #W11545823

?
Manufacturer substitution
This part replaces W11342162. Substitute parts can look different from the original.
BEST SELLER
$55.94
In Stock
Refrigerator Door Shelf Compartment Cover 2256101
#2

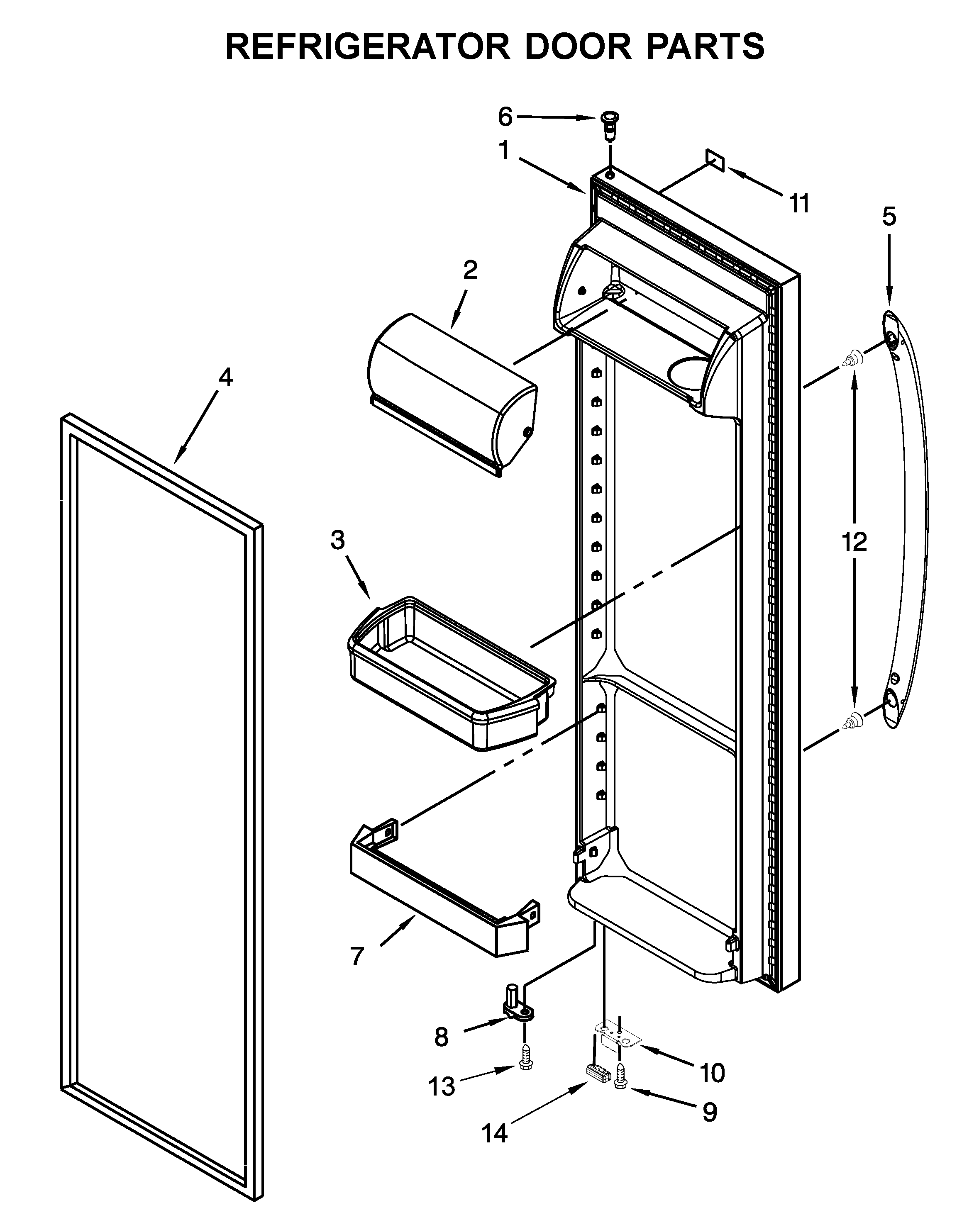

Refrigerator door parts diagram

Refrigerator door shelf compartment cover

Part #2256101

Replaced by #WP2256101

?
Manufacturer substitution
This part replaces 2256101. Substitute parts can look different from the original.
BEST SELLER
$48.41 |
11% OFF Phone Price : $54.41
In Stock
Refrigerator Crisper Pan W11046494
#2

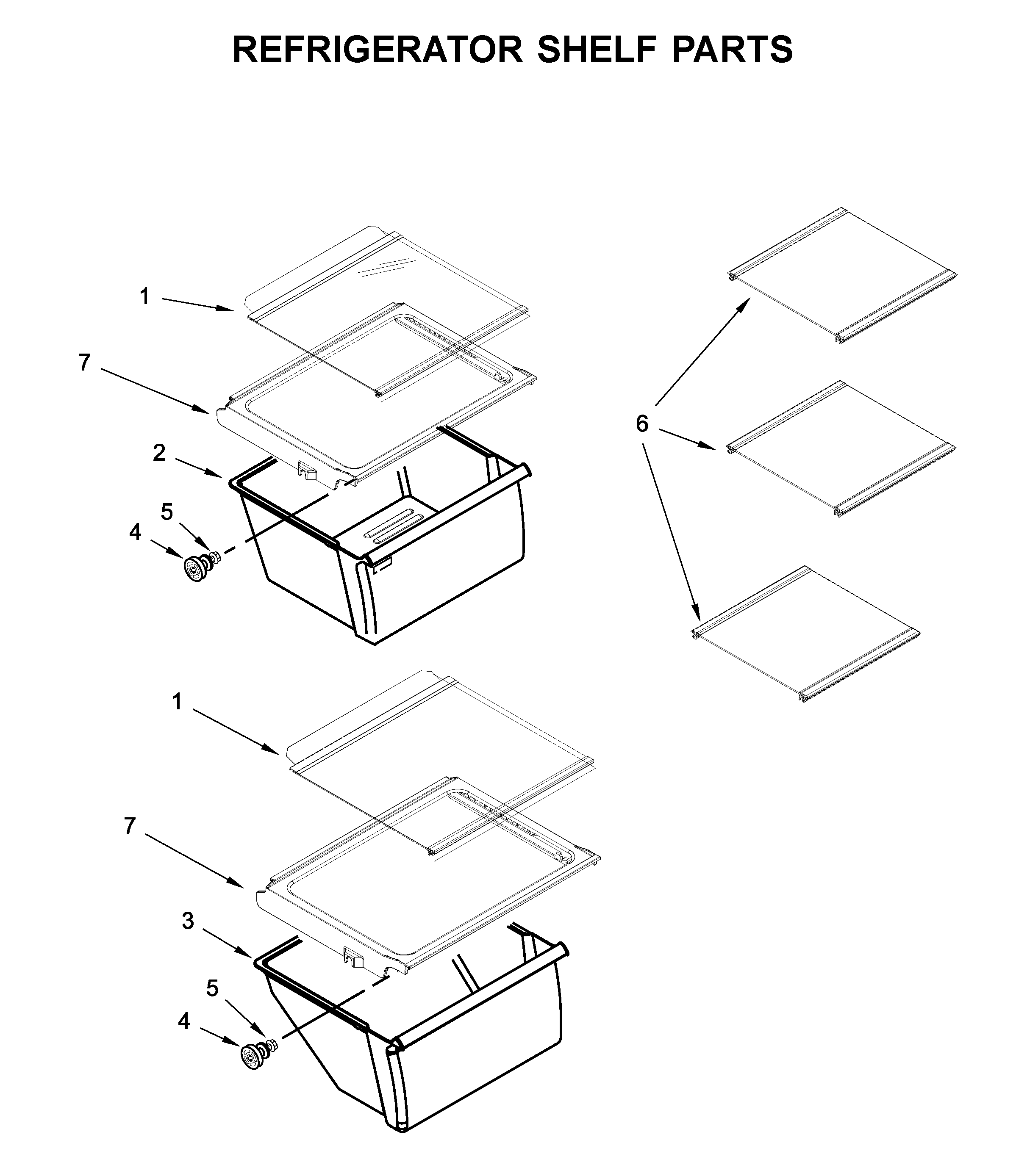

Refrigerator shelf parts diagram

Refrigerator crisper pan

Part #W11046494

Replaced by #W11162443

?
Manufacturer substitution
This part replaces W11046494. Substitute parts can look different from the original.
BEST SELLER
$95.39 |
11% OFF Phone Price : $107.39
In Stock
