Model # MER5875RAS Official Maytag electric freestanding range

Here are the diagrams and repair parts for Official Maytag MER5875RAS electric freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

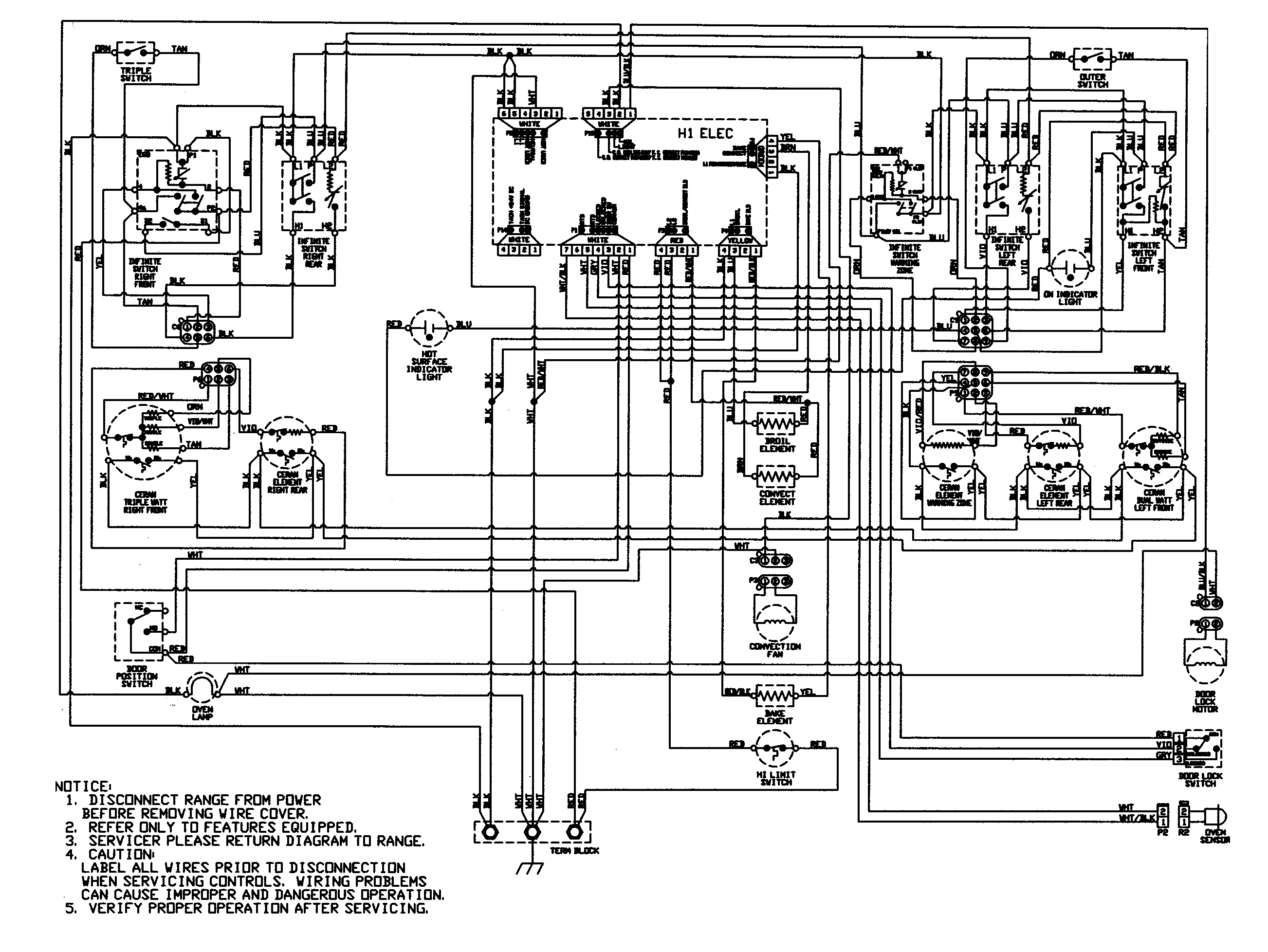

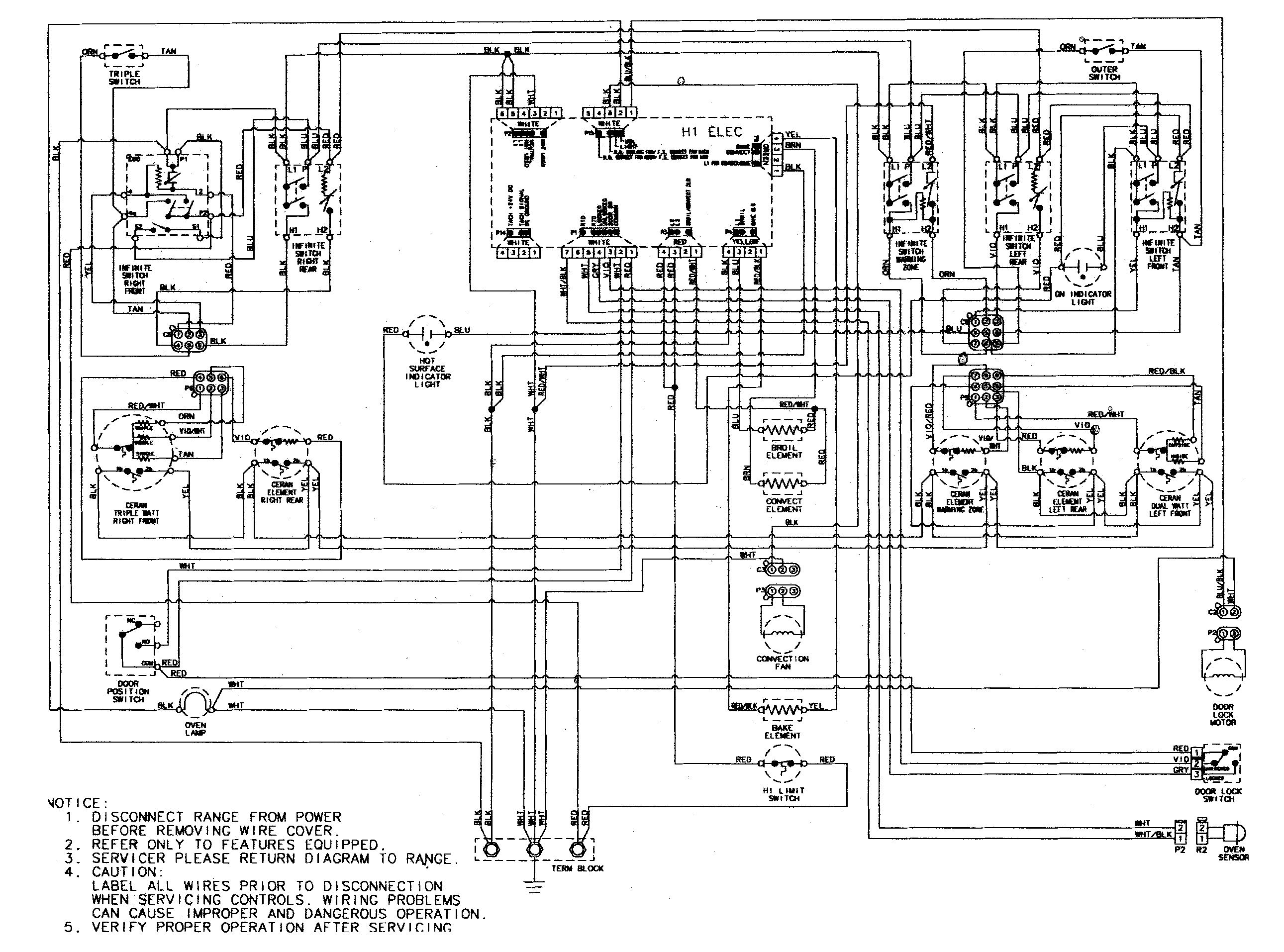

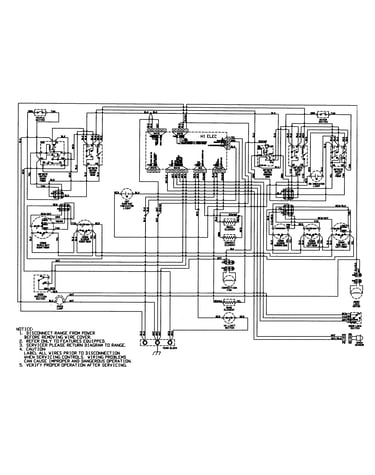

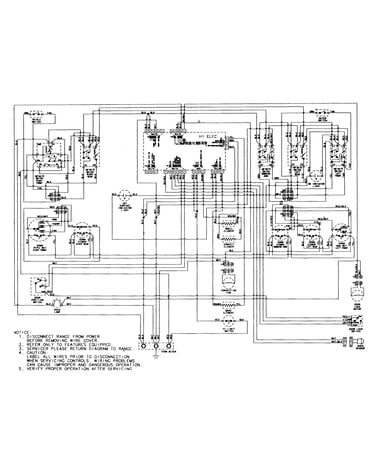

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Oven Bulb 7407P103-60
#5

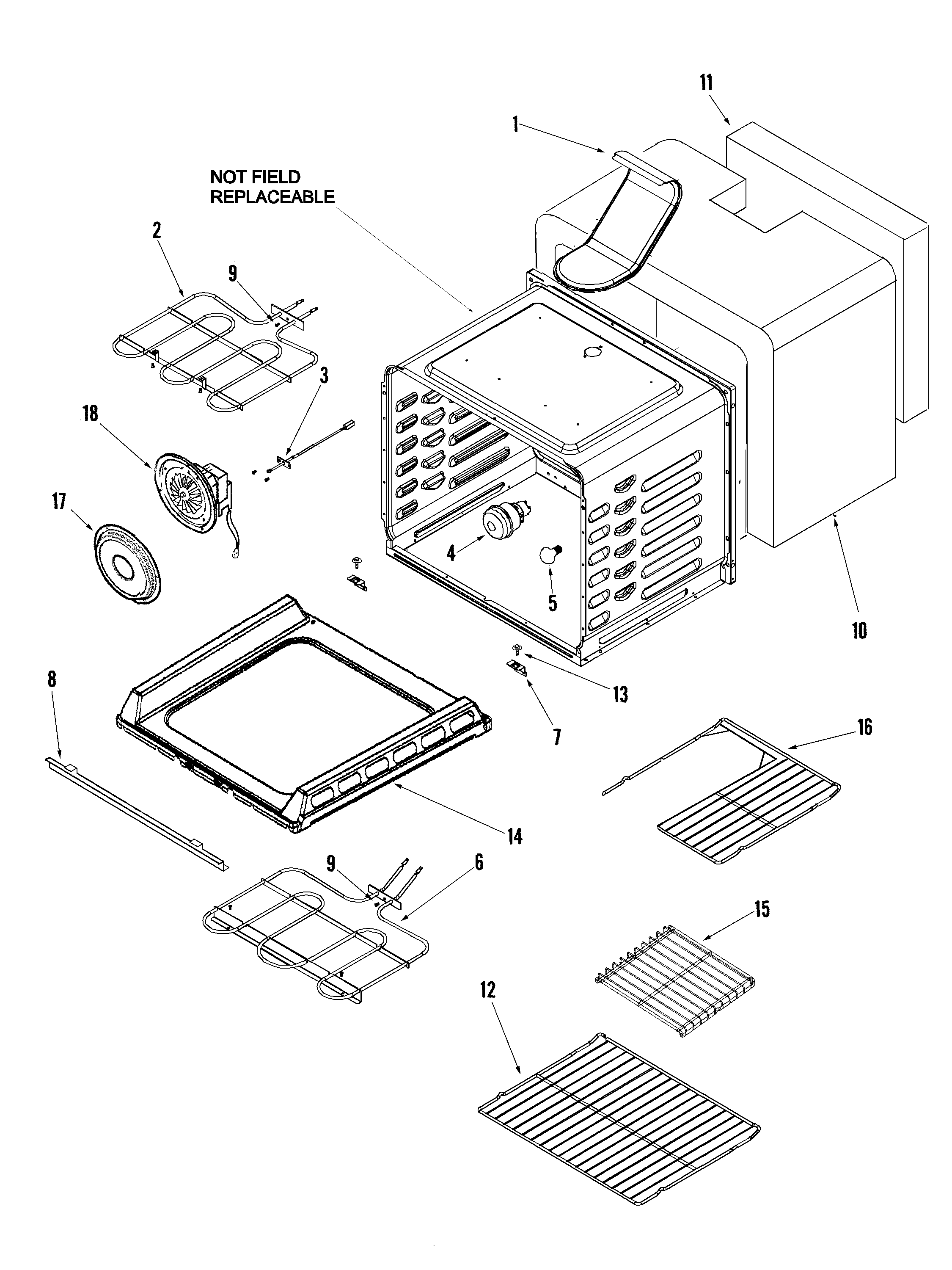

Cavity diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 7401P039-60
#26

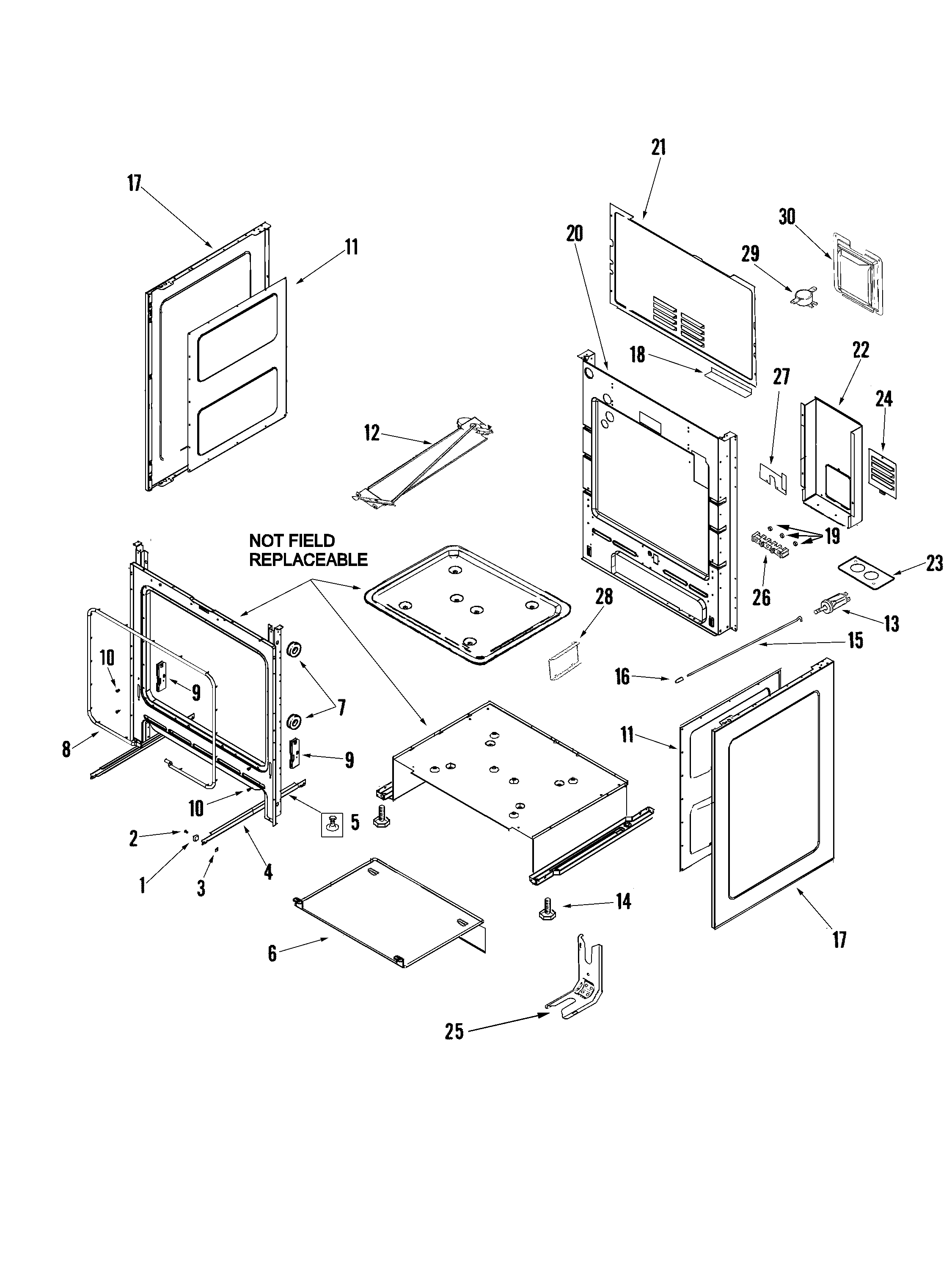

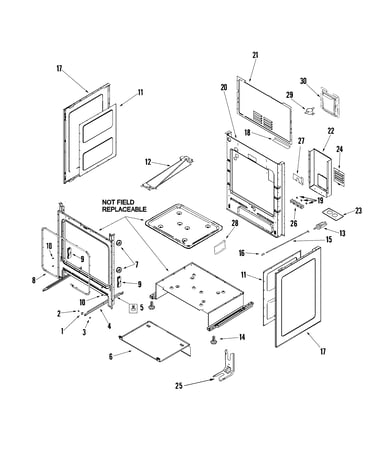

Cabinet diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Element (120 74008568
#18

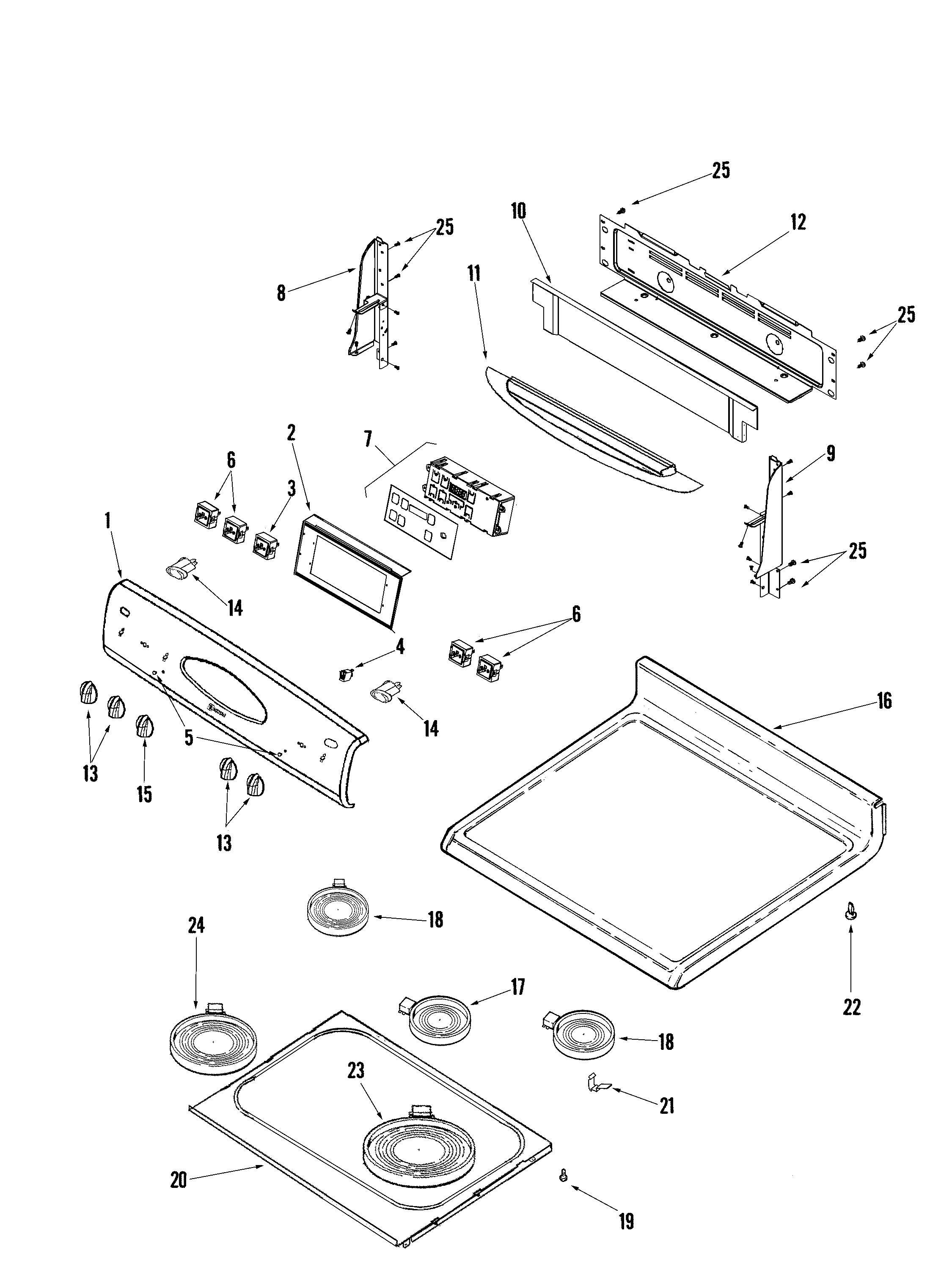

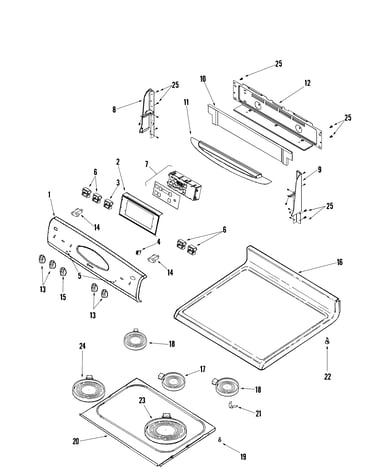

Control panel/top assembly diagram

Element (120

Part #74008568

Replaced by #W10823711

?
Manufacturer substitution
This part replaces 74008568. Substitute parts can look different from the original.
BEST SELLER
$148.63 |
7% OFF Phone Price : $160.63
In Stock
Element 74008897
#24

Control panel/top assembly diagram

Element

Part #74008897

Replaced by #W10823692

?
Manufacturer substitution
This part replaces 74008897. Substitute parts can look different from the original.
BEST SELLER
$121.65 |
9% OFF Phone Price : $133.65
In Stock
Range Surface Element Control Switch 74010824
#6

Control panel/top assembly diagram

Range surface element control switch

Part #74010824

The manufacturer no longer makes this part, and there's no substitute part

Range Bake Element 74011117
#6

Cavity diagram

Range bake element

Part #74011117

Replaced by #WPW10276482

?
Manufacturer substitution
This part replaces 74011117. Substitute parts can look different from the original.
$119.22 |
9% OFF Phone Price : $131.22
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#4

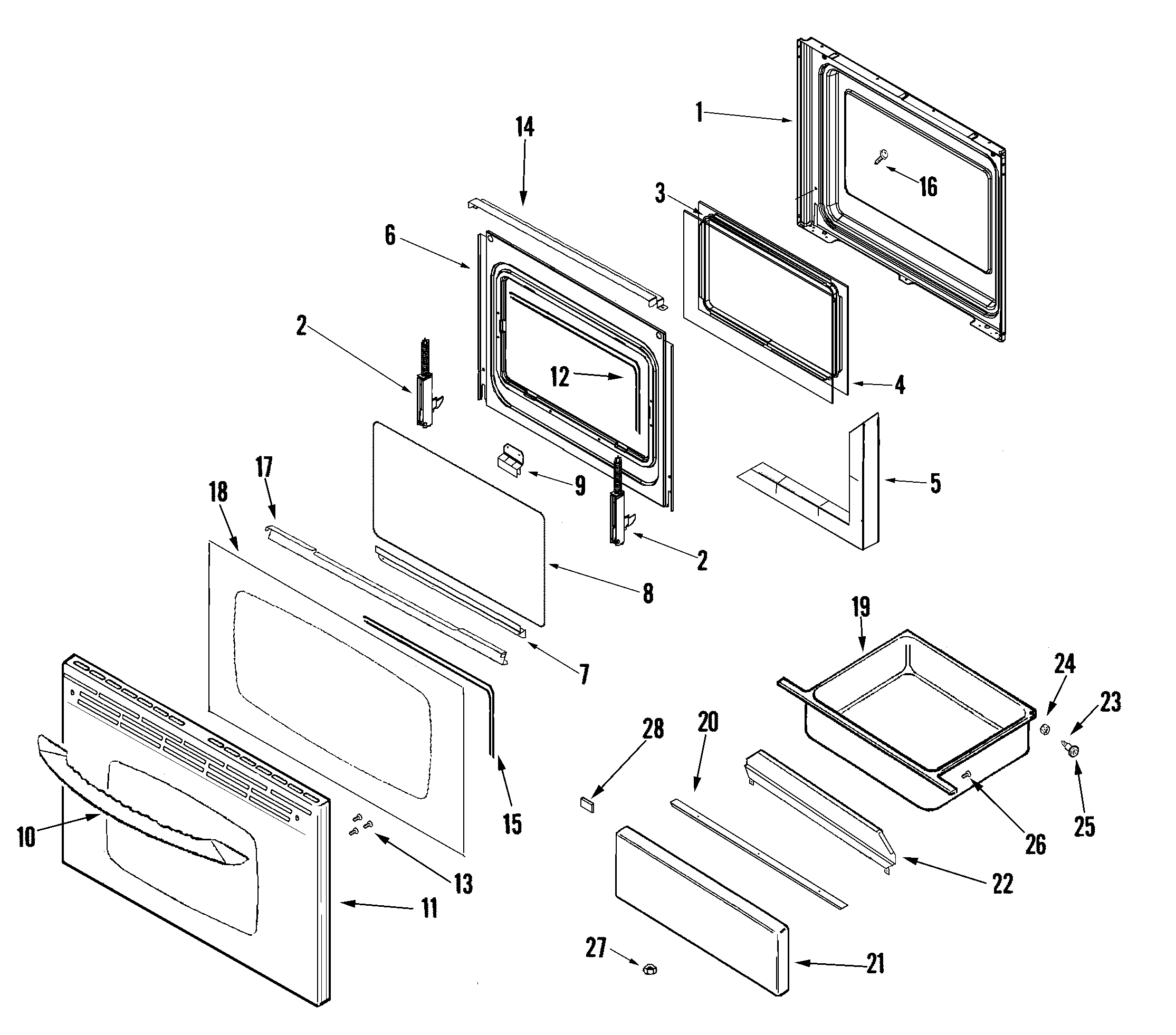

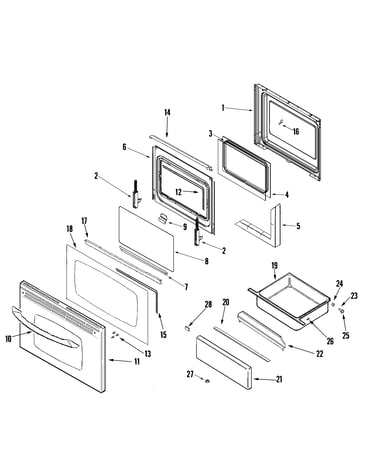

Door/drawer (stl) diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Screw 74001530
Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Range Surface Element Infinite Switch 74008940
#6A

Control panel/top assembly diagram

Range surface element infinite switch

Part #74008940

Replaced by #WP74008940

?
Manufacturer substitution
This part replaces 74008940. Substitute parts can look different from the original.
$71.56 |
8% OFF Phone Price : $77.56
In Stock
Screw 7101P112-60
#10

Cabinet diagram

Screw

Part #7101P112-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P112-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
