Model # 153330230 Official Kenmore gas water heater
Here are the diagrams and repair parts for Official Kenmore 153330230 gas water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for153330230 Water Heaters
- #10

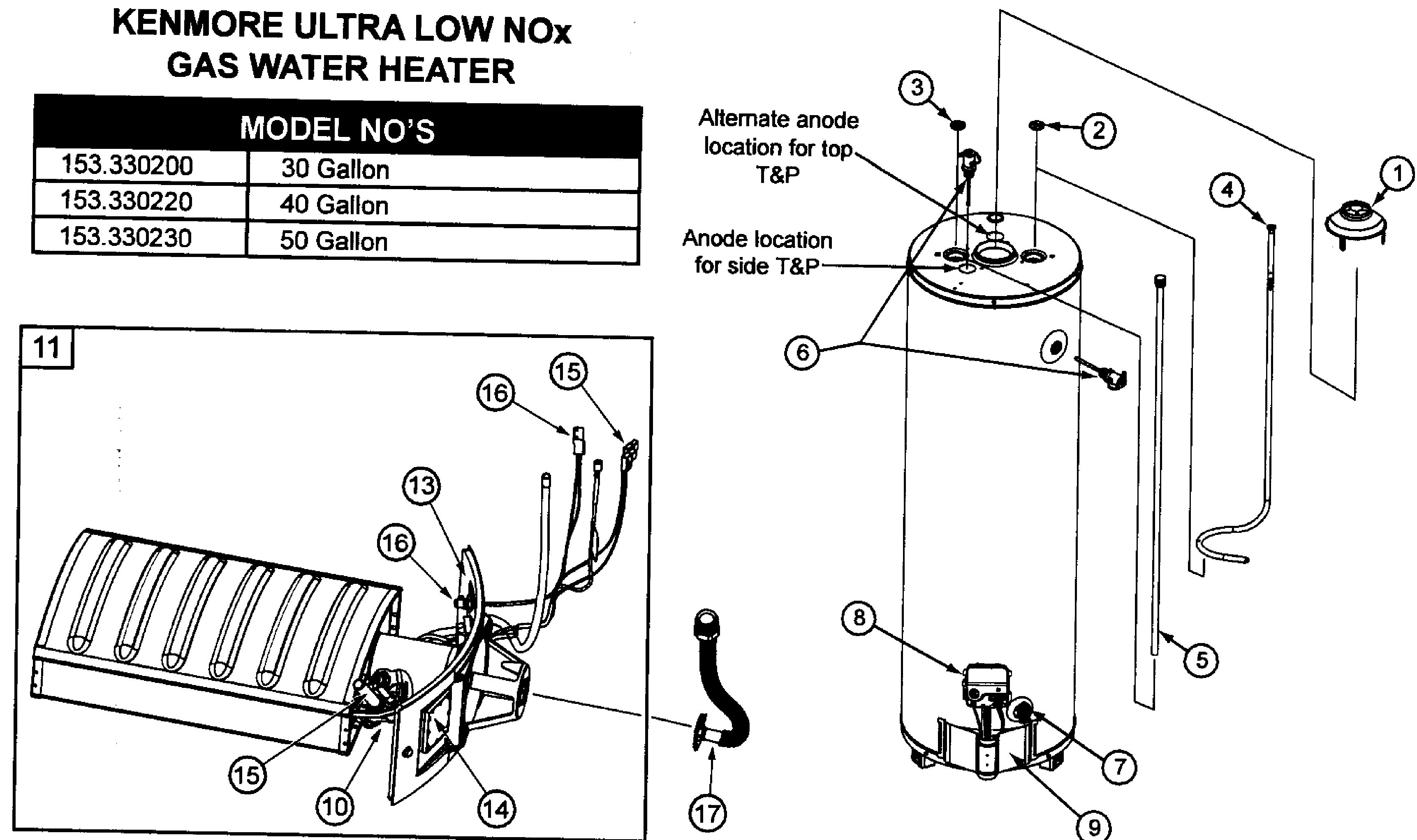

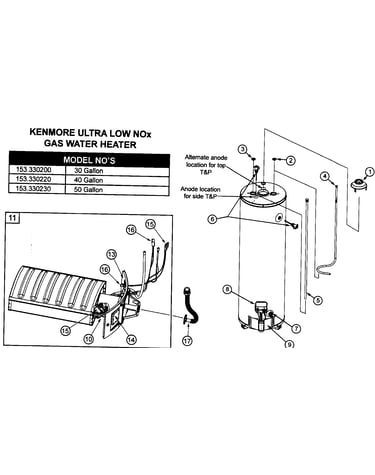

Heater assy diagram
Water heater pilot assemblyPart #9007633
Replaced by #100093972
?Manufacturer substitutionThis part replaces 9007633. Substitute parts can look different from the original.$198.61 |6% OFF Phone Price : $210.61Back Order - #1
Heater assy diagram
Draft hoodPart #185917-001
Replaced by #100111362
?Manufacturer substitutionThis part replaces 185917-001. Substitute parts can look different from the original.$66.62In Stock - #7
Heater assy diagram
Water heater drain valvePart #9000254
Replaced by #100108361
?Manufacturer substitutionThis part replaces 9000254. Substitute parts can look different from the original.$26.00Back Order - #NI
Heater assy diagram
Water heater manifold wire connectorPart #9006449
Replaced by #100093865
?Manufacturer substitutionThis part replaces 9006449. Substitute parts can look different from the original.$53.73In Stock - #13
Heater assy diagram
Water heater manifold door gasketPart #9006141
Replaced by #100112699
?Manufacturer substitutionThis part replaces 9006141. Substitute parts can look different from the original.$63.66 |9% OFF Phone Price : $69.66In Stock - Nipple
Part #9003915
Replaced by #100108409
?Manufacturer substitutionThis part replaces 9003915. Substitute parts can look different from the original.$38.69In Stock - #5
Heater assy diagram
Anode rodPart #9003892
Replaced by #100109594
?Manufacturer substitutionThis part replaces 9003892. Substitute parts can look different from the original.$85.48 |7% OFF Phone Price : $91.48Back Order - #6
Heater assy diagram
Water heater temperature and pressure relief valvePart #9000071
Replaced by #9000071015
?Manufacturer substitutionThis part replaces 9000071. Substitute parts can look different from the original.$14.77 |12% OFF Phone Price : $16.77In Stock - #8
Heater assy diagram
Water heater gas control valvePart #9007631
The manufacturer no longer makes this part, and there's no substitute part
- #17
Heater assy diagram
Water heater burner flex tubePart #9006445
The manufacturer no longer makes this part, and there's no substitute part
