Whirlpool
Chest Freezer

Model # TCF1010FW06 Official Whirlpool freezer

Here are the diagrams and repair parts for Official Whirlpool TCF1010FW06 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Drier Tube 4356675
#3

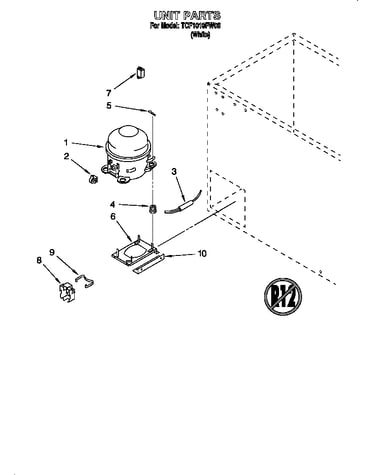

Unit diagram

Drier tube

Part #4356675

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4356675. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Thermostat 4356670
#6

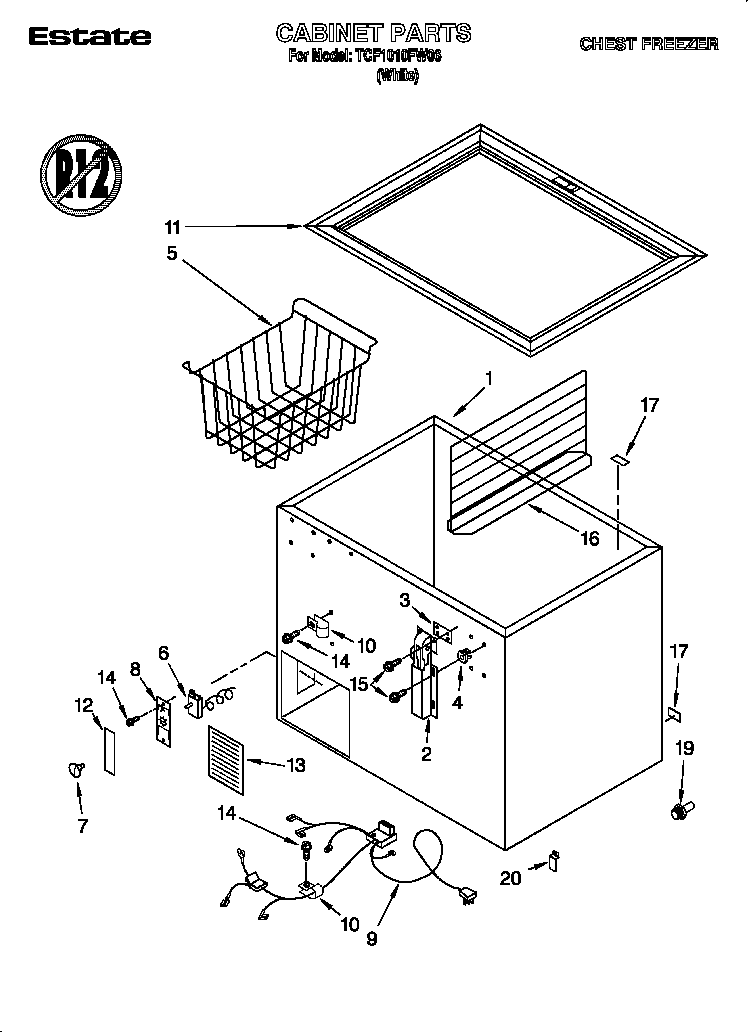

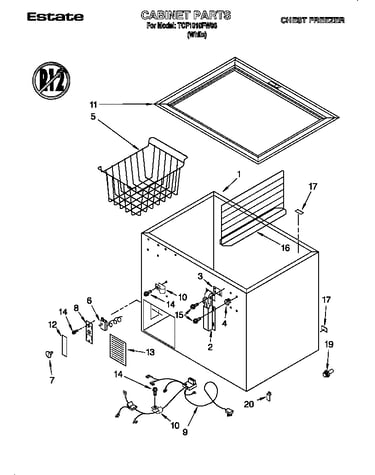

Cabinet diagram

Thermostat

Part #4356670

Replaced by #WP4-35940-001

?
Manufacturer substitution
This part replaces 4356670. Substitute parts can look different from the original.
$118.93 |
9% OFF Phone Price : $130.93
In Stock
Baskt-wire 4356354
#5

Cabinet diagram

Baskt-wire

Part #4356354

Replaced by #8210434A

?
Manufacturer substitution
This part replaces 4356354. Substitute parts can look different from the original.
$35.36 |
15% OFF Phone Price : $41.36
In Stock
Paint (almond) 350956

#NI

All parts diagram

Paint (almond)

Part #350956

Replaced by #350956

?
Manufacturer substitution
This part replaces 350956. Substitute parts can look different from the original.
This item is not returnable
$20.89 |
22% OFF Phone Price : $26.89
In Stock
Panel 4356622
#13

Cabinet diagram

Panel

Part #4356622

$32.87
In Stock
Screw 4356491
#15

Cabinet diagram

Screw

Part #4356491

$11.59
In Stock
Grommet 4356321
#4

Cabinet diagram

Grommet

Part #4356321

$15.29 |
12% OFF Phone Price : $17.29
In Stock
Door Hinge 4356490
#2

Cabinet diagram

Door hinge

Part #4356490

$117.82
In Stock
Freezer Door Handle Mounting Bolt 4356306
Freezer door handle mounting bolt

Part #4356306

Replaced by #3-24059-024

?
Manufacturer substitution
This part replaces 4356306. Substitute parts can look different from the original.
$9.79
In Stock
Screw 4356583
#14

Cabinet diagram

Screw

Part #4356583

Replaced by #3-24004-049

?
Manufacturer substitution
This part replaces 4356583. Substitute parts can look different from the original.
This item is not returnable
$7.29
In Stock
