Model # NE58F9710WS/AA-01 Official Samsung electric slide-in range

Here are the diagrams and repair parts for Official Samsung NE58F9710WS-AA-01 electric slide-in range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

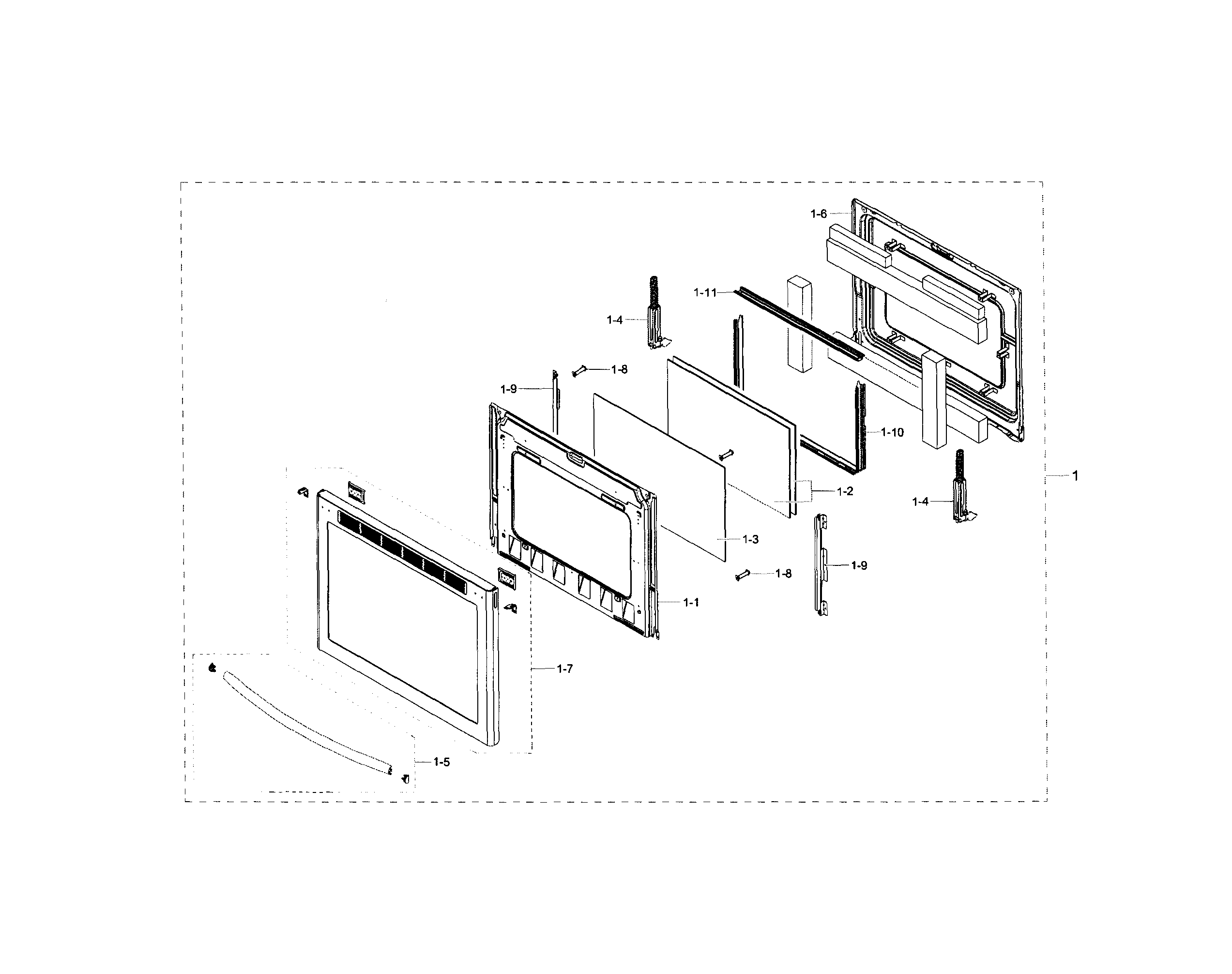

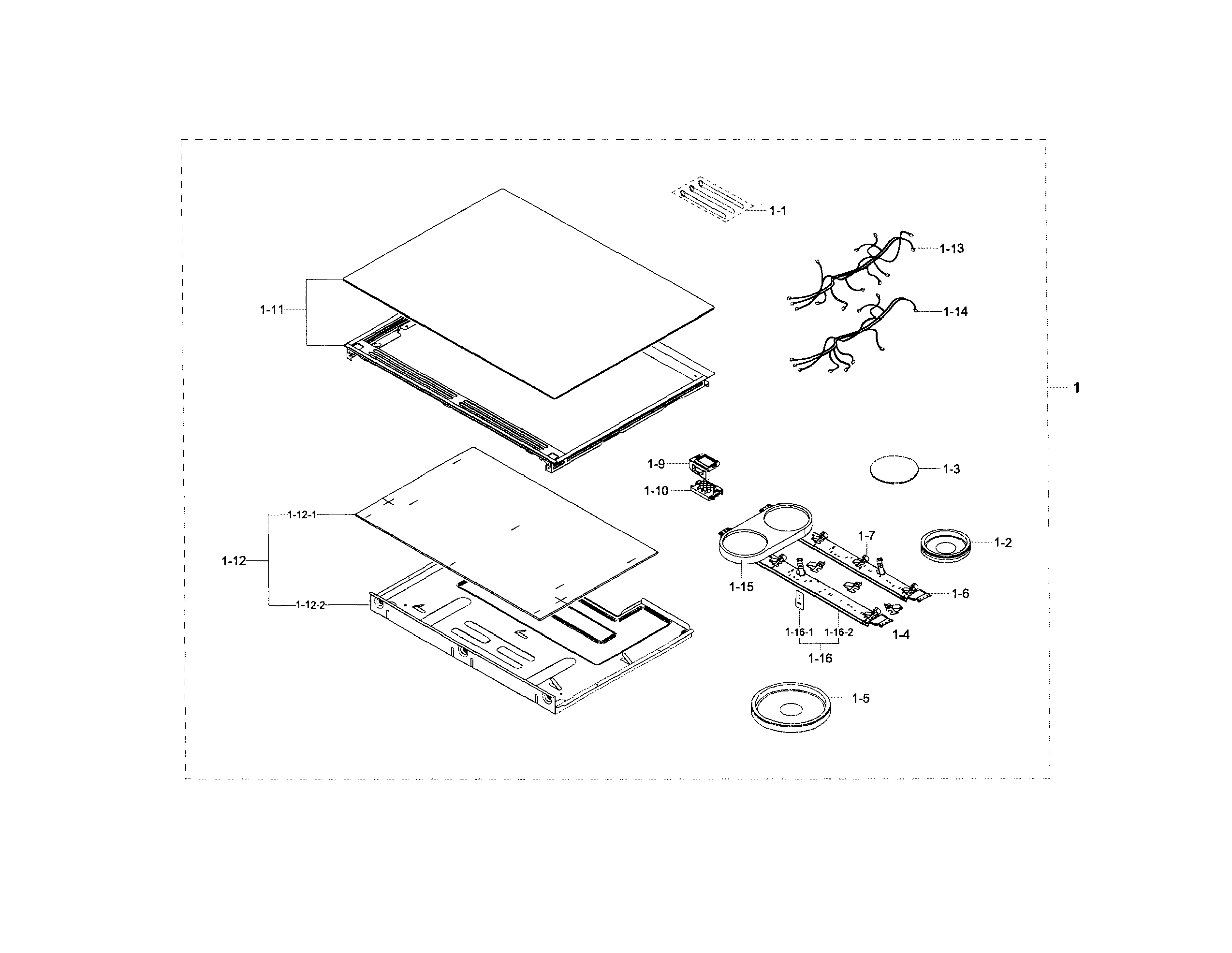

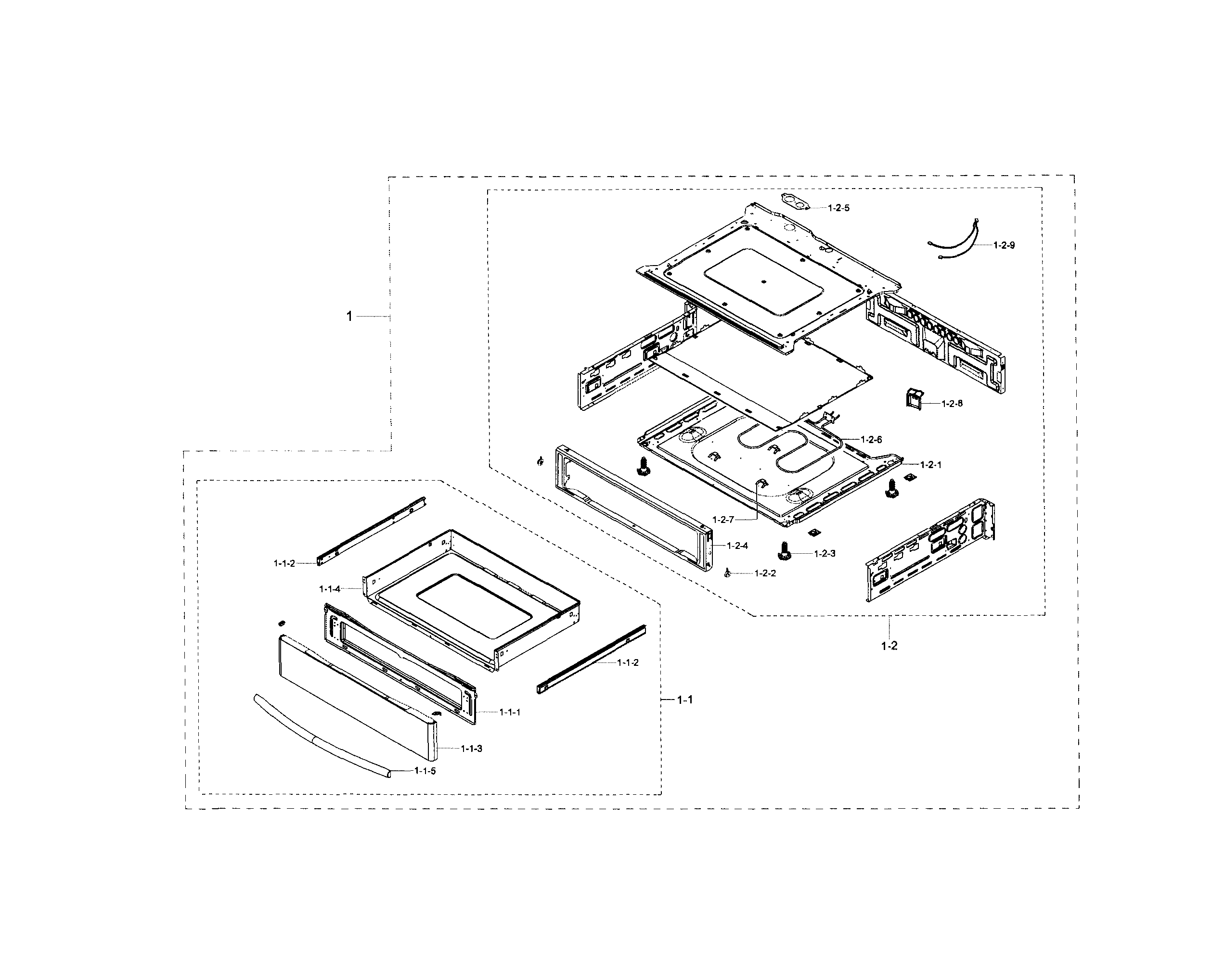

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Range Surface Element Control Switch Dg44-01006a DG44-01006A
#1-2

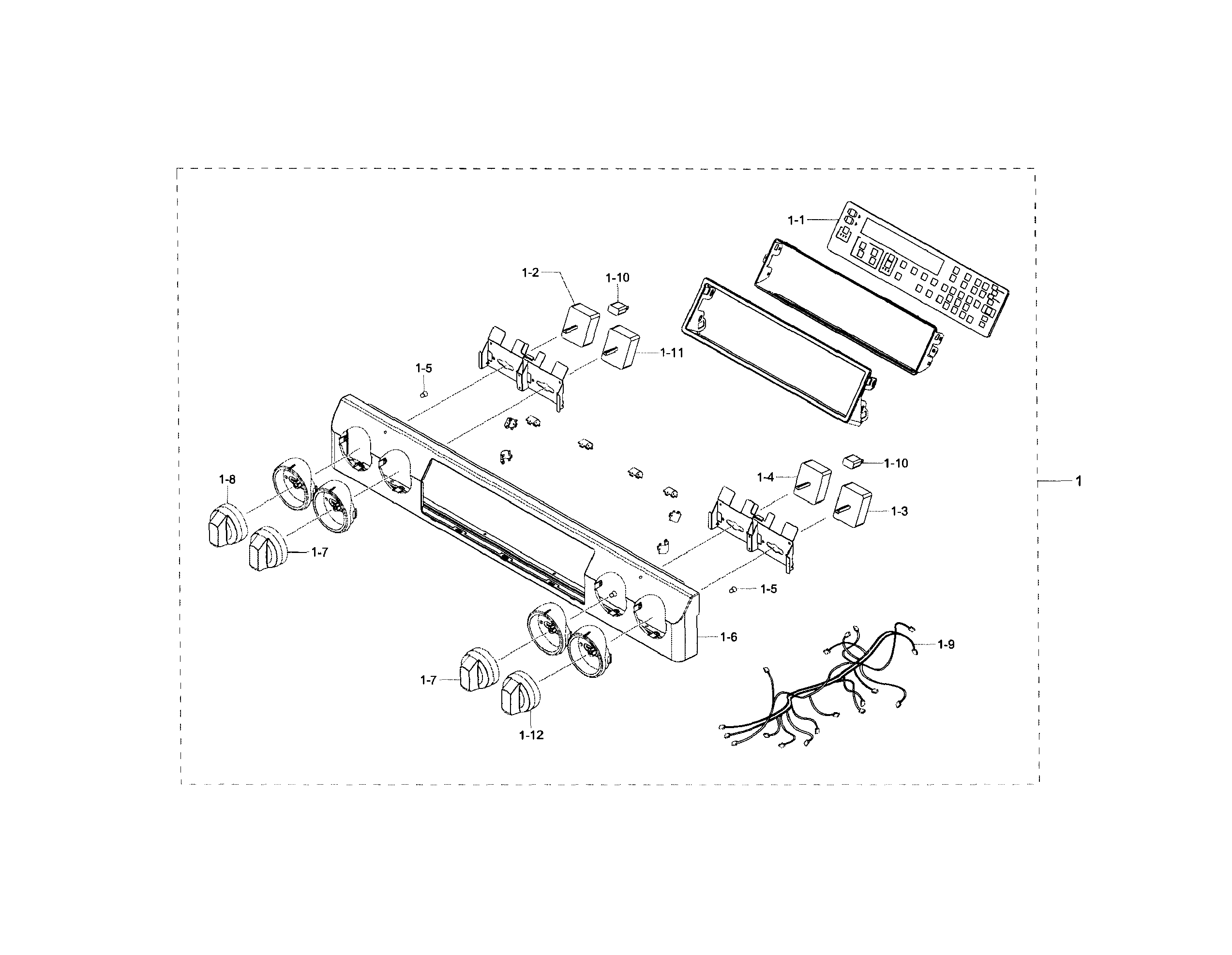

Control panel diagram

Range surface element control switch dg44-01006a

Part #DG44-01006A

BEST SELLER
$117.18 |
9% OFF Phone Price : $129.18
In Stock
Range Surface Element Control Switch DG44-01007A
#1-3

Control panel diagram

Range surface element control switch

Part #DG44-01007A

Replaced by #DG44-01007B

?
Manufacturer substitution
This part replaces DG44-01007A. Substitute parts can look different from the original.
BEST SELLER
$129.13 |
9% OFF Phone Price : $141.13
Back Order
Regulator DG44-01005A
#1-11

Control panel diagram

Regulator

Part #DG44-01005A

Replaced by #DG44-01005B

?
Manufacturer substitution
This part replaces DG44-01005A. Substitute parts can look different from the original.
BEST SELLER
$125.89 |
9% OFF Phone Price : $137.89
In Stock
Range Surface Element Control Switch DG44-01009A
#1-4

Control panel diagram

Range surface element control switch

Part #DG44-01009A

BEST SELLER
$110.07 |
10% OFF Phone Price : $122.07
In Stock
Samsung Range Broil Element DG47-00058A
#6

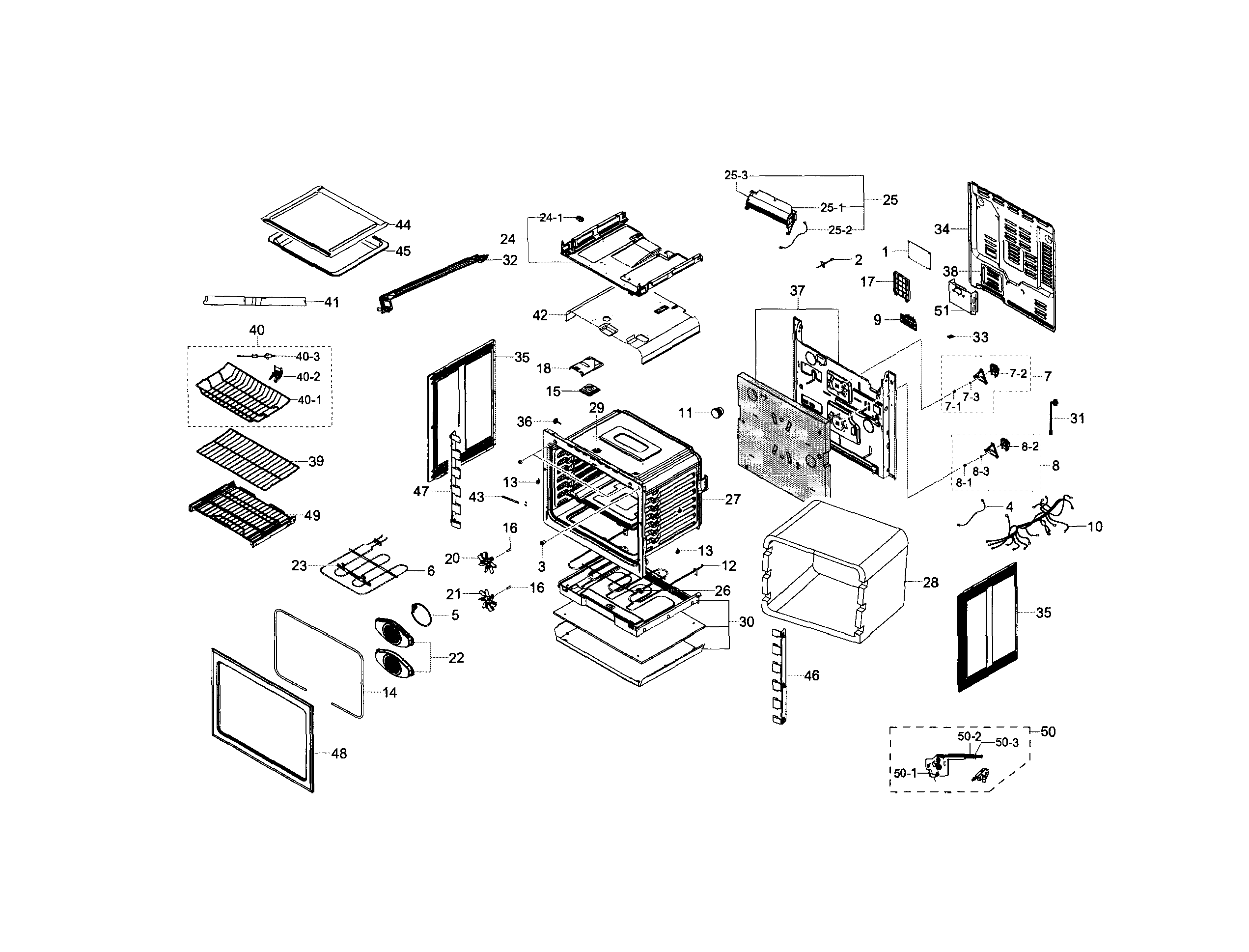

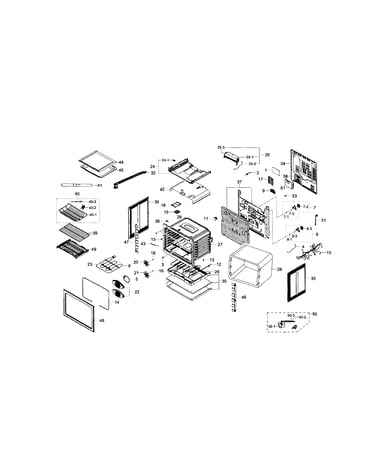

Main assy diagram

Samsung range broil element

Part #DG47-00058A

BEST SELLER
$144.31 |
8% OFF Phone Price : $156.31
In Stock
Range Oven Temperature Sensor DG32-00004C
#2

Main assy diagram

Range oven temperature sensor

Part #DG32-00004C

BEST SELLER
$107.87 |
10% OFF Phone Price : $119.87
In Stock
Range Terminal Block (replaces Dg65-00003a) DG96-00173A
#9

Main assy diagram

Range terminal block (replaces dg65-00003a)

Part #DG96-00173A

BEST SELLER
$59.23 |
9% OFF Phone Price : $65.23
In Stock
Range Display Board DE96-01027A
#1-1

Control panel diagram

Range display board

Part #DE96-01027A

BEST SELLER
$304.24 |
$12.00 OFF Phone Price : $316.24
In Stock
Range Oven Relay Control Board DE92-02439G
#1

Main assy diagram

Range oven relay control board

Part #DE92-02439G

BEST SELLER
This item is not returnable
$196.28 |
6% OFF Phone Price : $208.28
In Stock
Range Convection Reverse Fan Motor DG96-00110B
#8

Main assy diagram

Range convection reverse fan motor

Part #DG96-00110B

BEST SELLER
$100.39 |
11% OFF Phone Price : $112.39
In Stock
