Craftsman
Gas Walk-Behind Mower

Model # 917376583 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376583 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

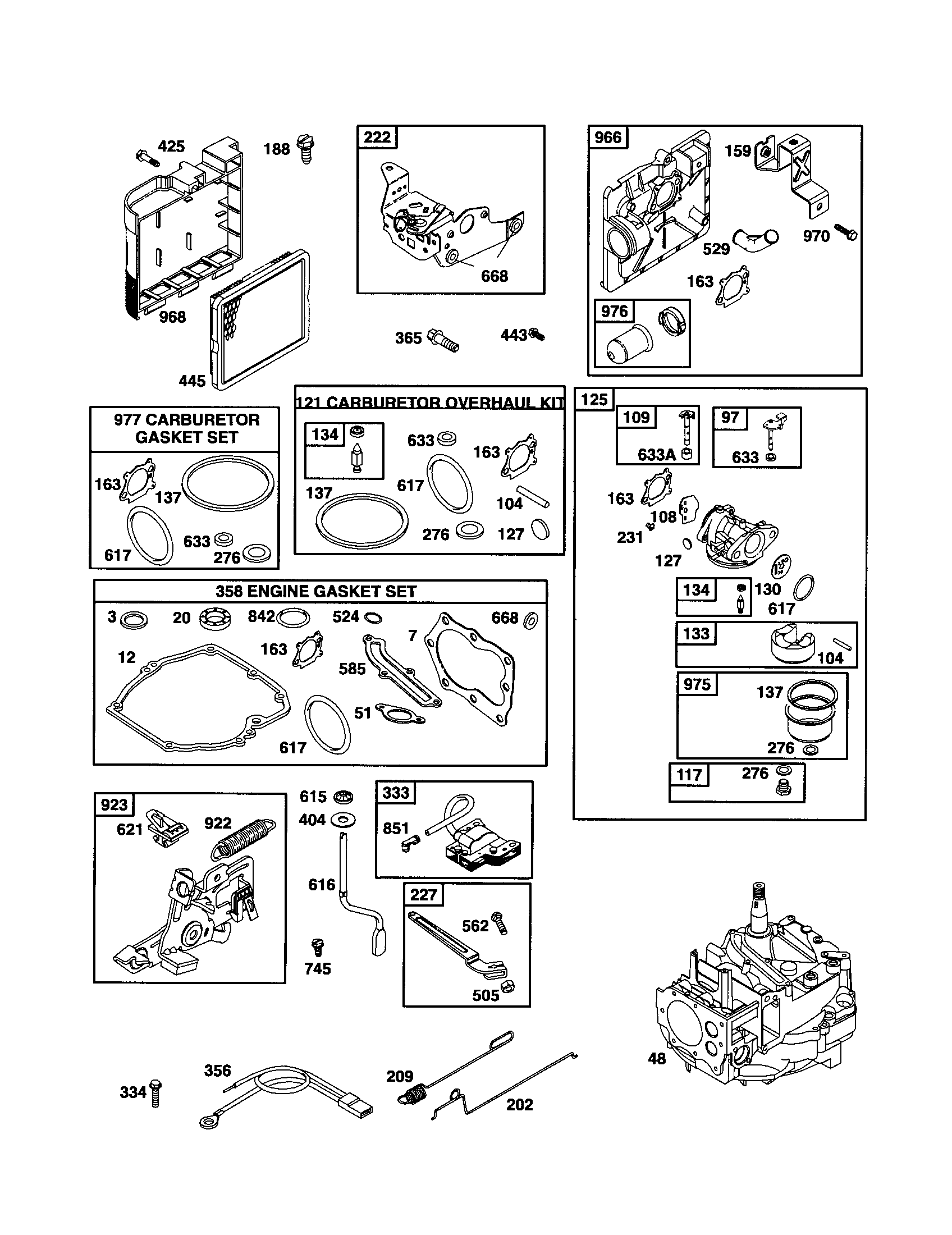

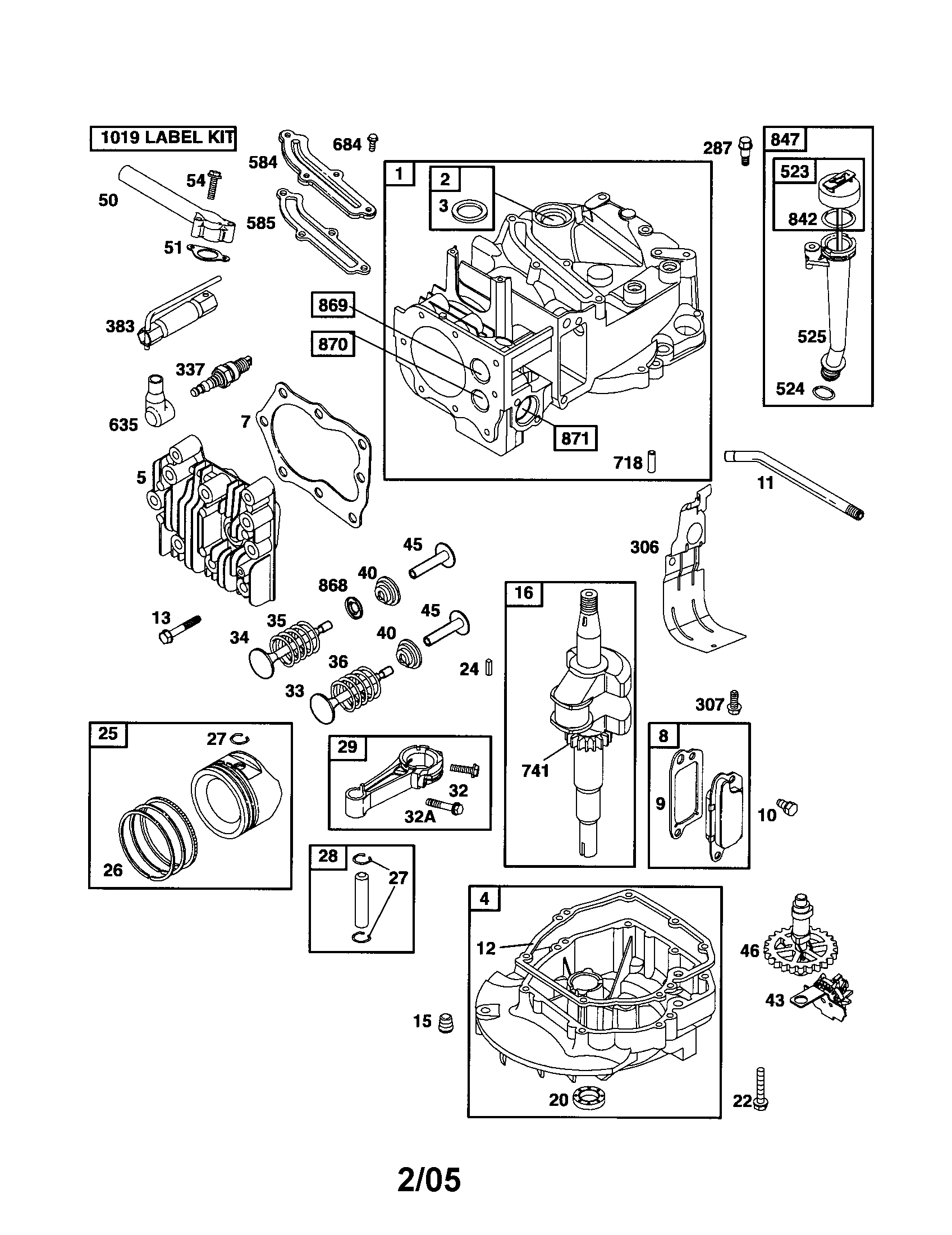

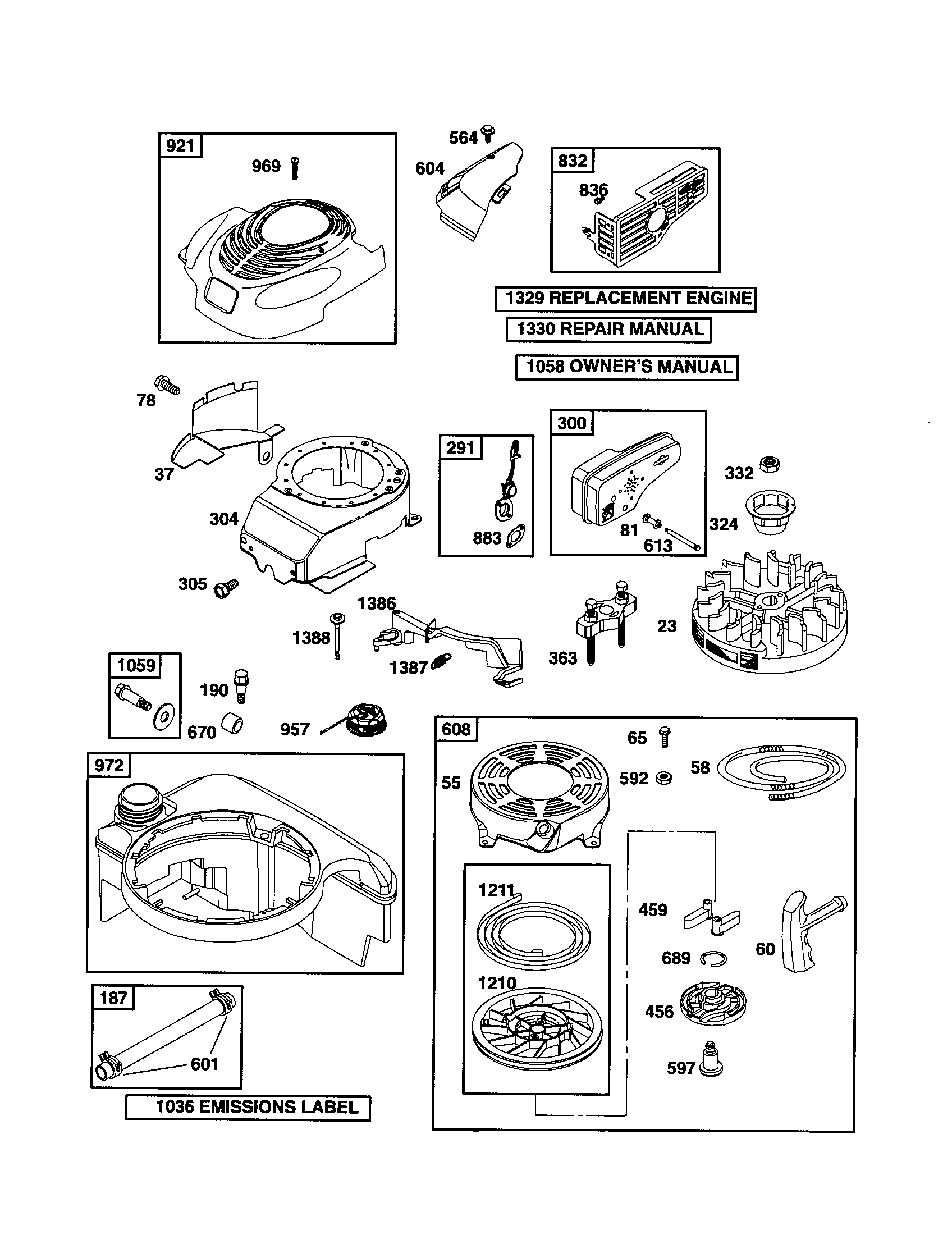

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 275 parts  |
Lawn Mower Drive Wheel 194231X427
#11

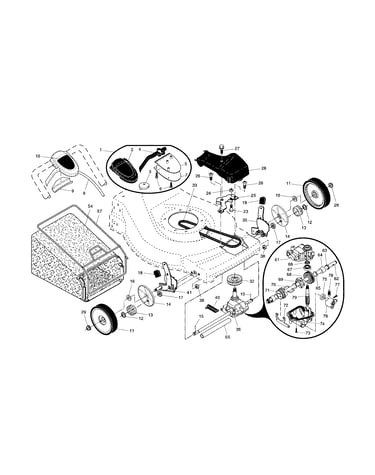

Wheels/tires/bag diagram

Lawn mower drive wheel

Part #194231X427

Replaced by #532403111

?
Manufacturer substitution
This part replaces 194231X427. Substitute parts can look different from the original.
BEST SELLER
$10.40 |
16% OFF Phone Price : $12.40
In Stock
Hndl.knob.bl 189713X428
#6

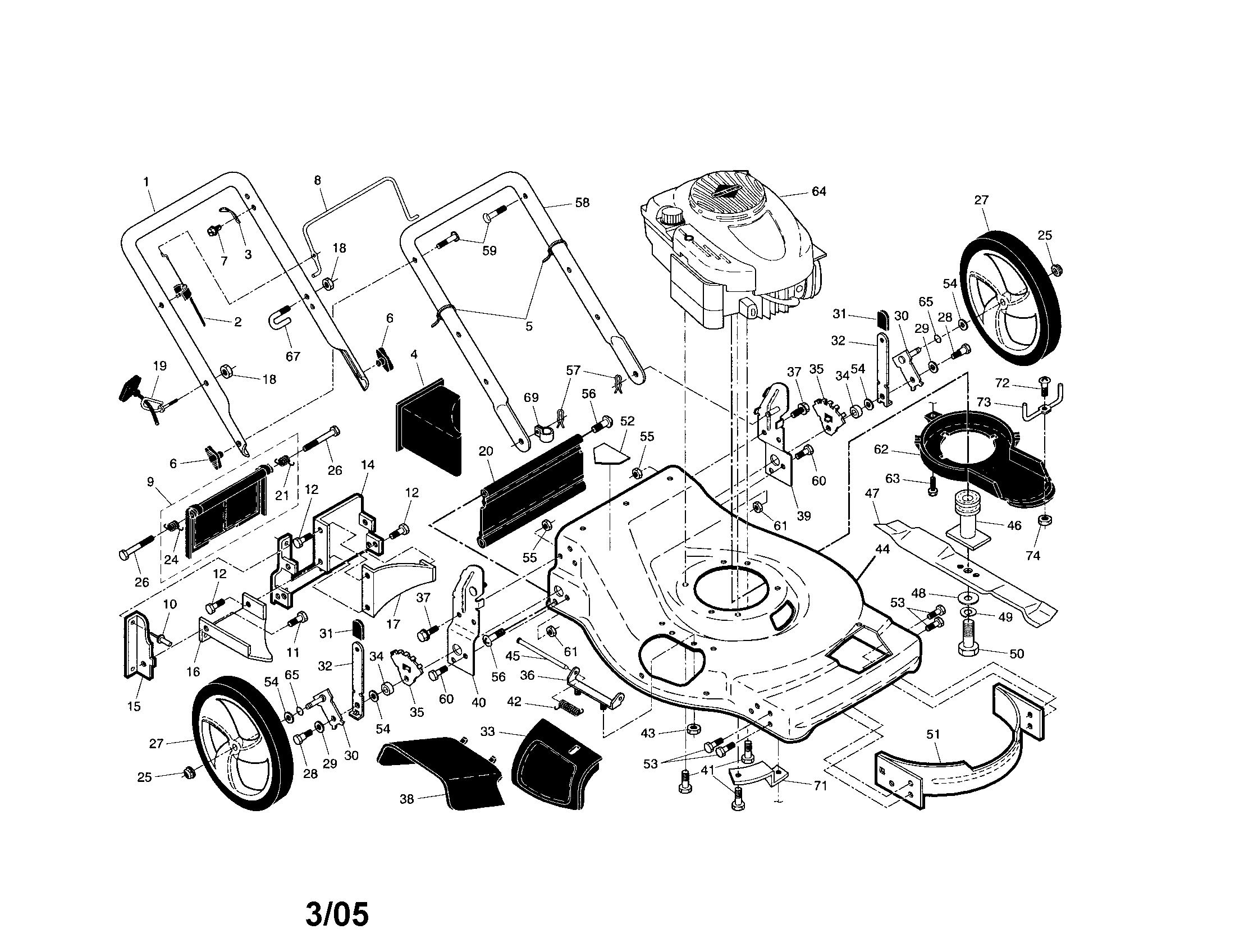

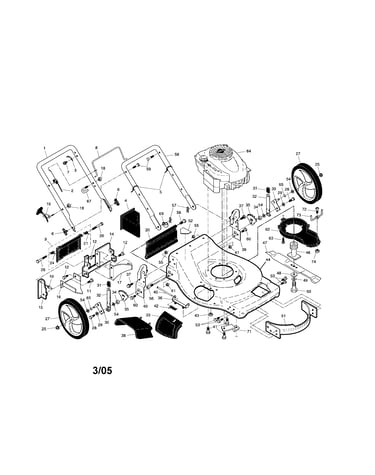

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Lawn Mower Wheel Dust Cover 189403
#14

Wheels/tires/bag diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Poulan Lawn Mower Ground Drive Belt, 3/8 X 33-3/16-in (replaces 532196857, 5321968-57) 196857
#33

Wheels/tires/bag diagram

Poulan lawn mower ground drive belt, 3/8 x 33-3/16-in (replaces 532196857, 5321968-57)

Part #196857

BEST SELLER

Get free shipping with Automatic Reorder

$18.90 |
10% OFF Phone Price : $20.90
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Drive Pawl 191017
#15

Wheels/tires/bag diagram

Drive pawl

Part #191017

Replaced by #532404845

?
Manufacturer substitution
This part replaces 191017. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lock Nut 751592
Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Lawn Mower Discharge Chute Door Assembly (replaces 170947, 532193679) 193679
#9

Engine/housing/handle diagram

Lawn mower discharge chute door assembly (replaces 170947, 532193679)

Part #193679

BEST SELLER
$14.95 |
12% OFF Phone Price : $16.95
In Stock
Lawn Mower Drive Control Cable (replaces 532197195) 197195
#8

Wheels/tires/bag diagram

Lawn mower drive control cable (replaces 532197195)

Part #197195

BEST SELLER
$34.11 |
15% OFF Phone Price : $40.11
In Stock
Lawn Mower Deflector Shield Torsion Spring (replaces 175285, 532193000, 5321930-00) 193000
#42

Engine/housing/handle diagram

Lawn mower deflector shield torsion spring (replaces 175285, 532193000, 5321930-00)

Part #193000

BEST SELLER
This item is not returnable
$5.49 |
15% OFF Phone Price : $6.49
