Model # 507474230 Official Sears 26" men's rivers edge 18-speed bicycle

Here are the diagrams and repair parts for Official Sears 507474230 26" men's rivers edge 18-speed bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Casing,cbl 3C5606-A01
#25

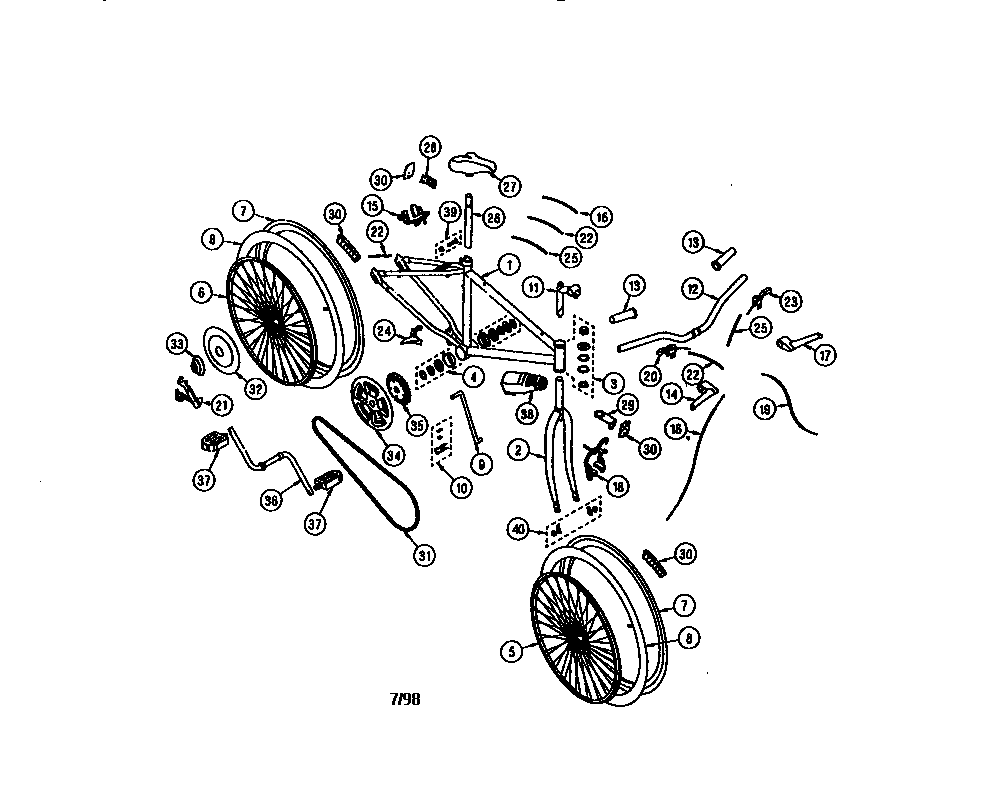

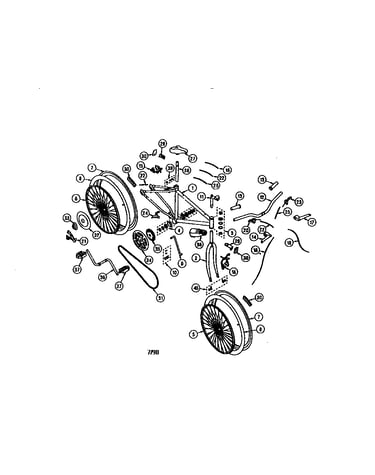

507.474230/16508 diagram

Casing,cbl

Part #3C5606-A01

The manufacturer no longer makes this part, and there's no substitute part

Crank 3C1700-44
#36

507.474230/16508 diagram

Crank

Part #3C1700-44

The manufacturer no longer makes this part, and there's no substitute part

Pedal Pair 3C2073-A01
#37

507.474230/16508 diagram

Pedal pair

Part #3C2073-A01

The manufacturer no longer makes this part, and there's no substitute part

Tire Tube 16225
#8

507.474230/16508 diagram

Tire tube

Part #16225

The manufacturer no longer makes this part, and there's no substitute part

Sprocket 3C6949
#33

507.474230/16508 diagram

Sprocket

Part #3C6949

The manufacturer no longer makes this part, and there's no substitute part

Front Wheel 3C3677
#5

507.474230/16508 diagram

Front wheel

Part #3C3677

The manufacturer no longer makes this part, and there's no substitute part

Lever Brk 3C6324-A01
#14

507.474230/16508 diagram

Lever brk

Part #3C6324-A01

The manufacturer no longer makes this part, and there's no substitute part

Hardware 3C0592
#10

507.474230/16508 diagram

Hardware

Part #3C0592

The manufacturer no longer makes this part, and there's no substitute part

Water Bttl K 3C5467-A02
#38

507.474230/16508 diagram

Water bttl k

Part #3C5467-A02

The manufacturer no longer makes this part, and there's no substitute part

Box (nsp) N/P
#1

507.474230/16508 diagram

Box (nsp)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part
