Model # 919167260 Official Craftsman air compressor

Here are the diagrams and repair parts for Official Craftsman 919167260 air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 56 parts |

#106

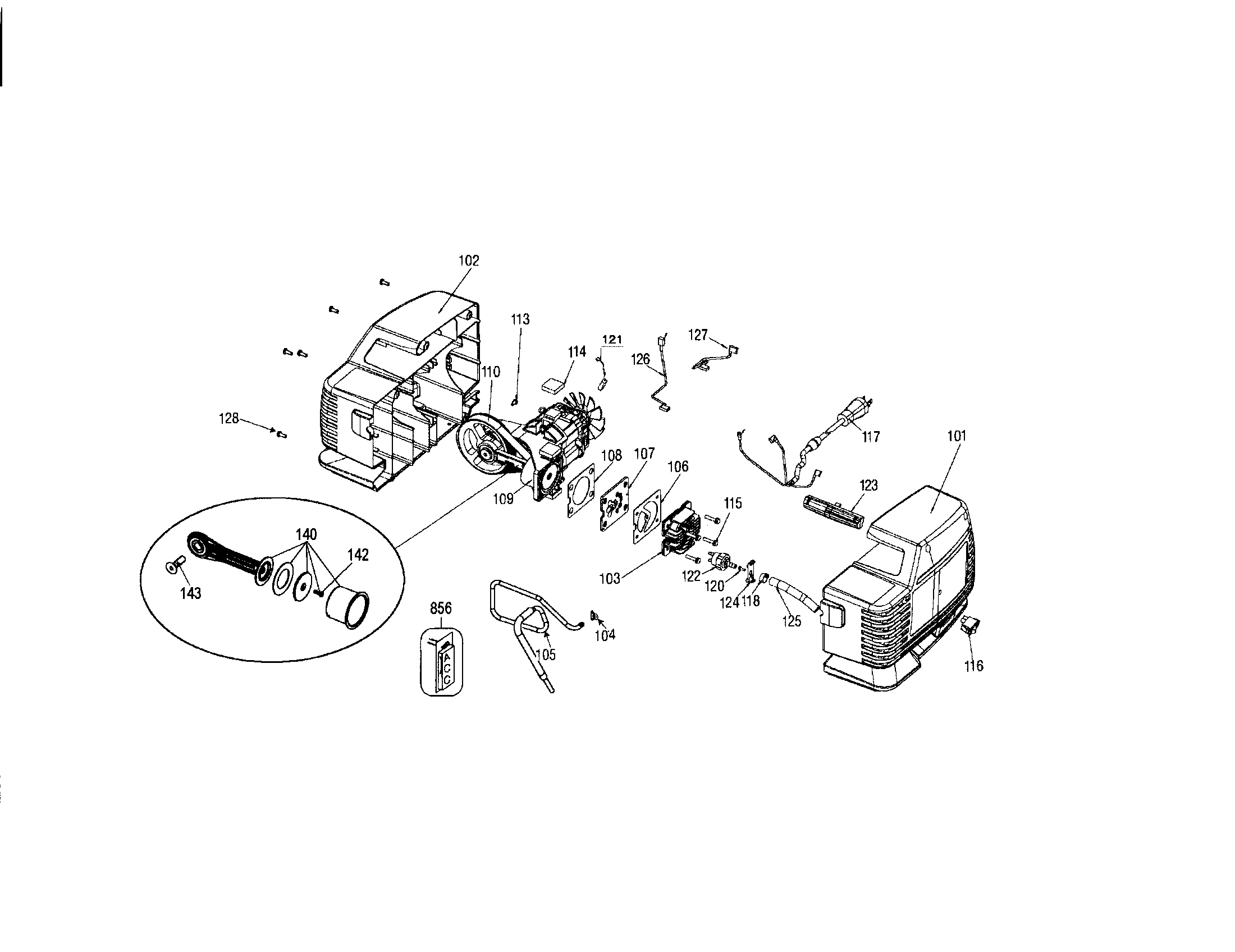

Pump assembly diagram

Air compressor head gasket

Part #Z-D24819

The manufacturer no longer makes this part, and there's no substitute part

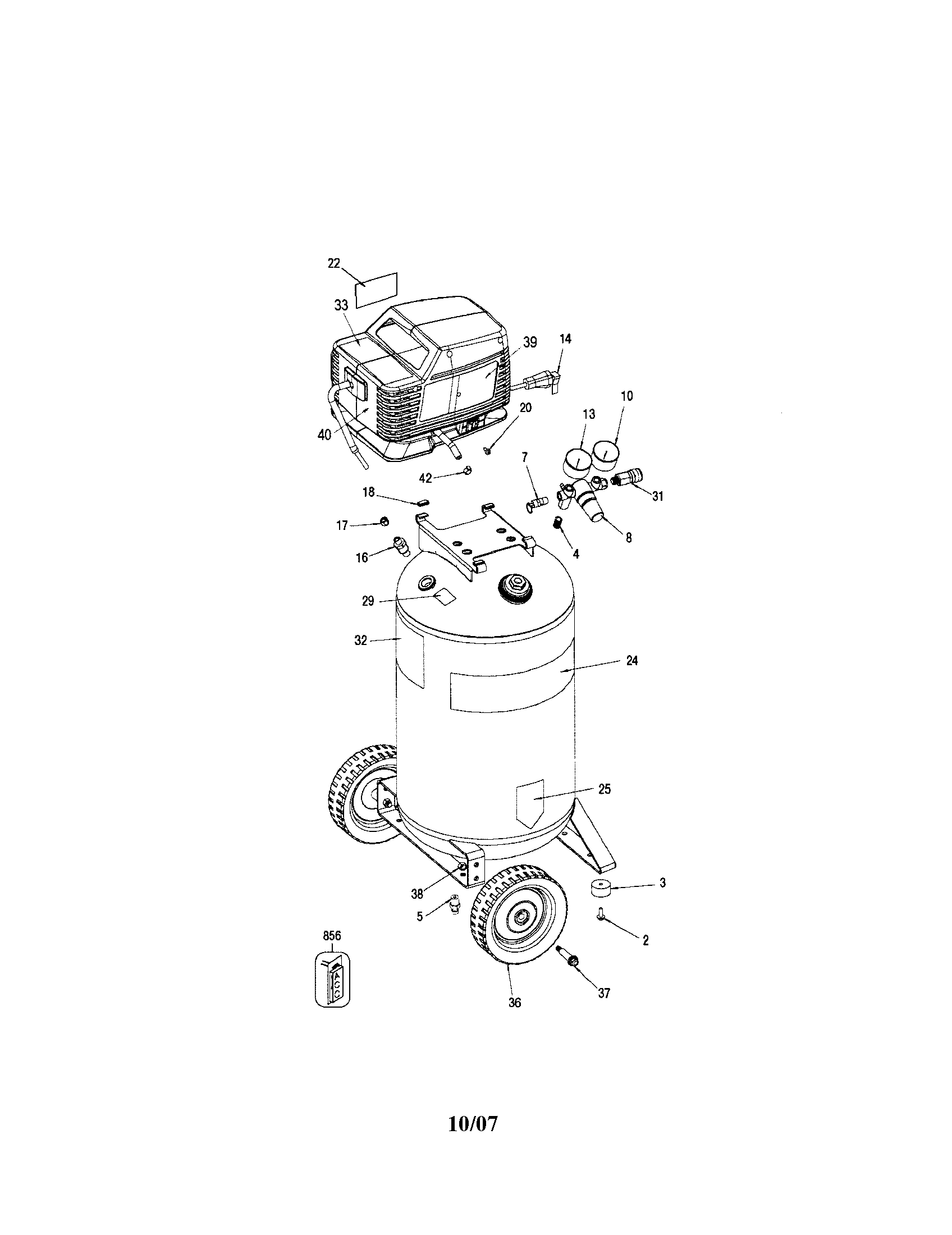

Air compressor diagram

Air compressor base bumper

Part #SST-5314-1

The manufacturer no longer makes this part, and there's no substitute part

#856A

Pump assembly diagram

Ratchet

Part #919-18288-B

The manufacturer no longer makes this part, and there's no substitute part

#117

Pump assembly diagram

Air compressor power cord

Part #A14430

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Air Compressor Owner's Manual 100001040

#NI

Air compressor diagram

Craftsman air compressor owner's manual

Part #100001040

The manufacturer no longer makes this part, and there's no substitute part

#113

Pump assembly diagram

Screw

Part #SUDL-9-1

The manufacturer no longer makes this part, and there's no substitute part

#102

Pump assembly diagram

Air compressor shroud, left

Part #1000001684

The manufacturer no longer makes this part, and there's no substitute part

#128

Pump assembly diagram

Air compressor shroud screw

Part #D29132

The manufacturer no longer makes this part, and there's no substitute part

#114

Pump assembly diagram

Air compressor pump isolator

Part #D25731

The manufacturer no longer makes this part, and there's no substitute part

#105

Pump assembly diagram

Air compressor outlet tube

Part #Z-A05346

The manufacturer no longer makes this part, and there's no substitute part
