Craftsman
Gas Line Trimmer

Model # 917773740 Official Craftsman wheeled weed trimmer

Here are the diagrams and repair parts for Official Craftsman 917773740 wheeled weed trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |
Lawn Mower Hex Flange Nut 409149
Lawn mower hex flange nut

Part #409149

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409149. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Hndl.knob.bl 189713X428
#12

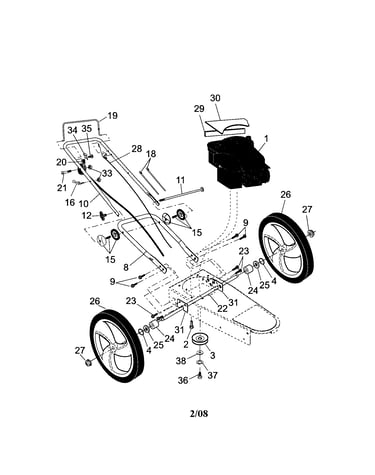

Engine/handle/wheels/tires diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Line Trimmer Belt 185476
#4

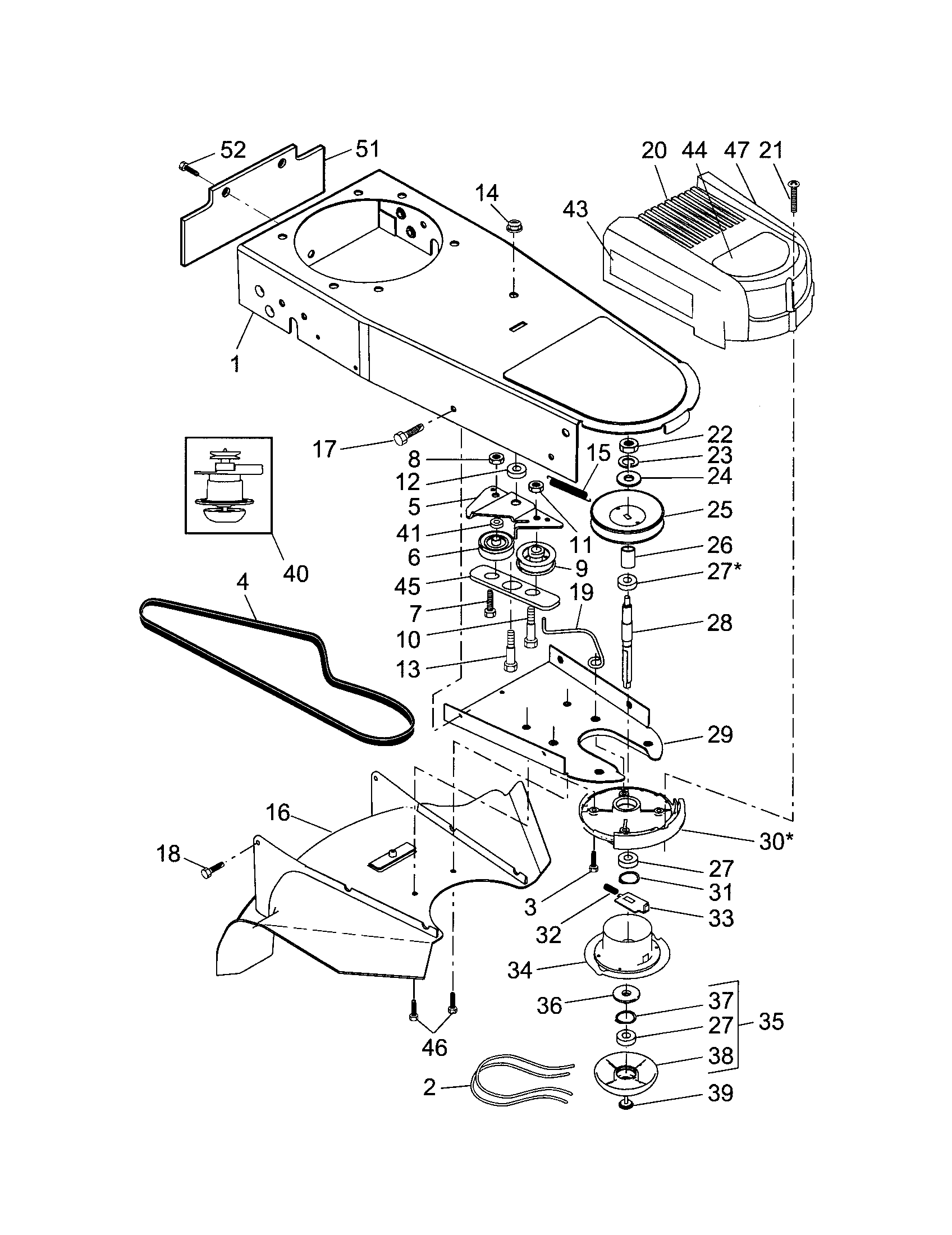

Chassis/deflector diagram

Line trimmer belt

Part #185476

Replaced by #532185476

?
Manufacturer substitution
This part replaces 185476. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$30.01 |
17% OFF Phone Price : $36.01
In Stock
Line Trimmer Carrier Plate 180338
#34

Chassis/deflector diagram

Line trimmer carrier plate

Part #180338

Replaced by #594935003

?
Manufacturer substitution
This part replaces 180338. Substitute parts can look different from the original.
BEST SELLER
$56.95 |
10% OFF Phone Price : $62.95
In Stock
High-wheel Trimmer Spindle Assembly 180333
#40

Chassis/deflector diagram

High-wheel trimmer spindle assembly

Part #180333

Replaced by #596878501

?
Manufacturer substitution
This part replaces 180333. Substitute parts can look different from the original.
BEST SELLER
$147.72 |
8% OFF Phone Price : $159.72
In Stock
Wheel.12.x1. 194387X460
#26

Engine/handle/wheels/tires diagram

Wheel.12.x1.

Part #194387X460

Replaced by #532433121

?
Manufacturer substitution
This part replaces 194387X460. Substitute parts can look different from the original.
BEST SELLER
$37.98 |
14% OFF Phone Price : $43.98
In Stock
Nut 132004
#33

Engine/handle/wheels/tires diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Line Trimmer Return Spring 173811
#15

Chassis/deflector diagram

Line trimmer return spring

Part #173811

Replaced by #532173811

?
Manufacturer substitution
This part replaces 173811. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Axle Shaft 169787
#22

Engine/handle/wheels/tires diagram

Axle shaft

Part #169787

Replaced by #592930001

?
Manufacturer substitution
This part replaces 169787. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Guide.rope.s 194788
#16

Engine/handle/wheels/tires diagram

Guide.rope.s

Part #194788

Replaced by #586122501

?
Manufacturer substitution
This part replaces 194788. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
