Model # WA45M7050AW/A4-00 Official Samsung washer

Here are the diagrams and repair parts for Official Samsung WA45M7050AW-A4-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

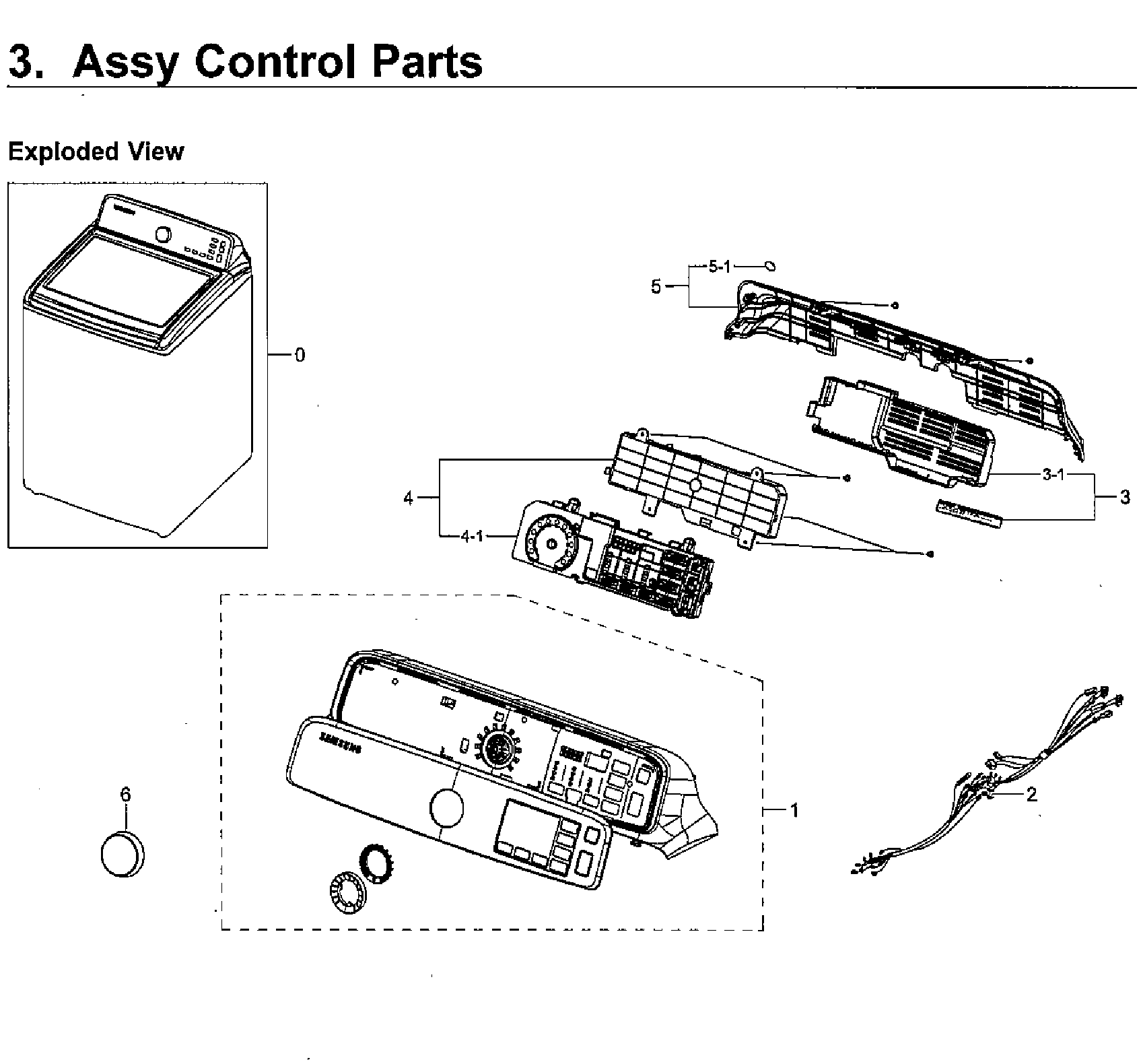

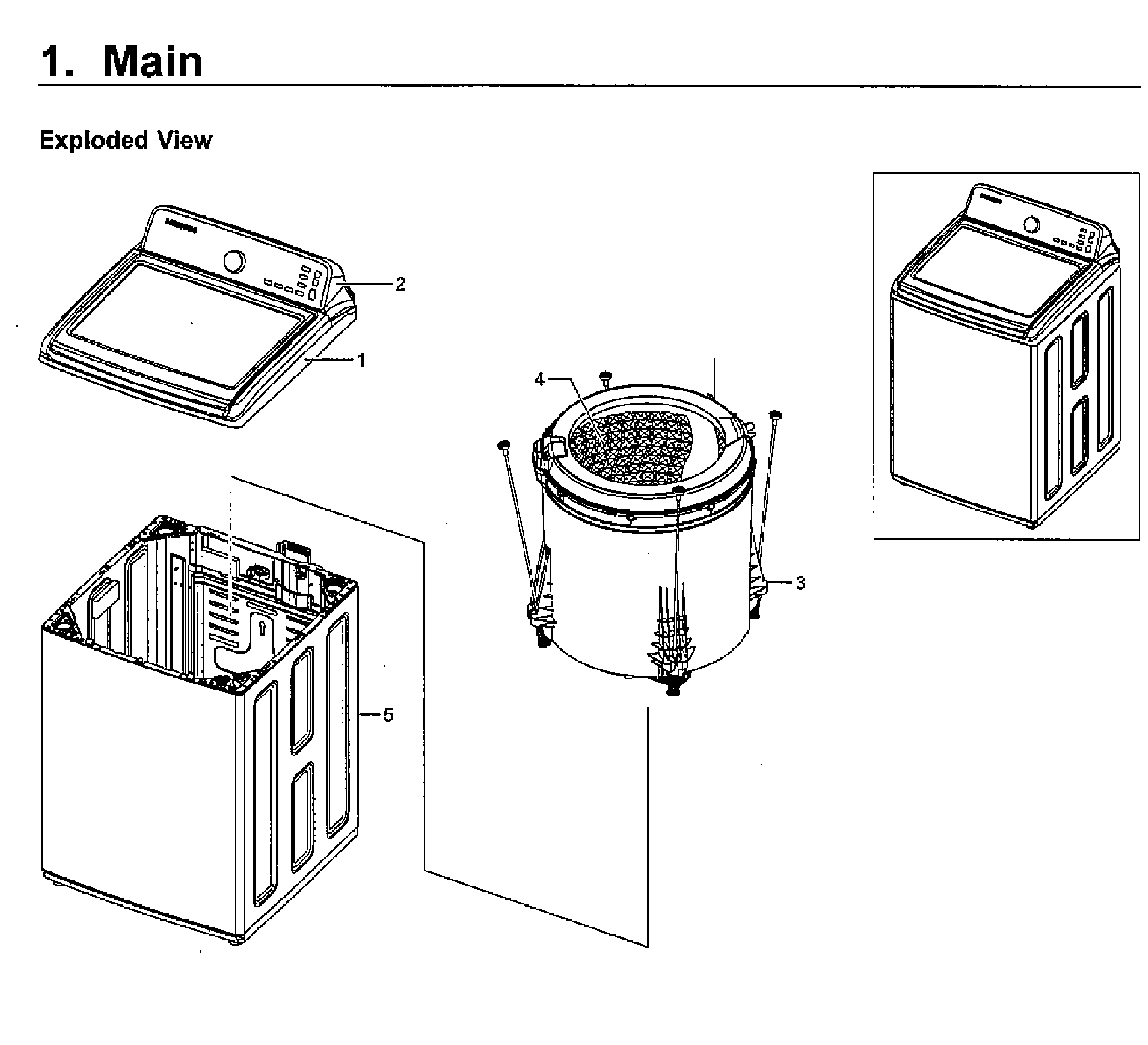

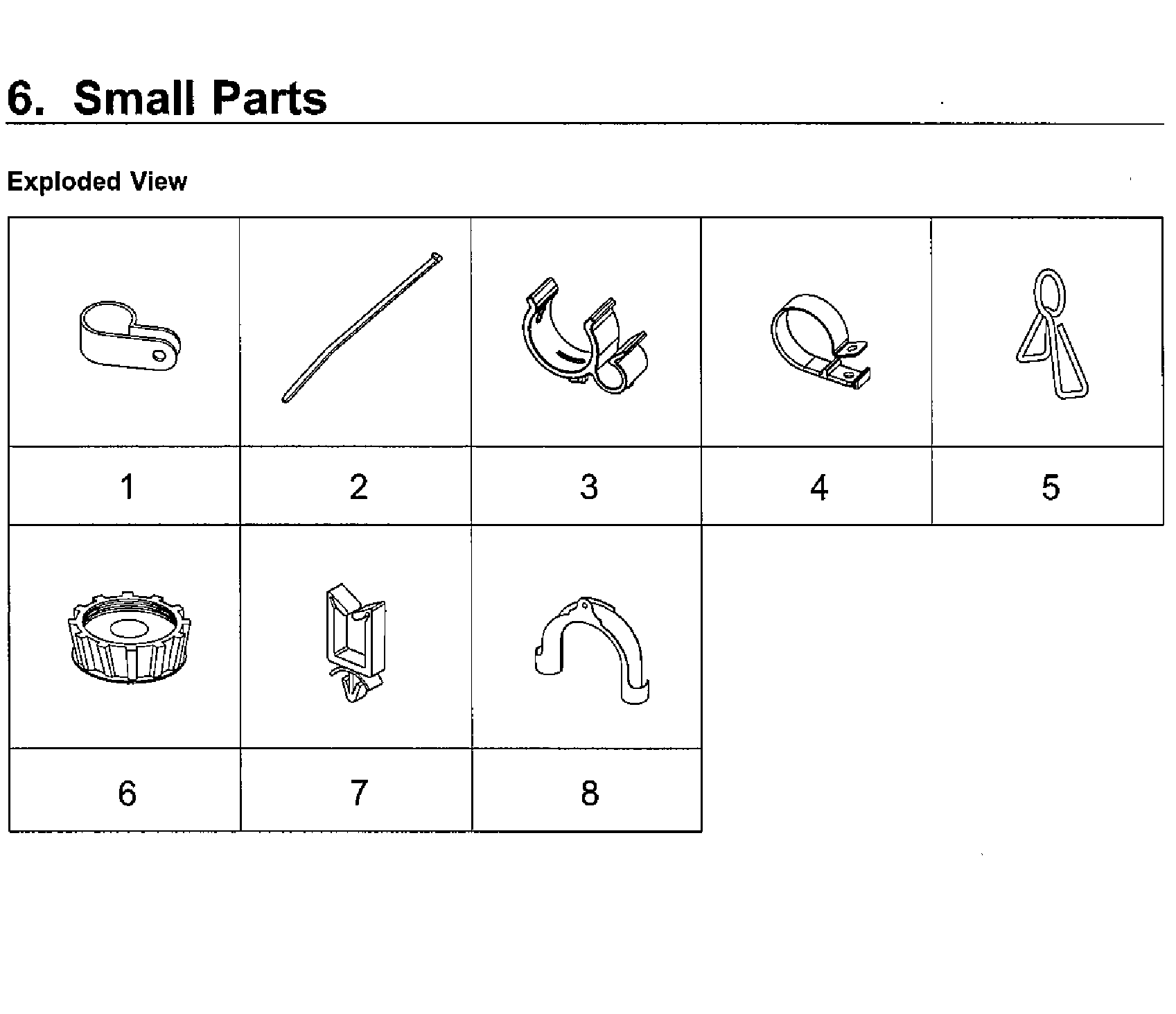

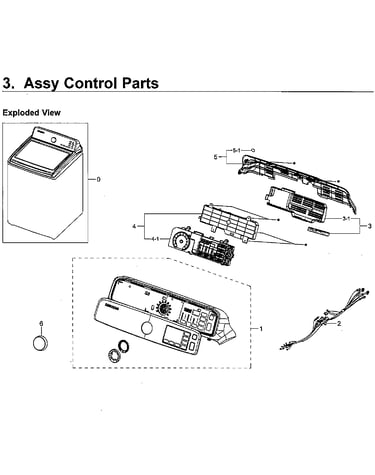

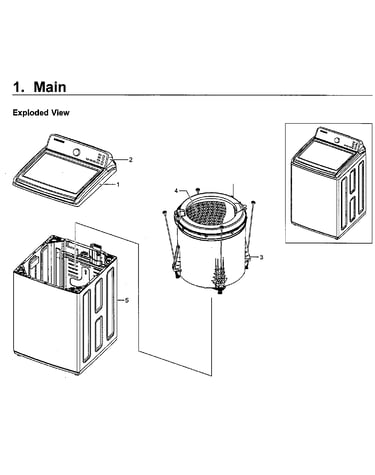

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Washer Drain Pump Assembly DC97-19289B
#5

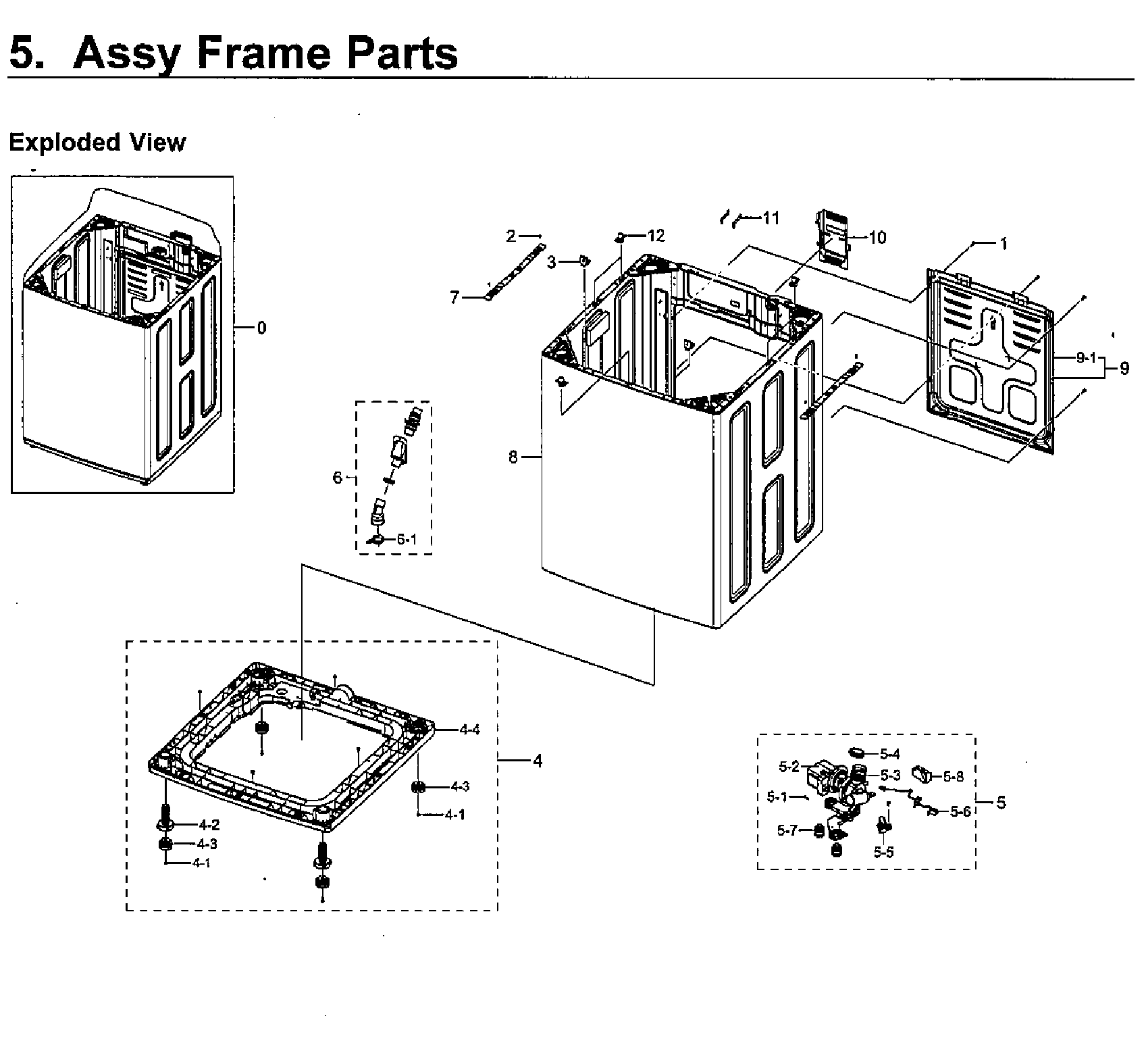

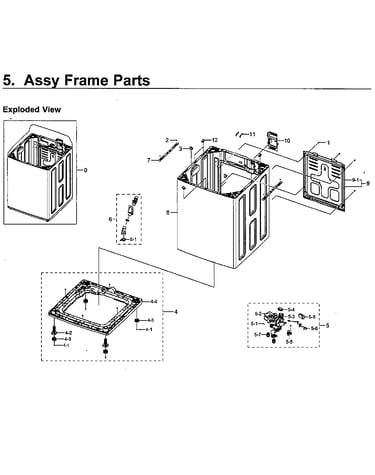

Frame assy diagram

Washer drain pump assembly

Part #DC97-19289B

Replaced by #DC97-19289F

?
Manufacturer substitution
This part replaces DC97-19289B. Substitute parts can look different from the original.
BEST SELLER
$70.54 |
8% OFF Phone Price : $76.54
In Stock
Washer Drain Pump Motor DC31-00178D
#5-2

Frame assy diagram

Washer drain pump motor

Part #DC31-00178D

Replaced by #DC31-00187A

?
Manufacturer substitution
This part replaces DC31-00178D. Substitute parts can look different from the original.
BEST SELLER
$129.67 |
8% OFF Phone Price : $141.67
In Stock
Washer Water Inlet Valve DC97-15459H
#1-16

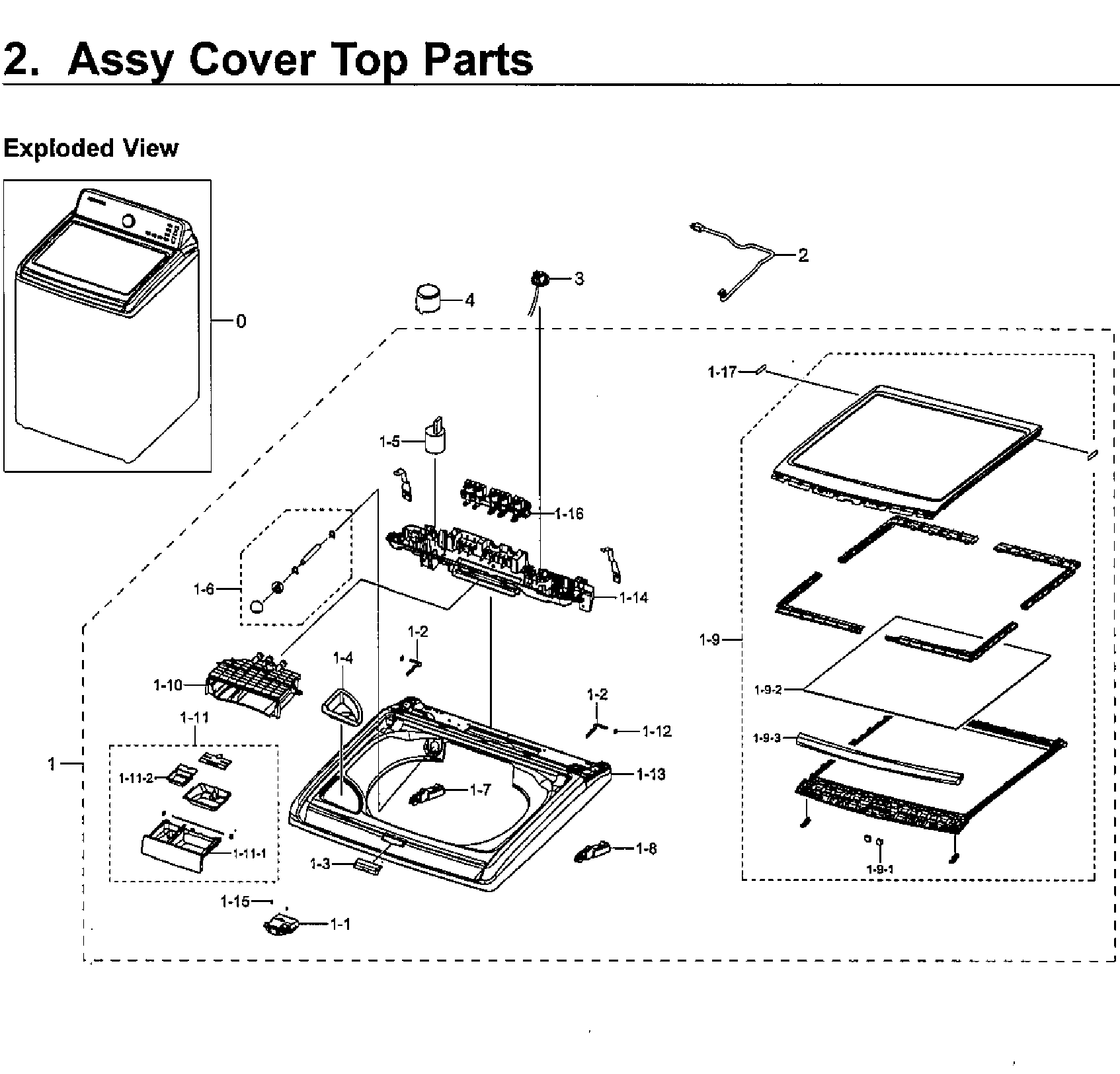

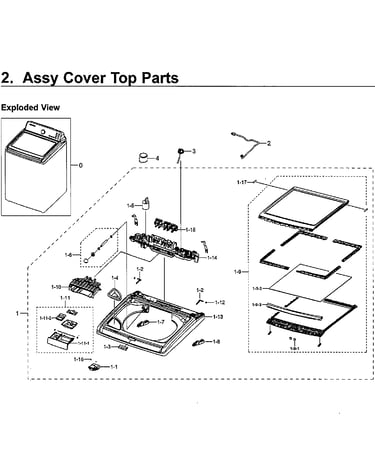

Top assy diagram

Washer water inlet valve

Part #DC97-15459H

BEST SELLER
$153.28 |
7% OFF Phone Price : $165.28
In Stock
Washer Suspension Rod DC97-05280W
#1-12

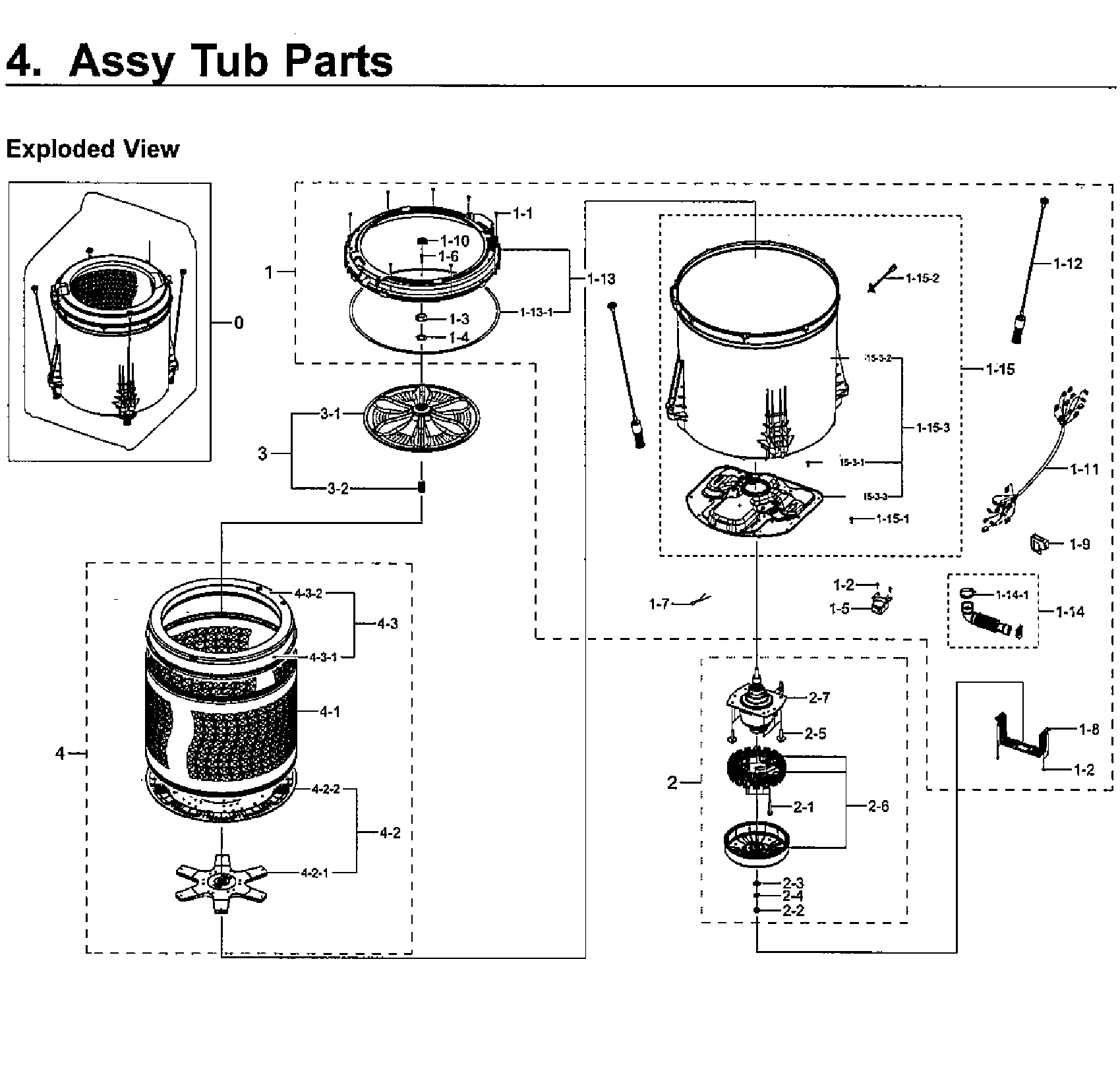

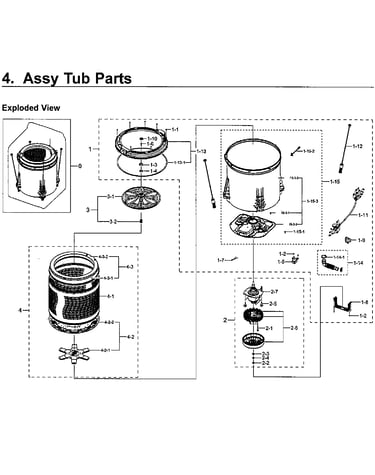

Tub assy diagram

Washer suspension rod

Part #DC97-05280W

BEST SELLER
$30.65 |
16% OFF Phone Price : $36.65
In Stock
Washer Drain Hose DC97-18682C
#6

Frame assy diagram

Washer drain hose

Part #DC97-18682C

Replaced by #DC97-18682D

?
Manufacturer substitution
This part replaces DC97-18682C. Substitute parts can look different from the original.
BEST SELLER
$105.27 |
10% OFF Phone Price : $117.27
In Stock
Washer Lid Lock Assembly (replaces Dc34-00025a) DC34-00025E
#1-1

Top assy diagram

Washer lid lock assembly (replaces dc34-00025a)

Part #DC34-00025E

BEST SELLER
$131.26 |
8% OFF Phone Price : $143.26
In Stock
Washer Hex Nut, 26-mm 6021-001573
#1-3

Tub assy diagram

Washer hex nut, 26-mm

Part #6021-001573

BEST SELLER
$42.17 |
12% OFF Phone Price : $48.17
In Stock
Washer Drain Hose DC97-17345A
#1-14

Tub assy diagram

Washer drain hose

Part #DC97-17345A

Replaced by #DC97-17345B

?
Manufacturer substitution
This part replaces DC97-17345A. Substitute parts can look different from the original.
BEST SELLER
$89.36 |
6% OFF Phone Price : $95.36
In Stock
Washer Thermistor (replaces Dc90-10128h) DC90-10128N
#1152

Tub assy diagram

Washer thermistor (replaces dc90-10128h)

Part #DC90-10128N

BEST SELLER
$43.26 |
12% OFF Phone Price : $49.26
In Stock
Washer Water-level Pressure Switch DC96-01703C
#3

Top assy diagram

Washer water-level pressure switch

Part #DC96-01703C

BEST SELLER
$66.28 |
8% OFF Phone Price : $72.28
In Stock
